Article

Genomic Evaluation of Coffea arabica and Its Wild Relative Coffea racemosa in Mozambique: Settling Resilience Keys for the Coffee Crop in the Context of Climate Change

by
Inocência da Piedade Ernesto Tapaça
1,2,
Lopes Mavuque
1,3,
Riccardo Corti
1,4,
Samuele Pedrazzani
1,4,
Ivete S. A. Maquia
1,5,
Castigo Tongai
1,6,
Fábio Luiz Partelli
7,
José C. Ramalho
1,8,
Isabel Marques
1,* and
Ana I. Ribeiro-Barros
1,8,*
1
Forest Research Center (CEF), Associate Laboratory TERRA, Instituto Superior de Agronomia (ISA), Universidade de Lisboa (UL), Tapada da Ajuda, 1349-017 Lisbon, Portugal
2
Mozambique Agricultural Research Institute (IIAM), Avenida das FPLM 2698, Mavalane B, Maputo P.O. Box 3658, Mozambique
3
Unilurio, Faculty of Agricultural Sciences Campus de Unang, EN733 Km 42, Unango P.O. Box 3003, Mozambique
4
Facoltà di Agraria, Università degli studi di Firenze, Piazzale delle Cascine 18, 50144 Firenze, Italy
5
Biotechnology Center, Eduardo Mondlane University, Km 1.5, Maputo P.O. Box 3453, Mozambique
6
Department of Scientific Services, Gorongosa National Park, Gorongosa P.O. Box 1983, Mozambique
7
Centro Universitário do Norte do Espírito Santo (CEUNES), Departmento Ciências Agrárias e Biológicas (DCAB), Universidade Federal Espírito Santo (UFES), Rodovia BR 101 Norte, Km 60, Bairro Litorâneo, São Mateus 29932-540, ES, Brazil
8
Unidade de Geobiociências, Geoengenharias e Geotecnologias (GeoBioTec), Faculdade de Ciências e Tecnologia (FCT), Universidade NOVA de Lisboa (UNL), Monte de Caparica, 2829-516 Caparica, Portugal
*
Authors to whom correspondence should be addressed.
Plants 2023, 12(10), 2044; https://doi.org/10.3390/plants12102044
Submission received: 10 March 2023 / Revised: 27 April 2023 / Accepted: 16 May 2023 / Published: 20 May 2023

Abstract

:
Climate change is negatively affecting the coffee value chain, with a direct effect on approximately 100 million people from 80 countries. This has been attributed to the high vulnerability of the two-mainstream species, Coffea arabica and Coffea canephora, to extreme weather events, with notable uneven increases in market prices. Taking into account the narrow genetic plasticity of the commercial coffee cultivars, wild-relatives and underutilized Coffea species are valuable genetic resources. In this work, we have assessed the occurrence of Coffea species in to understand the degree of genetic relationships between Coffea species in the country, as well as the patterns of genetic diversity, differentiation, and genetic structure. Only one wild species was found, C. racemosa, which showed a high level of genetic separation with C. arabica, based on plastid, as well as SSR and SNP analysis. C. arabica presented low levels of diversity likely related to their autogamous nature, while the allogamous C. racemosa presented higher levels of diversity and heterozygosity. The analysis of the functional pathways based on SNPs suggests that the stress signaling pathways are more robust in this species. This novel approach shows that it is vital to introduce more resilient species and increase genomic diversity in climate-smart practices.

1. Introduction

Coffee (Coffea L.) plays a prominent agricultural, social, and commercial role, standing as one of the world’s largest agricultural supply chains. The livelihoods of almost 25 million people are directly dependent on coffee cultivation, and more than 100 million people in over 80 countries are involved across the entire value chain [1]. The coffee market is also growing due to increasing consumption in emerging economies and a stronger interest in specialty coffee [1]. Despite the expansion of the coffee sector, the market relies mostly on genotypes from two species: Coffea arabica L. (Arabica coffee), which dominates the world market, and one of its ancestors, Coffea canephora Pierre ex A Froehner (Robusta coffee) [2,3]. However, the two-mainstream species are highly sensitive to changing temperatures and water availability [2,4,5], with visible impacts across the coffee value chain [1,6]. Traditionally, Arabica cultivars have an optimal annual mean temperature ranging between 18–21 °C, with temperatures above 23 °C accelerating fruit ripening, which can cause bean quality loss [7]. Seasonal high temperatures above 33 °C and dryer seasons can also reduce floral initiation and increase the production of abnormal reproductive structures and flower abortion [8]. Drought decreases coffee yield and quality, especially in Robusta coffee [9]. The effects of drought are also aggravated in Arabica plantations under full sunlight exposure [10]. According to the International Coffee Organization, 2020 and 2021 were already marked by a global reduction of Arabica and Robusta stocks associated with the vulnerability of these species to extreme weather events, with notable uneven increases in market prices [1]. The future seems not to be better as modeling analyses predict that the supply chain will be severely affected by climate change across this century, with significant effects on coffee yield and quality [10,11,12,13].
The quite low levels of genetic variation found in most commercial coffee cultivars [14] constitute a major concern regarding the long-term sustainability of the sector since there might not be enough genomic resilience to keep pace with climatic change [15]. Looking back at coffee, wild relatives offer the potential to increase the adaptive capacity of agricultural systems to diseases and climatic pressures, representing a large pool of new, untapped, genetic variation [16,17,18]. Therefore, considering the global environmental and anthropogenic scenario, as well as the narrow genetic plasticity of commercial coffee cultivars, several approaches are being implemented to ensure the sustainability of this important crop. The introduction of wild relatives and underutilized species, such as Coffea racemosa Lour., Coffea zanguebariae Lour., or Coffea liberica Hiern in the value chain, has been pointed out as one of the most promising approaches [19]. These species are considered highly resilient to environmental pressures, particularly high temperatures, and extreme precipitation events [19,20,21,22]. Additionally, C. racemosa (and probably C. zanguebariae, which is often misclassified as C. racemosa) shows relevant resistance to several pests and diseases [19,21,23]. Such tolerance to abiotic and biotic stresses, together with the short ripening period and unique flavor attributes, make these species an outstanding gene pool, as well as an important resource for new coffee blends [19].
Another recommended approach to mitigate climate change impacts on the coffee crop is the shift from intensive production under the full sun (and monocrop systems) to agroforestry systems (AFS) using native or other economic-important trees for shade, constituting refuges for biodiversity and providing multiple ecosystem services (e.g., timber, food, carbon sequestration, or nutrient cycling) [10,24,25,26]. The effectiveness of this strategy, which provides a better micro-environment for coffee plants, is however dependent on several factors, such as the agroecological conditions, shade density, crop management, and the cultivars used [27,28]. Successful coffee AFS systems have been implemented in several countries in the Americas and Africa countries [10,24,26,29,30]. Among them, the coffee AFS system established in the Gorongosa Mountain, which is part of the Gorongosa National Park (GNP) in Mozambique, has been pointed out as one of the most emblematic cases, not only in terms of the coffee crop sustainability but also regarding the positive socio-economic benefits to local communities, with a direct impact in the reversion of the accelerated loss and degradation of the tropical rainforest [10,26].
Located in southern Africa, Mozambique might contribute significantly to the coffee value chain, although it is currently not included in the list of coffee-producing countries: (i) it is a promising source of coffee wild-relatives [19,20,23], and (ii) it has a remarkable abundance of native forests [31]. A recent molecular study solved ambiguities between C. racemosa and C. zanguebariae and elucidated their distribution in northeastern Mozambique (Cabo Delgado Province) [19]. The same authors pinpointed the knowledge gap regarding the current distribution of these species in the rest of the country. Indeed, cultivation of C. racemosa in central Mozambique (Inhambane Province) was first reported in 1876 [32], and the last full description dates from 1973 [20]. More recently, a new study mapped the distribution and suitability of C. arabica plantations across the country [10]. Four regions (Manica, Sofala, Zambezia, and Nampula) were identified as suitable for Arabica, particularly under AFS management.
In this study, we have assessed, for the first time, the occurrence of Coffea species in southern and central Mozambique (Figure 1A) and the impact of genetic diversity on the long-term sustainability of the AFS implemented in Gorongosa Mountain. Specifically, we first aimed at understanding the degree of genetic relationships between Coffea species in Mozambique. For that, we used plastid markers to understand the phylogenetic relationship between these two species. Then, we used nuclear simple sequence repeat (SSR) polymorphisms to understand the patterns of genetic diversity, differentiation, and genetic structure. For that, we compared the cultivated C. arabica plants (Figure 1B) with the ones farmed in northern Mozambique (Niassa) together with the wild relative, C. racemosa, that was found during our field surveys (Figure 1C). To complement the SSR study, we investigated coffee genome-wide diversity using single nucleotide polymorphisms (SNP) generated by Genotype-by-Sequencing (GBS) on a reduced sampling set, allowing us to further detect the patterns of diversity and functional pathways involved, as well as to test possible differences with SSR markers. This is the first study that reveals the underlying genomic mechanisms explaining the different adaptation abilities of the cultivated C. arabica and the wild relative, C. racemosa.

2. Results

2.1. Plastid Relationships among Coffea Samples

Two main maternal lineages were retrieved in phylogenetic analyses: one cluster containing all the samples of C. arabica, and the other all samples of C. racemosa (Figure 2). The cluster containing all C. arabica cultivars was phylogenetically apart from all C. racemosa. In contrast, three subclusters were retrieved within the C. racemosa lineage (Figure 2).

2.2. Genetic Diversity in C. arabica and the Wild Relative C. racemosa

Based on nuclear microsatellites, a total of 101 alleles were found among all samples: 56 in the set of C. racemosa samples and 41 in C. arabica samples or 62 when including also the three cultivars of C. arabica from the group Catimor. The average number of alleles and the levels of observed and expected heterozygosity were always lower in C. arabica than in C. racemosa (Table 1). The mean Shannon Information Index (I) varied from 0.459 among C. arabica to 0.905 in C. racemosa and was particularly low in the C. arabica cultivars of the Gorongosa Agroforestry System (CaAFS) (0.268). The fixation index was negative in all C. racemosa accessions, as well as in the C. arabica cultivars from Niassa, while the cultivars from the CaAFS and CIFC collection showed positive values of fixation (Table 1). Estimates of genetic diversity based on SNPs revealed extremely low genetic diversity in C. arabica (Ho = 1.1± 0.02; He = 2.6 ± 0.9) when compared with C. racemosa samples (Ho = 2.9 ± 0.4; He = 3.1 ± 0.12).

2.3. Genetic Structure

Microsatellite data based on SSRs revealed a total of five genetic clusters among all samples, based on the highest LnP(D) and ΔK values obtained in STRUCTURE HARVESTER (Figure S1). The different genetic membership retrieved divided C. racemosa samples from Sofala and Maputo vs. Inhambane (HO, IR, MX, MR, and ZV) provinces (Figure 3A). In C. arabica, genetic memberships divided samples from the Gorongosa CaAFS, Niassa (Nia), and the three cultivars from CIFC included in this study (CV) (Figure 3A). However, GBS data retrieved one single genetic membership per species, which segregated C. racemosa from C. arabica samples (Figure 3B).
No genetic admixture was detected between samples, either using SSRs or GBS data. Linkage disequilibrium (LD) was overall low in C. racemosa but significantly higher in C. arabica (Figure S2). In both species, LD values did not change significantly (p > 0.05) with the increasing physical distance of SNPs.
Results were generally compatible with the topology of NJ trees and the PCA patterns, which also isolated C. racemosa from C. arabica samples (Figure 4). It is worth highlighting that Sofala and Maputo are segregated from Inhambane in STRUCTURE, which can also be observed in the NJ tree and PCA from SSR data (Figure 4A,C) but are not well discriminated using the GBS data (Figure 4B,D).

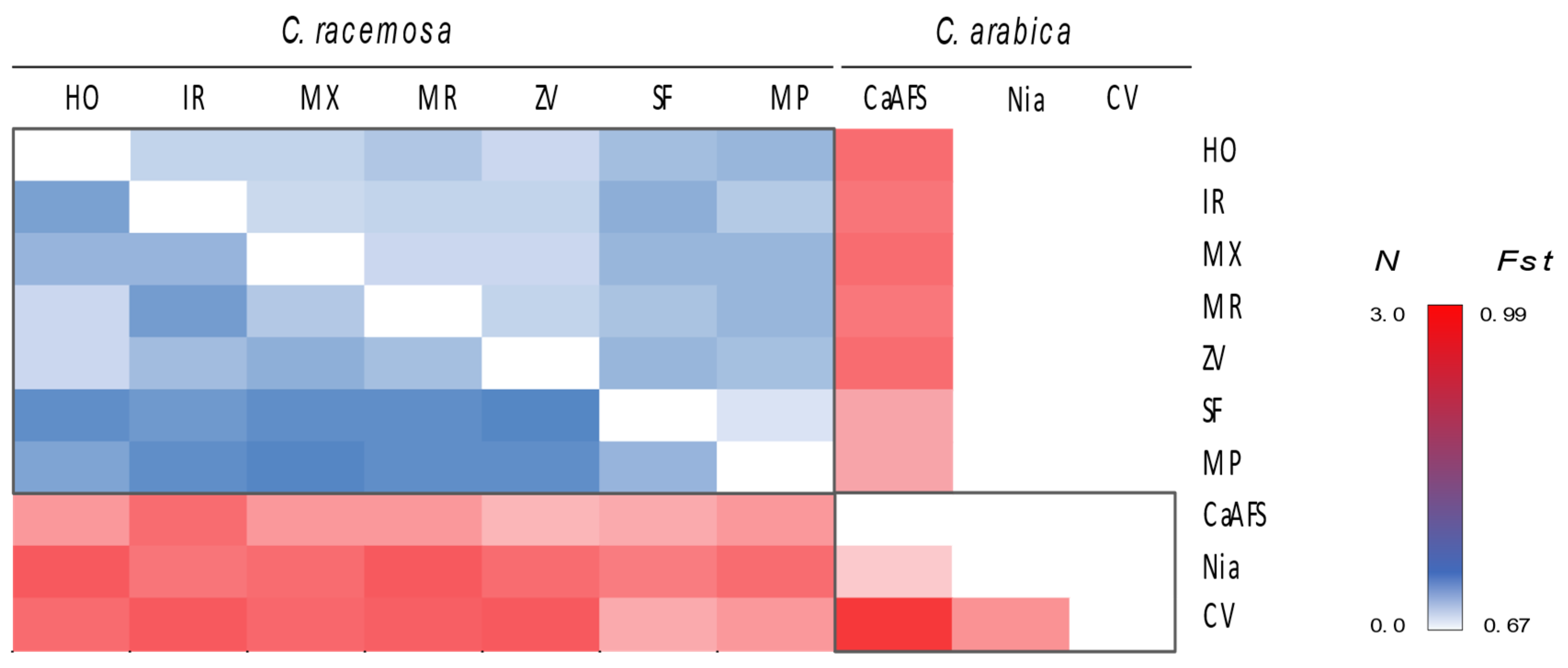

2.4. Genetic Differentiation between Species and Sites

Overall, genetic differentiation was significantly high (AMOVA FST = 0.5044, PHI = 0.673, p < 0.001). The variance was equally attributed among the K = 5 groups found by STRUCTURE (50.45% and 67.32%), and within sites (49.55%; 32.67%) based on SSR and GBS data, respectively.
A large genetic divergence was found between C. arabica and C. racemosa either using pairwise genetic differences of SSRs based on Nei’s Genetic Distance or using Fst values from GBS (Figure 5). It is worth mentioning the large range of divergence found between C. arabica cultivars from Gorongosa and the ones collected in Niassa, and even with the CIFC cultivars, where the highest level of divergence was found. Genetic distances were lower between the cultivars of C. racemosa sampled in Sofala and Maputo than the ones from Inhambane (HO, IR, MX, MR, and ZV), supporting the previously reported results of genetic structure.

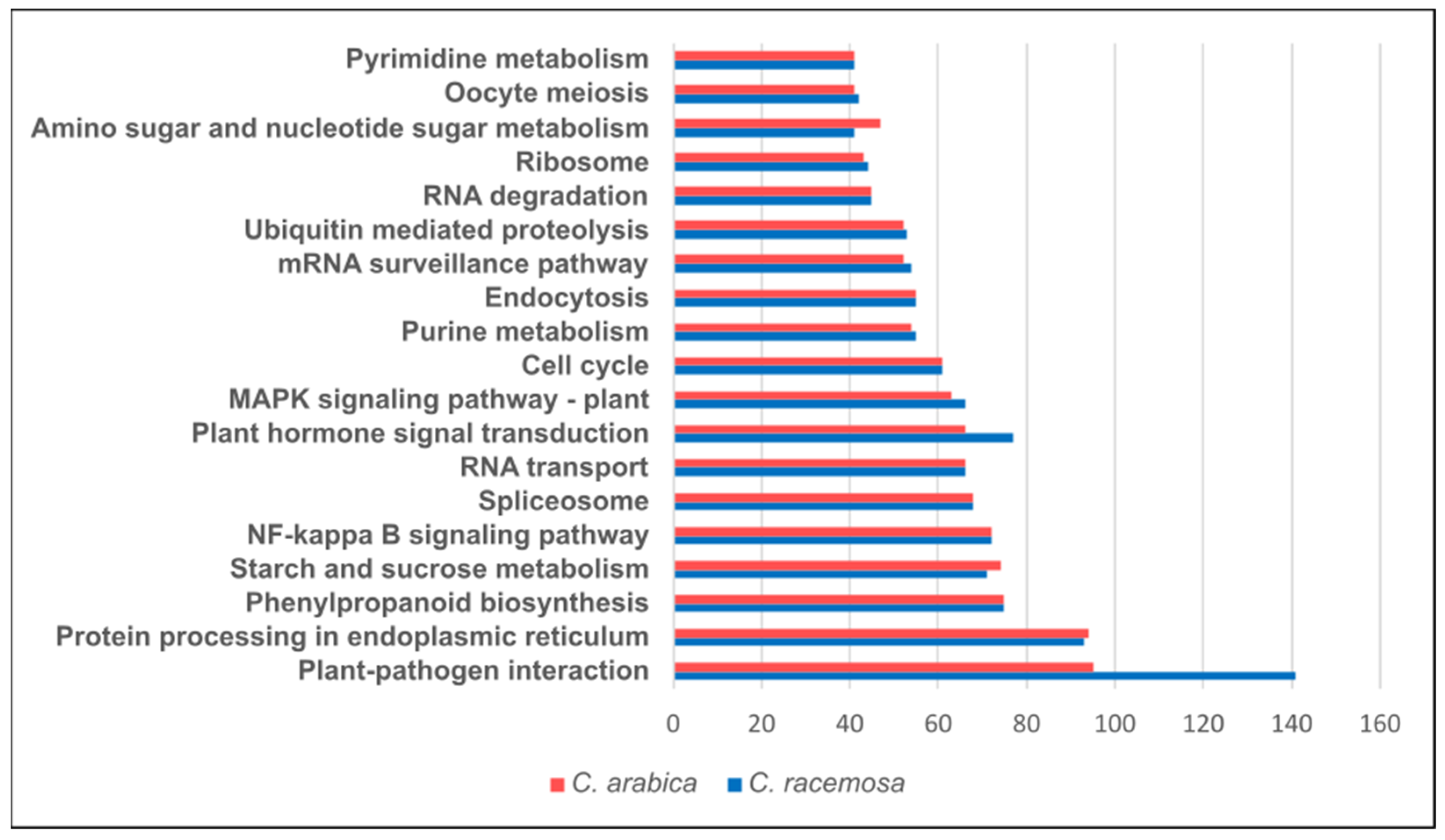

2.5. Annotation and Functional Pathways of SNPs

Sequencing yielded a total of 170,720,052 raw reads, which were reduced to 51,115,669 after quality filtering (Table S6). Overall, an average of 79% of cleaned reads were mapped to the reference genome. A total of 3,058,824 SNPs were found, including 1,461,205 intergenic SNPs, 185,956 intronic SNPs, 115,488 exonic SNPs, 7908 SNPs in splice site, 772,163 upstream, 449,139 downstream, 39,278 in UTR3, and 27,687 in UTR5 (Figure S2). In both species, SNPs were involved in 191 KEGG pathways (Table S2) being top-regulated: ‘Plant–pathogen interaction’, ‘Protein processing in endoplasmic reticulum’, and ‘Phenylpropanoid biosynthesis’ (Figure 6). Only three pathways showed significant differences between the two species: the ‘Plant–pathogen interaction’ (F2,1 = 25.892, p < 0.05) and the ‘Plant hormone signal transduction’ (F2,21 = 26.034, p < 0.05) had more SNPs involved in C. racemosa than in C. arabica while ‘Amino sugar and nucleotide sugar metabolism’ was higher in C. arabica than in C. racemosa (F2,23 = 22.056, p < 0.05; Figure 6). Interestingly, SNPs linked with ‘Caffeine metabolism’ (Table S2) showed no significant differences between the two cultivars (F2,23 = 1.741, p > 0.05).

3. Discussion

3.1. Assessment of Coffea Species in Southern and Central Mozambique Using Plastid Markers

Despite the fact that other wild relatives are supposed to occur in Mozambique such as C. zanguebariae, for which herbarium data suggested a sparse distribution in these regions [33,34,35,36], our field expeditions (Figure 1) found only one wild Coffea species, C. racemosa (known also as Inhambane coffee). Molecular analysis based on plastid markers congruently found two main maternal lineages, splitting this species from C. arabica (Figure 2). The cluster grouping C. arabica cultivars was phylogenetically apart from C. racemosa, supporting a single maternal origin scenario for each species [37]. In contrast, three subclusters were retrieved within the C. racemosa lineage, suggesting different origins for this species in Mozambique (Figure 2).
One explanation for the absence of other wild relatives in these areas could be the genetic drift of C. zanguebariae from southern and central Mozambique due to environmental and anthropogenic pressure. Indeed, during our expeditions, we could not validate many historical herbaria locations (personal observations). This was not unexpected and might be interconnected with the fact that (i) Mozambique is among the most disaster-prone countries on a global scale [38], and has gone through a series of natural shocks over the last decades, e.g., the flooding of 2000 and 2017, the Earthquake of 2006, the cyclone Favio in 2007, Idai and Kenneth in 2019, the storm Dando in 2012, or the current tropical storm Freddy that hazards the country as we write this article [39,40]; (ii) the related resettlements of local communities; and (iii) the dynamics of land use and land cover [41]. The second possibility is that the species’ identity has been mistaken in the past. Coffea racemosa has been reported as endemic to southern and central Mozambique, distributed across coastal and riverine forests as well as deciduous woodlands and bushlands (0 to 500 m above sea level—a.s.l.), while C. zanguebariae was considered endemic to northern Mozambique, distributed across dry deciduous forests and riverine and coastal thickets (0 to 350 m a.s.l.) [33,35]. On the other hand, despite the taxonomic advances to discriminate the two species, C. racemosa and C. zanguebariae are in fact so similar that they have often been believed to be the same, and only recently, DNA markers allowed accurate species discrimination [19]. It is, thus, possible that many records have misidentified these species although further field expeditions should be done in the north of Mozambique.

3.2. Low Genetic Diversity in Coffea arabica in Comparison with the Wild Relative C. racemosa

Coffea arabica presented very low levels of genetic diversity in comparison with C. racemosa (Table 1). In our study, the mean number of alleles (Na) and effective alleles (Ne) was consistently below two in the cultivars from the three provenances, Gorongosa, Niassa, and CIFC. This value is much lower than those reported in other studies based on SSR markers, which ranged from ca. 3 to 6 [42,43,44,45]. However, the observed heterozygosity (Ho) and expected heterozygosity (He) values were within the expected range considering the low genetic values usually reported in microsatellite studies of C. arabica [45,46]. In addition, our estimates of genetic diversity based on SNPs also revealed extremely low values in C. arabica when compared with C. racemosa. In fact, the overall congruent results found between SSR and SNP data suggest that these independent markers can detect similar patterns of genetic diversity. However, between the two markers, SSRs remain the most cost-effective and rapid marker being widely used in most genetic population studies.
The low levels of heterozygosity are likely due to the autogamous nature of C. arabica [45,47,48,49] and the single polyploidization event at the origin of the tetraploid genome of this species, which was probably narrowed further in some cultivars of this species [14]. Indeed, the Shannon diversity index (I) of all C. arabica cultivars used in this study was very low (0.48 on average), supporting the genetic bottleneck hypothesis in commercial Arabica varieties [44]. In contrast, the consistently high diversity levels observed in C. racemosa are likely due to the allogamy of the species [50]. These genetic diversity results were comparable to those reported in other tropical trees, such as Warburgia salutaris from southern Mozambique [51] or Ocotea rotundata from the northern Andean forests [52], suggesting that C. racemosa retains high levels of genetic diversity, especially when compared with C. arabica.
The absence of gene flow between the two species would explain the finding of different genetic clusters (and the absence of genetic admixture) that segregated all C. racemosa from the C. arabica sample, either when considering STRUCTURE results (Figure 3), the topology of NJ trees, or PCA patterns (Figure 4). The large genetic divergence found between C. arabica and C. racemosa is also supported by the pairwise genetic differences of SSRs based on Nei’s Genetic Distance and the Fst values from GBS (Figure 5). It is also worth mentioning the large range of divergence found between C. arabica cultivars from Gorongosa and the ones implemented in Niassa, and even with the CIFC cultivars, where the highest level of divergence was found. Gene flow that usually results from pollen and seed migration plays a significant role in preventing genetic differentiation among populations while contributing to the conservation of genetic diversity [53]. The autogamous nature of the cultivated C. arabica contributes to such differentiation and is a concern in light of environmental changes. In contrast, pollination by birds or insects and the dispersion of seeds are likely to occur in C. racemosa, contributing to the patterns of genetic diversity and structure found in this study. Additionally, although hybrids between the diploid wild C. racemosa and the tetraploid cultivated C. arabica would be possible, hybrid triploid plants are expected to be infertile (but see [54]).
As a wild relative of coffee and despite the important role that C. racemosa might have to implement sustainable changes in the coffee sector, fundamental basic data, such as the type of breeding system, and the type of pollinators and dispersers involved in this species are unknown. This is particularly significant as we found differences in the functional pathways of these two species that could reflect differences in the tolerance to environmental stresses (Figure 6). For instance, the ‘Plant–pathogen interaction’ and ‘Plant hormone signal transduction’ were significantly more represented in C. racemosa, suggesting that the signaling pathways related to stress tolerance are more robust in this species [55]. On the other hand, C. arabica was more enriched in SNPs involved in amino sugar and nucleotide sugar metabolism than C. racemosa. Some enzyme proteins in these pathways are also involved in stress response in plants and thus, a greater number of genes from these pathways may be redundant, as they are important to maintain pivotal functions, including cell wall synthesis and cell repair processes (e.g., associated with pectin synthesis) [53,56]. Interestingly, SNPs linked with the ‘Caffeine metabolism’ showed no significant differences between the two cultivars (Table S2), even though C. racemosa is sought as a “naturally decaffeinated” bean due to its low levels of caffeine [19,57]. Based on local records, this species is thought to produce an aromatic drink with low caffeine levels [58]. This highlights the need for more studies on the functional traits of C. racemosa, namely the quality of its beans.

3.3. Implications for the Management of the Gorongosa Agroforestry System

The use of AFS in Gorongosa Nacional Park is seen as a promising and compatible approach to help adapt to climate change while reconciling biodiversity conservation and local development [10,26,59]. The fact that coffee originates from high-altitude forest regions and can develop in shady areas [36], together with the historical context of coffee in Mozambique, were the main reasons for the implantation of this system in the Gorongosa Mountains. However, our results showed very low genetic diversity values in C. arabica plants used in the AFS, which could affect the long-term sustainability of this system. In this context, the introduction of new Arabica cultivars in the Gorongosa AFS would be an asset, given the low genetic diversity of the implanted cultivar. More efforts involving coffee producers should be developed to create awareness of the importance of conserving C. racemosa. Additionally, attempts to introduce C. racemosa and other crop-wild relatives into the value chain should be placed on the agenda. Wild coffee species are already being farmed in Kwa Zulu Natal in South Africa (Hluhluwe) [19], and although yields are low when compared with the widely used C. arabica and C. canephora, their specific attributes regarding environmental stress tolerance and flavor could be useful for new blends [19]. Recognizing the global socioeconomic importance of coffee, particularly in many developing countries that largely depend on this commodity, it is vital to innovate the coffee value chain, introducing more resilient species, increasing genomic diversity, and adopting climate-smart practices.

4. Materials and Methods

4.1. Plant Sampling and DNA Isolation

Thirty-five samples of C. arabica (27 from the Gorongosa Mountain, Sofala Province; and eight from Niassa Province) and 48 wild relatives collected in three provinces from central and southern Mozambique (Maputo, Inhambane, and Sofala) (Figure 2) were included in the analysis. This region gathered most of the historical collections recorded for Coffea in Mozambique. The study also included three additional commercial genotypes from Centro de Investigação das Ferrugens do Cafeeiro (CIFC), totaling 86 samples. The main variety of C. arabica cultivated in the Gorongosa Mountain is a commercial variety imported from Zimbabwe due to similar agroecological conditions in both countries. The cultivar is labeled Costa Rica (CR) and it is claimed to be tolerant to coffee leaf rust and coffee berry disease. The CIFC cultivars are certified hybrids of the Catimor group (CR-95). Coffea arabica is a tetraploid species with 2n = 44 chromosomes that usually behave genetically as diploid [60] while C. racemosa is a diploid species with 2n = 22 chromosomes [61]. In each site, 6 to 10 individuals were randomly collected with a minimum sampling distance of 10 m. Samples, locations, and geographic coordinates are shown in Table S1.
Fresh leaves were collected for each sample, dried on silica gel, and stored at −80 °C until DNA was extracted. Total genomic DNA was extracted from 100 mg of ground leaves using the InnuPrep Plant DNA kit (Analytik Jena Innuscreen GmbH, Jena, Germany) according to the manufacturer’s protocol. Mean yield and purity were evaluated spectrophotometrically by readings of OD230, OD260, and OD280 (Nanodrop 2000, Thermo Fisher Scientific, Waltham, MA, USA) and visualized by 1% agarose gel electrophoresis under UV light.

4.2. Plastid Barcode Sequencing

Two barcode organelle regions (rbcL and matK) previously used in Coffea (Table S3) were first amplified to detect the degree of haplotype variation using the 86 samples. Polymerase chain reactions (PCR) were performed in 20 µL reactions using Biotaq DNA polymerase (Bioline, London, UK), 2X reaction buffer (Bioline, London, UK), 1 μM forward and reverse primers, 2 mM MgCl2, and dNTPs 0.8 mM (Promega, Maddison, WI, USA), 0.2 U Taq Meridian Bioscience (MI, Italy), 0.28 mg/mL BSA, and 40 ng μL−1 of genomic DNA. Cycle sequencing reactions were carried out using the Bio-Rad PCR System MyCycler™ thermocycler. The PCR program for rbcL consisted of 4 min at 94 °C followed by 35 cycles of 30 s at 94 °C, 1 min at 55 °C, and 1 min at 72 °C, with a final extension of 10 min at 72 °C. For matK, amplifications consisted of 5 min at 95 °C followed by 40 cycles of 30 sec at 95 °C, 30 s at 52 °C, and 1 min at 72 °C, with a final extension of 5 min at 72 °C. Amplified products were purified using QIAquick purification columns (QIAgen, Madrid, Spain), as described in the manufacturer’s protocol, and sent for sequencing (Macrogen, Madrid, Spain). Consensus alignments for each gene were created in Geneious v.11.1.5 (Biomatters, Ltd., Auckland, New Zealand) using the MAFFT alignment algorithm v.7.450 [62] and manually checked. A phylogeny based on a maximum likelihood (ML) analysis was performed using the two plastid genes concatenated into a single matrix. Additionally, data from other representatives of the same species studied here, as well as representative outgroup taxa, were extracted from the NCBI database (Table S4). The best-fitting nucleotide substitution model was estimated using jModelTest2 v. 2.1.6 [63] (GTR) and used as input for RAxML v.8.2.12 with 1.000 bootstrap iterations [64]. In addition, genealogical haplotype relationships of the collected samples were inferred using the median-joining method in Popart v1.7 [65].

4.3. Single-Sequence Polymorphic Repeats

The 86 samples were genotyped at 14 nuclear single-sequence polymorphic repeats (SSRs) previously developed for Coffea (Table S5). Based on the initial research, we selected these 14 SSRs markers as they produced robust and highly polymorphic amplified bands across all collections of the samples under study. Amplifications were performed in 20 μL reaction volume containing 1 μM forward and reverse primers, 2X Buffer Meridian Bioscience (MI, Italy), 0.5 U of TAQ Meridian Bioscience (MI, Italy), and 40 ng μL−1 of genomic DNA on a Bio-Rad PCR System MyCycler™ thermocycler. Allele sizes were determined using Peak Scanner version 1.0 (Life Technologies, Carlsbad, CA, USA) and revised manually.

4.4. GBS Library Preparation, Sequencing, and SNP Calling

Genomic DNA (0.3~0.6 µg) of a subset of Coffea samples (28 total; Table S1) was double-digested using 10 μL of the restriction enzymes EcoRI and Mse I for 5 h at 37 °C, then 20 min at 65 °C, and final incubation at 12 °C. The resulting digested fragments were cleaned and subsequently quantified using agarose gel electrophoresis and the Qubit®2.0 fluorometer. Digested fragments were ligated to EcoR I and Mse I adapters containing sample-specific barcodes with T4 DNA ligase (NEB) for 4 h at 16 °C, then 20 min at 65 °C, and final incubation at 12 °C. Individually barcoded samples were cleaned and size-selected (350–500 bp) using agarose gel. After dilution to 1 ng µL−1, the Agilent®2100 bioanalyzer was used to assess insert size. Each library was then PCR-amplified to the desired concentration and paired-end sequenced on an Illumina®HiSeq PE150.
FastQC [66] was used to remove adapters, and low-quality reads, e.g., uncertain nucleotides > 10% and base quality < 5 in more than 50% of either read, consistent with an error rate < 0.1%. Assembled reads were mapped against the reference genome of C. arabica downloaded from the NCBI (https://www.ncbi.nlm.nih.gov/assembly/GCF_003713225.1, accessed on 4 April 2021) using BWA version 0.7.16 [67] with the default parameters. The resulting individual files were converted into BAM files with SAMtools version 1.16.1 [68], removing duplicate reads. Sequencing yielded a total of 170,720,052 raw reads, which were reduced to 51,115,669 after quality filtering (Table S6). Overall, an average of 79% of cleaned reads were mapped to the reference genome. Calling of variants (SNPs) was performed for the 28 sequenced Coffea samples using GATK 4.2.6.1 [69] with base quality score recalibration, indel realignment, duplicate removal, and performed SNP and INDEL discovery. Genotyping across samples was performed simultaneously using standard hard filtering parameters or variant quality score recalibration according to GATK Best Practices recommendations [70]. Filtering of SNPs included those with a sequencing depth of 3 to 50 for each sample and an average quality > 20. To exclude SNP calling errors caused by incorrect mapping or indels, two adjacent SNPs separated by <5 bp were not called. A total of 3,058,824 SNPs were found, including 1,461,205 intergenic SNPs, 185,956 intronic SNPs, 115,488 exonic SNPs, 7908 SNPs in splice site, 772,163 upstream, 449,139 downstream, 39,278 in UTR3, and 27,687 in UTR5. The location and annotation of SNPs were based on the data retrieved from the reference genome of C. arabica as mentioned above. Associated genes were mapped to the KEGG [71] pathway and were examined if they were enriched in particular pathways based on the hypergeometric distribution test. Fisher’s exact test was used to identify pathways significantly enriched (p < 0.05) with Coffea genes.

4.5. Genetic Diversity, Structure, and Differentiation

Since genetic data of the two species were diploidized (e.g., only a maximum of two alleles were found), we used the Bayesian program STRUCTURE v.2.3.4 [72] to test whether any discrete genetic structure existed among samples and species. The analysis was performed assuming K = 1 to K = 10 genetic clusters (K), with 10 repetitions per K. Models were run assuming ancestral admixture and correlated allele frequencies using run lengths of 200,000 interactions for each K after 50,000 burn-in steps. The optimum K value was determined using STRUCTURE HARVESTER [73], which identifies the optimal K based on both the posterior probability of the data for a given K and the ∆K [74]. The results of the replicates at the best-fit K were then post-processed using CLUMPAK [75]. To visualize the genetic structure, a Principal Components Analysis (PCA) and a Neighbor-Joining (NJ) tree were constructed with 10,000 bootstraps in the adegenet R package [76]. Differentiation between sites was analyzed by conducting an analysis of molecular variance (AMOVA) using Arlequin 3.5.2.2 [77]. This approach is derived from the analysis of the variance framework based on Wright’s fixation indices defined by [78]. Pairwise differentiation between species and sites was also computed based on Nei’s Genetic Distance and the coefficient of differentiation (Fst). Genetic diversity was assessed by calculating the number of alleles (Na), observed heterozygosity (Ho), expected heterozygosity (He), and fixation index (F), using diveRsity [79] and PopPr R packages [80]. We also calculated linkage disequilibrium (LD) pruning the SNPs using Plink v1.9 [81] with a window of 50 SNPs and a step size of five makers. PLINK was used to measure pairwise LD between multi-SNPs based on the allele frequency correlations. The LD decay plot was drawn using R (http://www.R-project.org/, accessed on 22 June 2021). Functional annotation of the SNPs was defined using the Blast2GO V5.0 tool [82] (E-value ≥ 1 × 10−5) implemented in the KEGG database [71].

5. Conclusions

Here, we show for the first time how genetic diversity is needed to assure sustainable agriculture practices. Even though the implementation of AFSs is of interest since they can offset deforestation in tropical environments, while increasing biodiversity, productivity, social profitability, and environmental stewardship, guaranteeing the genetic diversity of the species/cultivars is an essential condition to ensure the long-term sustainability of AFSs. In this sense, the introduction of crop wild relatives in coffee AFSs provides an opportunity to increase the productivity and resilience of agricultural systems as they contain useful genetic diversity, which as reported here is not present in cultivated Arabica coffee.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants12102044/s1. Figure S1: Mean Ln probability of data and Delta K based on Evanno’s ad hoc statistic obtained by STRUCTURE HARVESTER. Figure S2: Scatter plot of linkage disequilibrium decay (r2) against the genetic distance for pairs of linked SNPs considering Coffea racemosa and Coffea arabica. Table S1: Sampling information of Coffea arabica and Coffea racemosa sorted by geographical area including the individuals used for cpDNA (rbcL and matk), SSRs and SNPs analyses. Genbank numbers indicate the new sequences obtained in this study. Table S2: KEGG pathways found in Coffea racemosa and Coffea arabica. Table S3: Plastid primers used to amplify the Coffea samples. Table S4: Taxa retrieved from NCBI and used in the phylogenetic analyses. Table S5: SSRs primers used to amplify the Coffea samples. Table S6: Summary of sequencing and mapping of reads from Coffea arabica and C. racemosa samples.

Author Contributions

Conceptualization, A.I.R.-B. and I.M. (Isabel Marques); Data curation, I.d.P.E.T., L.M., R.C., S.P. and C.T.; Formal analysis, I.d.P.E.T., R.C. and I.M. (Isabel Marques); Funding acquisition, F.L.P., J.C.R. and A.I.R.-B.; Investigation, All co-authors; Methodology, I.M. (Isabel Marques) and A.I.R.-B.; Project administration, J.C.R. and A.I.R.-B.; Supervision, I.M. (Isabel Marques) and A.I.R.-B.; Validation, I.M. (Isabel Marques) and A.I.R.-B.; Visualization, I.d.P.E.T. and R.C.; Writing—original draft, I.d.P.E.T., R.C., I.M. (Isabel Marques) and A.I.R.-B.; Writing—review and editing, all authors. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by by Camões, Instituto da Cooperação e da Língua (CICL), Agência Brasileira de Cooperação (ABC), and Parque Nacional da Gorongosa (PNG), under the Triangular Project TriCafé (GorongosaCoffee), and by Fundação para a Ciência e a Tecnologia, I.P. (FCT) through the research units UIDB/00239/2020 (CEF) and UIDP/04035/2020 (GeoBioTec), and Scientific Employment Stimulus—Individual Call (CEEC Individual) 2021.01107.CEECIND/CP1689/CT0001 (IM).

Data Availability Statement

Nucleotide sequences produced in this study are available in NCBI GenBank under OP207780—OP207865 (rbcL) and OP320952-OP321037 (matK). Raw data reads are deposited at NCBI SRA database under Bioproject PRJNA947603.

Acknowledgments

Gorongosa National Park (GNP) and the Agricultural Research Institute of Mozambique (IIAM). The authors thank David Draper for providing the map of Figure 1, Jossefo Saliva, Adilson Manguese, Sergio Sional from PNG and Zefanias Fazenda, Cristovão Cauia, Faustino Adriano Roda from the Agricultural Research Institute of Mozambique (IIAM) for providing the Niassa cultivars, as well as Vitor Varzea from Centro de Investigação das Ferrugens do Cafeeiro (CIFC), Instituto Superior de Agronomia, Universidade de Lisboa, for providing the three reference cultivars.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. ICO International Coffee Organization. What’s New. Available online: https://www.ico.org/ (accessed on 22 November 2022).
  2. DaMatta, F.M.; Cochicho Ramalho, J.D. Impacts of drought and temperature stress on coffee physiology and production: A review. Braz. J. Plant Physiol. 2006, 18, 55–81. [Google Scholar] [CrossRef]
  3. Davis, A.P.; Tosh, J.; Ruch, N.; Fay, M.F. Growing coffee: Psilanthus (Rubiaceae) subsumed on the basis of molecular and morphological data; implications for the size, morphology, distribution and evolutionary history of Coffea. Bot. J. Linn. Soc. 2011, 167, 357–377. [Google Scholar] [CrossRef]
  4. Dubberstein, D.; Lidon, F.C.; Rodrigues, A.P.; Semedo, J.N.; Marques, I.; Rodrigues, W.P.; Gouveia, D.; Armengaud, J.; Semedo, M.C.; Martins, S.; et al. Resilient and Sensitive Key Points of the Photosynthetic Machinery of Coffea spp. to the Single and Superimposed Exposure to Severe Drought and Heat Stresses. Front. Plant Sci. 2020, 11, 1049. [Google Scholar] [CrossRef] [PubMed]
  5. Fernandes, I.; Marques, I.; Paulo, O.S.; Batista, D.; Partelli, F.L.; Lidon, F.C.; Damatta, F.M.; Ramalho, J.C.; Ribeiro-Barros, A.I. Understanding the impact of drought in Coffea genotypes: Transcriptomic analysis supports a common high resilience to moderate water deficit but a genotype dependent sensitivity to severe water deficit. Agronomy 2021, 11, 2255. [Google Scholar] [CrossRef]
  6. Venancio, L.P.; Filgueiras, R.; Mantovani, E.C.; do Amaral, C.H.; da Cunha, F.F.; dos Santos Silva, F.C.; Althoff, D.; dos Santos, R.A.; Cavatte, P.C. Impact of drought associated with high temperatures on Coffea canephora plantations: A case study in Espírito Santo State, Brazil. Sci. Rep. 2020, 10, 19719. [Google Scholar] [CrossRef] [PubMed]
  7. DaMatta, F.M.; Rahn, E.; Läderach, P.; Ghini, R.; Ramalho, J.C. Why could the coffee crop endure climate change and global warming to a greater extent than previously estimated? Clim. Chang. 2019, 152, 167–178. [Google Scholar] [CrossRef]
  8. de Oliveira, R.R.; Ribeiro, T.H.C.; Cardon, C.H.; Fedenia, L.; Maia, V.A.; Barbosa, B.C.F.; Caldeira, C.F.; Klein, P.E.; Chalfun-Junior, A. Elevated Temperatures Impose Transcriptional Constraints and Elicit Intraspecific Differences Between Coffee Genotypes. Front. Plant Sci. 2020, 11, 1113. [Google Scholar] [CrossRef] [PubMed]
  9. Byrareddy, V.; Kouadio, L.; Mushtaq, S.; Kath, J.; Stone, R. Coping with drought: Lessons learned from robusta coffee growers in Vietnam. Clim. Serv. 2021, 22, 100229. [Google Scholar] [CrossRef]
  10. Cassamo, C.T.; Draper, D.; Romeiras, M.M.; Marques, I.; Chiulele, R.; Rodrigues, M.; Stalmans, M.; Partelli, F.L.; Ribeiro-Barros, A.; Ramalho, J.C. Impact of climate changes in the suitable areas for Coffea arabica L. production in Mozambique: Agroforestry as an alternative management system to strengthen crop sustainability. Agric. Ecosyst. Environ. 2023, 346, 108341. [Google Scholar] [CrossRef]
  11. Läderach, P.; Ramirez–Villegas, J.; Navarro-Racines, C.; Zelaya, C.; Martinez–Valle, A.; Jarvis, A. Climate change adaptation of coffee production in space and time. Clim. Chang. 2017, 141, 47–62. [Google Scholar] [CrossRef]
  12. Chemura, A.; Mudereri, B.T.; Yalew, A.W.; Gornott, C. Climate change and specialty coffee potential in Ethiopia. Sci. Rep. 2021, 11, 8097. [Google Scholar] [CrossRef]
  13. Lara-Estrada, L.; Rasche, L.; Schneider, U.A. Land in Central America will become less suitable for coffee cultivation under climate change. Reg. Environ. Chang. 2021, 21, 88. [Google Scholar] [CrossRef]
  14. Scalabrin, S.; Toniutti, L.; Di Gaspero, G.; Scaglione, D.; Magris, G.; Vidotto, M.; Pinosio, S.; Cattonaro, F.; Magni, F.; Jurman, I.; et al. A single polyploidization event at the origin of the tetraploid genome of Coffea arabica is responsible for the extremely low genetic variation in wild and cultivated germplasm. Sci. Rep. 2020, 10, 4642. [Google Scholar] [CrossRef]
  15. Silvestrini, M.; Junqueira, M.G.; Favarin, A.C.; Guerreiro-Filho, O.; Maluf, M.P.; Silvarolla, M.B.; Colombo, C.A. Genetic diversity and structure of Ethiopian, Yemen and Brazilian Coffea arabica L. accessions using microsatellites markers. Genet. Resour. Crop Evol. 2007, 54, 1367–1379. [Google Scholar] [CrossRef]
  16. Jaramillo, J.; Muchugu, E.; Vega, F.E.; Davis, A.; Borgemeister, C.; Chabi-Olaye, A. Some like it hot: The influence and implications of climate change on coffee berry borer (Hypothenemus hampei) and coffee production in East Africa. PLoS ONE 2011, 6, e24528. [Google Scholar] [CrossRef]
  17. Davis, A.P.; Chester, M.; Maurin, O.; Fay, M.F. Searching for the relatives of Coffea (Rubiaceae, Ixoroideae): The circumscription and phylogeny of Coffeeae based on plastid sequence data and morphology. Am. J. Bot. 2007, 94, 313–329. [Google Scholar] [CrossRef] [PubMed]
  18. Davis, A.P.; Chadburn, H.; Moat, J.; O’Sullivan, R.; Hargreaves, S.; Lughadha, E.N. High extinction risk for wild coffee species and implications for coffee sector sustainability. Sci. Adv. 2019, 5, 3473–3489. [Google Scholar] [CrossRef] [PubMed]
  19. Davis, A.P.; Gargiulo, R.; Almeida, I.N.d.M.; Caravela, M.I.; Denison, C.; Moat, J. Hot Coffee: The Identity, Climate Profiles, Agronomy, and Beverage Characteristics of Coffea racemosa and C. zanguebariae. Front. Sustain. Food Syst. 2021, 5, 383. [Google Scholar] [CrossRef]
  20. Halle, F.; Faria, M.T. Le Coffea racemosa Lour. Agron. Moçamb 1973, 7, 243–250. [Google Scholar]
  21. Guerreiro Filho, O. Coffea racemosa Lour. A Review. Café Cacao 1992, 36, 171–186. [Google Scholar]
  22. Davis, A.P.; Mieulet, D.; Moat, J.; Sarmu, D.; Haggar, J. Arabica-like flavour in a heat-tolerant wild coffee species. Nat. Plants 2021, 7, 413–418. [Google Scholar] [CrossRef]
  23. Davis, A.P.; Gole, T.W.; Baena, S.; Moat, J. The Impact of Climate Change on Indigenous Arabica Coffee (Coffea arabica): Predicting Future Trends and Identifying Priorities. PLoS ONE 2012, 7, e47981. [Google Scholar] [CrossRef]
  24. Gomes, L.C.; Bianchi, F.J.J.A.; Cardoso, I.M.; Fernandes, R.B.A.; Filho, E.I.F.; Schulte, R.P.O. Agroforestry systems can mitigate the impacts of climate change on coffee production: A spatially explicit assessment in Brazil. Agric. Ecosyst. Environ. 2020, 294, 106858. [Google Scholar] [CrossRef]
  25. Gidey, T.; Oliveira, T.S.; Crous-Duran, J.; Palma, J.H.N. Using the yield-SAFE model to assess the impacts of climate change on yield of coffee (Coffea arabica L.) under agroforestry and monoculture systems. Agrofor. Syst. 2020, 94, 57–70. [Google Scholar] [CrossRef]
  26. Cassamo, C.T.; Mangueze, A.V.J.; Leitão, A.E.; Pais, I.P.; Moreira, R.; Campa, C.; Chiulele, R.; Reis, F.O.; Marques, I.; Scotti-Campos, P.; et al. Shade and Altitude Implications on the Physical and Chemical Attributes of Green Coffee Beans from Gorongosa Mountain, Mozambique. Agronomy 2022, 12, 2540. [Google Scholar] [CrossRef]
  27. Koutouleas, A.; Sarzynski, T.; Bordeaux, M.; Bosselmann, A.S.; Campa, C.; Etienne, H.; Turreira-García, N.; Rigal, C.; Vaast, P.; Ramalho, J.C.; et al. Shaded-Coffee: A Nature-Based Strategy for Coffee Production Under Climate Change? A Review. Front. Sustain. Food Syst. 2022, 6, 158. [Google Scholar] [CrossRef]
  28. Koutouleas, A.; Sarzynski, T.; Bertrand, B.; Bordeaux, M.; Bosselmann, A.S.; Campa, C.; Etienne, H.; Turreira-García, N.; Léran, S.; Markussen, B.; et al. Shade effects on yield across different Coffea arabica cultivars—How much is too much? A meta-analysis. Agron. Sustain. Dev. 2022, 42, 55. [Google Scholar] [CrossRef]
  29. De Leijster, V.; Santos, M.J.; Wassen, M.W.; Camargo García, J.C.; Llorca Fernandez, I.; Verkuil, L.; Scheper, A.; Steenhuis, M.; Verweij, P.A. Ecosystem services trajectories in coffee agroforestry in Colombia over 40 years. Ecosyst. Serv. 2021, 48, 101246. [Google Scholar] [CrossRef]
  30. Nesper, M.; Kueffer, C.; Krishnan, S.; Kushalappa, C.G.; Ghazoul, J. Shade tree diversity enhances coffee production and quality in agroforestry systems in the Western Ghats. Agric. Ecosyst. Environ. 2017, 247, 172–181. [Google Scholar] [CrossRef]
  31. Sitoe, A.; Salomão, A.; Wertz-Kanounnikff, S. The Context of REDD+ in Mozambique Drivers, Agents and Institutions; CIFOR: Nairobi, Kenya, 2012. [Google Scholar]
  32. Hiern, W.P. On the African Species of the Genus Coffea, Linn. Trans. Linn. Soc. Lond. 2nd Ser. Bot. 1876, 1, 169–176. [Google Scholar] [CrossRef]
  33. Bridson, D.M. Coffea. In Flora of Tropical East Africa, Rubiaceae; Polhill, R.M., Bridson, D.M., Verdcourt, B., Eds.; Brookfield; Balkema: Rotterdam, The Netherlands, 1998; pp. 703–723. [Google Scholar]
  34. Davis, A.P.; Govaerts, R.; Bridson, D.M.; Ruhsam, M.; Moat, J.; Brummitt, N.A. A Global assessment of distribution, diversity, endemism, and taxonomic effort in the rubiaceae. Ann. Mo. Bot. Gard. 2009, 96, 68–78. [Google Scholar] [CrossRef]
  35. Bridson, D.M. Coffea. In Flora Zambesiaca; Pope, G.V., Ed.; Royal Botanic Gardens Kew: London, UK, 2003; pp. 452–463. [Google Scholar]
  36. Davis, A.P.; Govaerts, R.; Bridson, D.M.; Stoffelen, P. An annotated taxonomic conspectus of the genus Coffea (Rubiaceae). Bot. J. Linn. Soc. 2006, 152, 465–512. [Google Scholar] [CrossRef]
  37. Wicke, S.; Schneeweiss, G.M.; dePamphilis, C.W.; Müller, K.F.; Quandt, D. The evolution of the plastid chromosome in land plants: Gene content, gene order, gene function. Plant Mol. Biol. 2011, 76, 273–297. [Google Scholar] [CrossRef]
  38. INFORM INFORM—Global, Open-Source Risk Assessment for Humanitarian Crises and Disasters. Available online: https://drmkc.jrc.ec.europa.eu/inform-index (accessed on 10 March 2023).
  39. Os Desastres Naturais em Moçambique Desde as Cheias de 2000—SIC Notícias. Available online: https://sicnoticias.pt/arquivo/ciclone-idai/2019-03-22-Os-desastres-naturais-em-Mocambique-desde-as-cheias-de-2000 (accessed on 10 March 2023).
  40. Mozambique|ReliefWeb. Available online: https://reliefweb.int/country/moz (accessed on 10 March 2023).
  41. Clovis, G.; Telina, R.; Frederique, M. Land Use and Land Cover Change 2000–2016 in Mozambique. Zenodo 2020. [Google Scholar] [CrossRef]
  42. Anthony, F.; Combes, M.C.; Astorga, C.; Bertrand, B.; Graziosi, G.; Lashermes, P. The origin of cultivated Coffea arabica L. varieties revealed by AFLP and SSR markers. Theor. Appl. Genet. 2002, 104, 894–900. [Google Scholar] [CrossRef]
  43. Maluf, M.P.; Silvestrini, M.; de Campos Ruggiero, L.M.; Guerreiro Filho, O.; Colombo, C.A. Genetic diversity of cultivated Coffea arabica inbred lines assessed by RAPD, AFLP and SSR marker systems. Sci. Agric. 2005, 62, 366–373. [Google Scholar] [CrossRef]
  44. Moncada, P.; McCouch, S. Simple sequence repeat diversity in diploid and tetraploid Coffea species. Genome 2004, 47, 501–509. [Google Scholar] [CrossRef]
  45. Dida, G.; Bantte, K.; Disasa, T. Molecular characterization of Arabica Coffee (Coffea arabica L.) germplasms and their contribution to biodiversity in Ethiopia. Plant Biotechnol. Rep. 2021, 15, 791–804. [Google Scholar] [CrossRef]
  46. Combes, M.C.; Andrzejewski, S.; Anthony, F.; Bertrand, B.; Rovelli, P.; Graziosi, G.; Lashermes, P. Characterization of microsatellite loci in Coffea arabica and related coffee species. Mol. Ecol. 2000, 9, 1178–1180. [Google Scholar] [CrossRef]
  47. Aggarwal, R.K.; Hendre, P.S.; Varshney, R.K.; Bhat, P.R.; Krishnakumar, V.; Singh, L. Identification, characterization and utilization of EST-derived genic microsatellite markers for genome analyses of coffee and related species. Theor. Appl. Genet. 2007, 114, 359–372. [Google Scholar] [CrossRef]
  48. Aerts, R.; Berecha, G.; Gijbels, P.; Hundera, K.; Van Glabeke, S.; Vandepitte, K.; Muys, B.; Roldán-Ruiz, I.; Honnay, O. Genetic variation and risks of introgression in the wild Coffea arabica gene pool in south-western Ethiopian montane rainforests. Evol. Appl. 2013, 6, 243–252. [Google Scholar] [CrossRef]
  49. Gadissa, F.; Tesfaye, K.; Dagne, K.; Geleta, M. Genetic diversity and population structure analyses of Plectranthus edulis (Vatke) Agnew collections from diverse agro-ecologies in Ethiopia using newly developed EST-SSRs marker system. BMC Genet. 2018, 19, 92. [Google Scholar] [CrossRef] [PubMed]
  50. Filho, H.P.M.; Carvalho, A.; Medina, D.M. Germoplasma de Coffea racemosa e seu potencial de melhoramento do cafeeiro. Bragantia 1977, 36, 43–46. [Google Scholar] [CrossRef]
  51. Senkoro, A.M.; Talhinhas, P.; Simões, F.; Batista-Santos, P.; Shackleton, C.M.; Voeks, R.A.; Marques, I.; Ribeiro-Barros, A.I. The genetic legacy of fragmentation and overexploitation in the threatened medicinal African pepper-bark tree, Warburgia salutaris. Sci. Rep. 2020, 10, 19725. [Google Scholar] [CrossRef]
  52. Marques, I.; Draper, D.; Riofrío, L.; Naranjo, C. Early Signs of the Effects of Forest Fragmentation on the Genetic Diversity and Structure of the Threatened Ecuadorian Tree Ocotea rotundata (Lauraceae). Forests 2022, 13, 1940. [Google Scholar] [CrossRef]
  53. Li, S.; Gan, X.; Han, H.; Zhang, X.; Tian, Z. Low within-population genetic diversity and high genetic differentiation among populations of the endangered plant Tetracentron sinense Oliver revealed by inter-simple sequence repeat analysis. Ann. For. Sci. 2018, 75, 74. [Google Scholar] [CrossRef]
  54. Husband, B.C. The role of triploid hybrids in the evolutionary dynamics of mixed-ploidy populations. Biol. J. Linn. Soc. 2004, 82, 537–546. [Google Scholar] [CrossRef]
  55. Botero, D.; Alvarado, C.; Bernal, A.; Danies, G.; Restrepo, S. Network analyses in plant pathogens. Front. Microbiol. 2018, 9, 35. [Google Scholar] [CrossRef] [PubMed]
  56. Zhu, Y.; Jia, X.; Wu, Y.; Hu, Y.; Cheng, L.; Zhao, T.; Huang, Z.; Wang, Y. Quantitative proteomic analysis of Malus halliana exposed to salt-alkali mixed stress reveals alterations in energy metabolism and stress regulation. Plant Growth Regul. 2020, 90, 205–222. [Google Scholar] [CrossRef]
  57. Hamon, P.; Grover, C.E.; Davis, A.P.; Rakotomalala, J.-J.; Raharimalala, N.E.; Albert, V.A.; Sreenath, H.L.; Stoffelen, P.; Mitchell, S.E.; Couturon, E.; et al. Genotyping-by-sequencing provides the first well-resolved phylogeny for coffee (Coffea) and insights into the evolution of caffeine content in its species: GBS coffee phylogeny and the evolution of caffeine content. Mol. Phylogenet. Evol. 2017, 109, 351–361. [Google Scholar] [CrossRef] [PubMed]
  58. Laíns e Silva, H.J. Subsídios Para o Fomento da Cultura do Café em Moçambique. Agência Geral do Ultramar; Divisão de Publicações: Lisboa, Portugal, 1954. [Google Scholar]
  59. Jezeer, R.E.; Verweij, P.A.; Santos, M.J.; Boot, R.G. Shaded Coffee and Cocoa—Double Dividend for Biodiversity and Small-scale Farmers. Ecol. Econ. 2017, 140, 136–145. [Google Scholar] [CrossRef]
  60. Cubry, P.; Pascal, M.; Hyacinte, L.; David, P.; de Bellis, F.; Poncet, V.; Anthony, F.; Dufour, M.; Leroy, T. Diversity in coffee assessed with SSR markers: Structure of the genus Coffea and perspectives for breeding. Genome 2008, 51, 50–63. [Google Scholar] [CrossRef] [PubMed]
  61. Silva, H.L. Número de cromossomos em Coffea racemosa Lour. Bragantia 1956, 15, XVII–XVIII. [Google Scholar] [CrossRef]
  62. Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef]
  63. Darriba, D.; Taboada, G.L.; Doallo, R.; Posada, D. JModelTest 2: More models, new heuristics and parallel computing. Nat. Methods 2012, 9, 772. [Google Scholar] [CrossRef]
  64. Stamatakis, A. RAxML version 8: A tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics 2014, 30, 1312–1313. [Google Scholar] [CrossRef] [PubMed]
  65. Leigh, J.W.; Bryant, D. POPART: Full-feature software for haplotype network construction. Methods Ecol. Evol. 2015, 6, 1110–1116. [Google Scholar] [CrossRef]
  66. Andrews, S. FastQC: A Quality Control Tool for High Throughput Sequence Data. 2010. Available online: Http://www.bioinformatics.babraham.ac.uk/projects/fastqc (accessed on 15 May 2023).
  67. Li, H.; Durbin, R. Fast and accurate short read alignment with Burrows–Wheeler transform. Bioinformatics 2009, 25, 1754–1760. [Google Scholar] [CrossRef]
  68. Li, H.; Handsaker, B.; Wysoker, A.; Fennell, T.; Ruan, J.; Homer, N.; Marth, G.; Abecasis, G.; Durbin, R. The Sequence Alignment/Map format and SAMtools. Bioinformatics 2009, 25, 2078–2079. [Google Scholar] [CrossRef]
  69. McKenna, A.; Hanna, M.; Banks, E.; Sivachenko, A.; Cibulskis, K.; Kernytsky, A.; Garimella, K.; Altshuler, D.; Gabriel, S.; Daly, M.; et al. The Genome Analysis Toolkit: A MapReduce framework for analyzing next-generation DNA sequencing data. Genome Res. 2010, 20, 1297–1303. [Google Scholar] [CrossRef]
  70. Depristo, M.A.; Banks, E.; Poplin, R.; Garimella, K.V.; Maguire, J.R.; Hartl, C.; Philippakis, A.A.; Del Angel, G.; Rivas, M.A.; Hanna, M.; et al. A framework for variation discovery and genotyping using next-generation DNA sequencing data. Nat. Genet. 2011, 43, 491–498. [Google Scholar] [CrossRef] [PubMed]
  71. Kanehisa, M.; Goto, S. KEGG: Kyoto encyclopedia of genes and genomes. Nucleic Acids Res. 2000, 28, 27–30. [Google Scholar] [CrossRef] [PubMed]
  72. Pritchard, J.K.; Stephens, M.; Rosenberg, N.A.; Donnelly, P. Association mapping in structured populations. Am. J. Hum. Genet. 2000, 67, 170–181. [Google Scholar] [CrossRef]
  73. Earl, D.A.; von Holdt, B.M. STRUCTURE HARVESTER: A website and program for visualizing STRUCTURE output and implementing the Evanno method. Conserv. Genet. Resour. 2012, 4, 359–361. [Google Scholar] [CrossRef]
  74. Evanno, G.; Regnaut, S.; Goudet, J. Detecting the number of clusters of individuals using the software STRUCTURE: A simulation study. Mol. Ecol. 2005, 14, 2611–2620. [Google Scholar] [CrossRef]
  75. Kopelman, N.M.; Mayzel, J.; Jakobsson, M.; Rosenberg, N.A.; Mayrose, I. Clumpak: A program for identifying clustering modes and packaging population structure inferences across K. Mol. Ecol. Resour. 2015, 15, 1179–1191. [Google Scholar] [CrossRef] [PubMed]
  76. Jombart, T.; Ahmed, I. adegenet 1.3-1: New tools for the analysis of genome-wide SNP data. Bioinformatics 2011, 27, 3070–3071. [Google Scholar] [CrossRef]
  77. Excoffier, L.; Lischer, H.E.L. Arlequin suite ver 3.5: A new series of programs to perform population genetics analyses under Linux and Windows. Mol. Ecol. Resour. 2010, 10, 564–567. [Google Scholar] [CrossRef]
  78. Cockerham, C.C. Variance of Gene Frequencies. Evolution 1969, 23, 72–84. [Google Scholar] [CrossRef]
  79. Keenan, K.; Mcginnity, P.; Cross, T.F.; Crozier, W.W.; Prodöhl, P.A. diveRsity: An R package for the estimation and exploration of population genetics parameters and their associated errors. Methods Ecol. Evol. 2013, 4, 782–788. [Google Scholar] [CrossRef]
  80. Kamvar, Z.N.; Tabima, J.F.; Grünwald, N.J. Poppr: An R package for genetic analysis of populations with clonal, partially clonal, and/or sexual reproduction. PeerJ 2014, 2014, e281. [Google Scholar] [CrossRef] [PubMed]
  81. Purcell, S.; Neale, B.; Todd-Brown, K.; Thomas, L.; Ferreira, M.A.R.; Bender, D.; Maller, J.; Sklar, P.; De Bakker, P.I.W.; Daly, M.J.; et al. PLINK: A tool set for whole-genome association and population-based linkage analyses. Am. J. Hum. Genet. 2007, 81, 559–575. [Google Scholar] [CrossRef] [PubMed]
  82. Götz, S.; García-Gómez, J.M.; Terol, J.; Williams, T.D.; Nagaraj, S.H.; Nueda, M.J.; Robles, M.; Talón, M.; Dopazo, J.; Conesa, A. High-throughput functional annotation and data mining with the Blast2GO suite. Nucleic Acids Res. 2008, 36, 3420–3435. [Google Scholar] [CrossRef] [PubMed]

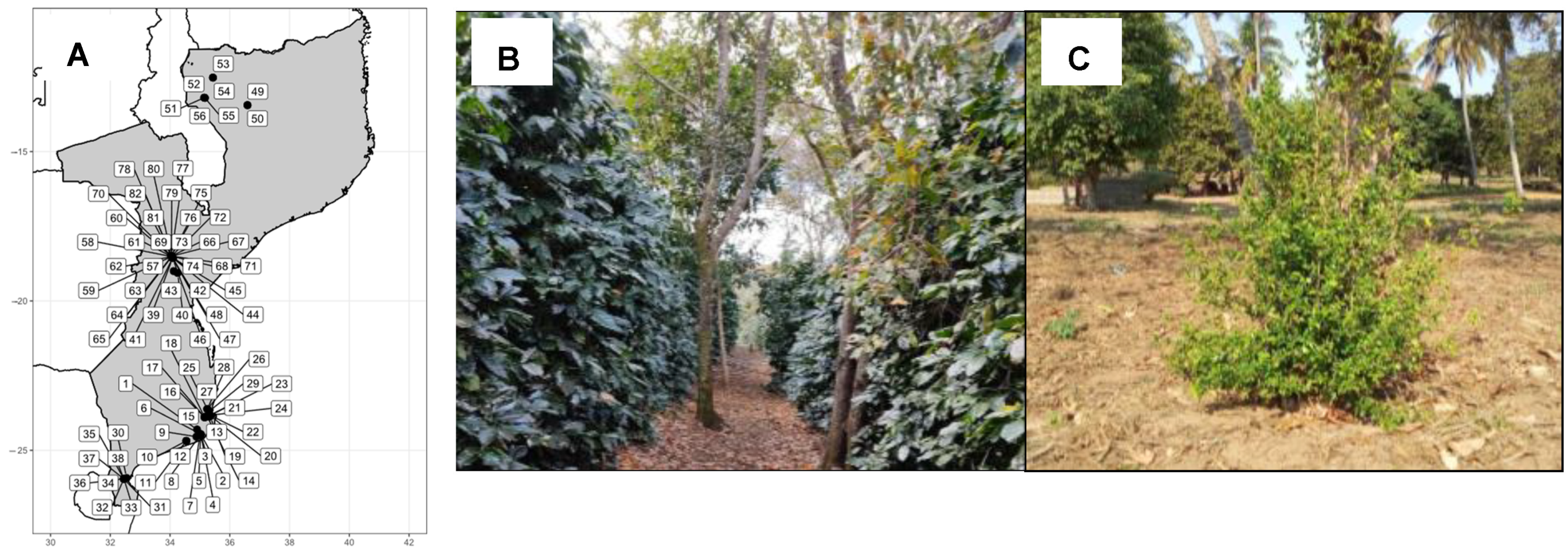

Figure 1. (A). Sampling of Coffea species in Mozambique. See Table S1 for the ID of samples. (B). Cultivation of Coffea arabica in the Gorongosa Mountain under agroforestry systems. (C). Wild plants of Coffea racemosa.
Figure 1. (A). Sampling of Coffea species in Mozambique. See Table S1 for the ID of samples. (B). Cultivation of Coffea arabica in the Gorongosa Mountain under agroforestry systems. (C). Wild plants of Coffea racemosa.
Plants 12 02044 g001

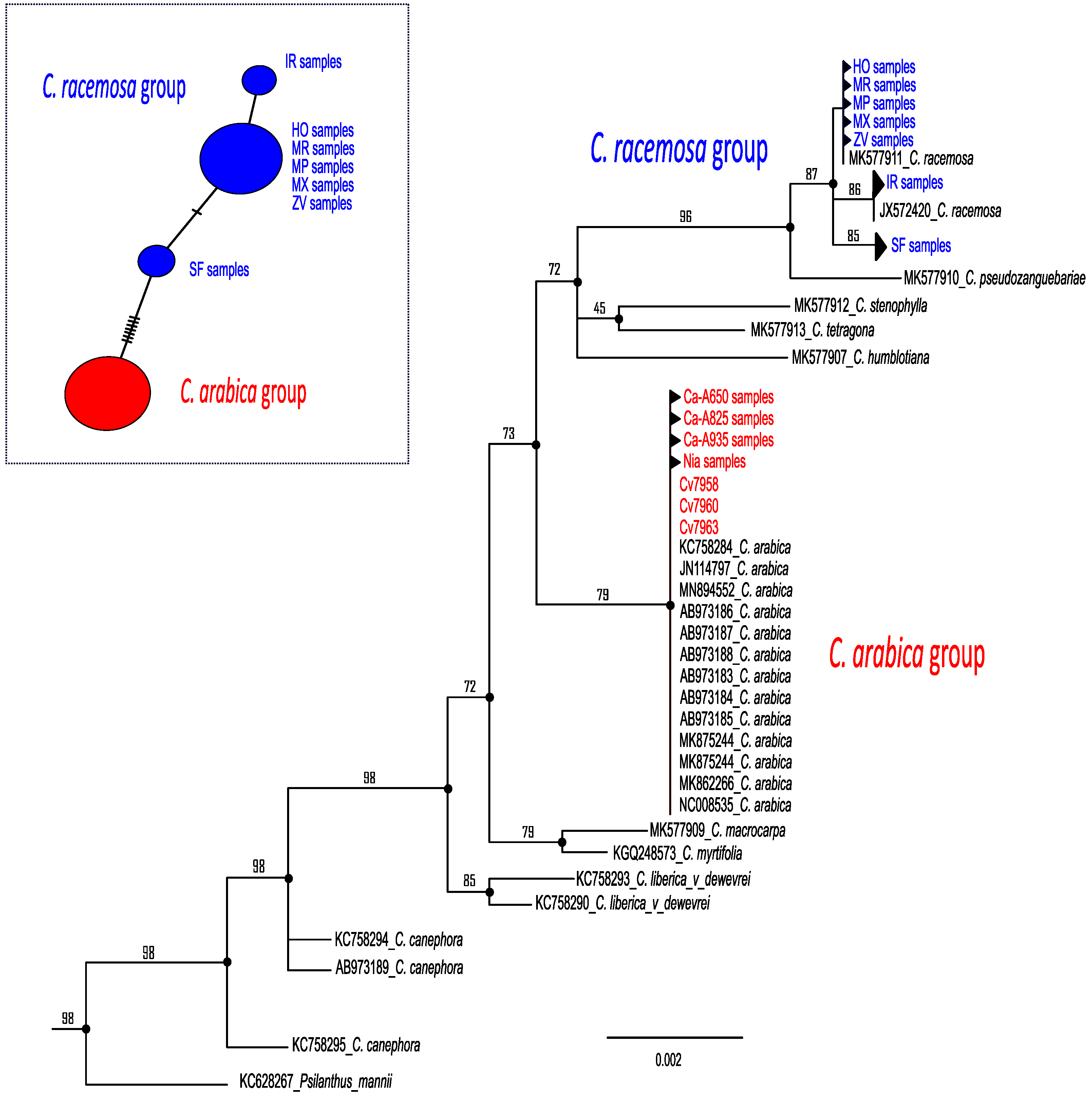

Figure 2. Plastid RaxML tree obtained for Coffea. Color codes indicate the two main groups of species: Coffea arabica (red) and Coffea racemosa (blue) included in this study. Bootstrap values higher than 50% are indicated above branches. Black codes indicate NCBI numbers and species retrieved from GenBank. Insert on the top right indicates the haplotype network using a median-joining method including only Coffea sampled for this study.
Figure 2. Plastid RaxML tree obtained for Coffea. Color codes indicate the two main groups of species: Coffea arabica (red) and Coffea racemosa (blue) included in this study. Bootstrap values higher than 50% are indicated above branches. Black codes indicate NCBI numbers and species retrieved from GenBank. Insert on the top right indicates the haplotype network using a median-joining method including only Coffea sampled for this study.
Plants 12 02044 g002

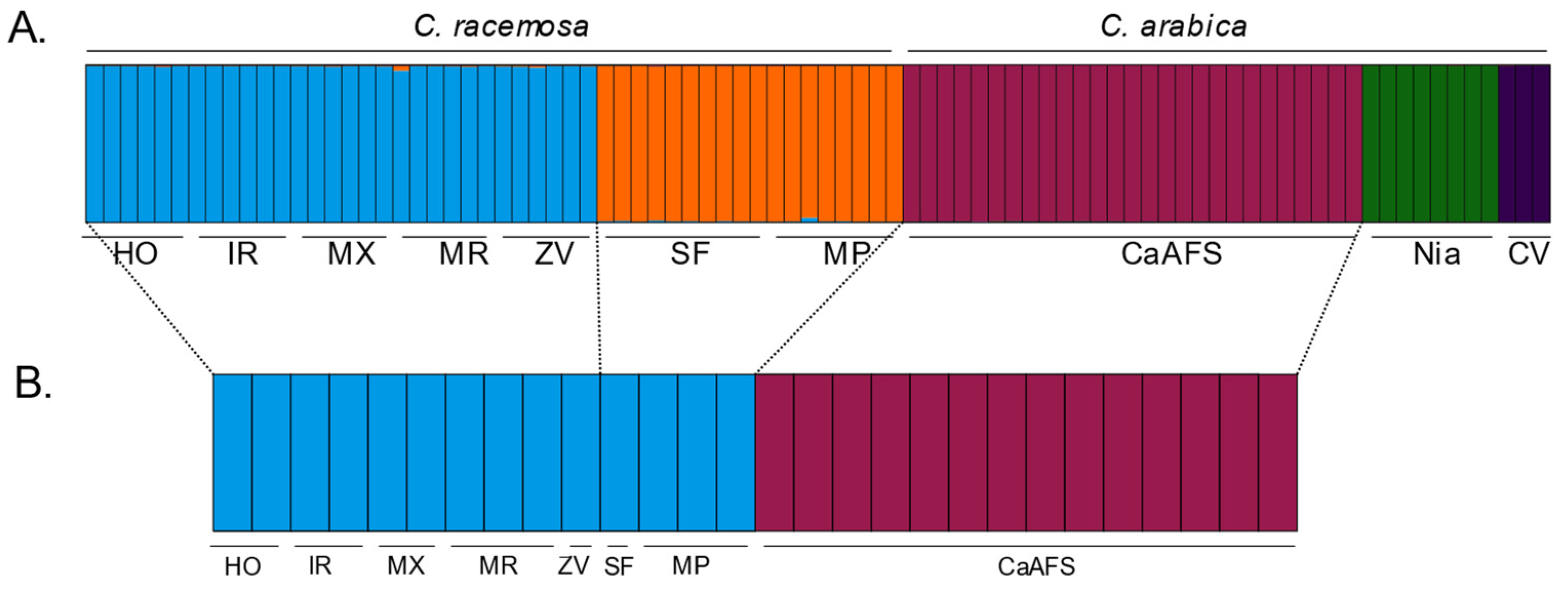

Figure 3. Genetic structure of Coffea racemosa and Coffea arabica. Genetic clusters are based on the best assignment group found for SSRs (A; K = 5) and GBS markers (B; K = 2). Colors indicate an assignment probability, according to different genetic clusters. Each sample is represented by a vertical bar. HO: Homoine, IR: Inharrime, MX: Maxixe; MR: Morrumbene; ZV: Zavala (all from Inhambane Province); MP: Maputo Province; SF: Sofala Province; CaAFS: Gorongosa (Sofala Province); Nia: Niassa Province; CV: CIFC cultivars.
Figure 3. Genetic structure of Coffea racemosa and Coffea arabica. Genetic clusters are based on the best assignment group found for SSRs (A; K = 5) and GBS markers (B; K = 2). Colors indicate an assignment probability, according to different genetic clusters. Each sample is represented by a vertical bar. HO: Homoine, IR: Inharrime, MX: Maxixe; MR: Morrumbene; ZV: Zavala (all from Inhambane Province); MP: Maputo Province; SF: Sofala Province; CaAFS: Gorongosa (Sofala Province); Nia: Niassa Province; CV: CIFC cultivars.
Plants 12 02044 g003

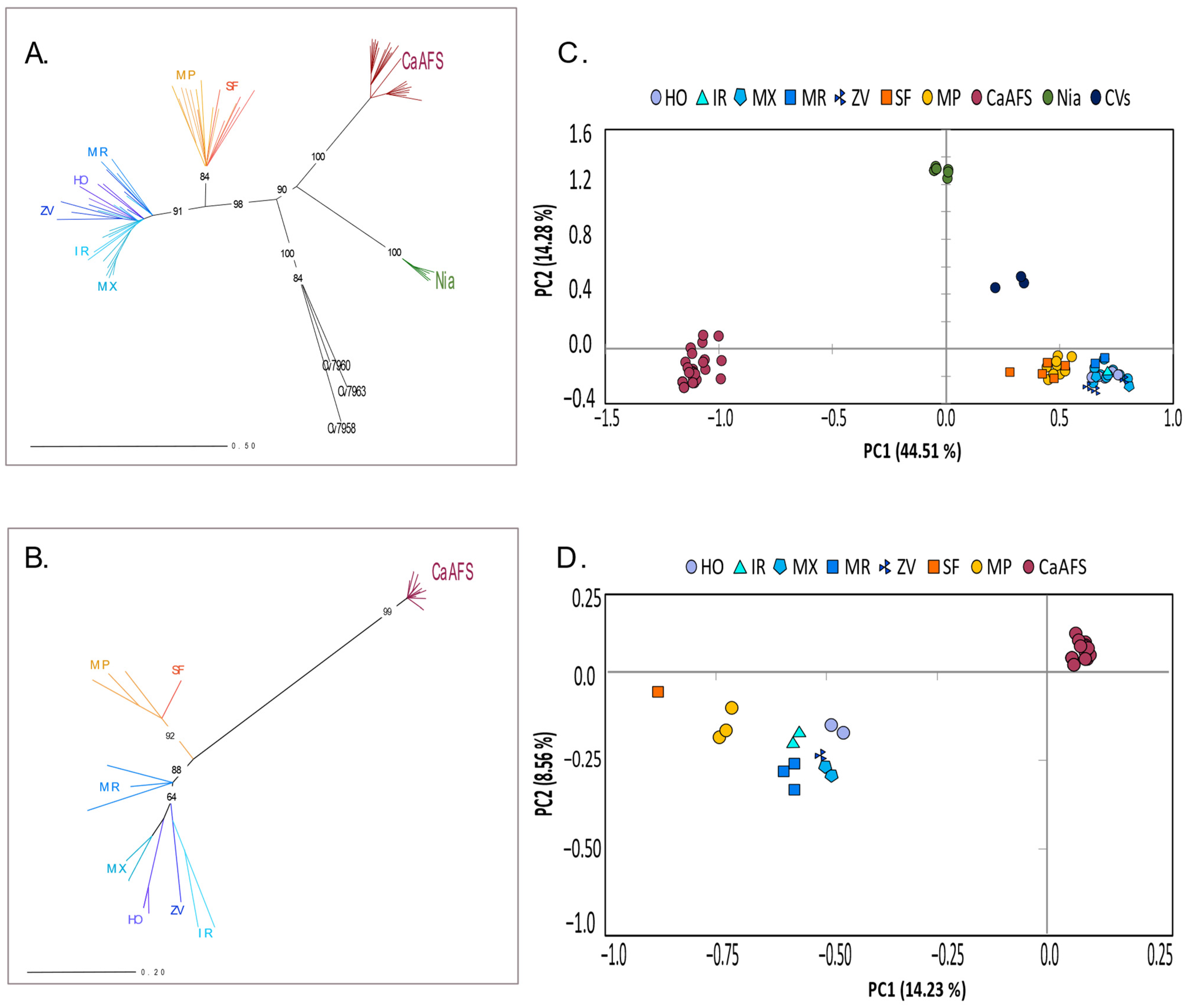

Figure 4. Genetic relationships among Coffea racemosa and Coffea arabica samples based on Nei’s Genetic Distance. Unrooted Neighbor-Joining (NJ) tree showing relationships among the sampled individuals using the scored nSSRs markers (A) and GBS data (B). Numbers associated with branches indicate bootstrap values >50 based on 1000 replications. Principal Coordinate Analysis (PCA) scatterplots using the scored nSSRs markers (C) and GBS data (D). The percentage of explained variance of each axis is given in parentheses. HO: Homoine, IR: Inharrime, MX: Maxixe; MR: Morrumbene; ZV: Zavala (all from Inhambane Province); MP: Maputo Province; SF: Sofala Province; CaAFS: Gorongosa (Sofala Province); Nia: Niassa Province; CV: CIFC cultivars.
Figure 4. Genetic relationships among Coffea racemosa and Coffea arabica samples based on Nei’s Genetic Distance. Unrooted Neighbor-Joining (NJ) tree showing relationships among the sampled individuals using the scored nSSRs markers (A) and GBS data (B). Numbers associated with branches indicate bootstrap values >50 based on 1000 replications. Principal Coordinate Analysis (PCA) scatterplots using the scored nSSRs markers (C) and GBS data (D). The percentage of explained variance of each axis is given in parentheses. HO: Homoine, IR: Inharrime, MX: Maxixe; MR: Morrumbene; ZV: Zavala (all from Inhambane Province); MP: Maputo Province; SF: Sofala Province; CaAFS: Gorongosa (Sofala Province); Nia: Niassa Province; CV: CIFC cultivars.
Plants 12 02044 g004
Figure 5. Pairwise differentiation between sites based on Nei’s Genetic Distance using SSRs (below diagonal) and sites differentiation coefficient (Fst) values from GBS (above diagonal) in Coffea racemosa and Coffea arabica. HO: Homoine, IR: Inharrime, MX: Maxixe; MR: Morrumbene; ZV: Zavala (all from Inhambane Province); MP: Maputo Province; SF: Sofala Province; CaAFS: Gorongosa (Sofala Province); Nia: Niassa Province; CV: CIFC cultivars.
Figure 5. Pairwise differentiation between sites based on Nei’s Genetic Distance using SSRs (below diagonal) and sites differentiation coefficient (Fst) values from GBS (above diagonal) in Coffea racemosa and Coffea arabica. HO: Homoine, IR: Inharrime, MX: Maxixe; MR: Morrumbene; ZV: Zavala (all from Inhambane Province); MP: Maputo Province; SF: Sofala Province; CaAFS: Gorongosa (Sofala Province); Nia: Niassa Province; CV: CIFC cultivars.
Plants 12 02044 g005
Figure 6. Top KEGG pathways involved among Coffea arabica and Coffea racemosa.
Figure 6. Top KEGG pathways involved among Coffea arabica and Coffea racemosa.
Plants 12 02044 g006
Table 1. Estimates of genetic diversity based on SSRs for Coffea arabica and Coffea racemosa. HO: Homoine, IR: Inharrime, MX: Maxixe; MR: Morrumbene; ZV: Zavala (all from Inhambane Province); MP: Maputo Province; SF: Sofala Province; CaAFS: Gorongosa (Sofala Province); Nia: Niassa Province; CV: CIFC cultivars; Na: number of alleles; Ne: Number of effective alleles; I: Shannon’s Information Index; Ho: observed heterozygosity; He: expected heterozygosity; F = fixation index.
Table 1. Estimates of genetic diversity based on SSRs for Coffea arabica and Coffea racemosa. HO: Homoine, IR: Inharrime, MX: Maxixe; MR: Morrumbene; ZV: Zavala (all from Inhambane Province); MP: Maputo Province; SF: Sofala Province; CaAFS: Gorongosa (Sofala Province); Nia: Niassa Province; CV: CIFC cultivars; Na: number of alleles; Ne: Number of effective alleles; I: Shannon’s Information Index; Ho: observed heterozygosity; He: expected heterozygosity; F = fixation index.
SpeciesSitesNaNeIHoHeF
C. racemosaHO3.00 ± 0.212.59 ± 0.170.98 ± 0.060.93 ± 0.030.59 ± 0.02−0.58 ± 0.07
IR2.71 ± 0.272.33 ± 0.190.85 ± 0.090.89 ± 0.070.53 ± 0.05−0.71 ± 0.08
MX2.71 ± 0.192.33 ± 0.140.87 ± 0.070.89 ± 0.070.54 ± 0.04−0.63 ± 0.11
MR2.86 ± 0.182.34 ± 0.130.89 ± 0.070.86 ± 0.070.55 ± 0.03−0.55 ± 0.10
ZV3.00 ± 0.262.47 ± 0.180.94 ± 0.070.89 ± 0.050.57 ± 0.03−0.56 ± 0.08
SF2.93 ± 0.222.45 ± 0.200.91 ± 0.080.89 ± 0.060.55 ± 0.04−0.59 ± 0.08
MP2.92 ± 0.292.36 ± 0.150.90 ± 0.070.95 ± 0.030.56 ± 0.02−0.72 ± 0.08
average2.88 ± 0.092.41 ± 0.060.91 ± 0.030.90 ± 0.020.56 ± 0.01−0.62 ± 0.03
C. arabicaCaAFS1.93 ± 0.171.26 ± 0.100.27 ± 0.060.16 ± 0.070.16 ± 0.050.02 ± 0.11
Nia1.88 ± 0.161.80 ± 0.130.56 ± 0.090.69 ± 0.120.39 ± 0.06−0.80 ± 0.11
CV1.79 ± 0.241.73 ± 0.230.45 ± 0.130.05 ± 0.030.29 ± 0.080.83 ± 0.08
average1.87 ± 0.081.68 ± 0.070.48 ± 0.040.46 ± 0.050.39 ± 0.03−0.40 ± 0.09
All samples 2.46 ± 0.082.10 ± 0.0540.73 ± 0.030.72 ± 0.030.46 ± 0.010.55 ± 0.04
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Tapaça, I.d.P.E.; Mavuque, L.; Corti, R.; Pedrazzani, S.; Maquia, I.S.A.; Tongai, C.; Partelli, F.L.; Ramalho, J.C.; Marques, I.; Ribeiro-Barros, A.I. Genomic Evaluation of Coffea arabica and Its Wild Relative Coffea racemosa in Mozambique: Settling Resilience Keys for the Coffee Crop in the Context of Climate Change. Plants 2023, 12, 2044. https://doi.org/10.3390/plants12102044

AMA Style

Tapaça IdPE, Mavuque L, Corti R, Pedrazzani S, Maquia ISA, Tongai C, Partelli FL, Ramalho JC, Marques I, Ribeiro-Barros AI. Genomic Evaluation of Coffea arabica and Its Wild Relative Coffea racemosa in Mozambique: Settling Resilience Keys for the Coffee Crop in the Context of Climate Change. Plants. 2023; 12(10):2044. https://doi.org/10.3390/plants12102044

Chicago/Turabian Style

Tapaça, Inocência da Piedade Ernesto, Lopes Mavuque, Riccardo Corti, Samuele Pedrazzani, Ivete S. A. Maquia, Castigo Tongai, Fábio Luiz Partelli, José C. Ramalho, Isabel Marques, and Ana I. Ribeiro-Barros. 2023. "Genomic Evaluation of Coffea arabica and Its Wild Relative Coffea racemosa in Mozambique: Settling Resilience Keys for the Coffee Crop in the Context of Climate Change" Plants 12, no. 10: 2044. https://doi.org/10.3390/plants12102044

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
