Article

Analysis of Hormone Regulation on Seed Germination of Coix Based on Muli-Omics Analysis

by
Donghao Tuo
†,
Jiawen Wu
†,
Juan Zou
†,
Guoqing Dong
,
Wanyong Zeng
,
Jinhua Li
and
Dengxiang Du
*
School of Life Science and Technology, Wuhan Polytechnic University, Wuhan 430023, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2023, 12(14), 2700; https://doi.org/10.3390/plants12142700
Submission received: 17 March 2023 / Revised: 1 July 2023 / Accepted: 9 July 2023 / Published: 20 July 2023
(This article belongs to the Special Issue Emerging Research in Plant Growth Regulation and Control)
Browse Figures
Versions Notes

Abstract

:
Seed germination is an important stage of growth and reproduction and plays an important role in the life cycle of spermatophyte. It is co-determined by both genetic and environmental factors, and plant hormone regulation may be a highly conservative mechanism. Coix lachryrma-jobi (coix) is a grain with balanced nutrition for medicine and food and has substantial production value. It is an important part of agricultural production, and the efficiency of seed germination after sowing is a key link. In this study, coix species “small white shell Xingren” was used as the experimental material, and changes in gene expression levels and metabolite enrichment in seeds were identified by transcriptome and metabonomic analysis before and after seed germination. A total of 599 metabolites, including those from amino acid metabolism, sugar metabolism, and fatty acid metabolism, were significantly increased in germinating coix. Simultaneously, 10,929 differentially expressed genes (DEGs) were identified, and functional clusters of genes were also significantly clustered in hormone-signaling and glucose and fatty acid metabolism. In addition, this study found that a considerable number of hormone-signaling genes were significantly up-regulated during seed germination, activating multiple metabolic processes. The results of our conjoint analysis of multi omics showed that glucose and fatty acid metabolism played an important role in seed germination under hormone regulation.

1. Introduction

Seeds serve a crucial function as the reproductive system and play a vital role in the life cycle of higher plants. Seed dormancy and germination are keys to plant growth and development [1,2]. The seed remains dormant to survive the adverse climate in the unsuitable environment for plant growth; when the environment is suitable for plant growth, seeds start germinating [3,4]. Therefore, seed dormancy and germination are research hotspots in plant molecular biology, and their regulatory mechanisms have been constantly analyzed from different perspectives.
Seed dormancy and germination is a very complex physiological and biochemical process. Environmental factors such as suitable temperature, moisture content, and oxygen content are critical for seed germination [4,5]. Internal cause refers to whether the seed structure is intact, has enough reserves, and can use these reserves to initiate various biochemical reactions related to life activities after receiving external signals [6]. At the molecular level, studies on the regulation of seed dormancy and germination mainly focus on changes in seed-dormancy-related proteins [7], endogenous plant hormone content [8], transcription factors [9], and cis-elements [10]. During seed germination, internal hormone levels change and external environmental factors alter gene transcription and protein levels through complex signal transduction pathways to closely regulate the germination process and prepare for subsequent growth and development. To understand the physiological and biochemical mechanisms of high-vigor seed formation, we can explore the differences and connections at various levels of gene [9,11], transcription, translation, and expression from the perspective of omics [12,13,14].
With the continuous development and improvement of sequencing technology, many studies have reported the omics mechanisms of seed development, germination, and seed vigor [15]. Transcriptome analysis of the mechanism of the wheat germination process showed that seed germination involves complex network regulations, such as substance transport, hormone metabolism, protein degradation, and signal transduction [16]. Some differentially expressed genes and related metabolic pathways were also identified [17]. Li et al. used metabolomics to study rice varieties with different genetic and ecological diversities and detected 121 metabolites; furthermore, 214 differentially expressed metabolites were identified during seed development and growth [18]. The research results of Han et al. showed that during the germination of wheat seeds, there are 82 significantly different metabolites between the embryo and endosperm, involving multiple metabolic pathways [19].
Coix lachryrma-jobi (coix) has both medicinal and edible value and is a typical medicinal and edible homologous crop [20]. Coix is a nutritious and balanced grain and contains many essential amino acids and trace elements; its protein content is much higher than that of wheat and rice. Most importantly, coix is known as “the king of grass plants” and “pearl of medicine” because of its high medicinal and nutritional value as a medicinal and edible plant [21,22]. Hence, there has been a gradual shift towards recognizing and harnessing the healthcare functions, developmental potential, and practical applications of coix. Seed germination is an important part of production, which not only affects the yield, but also ensures the use of coix to prepare sprouts and other products. Due to its late start, research on seed germination of coix is still relatively basic; research on the germination of coix seeds mainly focuses on exploring the physiological changes during the germination process [23,24], and research on its molecular regulatory mechanism is very limited compared to other cereal crops. Studies on wheat, rice, and other crops have shown that combined transcriptome and metabolome analysis effectively analyze complex characters. This study is of great significance for analyzing the transcriptome and metabolome of germinated and non-germinated coix seeds.

2. Results

2.1. Transcriptome Analysis during the Seed Germination

An overview of the transcriptome analysis reads is listed in Table 1. Approximately 52,445,384, 62,134,646, 56,839,896, 60,134,670, 56,513,236, and 47,092,678 clean reads pairs were generated, and 50.28 GB of clean data were generated. The correlation coefficient of different materials is 0.608–0.811. The correlation between repetitions of the same material is significantly higher than that between materials, indicating that each replicate could be used for subsequent analysis, which showed a high correlation, and the change in traits may be caused by the difference in the expression changes of certain genes.
A total of 67,257 genes were identified with TPM ≥ 0.1 present in at least one sample; in all samples, low expression genes (about 42%) and medium expression genes (about 30%) occupied the largest proportion. Among the detected genes, 47,170 genes were detected in both periods, 5157 genes were detected only in the non-germination stage, and 14,930 genes were specifically expressed after germination (Figure 1a). There were 10,929 DEGs with significant variations identified between control (CK) and germinated seeds (Ger), among which 6565 genes were up-regulated and 4364 genes were down-regulated (Figure 1b).
The differentially expressed genes identified at two stages of seed germination were compared with the Gene Ontology (GO) database to obtain detailed annotations of differentially expressed genes (Figure 1c). GO divides gene functions into three categories: biological process, cellular component, and molecular function. Differentially expressed genes were annotated to 53 functional groups, including 13 biological processes, 17 cellular components and 12 molecular functions. Seven GOs, extracellular region, membrane, macromolecular complex, organelle, organelle part, membrane part, and cell part, belong to cellular component, with the most genes enriched. Seven GOs, metabolic process, cellular process, developmental process, response to stimulus, localization, biological regulation, and cellular component organization or biogenesis, belong to biological process, with the most genes enriched. Catalytic activity and binding were two GOs with the most genes enriched in molecular function.
When subjected to a Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analysis, using Q-value less than 0.05 as the significant enrichment threshold for all the DEGs for KEGG pathway, the significantly enriched 11 pathways are shown in Figure 2. All the pathways were divided into cellular processes, environmental information processing, genetic information processing, metabolism, and organismic systems. The differentially expressed genes were mainly enriched in pathways such as carbon metabolism, glyoxylate and dicarboxylate metabolism, 2-oxocartboxylic acid metabolism, ribosome, oxidative phosphorylation, and citrate cycle (TCA cycle).

2.2. Metabolic Profiling during the Seed Germination

In this study, untargeted metabolomics was used to detect the metabolic components of seeds incubated for 96 h, compared with the non-germinated seeds as control. Principal component analysis (PCA) of metabolomics data showed that R2X [1] and R2X [2] were 0.762 and 0.0953, respectively (Figure 3a). The metabolic components of coix seed groups were relatively scattered before and after germination, indicating that there were great differences in metabolic components of coix seed groups that began to germinate compared with non-germinated seeds. A total of 599 metabolites were detected; the annotated metabolites were classified according to their chemical structures, as shown in Figure 3b. Among them, 31% belong to organic acid, 30% to amino acid, 10% to sugar, 7% to polyol, 10% to phosphoric acid, 3% to fatty acid, 1% amine, and 8% others.
Through the screening of metabolites, 49 metabolites with different changes were shown in Figure 3c, among which 48 were significantly up-regulated and enriched after seed germination, except for the significantly down-regulated and enriched urea content. According to KEGG, metabolites were divided into 48 categories, mainly including aminoacyl–tRNA biosynthesis, purine metabolism, fatty acid biosynthesis, pyrimidine metabolism, arginine and proline metabolism, amino sugar and nucleotide sugar metabolism, cysteine and methionine metabolism, valine, leucine and isoleucine degradation, porphyrin and chlorophyll metabolism, phenylpropanoid biosynthesis, glycine, serine and threonine metabolism, valine, leucine and isoleucine biosynthesis, galactose metabolism, glutathione metabolism, starch and sucrose metabolism, glycolysis or gluconeogenesis, glycerophospholipid metabolism, tryptophan metabolism, terpenoid backbone biosynthesis and phenylalanine, and tyrosine and tryptophan biosynthesis. The enriched differential metabolites were significantly correlated with the metabolites detected in some existing seed germination studies, and the significant enrichment of 0.059341 (Raw P) was also detected in the aminobutyric acid metabolism process concerned in this study.

2.3. Correlations between Transcriptome and Metabolites

Comprehensive analysis of transcriptomic and metabolomic data showed that amino acid metabolism, carbohydrate metabolism, and lipid metabolism significantly changed during seed germination, thus initiating the biological processes of coix. Part of the metabolite change is shown in Figure 4, fructose, sucrose, isomaltose, and maltose, which were the most significant increases of water-soluble sugar in the seeds, and also shown in the growth of the genes that were associated with the metabolic metabolism. Metabolites associated with fatty acid metabolism were detected, for example 1-Monohexadecanoylglycerol, 2-Ketoglutaric acidα, citric acid, pyruvic acid, glyceric acid, octadecanoic acid, parabanic acid, and glycerol-3-phosphate were significantly up-regulated content detected during germination in seeds.
Seed germination is mainly regulated by the synergism of various endogenous plant hormones. During the germination of coix seeds, 495 genes were expressed, including 254 differentially expressed genes. In general, DEGs involved in plant hormone signal transduction were significantly different, including ABA signal, GA signal, JA signal, IAA signal, cytokinin signal, and brassinosteroid signal, observed at the early stages of seedling growth. In order to study the relationship between plant hormone pathways and seed germination, as shown in Figure 5, each hormone signaling pathway has corresponding transcription factors involved and is regulated by related enzymes and metabolites.
The expression of ABA synthesis and signal transduction enzymes in dried seeds is high, but the expression decreases significantly after immersion in water, such as the synthesis of the key enzyme NCEB, the plant non-fermenting 1 related protein kinase (SnRK2), and the transcription factor ABF in signal transduction. As shown in Figure 5, four genes were down-regulated after germination, while two genes were up-regulated. Gene TRINITY_DN15625_c0_g1 is homologous to the PYR/PYL gene in Arabidopsis, and gene TRINITY_DN14367_c0_g4 and TRINITY_DN16569_c1_g3 belong to SnRK2 and ABF, respectively. ABA is consistent with the decrease in the expression of related genes such as LEA and HSP in seeds, which may control seed dormancy by regulating genes related to late seed development.
In contrast, the synthetases in the GA pathway are ent kaurene oxidase and ent kaurene oxidase. The expression of important signal molecules GA insensitive dwarf genes (GA insensitive genes TRINITY_DN16010_c1_g1, TRINITY_DN16010_c1_g1, and TRINITY_DN16396_c1_g9) and transcription factor GAMYB increased significantly after water absorption. GAMYB can promote the expression of related genes by binding to the cis element GARE of downstream genes, thereby activating metabolism. Among other plant hormones, the synthesis of lyric acid (JA) and the expression of genes related to signaling pathways have an overall trend of increasing, which is inconsistent with the reported negative regulatory effect of JA on germination. In addition to J, other plant hormone synthesis and signal-related gene expression patterns are not consistent, so it is not possible to clarify their expression changes.

3. Methods

3.1. Plant Materials

Healthy coix seeds of the same size were selected, disinfected with 1% sodium hypochlorite, and then placed in a petri dish (9 cm in diameter) covered with two layers of filter paper, with 30 seeds in each dish. The seeds treated above were placed in an incubator at 25 °C for cultivation. After 96 h, the germinated seeds were sampled for transcriptome and metabonomics analysis, and treated seeds were used as controls.

3.2. High Throughput Transcriptome Analysis

Total RNA from seeds was extracted using a total RNA extraction kit and sequenced using the Illumina HiSeq platform [25,26]. HISAT2 V2.1.0 was selected for hierarchical indexing for spliced alignment of transcripts to compare transcriptome sequencing reads to the reference genome [27]. The transcript per million mapped read (TPM) value of each gene was calculated using cuff links, and the add counts of each gene were obtained using htseq-count [28]. DEGs were identified using the DESeq package function to estimate size factors and nbinomTest. A p-value < 0.05 and fold change > 2 or fold change < 0.5 were set as the threshold for significantly differential expression. Gene Ontology (GO) enrichment and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analyses of DEGs were performed using R based on the hypergeometric distribution of data from http://www.geneontology.org/ (accessed on 16 March 2023) and http://www.genome.jp/kegg/ (accessed on 16 March 2023), respectively.

3.3. Sequencing and Bioinformatics Analysis of Untargeted Metabolomics

Untargeted metabolomics was used to detect metabolites of coix seeds before and after germination. Non-targeted metabolic profiling analyses were performed using a Perkin Elmer 680 GC (Perkin Elmer Inc., Akron, OH, USA) and Q Exactive Focus Orbitrap LC-MS/MS (Thermo Scientific, Waltham, MA, USA). The recorded data were processed with compound discoverer (CD) 3.1 software to obtain the mass-to-charge ratio, retention time, and MS/MS2 information of all detected substances. The detected signals were automatically matched through the internally established reference libraries of chemical standard entries of software to predict and identify metabolite information. Multiple reaction monitoring (MRM) mode with QTRAP 6500+ LC-MS/MS (Shimadzu, Kyoto, Japan) was used for targeted metabolome analysis. The detection window was set to 80 s, and the targeted scanning time was 1.5 s. The original data were processed using Multi Quant 3.0.3 software. The chromatographic column was a C18 column (Shim-pack GLSS C18, 1.9UM, 2.1*100, Shimadzu).
The total peak area was normalized by dividing each metabolite in the sample by the total peak area of the sample to normalize the data before analysis. Principal Component Score (PCA) analysis was performed using the R software package ropls to classify and discriminate between samples. The differences in accumulated metabolites (DAMs) between different control groups were determined based on screening criteria FC > 1.50, p value < 0.05, and VIP > 1 [29]. Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analysis was performed on the DAM using the KOBAS software [30].

4. Discussion

Seeds are essential for all seed plants as they enable the process of sexual reproduction necessary for species perpetuation. Seed germination determines the success of plant reproduction and has substantial economic value. Seeds undergo a complex process from maturity to germination and subsequent seedling establishment. Many factors affect seed germination, including the regulation of physiological and biochemical indicators, genes, and proteins [31,32]. This study analyzed changes in gene expression and metabolites in coix seed at 96 h by high-throughput transcriptome and metabolome analysis. There were 10,929 DEGs and 599 DAMs with significant variations identified between control and germinated seeds. The variation trends of gene expression number and expression amount indicated that a large number of genes were initiated in the early seed germination, and with the increase of gene expression level, various metabolic activities of seeds were driven, and seeds of coix entered a state of enhanced life activities. The differences between DEGs and DAMs indicate that seed germination is a process of enhanced biological activity [33,34]. These phenomena have also been found and elaborated in related studies, demonstrating that physicochemical changes and expression regulation of seed germination are similar in different species [35,36,37].
Plant hormones are also crucial factors affecting seed germination, and numerous studies have been conducted on different species [38,39,40]. Xu et al. found that dozens of up-regulated genes were related to plant hormone biosynthesis and signal transduction, including the auxin signaling pathway [41], brassinosteroid biosynthesis, and signal transduction [42], as well as some GA and ABA signal transduction genes, in the pairing comparison between peanut seeds at the early germination stage and post-ripening stage [43,44]. They suggested that the synergistic action of multiple hormone signal transduction networks played a crucial role in radicle protuberance and seed germination. ABA regulates the transition from dormancy to germination and from germination to growth [45]. Endogenous ABA content is the key to determining whether the embryo enters a dormancy state or deactivates dormancy (spike germination) before maturation. Endogenous ABA accumulates in seeds during seed maturation and initiates and maintains seed dormancy, thereby preventing seed germination. In contrast, endogenous ABA levels decrease, and GA content increases before seed germination. Thus, it was concluded that ABA is a critical hormone for maintaining seed dormancy, and GA can counteract the effects of ABA and promote seed germination [46,47]. Wang et al. found that low temperatures (15 °C) inhibited GA signal transduction in rice seeds (Oryza sativa), resulting in increased ABA synthesis and delayed rice seed germination [48]. They also found that low-temperature treatment promotes the transport of soluble sugars from the endosperm to the embryo.
Different plant-hormone-pathway-related enzymes and transcription factors exhibit different expression trends in our study. For example, the expression of signal molecules that promote ABA synthesis declined after immersion, while the overall expression of GA- and BR-related genes declined. We detected four down-regulated genes and two up-regulated genes in the ABA pathway, three up-regulated genes and two down-regulated genes in the GA3 pathway, three down-regulated genes and one up-regulated gene in the JA pathway, and four down-regulated genes and one up-regulated gene in the IAA pathway. Rich gene expression differences lead to differences in metabolites. The rich changes in hormone-response-signal-related genes have enriched our understanding of coix seed germination and provided a foundation for further research.

5. Conclusions

Coix is a crop with edible and medicinal value. Analysis of the germination process enables understanding and application of coix materials. We studied changes in the seed germination process by combining transcriptome sequencing and non-targeted metabonomics with the cultivated coix. Transcriptome and metabolomic data were integrated and evaluated, and various enrichment pathways were identified, including glucose metabolism, amino acid biosynthesis, lipid metabolism, and hormone response pathways. We focused on lipid metabolism and hormone responses and identified some up-regulated or down-regulated genes. The results showed that the regulatory mechanism of coix seed germination might not be a single gene or metabolite but rather a complex regulatory and signaling mechanism. Nonetheless, the precise mechanism through which these candidate genes or metabolites participate in coix seed germination requires further investigation.

Author Contributions

D.D. conceived and designed the experiments. D.D. and G.D. wrote the manuscript. D.T., J.W. and J.Z. performed the experiments. W.Z. and J.L. analyzed the data. D.D. and G.D. revised the manuscript. D.T., J.W. and J.Z. contributed equally to the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data of this study has not been publicly disclosed. If necessary, please contact the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wu, M.; Wu, J.; Gan, Y. The new insight of auxin functions: Transition from seed dormancy to germination and floral opening in plants. Plant Growth Regul. 2020, 91, 169–174. [Google Scholar] [CrossRef]
  2. Koramutla, M.K.; Negi, M.; Ayele, B.T. Roles of glutathione in mediating abscisic acid signaling and its regulation of seed dormancy and drought tolerance. Genes 2021, 12, 1620. [Google Scholar] [CrossRef] [PubMed]
  3. Tuan, P.A.; Kumar, R.; Rehal, P.K.; Toora, P.K.; Ayele, B.T. Molecular mechanisms underlying abscisic acid/gibberellin balance in the control of seed dormancy and germination in cereals. Front. Plant Sci. 2018, 9, 668. [Google Scholar] [CrossRef] [Green Version]
  4. Chen, Z. The control of seed dormancy and germination by temperature, light and nitrate. Bot. Rev. 2020, 86, 39–75. [Google Scholar]
  5. Reed, R.C.; Bradford, K.J.; Khanday, I. Seed germination and vigor: Ensuring crop sustainability in a changing climate. Heredity 2022, 128, 450–459. [Google Scholar] [CrossRef]
  6. Graeber, K.A.I.; Nakabayashi, K.; Miatton, E.; Leubner-Metzger, G.E.R.H.A.R.D.; Soppe, W.J. Molecular mechanisms of seed dormancy. Plant Cell Environ. 2012, 35, 1769–1786. [Google Scholar] [CrossRef] [PubMed]
  7. Cheng, X.; Gao, C.; Liu, X.; Xu, D.; Pan, X.; Gao, W.; Yan, S.; Yao, H.; Gao, J.; Ma, C.; et al. Characterization of the wheat VQ protein family and expression of candidate genes associated with seed dormancy and germination. BMC Plant Biol. 2022, 22, 119. [Google Scholar] [CrossRef]
  8. Shu, K.; Liu, X.D.; Xie, Q.; He, Z.H. Two faces of one seed: Hormonal regulation of dormancy and germination. Mol. Plant 2016, 9, 34–45. [Google Scholar] [CrossRef] [Green Version]
  9. Wu, Q.; Bai, X.; Wu, X.; Xiang, D.; Wan, Y.; Luo, Y.; Shi, X.; Li, Q.; Zhao, J.; Zhao, G.; et al. Transcriptome profiling identifies transcription factors and key homologs involved in seed dormancy and germination regulation of Chenopodium quinoa. Plant Physiol. Biochem. 2020, 151, 443–456. [Google Scholar] [CrossRef]
  10. Liu, S.; Yang, L.; Li, J.; Tang, W.; Li, J.; Lin, R. FHY3 interacts with phytochrome B and regulates seed dormancy and germination. Plant Physiol. 2021, 187, 289–302. [Google Scholar] [CrossRef]
  11. Ali, F.; Qanmber, G.; Li, F.; Wang, Z. Updated role of ABA in seed maturation, dormancy, and germination. J. Adv. Res. 2022, 35, 199–214. [Google Scholar] [CrossRef] [PubMed]
  12. Chen, F.; Li, Y.; Li, X.; Li, W.; Xu, J.; Cao, H.; Wang, Z.; Li, Y.; Soppe, W.J.J.; Liu, Y. Ectopic expression of the Arabidopsis florigen gene FLOWERING LOCUS T in seeds enhances seed dormancy via the GA and DOG1 pathways. Plant J. 2021, 107, 909–924. [Google Scholar] [CrossRef] [PubMed]
  13. Bai, B.; NovNovmprovLjung, K.; Hanson, J.; Bentsink, L. Combined transcriptome and translatome analyses reveal a role for tryptophan-dependent auxin biosynthesis in the control of DOG1- dependent seed dormancy. New Phytol. 2018, 217, 1077–1085. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Deng, S.; Xiao, Q.; Xu, C.; Hong, J.; Deng, Z.; Jiang, D.; Luo, S. Metabolome profiling of stratified seeds provides insight into the regulation of dormancy in Davidia involucrata. Plant Divers. 2022, 44, 417–427. [Google Scholar] [CrossRef] [PubMed]
  15. Yang, J.; Su, L.; Li, D.; Luo, L.; Sun, K.; Yang, M.; Gu, F.; Xia, A.; Liu, Y.; Guo, T.; et al. Dynamic transcriptome and metabolome analyses of two types of rice during the seed germination and young seedling growth stages. BMC Genom. 2020, 21, 603. [Google Scholar] [CrossRef]
  16. Han, Z.; Wang, B.; Tian, L.; Wang, S.; Zhang, J.; Guo, S.; Zhang, H.; Xu, L.; Chen, Y. Comprehensive dynamic transcriptome analysis at two seed germination stages in maize (Zea mays L.). Physiol. Plant. 2020, 168, 205–217. [Google Scholar] [CrossRef] [PubMed]
  17. Mangrauthia, S.K.; Agarwal, S.; Sailaja, B.; Sarla, N.; Voleti, S.R. Transcriptome analysis of Oryza sativa (rice) seed germination at high temperature shows dynamics of genome expression associated with hormones signalling and abiotic stress pathways. Trop. Plant Biol. 2016, 9, 215–228. [Google Scholar] [CrossRef]
  18. Li, K.; Wang, D.; Gong, L.; Lyu, Y.; Guo, H.; Chen, W.; Jin, C.; Liu, X.; Fang, C.; Luo, J. Comparative analysis of metabolome of rice seeds at three developmental stages using a recombinant inbred line population. Plant J. 2019, 100, 908–922. [Google Scholar] [CrossRef] [Green Version]
  19. Han, C.; Zhen, S.; Zhu, G.; Bian, Y.; Yan, Y. Comparative metabolome analysis of wheat embryo and endosperm reveals the dynamic changes of metabolites during seed germination. Plant Physiol. Biochem. 2017, 115, 320–327. [Google Scholar] [CrossRef]
  20. Song, Z.; Ao, M.; Shen, G.; Liu, P. Effect of Planting Density, Fertilizer Level, and Number of Seedlings per Hole on Yield of Coix Lachryrma-jobi L. Asian Agric. Res. 2015, 7, 69. [Google Scholar]
  21. Ding, Y.; Cheng, J.; Lin, Q.; Wang, Q.; Wang, J.; Yu, G. Effects of endogenous proteins and lipids on structural, thermal, rheological, and pasting properties and digestibility of adlay seed (Coix lacryma-jobi L.) starch. Food Hydrocoll. 2021, 111, 106254. [Google Scholar] [CrossRef]
  22. Devaraj, R.D.; Jeepipalli, S.P.; Xu, B. Phytochemistry and health promoting effects of Job’s tears (Coix lacryma-jobi)—A critical review. Food Biosci. 2020, 34, 100537. [Google Scholar] [CrossRef]
  23. Igbokwe, C.J.; Wei, M.; Feng, Y.; Duan, Y.; Ma, H.; Zhang, H. Coix seed: A review of its physicochemical composition, bioactivity, processing, application, functionality, and safety aspects. Food Rev. Int. 2022, 38 (Suppl. S1), 921–939. [Google Scholar] [CrossRef]
  24. Wu, Y.; Zhou, Y.; Xu, L.; Chen, J.; Li, H.; Zhou, S. Difference analysis of the structure and functional properties among coix seed prolamin fractions (α-, β-, and γ-coixin). J. Food Sci. 2023, 88, 1969–1978. [Google Scholar] [CrossRef] [PubMed]
  25. Du, D.; Jin, R.; Guo, J.; Zhang, F. Infection of embryonic callus with Agrobacterium enables high-speed transformation of maize. Int. J. Mol. Sci. 2019, 20, 279. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Bolger, A.M.; Lohse, M.; Usadel, B. Trimmomatic: A flexible trimmer for Illumina sequence data. Bioinformatics 2014, 30, 2114. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Kim, D.; Langmead, B.; Salzberg, S.L. HISAT: A fast spliced aligner with low memory requirements. Nat. Methods 2015, 12, 357–360. [Google Scholar] [CrossRef] [Green Version]
  28. Trapnell, C.; Williams, B.A.; Pertea, G.; Mortazavi, A.; Kwan, G.; Van Baren, M.J.; Salzberg, S.L.; Wold, B.J.; Pachter, L. Transcript assembly and quantification by RNA-Seq reveals unannotated transcripts and isoform switching during cell differentiation. Nat. Biotechnol. 2010, 28, 511–515. [Google Scholar] [CrossRef] [Green Version]
  29. Wu, Y.; Yang, H.; Yang, H.; Zhang, C.; Lyu, L.; Li, W.; Wu, W. A physiological and metabolomic analysis reveals the effect of shading intensity on blueberry fruit quality. Food Chem. 2022, 15, 100367. [Google Scholar] [CrossRef]
  30. Mao, X.; Cai, T.; Olyarchuk, J.G.; Wei, L. Automated genome annotation and pathway identification using the KEGG Orthology (KO) as a controlled vocabulary. Bioinformatics 2005, 21, 3787–3793. [Google Scholar] [CrossRef]
  31. Chin, J.M.; Lim, Y.Y.; Ting, A.S.Y. Biopolymers for biopriming of Brassica rapa seeds: A study on coating efficacy, bioagent viability and seed germination. J. Saudi Soc. Agric. Sci. 2021, 20, 198–207. [Google Scholar] [CrossRef]
  32. Yu, F.; Li, M.; He, D.; Yang, P. Advances on post-translational modifications involved in seed germination. Front. Plant Sci. 2021, 12, 362. [Google Scholar] [CrossRef] [PubMed]
  33. Pracharoenwattana, I.; Cornah, J.E.; Smith, S.M. Arabidopsis peroxisomal citrate synthase is required for fatty acid respira-tion and seed germination. Plant Cell 2005, 17, 2037–2048. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Huang, K.L.; Wang, H.; Wei, Y.L.; Jia, H.X.; Zha, L.; Zheng, Y.; Ren, F.; Li, X.B. The high-affinity transporter BnPHT1; 4 is involved in phosphorus acquisition and mobilization for facilitating seed germination and early seedling growth of Brassica napus. BMC Plant Biol. 2019, 19, 156. [Google Scholar] [CrossRef] [PubMed]
  35. Song, J.; Shang, L.; Wang, X.; Xing, Y.; Xu, W.; Zhang, Y.; Wang, T.; Li, H.; Zhang, Z.; Ye, Z. MAPK11 regulates seed germination and ABA signaling in tomato by phosphorylating SnRKs. J. Exp. Bot. 2021, 72, 1677–1690. [Google Scholar] [CrossRef]
  36. Wang, G.; Li, X.; Ye, N.; Huang, M.; Feng, L.; Li, H.; Zhang, J. OsTPP1 regulates seed germination through the crosstalk with abscisic acid in rice. New Phytol. 2021, 230, 1925–1939. [Google Scholar] [CrossRef]
  37. Xue, X.; Yu, Y.C.; Wu, Y.; Xue, H.; Chen, L.Q. Locally restricted glucose availability in the embryonic hypocotyl determines seed germination under abscisic acid treatment. New Phytol. 2021, 231, 1832–1844. [Google Scholar] [CrossRef]
  38. Li, Z.; Pei, X.; Yin, S.; Lang, X.; Zhao, X.; Qu, G.Z. Plant hormone treatments to alleviate the effects of salt stress on germination of Betula platyphylla seeds. J. For. Res. 2019, 30, 779–787. [Google Scholar] [CrossRef]
  39. Miransari, M.; Smith, D.L. Plant hormones and seed germination. Environ. Exp. Bot. 2014, 99, 110–121. [Google Scholar] [CrossRef]
  40. Xiao, H.M.; Cai, W.J.; Ye, T.T.; Ding, J.; Feng, Y.Q. Spatio-temporal profiling of abscisic acid, indoleacetic acid and jasmonic acid in single rice seed during seed germination. Anal. Chim. Acta 2018, 1031, 119–127. [Google Scholar] [CrossRef]
  41. Xu, P.; Tang, G.; Cui, W.; Chen, G.; Ma, C.L.; Zhu, J.; Li, P.; Shan, L.; Liu, Z.; Wan, S. Transcriptional differences in peanut (Arachis hypogaea L.) seeds at the freshly harvested, after-ripening and newly germinated seed stages: Insights into the regulatory networks of seed dormancy release and germination. PLoS ONE 2020, 15, e0219413. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Song, S.; Wang, G.; Wu, H.; Fan, X.; Liang, L.; Zhao, H.; Li, S.; Hu, Y.; Liu, Y.; Xing, Y.; et al. OsMFT2 is involved in the regulation of ABA signaling-mediated seed germination through interacting with OsbZIP23/66/72 in rice. Plant J. 2020, 103, 532–546. [Google Scholar] [CrossRef] [PubMed]
  43. Wang, Z.; Ren, Z.; Cheng, C.; Wang, T.; Ji, H.; Zhao, Y.; Deng, Z.; Zhi, L.; Lu, J.; Li, X.; et al. Counteraction of ABA-mediated inhibition of seed ger-mination and seedling establishment by ABA signaling terminator in Arabidopsis. Mol. Plant 2020, 13, 1284–1297. [Google Scholar] [CrossRef]
  44. Zhao, H.; Nie, K.; Zhou, H.; Yan, X.; Zhan, Q.; Zheng, Y.; Song, C.P. ABI5 modulates seed germination via feedback regulation of the expression of the PYR/PYL/RCAR ABA receptor genes. New Phytol. 2020, 228, 596–608. [Google Scholar] [CrossRef] [PubMed]
  45. Kucera, B.; Cohn, M.A.; Leubner-Metzger, G. Plant hormone interactions during seed dormancy release and germination. Seed Sci. Res. 2005, 15, 281–307. [Google Scholar] [CrossRef]
  46. Chiwocha, S.D.; Cutler, A.J.; Abrams, S.R.; Ambrose, S.J.; Yang, J.; Ross, A.R.; Kermode, A.R. The etr1-2 mutation in Arabidopsis thaliana affects the abscisic acid, auxin, cytokinin and gibberellin metabolic pathways during maintenance of seed dormancy, moist-chilling and germination. Plant J. 2005, 42, 35–48. [Google Scholar] [CrossRef] [PubMed]
  47. Vaistij, F.E.; Gan, Y.; Penfield, S.; Gilday, A.D.; Dave, A.; He, Z.; Josse, Z.-M.; Choi, G.; Halliday, K.J.; Graham, I.A. Differential control of seed primary dormancy in Arabidopsis ecotypes by the transcription factor SPATULA. Proc. Natl. Acad. Sci. USA 2013, 110, 10866–10871. [Google Scholar] [CrossRef]
  48. Wang, Y.; Cui, Y.; Hu, G.; Wang, X.; Chen, H.; Shi, Q.; Xiang, J.; Zhang, Y.; Zhu, D.; Zhang, Y. Reduced bioactive gibberellin content in rice seeds under low temperature leads to decreased sugar consumption and low seed germination rates. Plant Physiol. Biochem. 2018, 133, 1–10. [Google Scholar] [CrossRef]
Plants 12 02700 g001 550

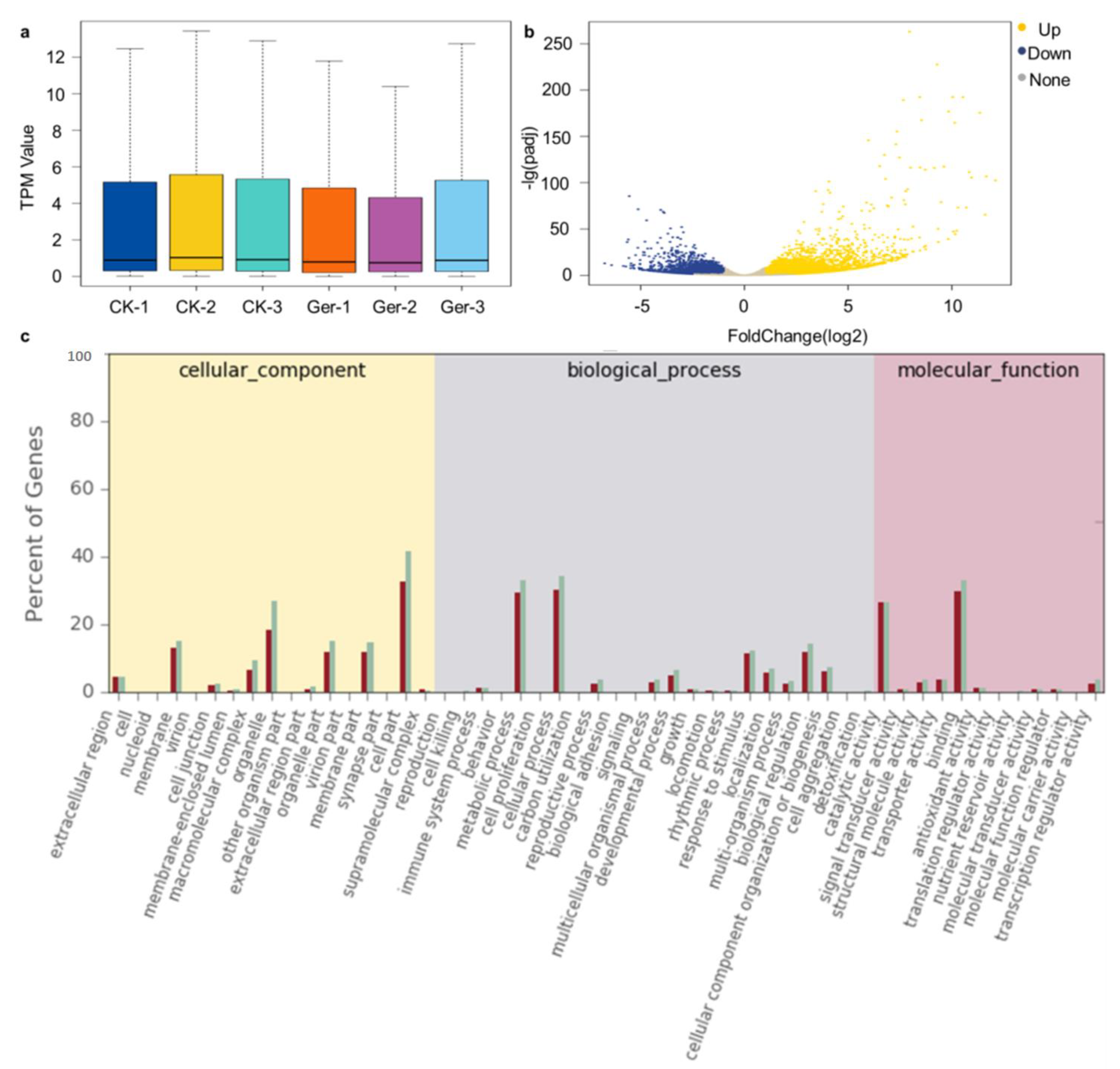

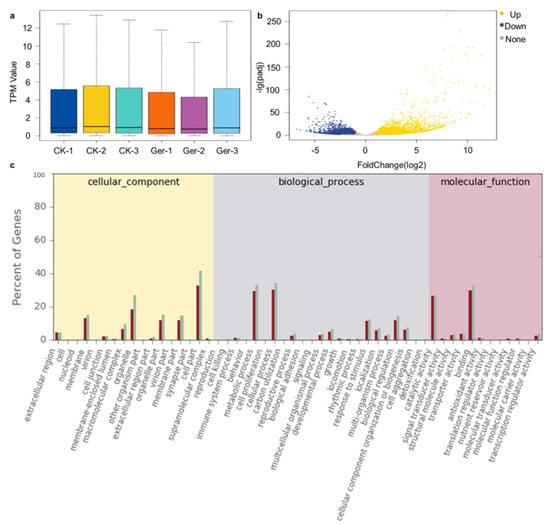

Figure 1. Gene expression analysis during seed germination. (a), Expression density of genes using the transcript per million mapped read (TPM) value. The abscissa is the sample name, and the ordinate is the TPM value. The box chart for each region is divided into five statistics (top to bottom are the maximum, upper quartile, median, lower quartile, and minimum). (b), Identification of differentially expressed genes (DEGs) between treatments. The volcano plot presents the expression of the DEGs in different treatments, the yellow dots represent up-regulated genes, and the blue dots represent down-regulated genes. (c), The GOs classification of all DEGs of germinated seeds and controls. The abscissa is the number of differentially expressed genes in different GOs, and the ordinate is the type of GO enrichment.
Figure 1. Gene expression analysis during seed germination. (a), Expression density of genes using the transcript per million mapped read (TPM) value. The abscissa is the sample name, and the ordinate is the TPM value. The box chart for each region is divided into five statistics (top to bottom are the maximum, upper quartile, median, lower quartile, and minimum). (b), Identification of differentially expressed genes (DEGs) between treatments. The volcano plot presents the expression of the DEGs in different treatments, the yellow dots represent up-regulated genes, and the blue dots represent down-regulated genes. (c), The GOs classification of all DEGs of germinated seeds and controls. The abscissa is the number of differentially expressed genes in different GOs, and the ordinate is the type of GO enrichment.
Plants 12 02700 g001
Plants 12 02700 g002 550

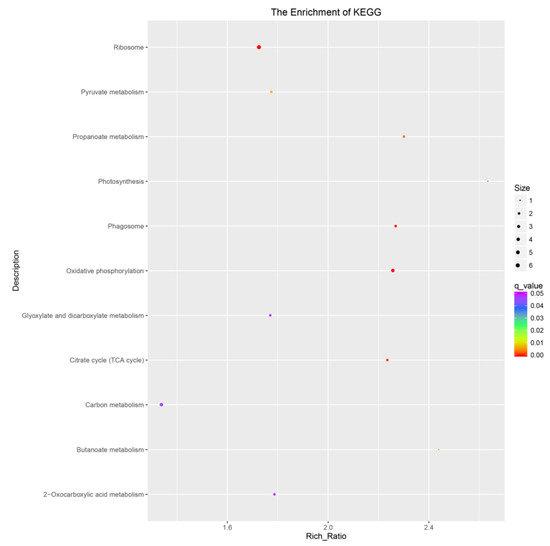

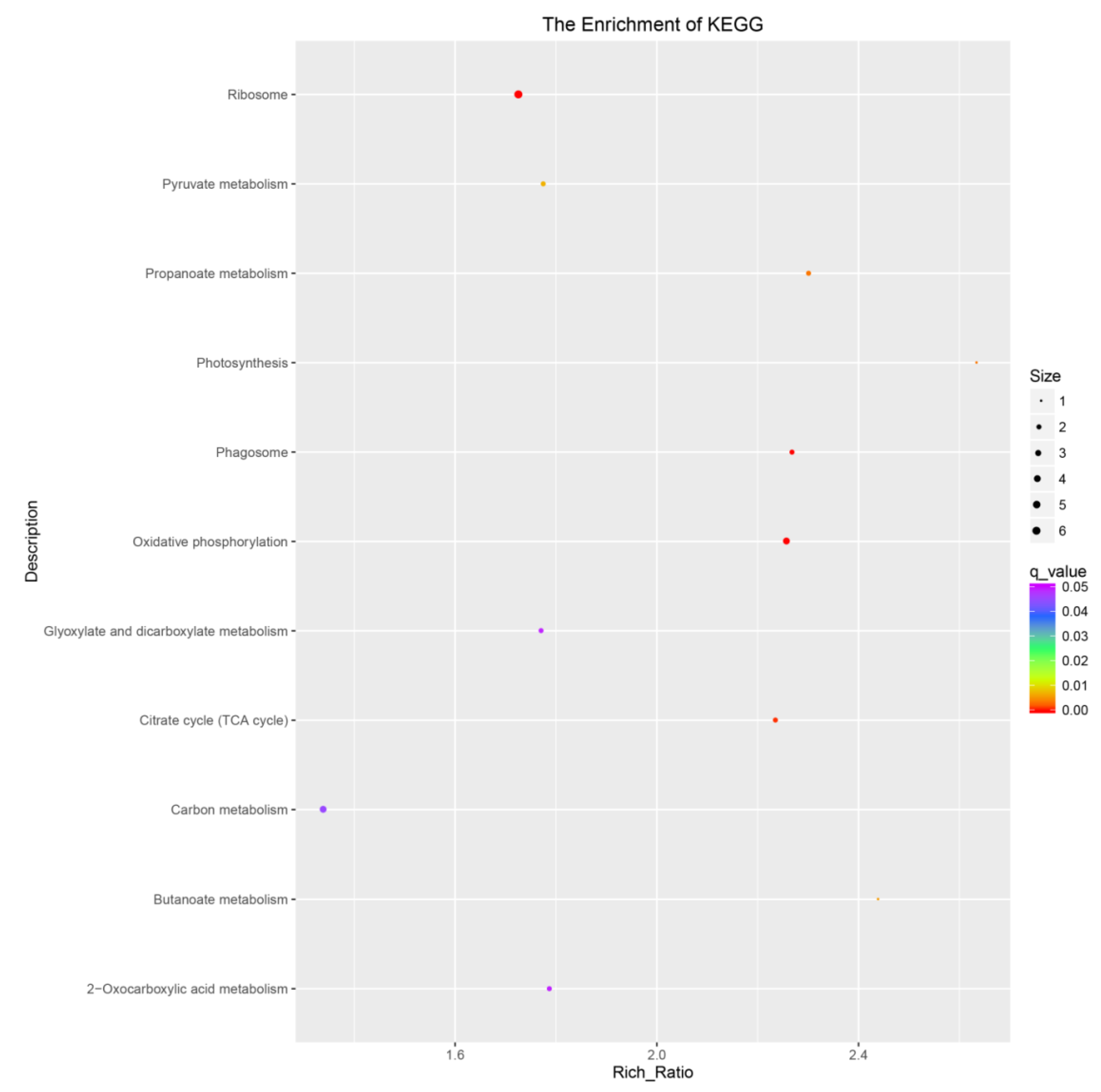

Figure 2. The KEGG pathways of all DEGs of germinated seeds and controls. The abscissa is the percent of differentially expressed genes in different KEGG, and the ordinate is the type of KEGG enrichment.
Figure 2. The KEGG pathways of all DEGs of germinated seeds and controls. The abscissa is the percent of differentially expressed genes in different KEGG, and the ordinate is the type of KEGG enrichment.
Plants 12 02700 g002
Plants 12 02700 g003 550

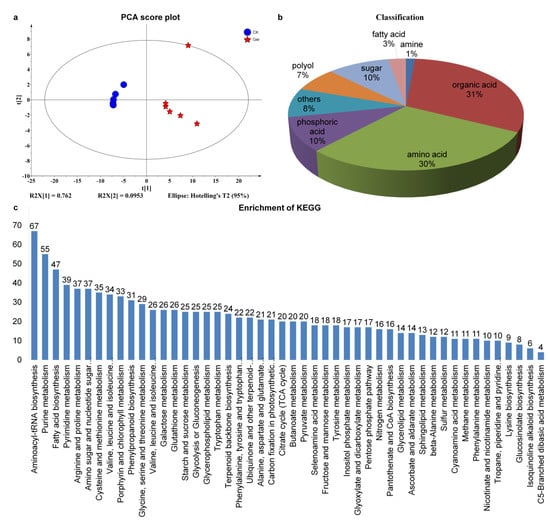

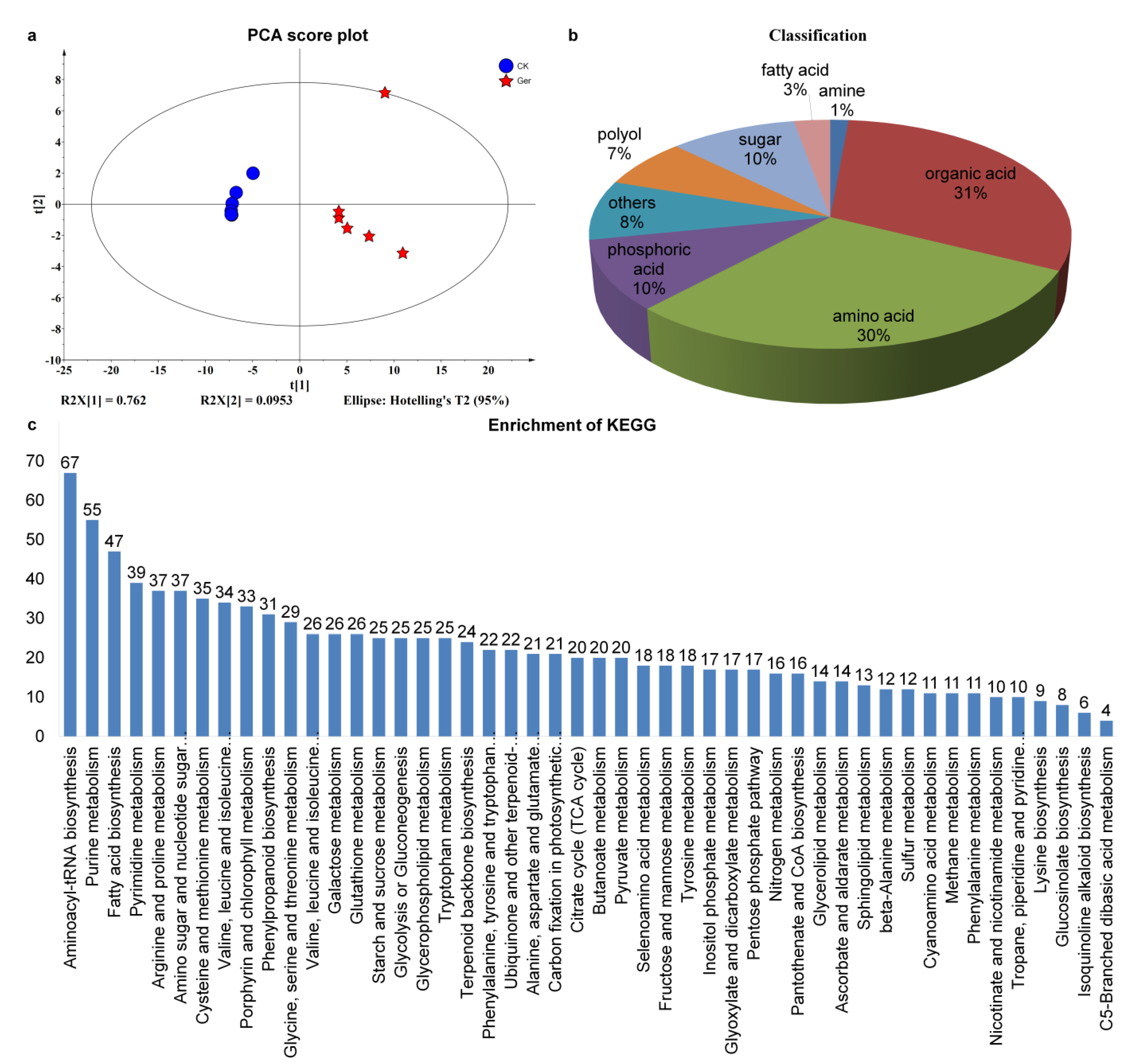

Figure 3. Statistical description of metabolic analysis of coix seed germination. (a), Principal Component Score (PCA) analysis of metabolome sequencing results. The X-axis represents the first principal component (PC1), and the Y-axis represents the second principal component (PC2). (b), Statistical description of metabolic analysis of coix seed germination. (c), The KEGG pathways of all DEGs of germinated seeds and controls. The abscissa is the type of KEGG enrichment, and the ordinate is the percent of differentially expressed genes in different KEGG.
Figure 3. Statistical description of metabolic analysis of coix seed germination. (a), Principal Component Score (PCA) analysis of metabolome sequencing results. The X-axis represents the first principal component (PC1), and the Y-axis represents the second principal component (PC2). (b), Statistical description of metabolic analysis of coix seed germination. (c), The KEGG pathways of all DEGs of germinated seeds and controls. The abscissa is the type of KEGG enrichment, and the ordinate is the percent of differentially expressed genes in different KEGG.
Plants 12 02700 g003
Plants 12 02700 g004 550

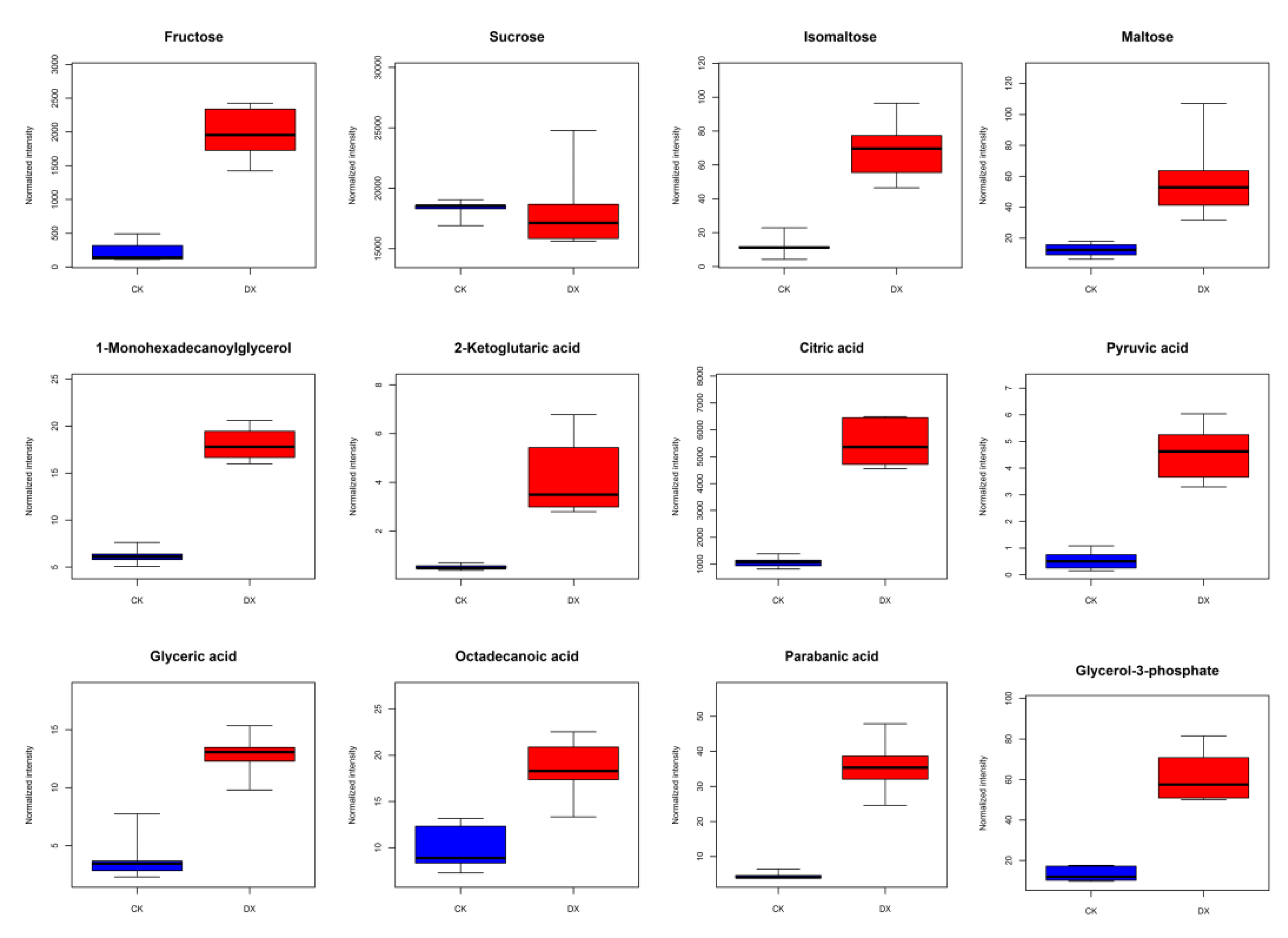

Figure 4. Differential metabolites and differentially expressed genes related to GABA synthesis pathway. In the box plot, the abscissa represents the sample and the ordinate represents the enrichment content for the differentially enriched metabolites. Blue is the test result of non-germinated seeds, and red is the test result of germinated seeds.
Figure 4. Differential metabolites and differentially expressed genes related to GABA synthesis pathway. In the box plot, the abscissa represents the sample and the ordinate represents the enrichment content for the differentially enriched metabolites. Blue is the test result of non-germinated seeds, and red is the test result of germinated seeds.
Plants 12 02700 g004
Plants 12 02700 g005 550

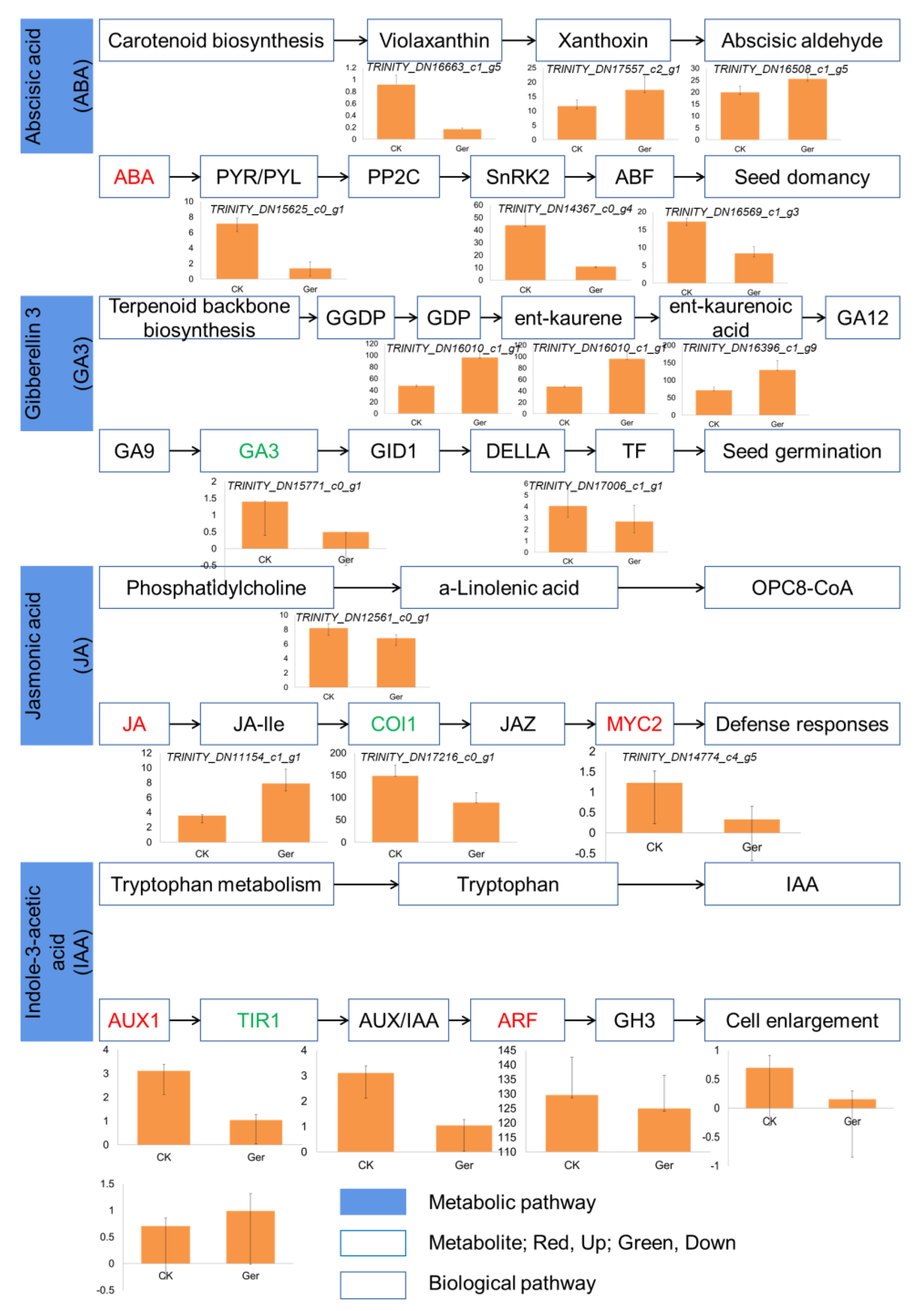

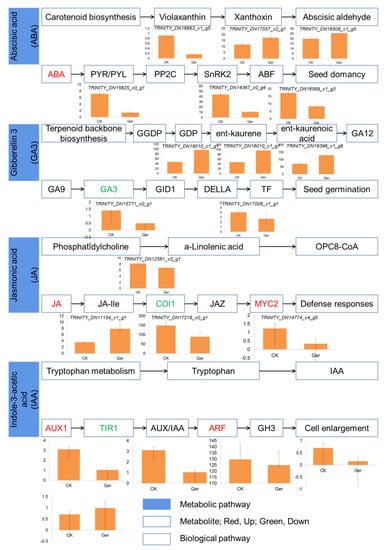

Figure 5. Hormone regulatory pathways change during seed germination. Analysis of metabolite accumulation in hormone metabolism pathway shows that red indicates up-regulation and enrichment, and green indicates down-regulation and enrichment. The column chart shows some differentially expressed genes in the pathway, with the gene name in italic font.
Figure 5. Hormone regulatory pathways change during seed germination. Analysis of metabolite accumulation in hormone metabolism pathway shows that red indicates up-regulation and enrichment, and green indicates down-regulation and enrichment. The column chart shows some differentially expressed genes in the pathway, with the gene name in italic font.
Plants 12 02700 g005
Table
Table 1. Statistical results of the RNA-Seq reads.
Table 1. Statistical results of the RNA-Seq reads.
SampleRaw ReadsClean ReadsClean BasesError (%)Q20 (%)Q30 (%)GC (%)
CK-152,445,38452,445,3847.87 G0.0298.194.756.23
CK-262,134,64662,134,6469.32 G0.0297.9594.3757.88
CK-356,839,89656,839,8968.53 G0.0298.0294.5657.99
Ger-160,134,67060,134,6709.02 G0.0298.1394.7456.99
Ger-256,513,23656,513,2368.48 G0.0298.0194.5156.3
Ger-347,092,67847,092,6787.06 G0.0297.9994.4755.66
Sample: Name of a Sample; Raw reads: Statistics of Raw sequence data, counting the number of sequenced sequences per file in a unit of four acts; Clean reads: the calculation method is the same as Raw reads and Raw bases, except that the statistical files are filtered sequencing data. Subsequent bioinformatics analyses were based on Clean reads; Clean bases: The number of sequenced sequences multiplied by the length of the sequence and converted to G; Error: base Error rate; Q 20, Q 30: percentage of bases with Phred values greater than 20 and 30 in the total number of bases; GC Content: The percentage of the sum of bases G and C to the total number of bases.
