Effect Analysis of Hydrogen Peroxide Using Hyperspectral Reflectance in Sorghum [Sorghum bicolor (L.) Moench] under Drought Stress

by
Ki Eun Song
1,†,
Se Sil Hong
2,†,
Hye Rin Hwang
2,
Sun Hee Hong
1 and
Sang-in Shim
2,3,*
1
Department of Plant Life Science, Hankyong National University, Ansung 17579, Republic of Korea
2
Department of Agronomy, Gyeongsang National University, Jinju 52828, Republic of Korea
3
Institute of Life Sciences, Gyeongsang National University, Jinju 52828, Republic of Korea
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2023, 12(16), 2958; https://doi.org/10.3390/plants12162958
Submission received: 19 July 2023 / Revised: 11 August 2023 / Accepted: 14 August 2023 / Published: 16 August 2023
(This article belongs to the Section Plant Response to Abiotic Stress and Climate Change)
Browse Figures
Review Reports Versions Notes

Abstract

:
Due to global climate change, adverse environments like drought in agricultural production are occurring frequently, increasing the need for research to ensure stable crop production. This study was conducted to determine the effect of artificial hydrogen peroxide treatment on sorghum growth to induce stress resistance in drought conditions. Hyperspectral analysis was performed to rapidly find out the effects of drought and hydrogen peroxide treatment to estimate the physiological parameters of plants related to drought and calculate the vegetation indices through PLS analysis based on hyperspectral data. The partial least squares (PLS) analysis collected chlorophyll fluorescence variables, photosynthetic parameters, leaf water potential, and hyperspectral reflectance during the stem elongation and booting stage. To find out the effect of hydrogen peroxide treatment in sorghum plants grown under 90% and 60% of field capacity in greenhouses, growth and hyperspectral reflectance were measured on the 10th and 20th days after foliar application of H2O2 at 30 mM from 1st to 5th leaf stage. The PLS analysis shows that the maximum variable fluorescence of the dark-adapted leaves was the most predictable model with R2 = 0.76, and the estimation model suitability gradually increased with O (R2 = 0.51), J (R2 = 0.73), and P (R2 = 0.75) among OJIP parameters of chlorophyll fluorescence analysis. However, the estimation suitability of predictions for moisture-related traits, vapor pressure deficit (VPD, R2 = 0.18), and leaf water potential (R2 = 0.15) using hyperspectral data was low. The hyperspectral reflectance was 10% higher at 20 days after treatment (DAT) and 3% at 20 DAT than the non-treatment in the far red and infra-red light regions under drought conditions. Vogelmann red edge index (VOG REI) 1, chlorophyll index red edge (CIR), and red-edge normalized difference vegetation index (RE-NDVI) efficiently reflected moisture stress among the vegetation indices. Photochemical reflectance index (PRI) can be used as an indicator for early diagnosis of drought stress because hydrogen peroxide treatment showed higher values than untreated in the early stages of drought damage.

1. Introduction

Sorghum (Sorghum bicolor L. Moench) is a member of Poaceae and is one of the top five food crops along with wheat, rice, corn, and barley [1], and has a high value not only as food but also as feed or sugar crop [2]. In addition, considering that the decline in crop growth caused by increasing drought stress due to climate change threatens food production [3], sorghum, which grows well in arid and semi-arid regions in West Africa, is of great importance in the region threatened by drought. Under the unfavorable agricultural production environment, research for sorghum to ensure a stable crop yield is increasing for food production in the world [4,5].
Image analysis techniques, including remote sensing that is actively introduced into agriculture to recognize crop reactions and damage due to environmental changes rapidly, is known as a tool to estimate various variables reflecting crop growth and physiological characteristics accurately [6,7,8]. In terms of utilization, this technology has attracted significant attention in crop monitoring and predicting crop yields [6], as it can non-destructively and relatively inexpensively characterize crop conditions [9]. Compared to multi-spectral spectrum systems that acquire images in limited several spectral bands in remote sensing and sensing technologies, hyperspectral spectrum sensing technology that acquires images in narrow and continuous spectral bands provides continuous spectra for images [8,10]. Therefore, hyperspectral spectral data are more sensitive to specific crop variables, and reflectance in wide ranges has the advantage of providing various information such as nitrogen and chlorophyll content in leaves [11], LAI [12], and crop yield prediction [7,13] using normalized difference vegetation index between bands. However, unlike the use of average spectral reflectance in a wide range band, there is also a disadvantage that using a specific narrow band may lead to the loss of particular information [8,14,15]. Partial least square (PLS) analysis, used to analyze hyperspectral data, is a method of easily processing a data matrix in which many variables, such as hyperspectral reflectance data, describe each object. This technology can extract relevant parts of information about huge data matrices and generate the most reliable models for other calibration methods [16,17]. The PLS method has been used in plant science to predict plant biomass [8], LAI, nitrogen [10], and chlorophyll concentrations [18]. The relationship between spectral properties and reflectance to the functional characteristics of plants is not yet clear or known, and the spectral reflectance of plants related to plant water stress or physiological changes is very complicated. However, spectral vegetation indices are analytical tools that can evaluate the parameters related to the physiology, morphology, and biochemical characteristics of plants using several wavelengths to understand vegetation characteristics. Therefore, it is very useful as a tool for evaluating plant growth under various environmental conditions [19].
The stresses that inhibit normal growth induce the generation of reactive oxygen species (ROS) in plants, causing damage, and plants become resistant to stress through antioxidant responses to ROS. In this process, ROS acts as a signaling substance for inducing stress resistance, and the interest in the practical application of artificial induction of ROS for coping with stress is also growing. Hydrogen peroxide (H2O2) is a representative ROS substance that improves resistance to various abiotic stresses through signal transduction in plants. It has been proven to have its beneficial effects partially in some physiological processes like seed germination [20,21,22,23]. If the external treatment of hydrogen peroxide is effective in ameliorating abiotic stress, hydrogen peroxide treatment is of great practical value in adverse environmental conditions that become more serious to plants by increasing the risk of stress like drought due to climate change because H2O2 is easy to apply to plant leaves by spraying [24,25]. On the other hand, empirical studies on the effect of artificially applied H2O2 on the growth of crops during the entire growth period are still insufficient.
This study was conducted to know the validity of the non-destructive measurement method for determining the effect of hydrogen peroxide treatment on sorghum in drought conditions. The response of plants was confirmed through vegetation indices based on hyperspectral reflectance data and physiological variable estimation through the PLS model.

2. Results

2.1. PLS Analysis Using Physiological Traits and Hyperspectral Data of Sorghum

Partial least squares (PLS) regression analysis was conducted to increase the utilization of hyperspectral analysis in field conditions by analyzing the relationships between hyperspectral reflectance data and leaf chlorophyll fluorescence parameters, photosynthetic variables, and leaf water potential (Figure 1, Figure 2 and Figure 3). PLS analysis based on the physiological parameters measured during vegetative growth and hyperspectral data showed different accuracy depending on parameters.
The PLS models of chlorophyll fluorescence variables were divided into predictive models with a high coefficient of determination (R2 > 0.5) and models with a low R2 (<0.5). Prediction models that showed a relatively high R2 (>0.5) were found in models for the parameters of O, T100, K, J, I, P (Fm), S, M, Fo, Fm, Fv, Fv/Fo, ETo/CS, and area in the chlorophyll fluorescence responses. The chlorophyll fluorescence parameters represented by the prediction model with low R2 (<0.5) were tFm, Vj, PI, Mo, DIo/CS, DIo/RC, RC/CSo, RC/CSm, and ETo/ABS (Figure 1). In each prediction model, the PLS models for maximum fluorescence intensity (Fm) and the maximum variable fluorescence (Fv = Fm − Fo) of dark-adapted leaves showed the highest R2 with 0.75 and 0.76, respectively, and the coefficient of determination of tFm was 0.09, indicating that the estimated suitability was low. Among the parameters from OJIP analysis of chlorophyll fluorescence, the coefficients of determination of variables related to energy flow (ETo/ABS, DIo/RC) at the PSII reaction center showed low R2 of 0.21 and 0.12, respectively (Figure 1).
In the PLS model for photosynthesis-related variables and leaf water potential, photosynthetic rate (Pn), transpiration rate (E), and stomatal conductance (C) also showed relatively higher R2 (Figure 2), but vapor pressure deficit (VPD) and leaf water potential showed low coefficients of determination, 0.18 and 0.15, respectively (Figure 2 and Figure 3).

2.2. Changes in Hyperspectral Reflectance and Vegetation Indices by Hydrogen Peroxide Treatment

This research investigated the effect of hydrogen peroxide treatment on sorghum seedlings under drought conditions using 35 vegetation indices (see Table 1) based on hyperspectral analysis. The hyperspectral reflectance of sorghum leaves in the visible light range (400–700 nm) by hydrogen peroxide treatment differed between well-watered and drought conditions (Figure 4). The overall hyperspectral reflectance on leaves was increased by hydrogen peroxide 10 DAT but did not show a great difference. Even 20 DAT, there were no significant differences in the visible light range between the H2O2 treatment and control under well-watered conditions. However, in the drought condition, the reflectance of the blue light (460–500 nm) and red light (620–680 nm) band in the visible light range was higher in hydrogen peroxide treatment than that of the control plants 10 DAT, but lower in green light (500–570 nm). The reflectance in the visible range of plants treated with hydrogen peroxide was higher than that of untreated plants at 20 DAT (Figure 4).
The reflectance in the far-red region of 700–800 nm was similar between hydrogen peroxide treatment and control under well-watered conditions at 10 and 20 DAT. The reflectance in the far-red region was higher by 10% at 10 DAT in hydrogen peroxide treatment than that of the control. The difference was reduced to 3% at 20 DAT (Figure 4). Similar results were observed in the reflectance in the near-infrared region (>800 nm) over time under drought conditions (Figure 4).
As a result of calculating the vegetation indices of sorghum for each treatment based on reflectivity (Table 1) it was confirmed that the vegetation indices were higher in hydrogen peroxide treatment than in non-treatment 10 DAT (Table 1). The effect of hydrogen peroxide treatment showed significant differences in the vegetation index GNDVI, VOG REI 1, PSSR b, PSSR c, GCI, PRI*CI, and ARI 2 under the well-watered conditions on the 10th day of treatment. However, it was confirmed that the effect of hydrogen peroxide treatment was significantly different only in PRIM3, HI-2013, and ARI 1 under the well-watered and drought conditions at 20 DAT. In particular, the three PRIs, PRIM3 using the reflectance at 670 nm reflect well the influences of soil moisture conditions and hydrogen peroxide treatment, and among the vegetation indices related to carotenoids, PSSRc and PRI*CI were good indices to know the effects of soil moisture conditions and hydrogen peroxide treatment. Among the vegetation indices related to photosynthetic pigments, PSSRb adequately reflected the effect of hydrogen peroxide under different soil moisture conditions. The response of the vegetation indices, in general, was better in drought conditions than in well-watered conditions for the effects of hydrogen peroxide. In addition, among the 35 vegetation indices, SIPI, SRPI, NPQI, and SR 400/900, which use reflectance in the 400–450 nm, did not show any effect by treatment timing, soil water conditions, and hydrogen peroxide treatment.

3. Discussion

3.1. PLS Analysis Using Physiological Traits and Hyperspectral Data of Sorghum

The maximum fluorescence intensity (Fm) was highly suitable for using hyperspectral data. Still, the t Fm, which represents the time to reach the maximum fluorescence intensity, was less suitable for the predictive model. According to Strasser et al. [26], chlorophyll fluorescence kinetics can be divided into O-J, J-I, and I-P stages. J-I is related to the donor showing the water-splitting activity of photosystem II. This stage reflects the temperature effect on fluorescence induction, and the water-splitting activity is sensitive to temperatures between 35–40 °C [27,28]. Because it is not an estimation model that knows the effect of temperature in this research, the PLS model for the J-I stage was not highly suitable. In a study by Sobejano-Paz et al. [29], PLS analysis using the hyperspectral reflectance measured in drought-treated soybeans and maize showed high coefficients of 0.92, 0.87, and 0.82, respectively, as shown in the results of this study. On the other hand, since we used the reflectance of the range 400 to 900 nm in this research, the suitability of the predictive model for water-related traits (VPD, leaf water potential) was to be low due to a lack of reflectance data in the infrared range reflecting water status.
As previous research shows, hyperspectral analysis has a highly accurate estimation for chlorophyll fluorescence [30]. Our results also showed high estimation in OJIP parameters related to maximum fluorescence intensity and maximum variable fluorescence. Hyperspectral data are easily obtained from large areas with nondestructive methods for plants growing in the field. Therefore, it can be used as an efficient evaluating tool for crop management if used for variables with high coefficients of determination for photosynthesis-related traits.

3.2. Changes in Hyperspectral Reflectance and Vegetation Indices by Hydrogen Peroxide Treatment

The vulnerability of crops to water stress resulted in an alteration of crop growth and changes in the leaf structure or water status of the crop [31,32]. In addition, visible symptoms under drought conditions generally include leaf rolling or folding, leaf withering, leaf discoloration, and canopy opening [31]. In temporary drought, crops act a photoprotection through heat and fluorescence emission to protect plant tissues, and in continuous drought stress, changes in the sunlight reflectance on the leaf surface, light absorption rate, and chloroplast degradation in leaves [33,34]. The CIR of plants treated with hydrogen peroxide was higher than that of the control. Therefore, this index is considered a helpful vegetation index reflecting the effect of hydrogen peroxide treatment according to water deficit conditions. In addition, the vegetation index using the same wavelengths (710 and 750 nm) used for CIR calculation is RE-NDVI, and it was higher in the hydrogen peroxide treatment than the control during the initial period of drought conditions. The results of Zhang and Zhou [35] also showed that RE-NDVI is an index sensitive to changes in water status and drought stress among the vegetation indices in maize grown under different soil moisture conditions. Normalized difference vegetation index (NDVI), the most commonly used vegetation index among spectral vegetation indications, reflects sensitively to vegetation biomass but is relatively less sensitive for physiological conditions [36]. However, in this study, NDVI was a helpful index as it was higher in the hydrogen peroxide treatment than the control during the initial stage of drought stress.
The photochemical reflection index (PRI), which is used to determine photosynthesis efficiency in connection with the xanthophyll cycle, is a valuable indicator of the physiological condition and stress level of crops [36,37]. Thénot et al. [38] reported that the PRI of leaves with low leaf water potential (−0.48 MPa) was higher than that of leaves with high leaf water potential (−0.38 MPa) in quinoa and Alordzinu et al. [19] also reported that the PRI index of tomatoes grown under different soil moisture conditions tends to decrease when stressed.
Remote sensing techniques are widely used in vegetation management as a non-destructive method to estimate the biochemical and morphological properties based on energy absorption and scattering at different spectral ranges [39,40]. Photosynthesis and moisture movement characteristics are obtained through optical or thermography analysis. However, the use of remote sensing techniques to measure plant function and physiological features is complicated because the mechanism of the reflectance and absorption of light related to functional changes in plants is not known accurately [41,42]. Our results also show functional properties of hyperspectral properties for estimating the physiological status of plants under different growth conditions.
The most frequently applied remote sensing technique for monitoring plant responses to moisture stress is the use of vegetation indices [43,44]. In particular, the reflectance analysis of spectral parameters on the surface of a plant canopy is widely used in remote sensing techniques. Vegetation indices such as the NDVI and PSSR are associated with plant structural characteristics such as LAI and pigment conditions such as chlorophyll content [45,46]. However, in the development of plant remote sensing technology, the finding for efficient reflectance is essential because specific reflectance analysis in certain bands that sensitively and efficiently reflect the responses to stress is critical [47].
In our study, PRI was lower in drought conditions than in well-watered conditions, but the hydrogen peroxide treatment did not show a significant difference. However, PRIm3 and PRI*CI indices showed substantial differences in the effects of drought and hydrogen peroxide treatment in our results, so PRIm3 and PRI*CI are more efficient indices than PRI. Hernández-Clemente et al. [48] examined the vegetation indices using reflectances at 512, 570, 600, and 670 nm in addition to reflectance at 531 nm. They found that PRI512 was sensitive to stomatal conductance and leaf water potential, while PRI570 was sensitive to structural features related to the canopy. The results imply that the effective wavelength differs according to each trait. This result shows that the efficiency of the spectral bands used for determining the condition of the plant is different depending on the target trait. Vegetation indices that showed the effect of hydrogen peroxide on initial drought stress in sorghum can be used to develop reasonable measures through early detection of water stress in other crops.
The role of H2O2 in reducing water stress is known to be due to increased plant resistance through signal transduction [49]. However, various results have been reported for the proper concentration of hydrogen peroxide that induces signal transduction for increasing resistance. It depends on the plant species and the timing of treatment, and it is considered that there is a difference in appropriate concentration depending on the treated amount. In this study, plants were treated to the extent that the leaf surface was sufficient with a 30 mM H2O2. In plants, low concentrations of hydrogen peroxide are present in cellular organs such as chloroplasts, mitochondria, and peroxisomes [49], and about 1-5% of mitochondrial O2 consumption leads to H2O2 production [50]. Therefore, it can be possible that if the concentration increases beyond the common level of hydrogen peroxide in the plant, resistance induction by hydrogen peroxide may occur. Considering the result that the concentration increase in hydrogen peroxide by drought is higher than the well-watered condition [51], the increase in drought resistance by hydrogen peroxide may result from reducing the damage to photosynthesis. Hydrogen peroxide is a substance that exists in plants even in natural conditions, so using low concentrations can be a useful practice to improve plant resistance under drought conditions.

4. Materials and Methods

4.1. Sorghum Growth and Hydrogen Peroxide Treatment

This experiment was conducted in the greenhouse of Gyeongsang National University from 20 March to 10 September in 2022. The temperature of the greenhouse was controlled to 30 ± 5 (day)/20 ± 2 (night) during the experiment. The sorghum variety used in the experiment was cv. Nampungchal, which is short in plant height with middle–late maturity. Plants were sown in ports (14 cm H × 14 cm D) filled with horticultural nursery soil and loam at a 3:1 ratio. The moisture conditions in the pot were set to 80% and 60% of field capacity for well-watered and drought conditions, respectively, based on our preliminary experiment to know the threshold of water stress. The soil water potential was measured daily using a dewpoint potentiometer (WP4-C, Decagon, Pullman, WA, USA), and an appropriate amount of water was irrigated based on this measured soil water potential. To find out the effect of hydrogen peroxide during the early growth stage of sorghum, plants from the 1- to 5-leaf stage were used for the experiment, and 30 mM H2O2 was sprayed on the same day regardless of the leaf stage. Growth and physiological measurement were conducted on the 10th and 20th days after treatment.

4.2. Analysis of Hyperspectral Reflectance and Calculation of Vegetation Indices

Hyperspectral images were collected using a portable hyperspectral camera (Specim IQ, Specim Co., Oulu, Finland) to analyze the hyperspectral reflectance on leaves in sorghum plants. For optimizing images, halogen light (500w × 2) was used as an artificial light source, the distance between the hyperspectral camera and the surface of the plant canopy was 1 m, and the raw hyperspectral image was corrected using a barium sulfate (BaSO4) reference plate that has 100% reflectance in the hyperspectral band. Image processing and analysis were performed using the ENVI 5.1 (Exelis Visual Information Solution, Inc. Pearl East Circle Boulder, CO, USA) program. Vegetation indices were calculated using the reflectance at each band from hyperspectral data (Table 2).

4.3. Measurement of Chlorophyll Fluorescence, Photosynthesis, and Water Potential

Chlorophyll fluorescence was measured with fully expanded leaves dark-adapted for 30 min using a chlorophyll fluorometer (OS-30p, Opti-sciences, Hudson, NH, USA), chlorophyll fluorescence-related parameters used in this research were described in Table S1. Photosynthesis-related parameters were measured in the second uppermost leaf from 12:00 to 14:00 using Handheld Photosynthesis System (CID-340, Bio-science, Camas, WA, USA). Leaf water potential was measured using a leaf pressure vessel (Plant water status solutions (3000 Model, Soilmoisture Equipment Crop., Santa Barbara, CA, USA) with a grass sample holder. All measurements of physiological characteristics were conducted for ten plants per replication with four replications.

4.4. Statistical Analysis

The average value was compared at the p < 0.05 level with Tukey’s test after one-way analysis using the SAS program (ver. 9.4 SAS Inst., Cary, NC, USA). The PLS analysis was conducted by establishing a model using Proc PLS (Algorithm-NIPALS) of the SAS program and selecting the optimal PLS factor that does not differ significantly from the condition with the lowest root mean PRESS (predicted residual error sum of squares) at the p < 0.1 level. Spectral reflectance and physiological characteristics were set as independent and dependent variables. The variable importance in projection (VIP) values was calculated for predictors and used as criteria for selecting appropriate spectral bands.

5. Conclusions

The maximum variable fluorescence was identified as the most predictable with R2 of 0.76, and OJIP parameters were also highly predictable as a result of analyzing PLS models by measuring chlorophyll fluorescence variables, photosynthetic traits, leaf water potential, and hyperspectral reflectance of leaves during culm elongation and booting stage in sorghum. However, the efficiency of prediction for water-related traits like VPD and leaf water potential using hyperspectral data was low. The hyperspectral reflectance was 10% higher in the plants treated with hydrogen peroxide than the control under drought conditions at ten days after treatment and 3% higher at twenty days after treatment. In particular, there was less difference in the far-red and near-infrared regions. The 35 vegetation indices examined in this research showed significant results in water stress. Among the vegetation indices that indicated the ameliorating effects of hydrogen peroxide under the drought conditions, GNDVI, VOG REI 1, PSSRb, PSSRc, GCI, PRI*CI, and ART2 can be used as early indicators for drought stress and recovery. The PRIM3 and PRI*CI, mainly, were sensitive and efficient indices for evaluating water stress.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants12162958/s1. Table S1: Description of chlorophyll fluorescence parameters.

Author Contributions

Conceptualization, S.-i.S. and S.H.H.; methodology, K.E.S.; software, K.E.S.; validation, S.-i.S., K.E.S. and S.S.H.; formal analysis, S.S.H.; investigation, K.E.S.; resources, K.E.S.; data curation, S.S.H. and H.R.H.; writing—original draft preparation, K.E.S.; writing—review and editing, S.S.H.; visualization, H.R.H.; supervision, S.-i.S.; project administration, S.-i.S.; funding acquisition, S.-i.S. and S.H.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Korean Ministry of Environment, grant number 2021002270004.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors would especially like to thank the Korean Ministry of Environment for financial support and also would like our gratitude to D.J. Park for his help in field management.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Food and Agriculture Organisation of the United Nation. Year Book; Statistic Series No 135; FAO: Rome, Italy, 2007. [Google Scholar]
  2. Praveen, M.; Madhusudhana, R.; Anuraguttam, G. Selective genotyping for determining the linkage between SSR markers and a fertility restoration locus in Sorghum bicolor (L.) Moench. Int. J. Curr. Res. 2015, 7, 20459–20461. [Google Scholar]
  3. Kogan, F.; Guo, W.; Yang, W. Drought and food security prediction from NOAA new generation of operational satellites. Geomat. Nat. Hazards Risk 2019, 10, 651–666. [Google Scholar] [CrossRef]
  4. Downing, J. Kearney and West Side RECs: Studies of sorghum’s adaptation to drought push the frontiers of crop improvement. Calif. Agric. 2015, 69, 208–209. [Google Scholar] [CrossRef]
  5. Dimkpa, C.O.; Singh, U.; Bindraban, P.S.; Elmer, W.H.; Gardea-Torresdey, J.L.; White, J.C. Zinc oxide nanoparticles alleviate drought-induced alterations in sorghum performance, nutrient acquisition, and grain fortification. Sci. Total Environ. 2019, 688, 926–934. [Google Scholar] [CrossRef] [PubMed]
  6. Cassanova, D.; Epema, G.F.; Goudriaan, J. Monitoring rice reflectance at field level for estimating biomass and LAI. Field Crops Res. 1998, 55, 83–92. [Google Scholar] [CrossRef]
  7. Diker, K.; Bausch, W.C. Potential use of nitrogen reflectance index to estimate plant parameters and yield of maize. Biosyst. Eng. 2003, 85, 437–447. [Google Scholar] [CrossRef]
  8. Hansen, P.M.; Schjoerring, J.K. Reflectance measurement of canopy biomass and nitrogen status in wheat crops using normalized difference vegetation indices and partial least squares regression. Remote Sens. Environ. 2003, 86, 542–553. [Google Scholar] [CrossRef]
  9. Bouman, B.A.M. Crop modeling and remote sensing for yield prediction. Neth. J. Agric. Sci. 1995, 43, 143–161. [Google Scholar]
  10. Nguyen, H.T.; Lee, B.W. Assessment of rice leaf growth and nitrogen status by hyperspectral canopy reflectance and partial least square regression. Eur. J. Agron. 2006, 24, 349–356. [Google Scholar] [CrossRef]
  11. Hinzman, L.D.; Bauer, M.E.; Daughtry, C.S.T. Effects of nitrogen fertilization on growth and reflectance characteristics of winter wheat. Remote Sens. Environ. 1986, 19, 47–61. [Google Scholar] [CrossRef]
  12. Thenkabail, P.S.; Smith, R.B.; De Pauw, E. Hyperspectral vegetation indices and their relationships with agricultural crop characteristics. Remote Sens. Environ. 2000, 71, 158–182. [Google Scholar] [CrossRef]
  13. Shanahan, J.F.; Schepers, J.S.; Francis, D.D.; Varvel, G.E.; Wilhelm, W.W.; Tringe, J.M.; Schemmer, M.R.; Major, D.J. Use of remote imagery to estimate corn grain yield. Agron. J. 2001, 93, 583–589. [Google Scholar] [CrossRef]
  14. Tilley, D.R.; Ahmed, M.; Son, J.H.; Badrinarayanan, H. Hyperspectral reflectance of emergent macrophytes as an indicator of water column ammonia in an oligohaline, subtropical marsh. Ecol. Eng. 2003, 21, 153–163. [Google Scholar] [CrossRef]
  15. Graeff, S.; Claupein, W. Quantifying nitrogen status of corn (Zea mays L.) in the field by reflectance measurements. Eur. J. Agron. 2003, 19, 611–618. [Google Scholar] [CrossRef]
  16. Galadi, P.; Kowalski, B.R. Partial least-square regression: A tutorial. Anal. Chim. Acta 1986, 185, 1–17. [Google Scholar] [CrossRef]
  17. Haaland, D.M.; Thomas, E.V. Partial least-squares methods for spectral analyses.1. Relation to other quantitative calibration methods and the extraction of qualitative information. Anal. Chem. 1988, 60, 1193–1202. [Google Scholar] [CrossRef]
  18. Sonobe, R.; Sugimoto, Y.; Kondo, R.; Seki, H.; Sugiyama, E.; Kiriiwa, Y.; Suzuki, K. Hyperspectral wavelength selection for estimating chlorophyll content of muskmelon leaves. Eur. J. Remote Sens. 2021, 54, 513–524. [Google Scholar] [CrossRef]
  19. Alordzinu, K.E.; Li, J.; Lan, Y.; Appiah, S.A.; Aasmi, A.A.; Wang, H.; Liao, J.; Sam-Amoah, L.K.; Qiao, S. Ground-based hyperspectral remote sensing for estimating water stress in tomato growth in sandy loam and silty loam soils. Sensors 2021, 21, 5705. [Google Scholar] [CrossRef]
  20. Müller, K.; Linkies, A.; Vreeburg, R.A.; Fry, S.C.; Krieger-Liszkay, A.; Leubner-Metzger, G. In vivo cell wall loosening by hydroxyl radicals during cress seed germination and elongation growth. Plant Physiol. 2009, 150, 1855–1865. [Google Scholar] [CrossRef]
  21. Kranner, I.; Roach, T.; Beckett, R.P.; Whitaker, C.; Minibayeva, F.V. Extracellular production of reactive oxygen species during seed germination and early seedling growth in Pisum sativum. J. Plant Physiol. 2010, 167, 805–811. [Google Scholar] [CrossRef]
  22. Morohashi, Y. Peroxidase activity develops in the micropylar endosperm of tomato seeds prior to radicle protrusion. J. Exp. Bot. 2002, 53, 1643–1650. [Google Scholar] [CrossRef] [PubMed]
  23. Caro, A.; Puntarulo, S. Nitric oxide generation by soybean embryonic axes. Possible effect on mitochondrial function. Free Radic. Res. 1999, 31, 205–212. [Google Scholar] [CrossRef] [PubMed]
  24. Wahid, A.; Perveen, M.; Gelani, S.; Basra, S.M. Pretreatment of seed with H2O2 improves salt tolerance of wheat seedlings by alleviation of oxidative damage and expression of stress proteins. J. Plant Physiol. 2007, 164, 283–294. [Google Scholar] [CrossRef]
  25. Farooq, M.; Nawaz, A.; Chaudhary, M.A.M.; Rehman, A. Foliage-applied sodium nitroprusside and hydrogen peroxide improves resistance against terminal drought in bread wheat. J. Agron. Crop Sci. 2017, 203, 473–482. [Google Scholar] [CrossRef]
  26. Strasser, R.J.; Srivastava, A.; Govindjee, G. Polyphasic chlorophyll a fluorescence transient in plants and cyanobacteria. Photochem. Photobiol. 1995, 161, 32–42. [Google Scholar] [CrossRef]
  27. Neubauer, C.; Schreiber, U. The polyphasic rise of chlorophyll fluorescence upon onset of strong continuous illumination: II. Saturation characteristics and partial control by the photosystem II acceptor side. Z. Naturforsch. C 1987, 42, 1255–1264. [Google Scholar] [CrossRef]
  28. Strivastava, A.; Guissé, B.; Greppin, H.; Strasser, R.J. Regulation of antenna structure and electron transport in photosystem II of Pisum sativum under elevated temperature probed by the fast polyphasic chlorophyll a fluorescence transient: OKJIP. Biochim. Biophys. Acta-Bioenerg. 1997, 1320, 95–106. [Google Scholar] [CrossRef]
  29. Sobejano-Paz, V.; Mikkelsen, T.N.; Baum, A.; Mo, X.; Liu, S.; Köppl, C.J.; Johnson, M.S.; Gulyas, L.; García, M. Hyperspectral and thermal sensing of stomatal conductance, transpiration, and photosynthesis for soybean and maize under drought. Remote Sens. 2020, 12, 3182. [Google Scholar] [CrossRef]
  30. Jia, M.; Li, D.; Colombo, R.; Wang, Y.; Wang, X.; Cheng, T.; Zho, Y.; Yao, X.; Xu, C.; Ouer, G.; et al. Quantifying chlorophyll fluorescence parameters from hyperspectral reflectance at the leaf scale under various nitrogen treatment regimes in winter wheat. Remote Sens. 2019, 11, 2838. [Google Scholar] [CrossRef]
  31. de Jong, S.M.; Addink, E.A.; Hoogenboom, P.; Nijland, W. The spectral response of Buxus sempervirens to different types of environmental stress-a laboratory experiment. ISPRS J. Photogramm. Remote Sens. 2012, 74, 56–65. [Google Scholar] [CrossRef]
  32. Zhang, F.; Zhou, G. Estimation of canopy water content by means of hyperspectral indices based on drought stress gradient experiments of maize in the North Plain China. Remote Sens. 2015, 7, 15203–15223. [Google Scholar] [CrossRef]
  33. Lichtenthaler, H.K. Vegetation stress: An introduction to the stress concept in plants. J. Plant Physiol. 1996, 148, 4–14. [Google Scholar] [CrossRef]
  34. Wang, L.; Hunt Jr, E.R.; Qu, J.J.; Hao, X.; Daughtry, C.S.T. Remote sensing of fuel moisture content from ratios of narrow-band vegetation water and dry-matter indices. Remote Sens. Environ. 2013, 129, 103–110. [Google Scholar] [CrossRef]
  35. Zhang, F.; Zhou, G. Estimation of vegetation water content using hyperspectral vegetation indices: A comparison of crop water indicators in response to water stress treatments for summer maize. BMC Ecol. 2019, 19, 18. [Google Scholar] [CrossRef] [PubMed]
  36. Ryu, J.H.; Oh, D.Y.; Jang, S.W.; Jeong, H.J.; Moon, K.H.; Cho, J.I. Assessment of photochemical reflectance index measured at different spatial scales utilizing leaf reflectometer, field hyperspectrometer, and multi-spectral camera with UAV. Korean J. Remote Sens. 2018, 34, 1055–1066, (In Korean with English abstract). [Google Scholar]
  37. Goss, R.; Lepetit, B. Biodiversity of NPQ. J. Plant Physiol. 2015, 172, 13–32. [Google Scholar] [CrossRef] [PubMed]
  38. Thénot, F.; Méthy, M.; Winkel, T. The Photochemical Reflectance Index (PRI) as a water-stress index. Int. J. Remote Sens. 2002, 23, 5135–5139. [Google Scholar] [CrossRef]
  39. Asner, G.P. Biophysical and biochemical sources of variability in canopy Reflectance. Remote Sens. Environ. 1998, 253, 234–253. [Google Scholar] [CrossRef]
  40. Elachi, C.; van Zyl, J.J. Introduction to the Physics and Techniques of Remote Sensing, 2nd ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2006; ISBN 9780471475699. [Google Scholar]
  41. Gerhards, M.; Schlerf, M.; Mallick, K.; Udelhoven, T. Challenges and future perspectives of multi-/hyperspectral thermal infrared remote sensing for crop water-stress detection: A review. Remote Sens. 2019, 11, 1240. [Google Scholar] [CrossRef]
  42. Ustin, S.L.; Gamon, J.A. Remote sensing of plant functional types. New Phytol. 2010, 186, 795–816. [Google Scholar] [CrossRef]
  43. Kior, A.; Sukhov, V.; Sukhova, E. Application of reflectance indices for remote sensing of plants and revealing actions of stressors. Photonics 2021, 8, 582. [Google Scholar] [CrossRef]
  44. Xue, J.; Su, B. Significant remote sensing vegetation indices: A review of developments and applications. J. Sens. 2017, 2017, 2–17. [Google Scholar] [CrossRef]
  45. Blackburn, G.A. Spectral in dices for estimating photosynthetic pigment concentrations: A test using senescent tree leaves. Int. J. Remote Sens. 1998, 19, 657–675. [Google Scholar] [CrossRef]
  46. Rouse, J.W.; Haas, R.H.; Schell, J.A.; Deering, D.W.; Harlan, J.C. Monitoring the Vernal Advancement and Retrogradation (Greenwave Effect) of Natural Vegetation; Texas A&M University: College Station, TX, USA, 1974. [Google Scholar]
  47. Sukhova, E.; Kior, D.; Kior, A.; Yudina, L.; Zolin, Y.; Gromova, E.; Sukhov, V. New normalized difference reflectance indices for estimation of soil drought influence on pea and wheat. Remote Sens. 2022, 14, 1731. [Google Scholar] [CrossRef]
  48. Hernández-Clemente, R.; Navarro-Cerrillo, R.M.; Suárez, L.; Morales, F.; Zarco-Tejada, P.J. Assessing structural effects on PRI for stress detection in conifer forests. Remote Sens. Environ. 2011, 115, 2360–2375. [Google Scholar] [CrossRef]
  49. Quan, L.J.; Zhang, B.; Shi, W.W.; Li, H.Y. Hydrogen peroxide in plants: A versatile molecule of the reactive oxygen species network. J. Integr. Plant Biol. 2008, 50, 2–18. [Google Scholar] [CrossRef] [PubMed]
  50. Møller, I.M. Plant mitochondria and oxidative stress: Electron transport, NADPH turnover, and metabolism of reactive oxygen species. Annu. Rev. Plant Biol. 2001, 52, 561–591. [Google Scholar] [CrossRef] [PubMed]
  51. Chakraborty, S.; Hill, A.L.; Shirsekar, G.; Afzal, A.J.; Wang, G.L.; Mackey, D.; Bonello, P. Quantification of hydrogen peroxide in plant tissues using amplex red. Methods 2016, 109, 105–113. [Google Scholar] [CrossRef]
  52. Sims, D.A.; Gamon, J.A. Relationships between leaf pigment content and spectral reflectance across a wide range of species, leaf structures and developmental stages. Remote Sens. Environ. 2002, 81, 337–354. [Google Scholar] [CrossRef]
  53. Kim, Y.; Glenn, D.M.; Park, J.; Ngugi, H.K.; Lehman, B.L. Hyperspectral image analysis for water stress detection of apple trees. Comput. Electron. Agric. 2011, 77, 155–160. [Google Scholar] [CrossRef]
  54. Huang, W.; Yang, Q.; Pu, R.; Yang, S. Estimation of nitrogen vertical distribution by bi-directional canopy reflectance in winter wheat. Sensors 2014, 14, 20347–20359. [Google Scholar] [CrossRef] [PubMed]
  55. Calderón, R.; Navas-Cortés, J.A.; Lucena, C.; Zarco-Tejada, P.J. High-resolution airborne hyperspectral and thermal imagery for early detection of Verticillium wilt of olive using fluorescence, temperature and narrow-band spectral indices. Remote Sens. Environ. 2013, 139, 231–245. [Google Scholar] [CrossRef]
  56. Peñuelas, J.; Gamon, J.A.; Griffin, K.L.; Field, C.B. Assessing community type, plant biomass, pigment composition, and photosynthetic efficiency of aquatic vegetation from spectral reflectance. Remote Sens. Environ. 1993, 46, 110–118. [Google Scholar] [CrossRef]
  57. Lemaire, G.; Oosterom, E.V.; Sheehy, J.; Jeuffroy, M.H.; Massignam, A.; Rossato, L. Is crop N demand more closely related to dry matter accumulation or leaf area expansion during vegetative growth? Field Crops Res. 2007, 100, 91–106. [Google Scholar] [CrossRef]
  58. Vogelmann, J.E.; Rock, B.N.; Moss, D.M. Rededge spectral measurements from sugar maple leaves. Int. J. Remote Sens. 1993, 14, 1563–1575. [Google Scholar] [CrossRef]
  59. Garrity, S.R.; Eitel, J.U.; Vierling, L.A. Disentangling the relationships between plant pigments and the photochemical reflectance index reveals a new approach for remote estimation of carotenoid content. Remote Sens. Environ. 2011, 115, 628–635. [Google Scholar] [CrossRef]
  60. Merzlyak, M.N.; Gitelson, A.A.; Chivkunova, O.B.; Rakitin, V.Y. Non-destructive optical detection of pigment changes during leaf senescence and fruit ripening. Physiol. Plant 1999, 106, 135–141. [Google Scholar] [CrossRef]
  61. Peñuelas, J.; Baret, F.; Filella, I. Semi-empirical indices to assess carotenoids/ chlorophyll a ratio from leaf spectral reflectance. Photosynthetica 1995, 31, 221–230. [Google Scholar]
  62. Zarco-Tejada, P.J.; González-Dugo, V.; Berni, J.A.J. Fluorescence, temperature and narrow-band indices acquired from a UAV for water stress detection using a hyperspectral imager and a thermal camera. Remote Sens. Environ. 2012, 117, 322–337. [Google Scholar] [CrossRef]
  63. Gitelson, A.A.; Merzlyak, M.N. Signature analysis of leaf reflectance spectra: Algorithm development for remote sensing of chlorophyll. Int. J. Remote Sens. 1997, 18, 2691–2697. [Google Scholar] [CrossRef]
  64. Gamon, J.A.; Penuelas, J.; Field, C.B. A narrow-waveband spectral index that tracks diurnal changes in photosynthetic efficiency. Remote Sens. Environ. 1992, 41, 35–44. [Google Scholar] [CrossRef]
  65. Wu, C.; Han, X.; Ni, J.; Niu, Z.; Huang, W. Estimation of gross primary production in wheat from in situ measurements. Int. J. Appl. Earth Obs. Geoinf. 2010, 12, 183–189. [Google Scholar] [CrossRef]
  66. Datt, B. A new reflectance index for remote sensing of chlorophyll content in higher plants: Tests using Eucalyptus leaves. J. Plant Physiol. 1999, 154, 30–36. [Google Scholar] [CrossRef]
  67. Quemada, M.L.; Zarco-Tejada, P. Airborne hyperspectral images and ground-level optical sensors as assessment tools for maize nitrogen fertilization. Remote Sens. 2014, 6, 2940–2962. [Google Scholar] [CrossRef]
  68. Gamon, J.A.; Huemmrich, K.F.; Wong, C.Y.; Ensminger, I.; Garrity, S.; Hollinger, D.Y.; Noormets, A.; Peñuelas, J. A remotely sensed pigment index reveals photosynthetic phenology in evergreen conifers. Proc. Natl. Acad. Sci. USA 2016, 113, 13087–13092. [Google Scholar] [CrossRef]
  69. Gitelson, A.A.; Zur, Y.; Chivkunova, O.B.; Merzlyak, M.N. Assessing carotenoid content in plant leaves with reflectance spectroscopy. Photochem. Photobiol. 2002, 75, 272–281. [Google Scholar] [CrossRef]
  70. Gamon, J.A.; Filella, I.; Peñuelas, J. The Dynamic 531-nanometer ∆ reflectance signal: A survey of twenty angiosperm species. Curr. Top. Plant Physiol. 1993, 8, 172–177. [Google Scholar]
  71. Zarco-Tejada, P.J.; Berjón, A.; Lopez-Lozano, R.; Miller, J.R.; Martín, P.; Cachorro, V.; González, M.R.; De Frutos, A. Assessing vineyard condition with hyperspectral indices: Leaf and canopy reflectance simulation in a row-structured discontinuous canopy. Remote Sens. Environ. 2005, 99, 271–287. [Google Scholar] [CrossRef]
  72. Chappelle, E.W.; Kim, M.S.; McMurtrey, J.E., III. Ratio analysis of reflectance spectra (RARS): An algorithm for the remote estimation of the concentrations of chlorophyll a, chlorophyll b, and carotenoids in soybean leaves. Remote Sens. Environ. 1992, 39, 239–247. [Google Scholar] [CrossRef]
  73. Mahlein, A.K.; Oerke, E.C.; Steiner, U.; Dehne, H.W. Recent advances in sensing plant diseases for precision crop protection. Eur. J. Plant Pathol. 2012, 133, 197–209. [Google Scholar] [CrossRef]
  74. Barnes, J.D.; Balaguer, L.; Manrique, E.; Elvira, S.; Davison, A.W. A reappraisal of the use of DMSO for the extraction and determination of chlorophylls a and b in lichens and higher plants. Environ. Exp. Bot. 1992, 32, 85–100. [Google Scholar] [CrossRef]
  75. Gitelson, A.A.; Merzlyak, M.N.; Chivkunova, O.B. Optical properties and nondestructive estimation of anthocyanin content in plant leaves. Photochem. Photobiol. 2001, 74, 38–45. [Google Scholar] [CrossRef]
  76. El-Hendawy, S.; Elsayed, S.; Al-Suhaibani, N.; Alotaibi, M.; Tahir, M.U.; Mubushar, M.; Attia, A.; Hassan, W.M. Use of hyperspectral reflectance sensing for assessing growth and chlorophyll content of spring wheat grown under simulated saline field conditions. Plants 2021, 10, 101. [Google Scholar] [CrossRef] [PubMed]
Plants 12 02958 g001

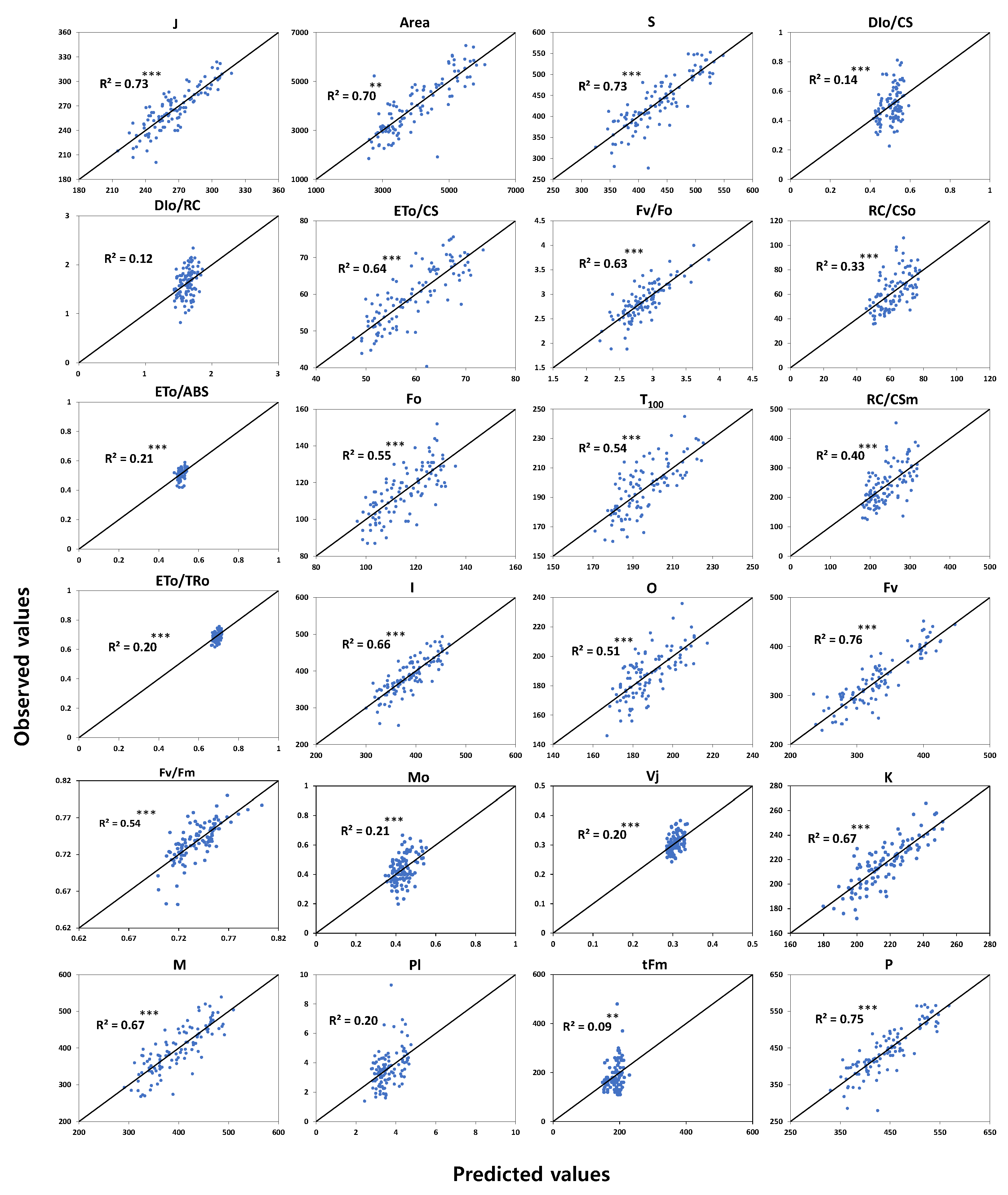

Figure 1. Relationship between observed values and predicted values based on the PLS model using hyperspectral reflectance and chlorophyll fluorescence induction (OJIP test) parameters. ** and *** represent significance level at p < 0.01 and p < 0.001, respectively.
Figure 1. Relationship between observed values and predicted values based on the PLS model using hyperspectral reflectance and chlorophyll fluorescence induction (OJIP test) parameters. ** and *** represent significance level at p < 0.01 and p < 0.001, respectively.
Plants 12 02958 g001
Plants 12 02958 g002

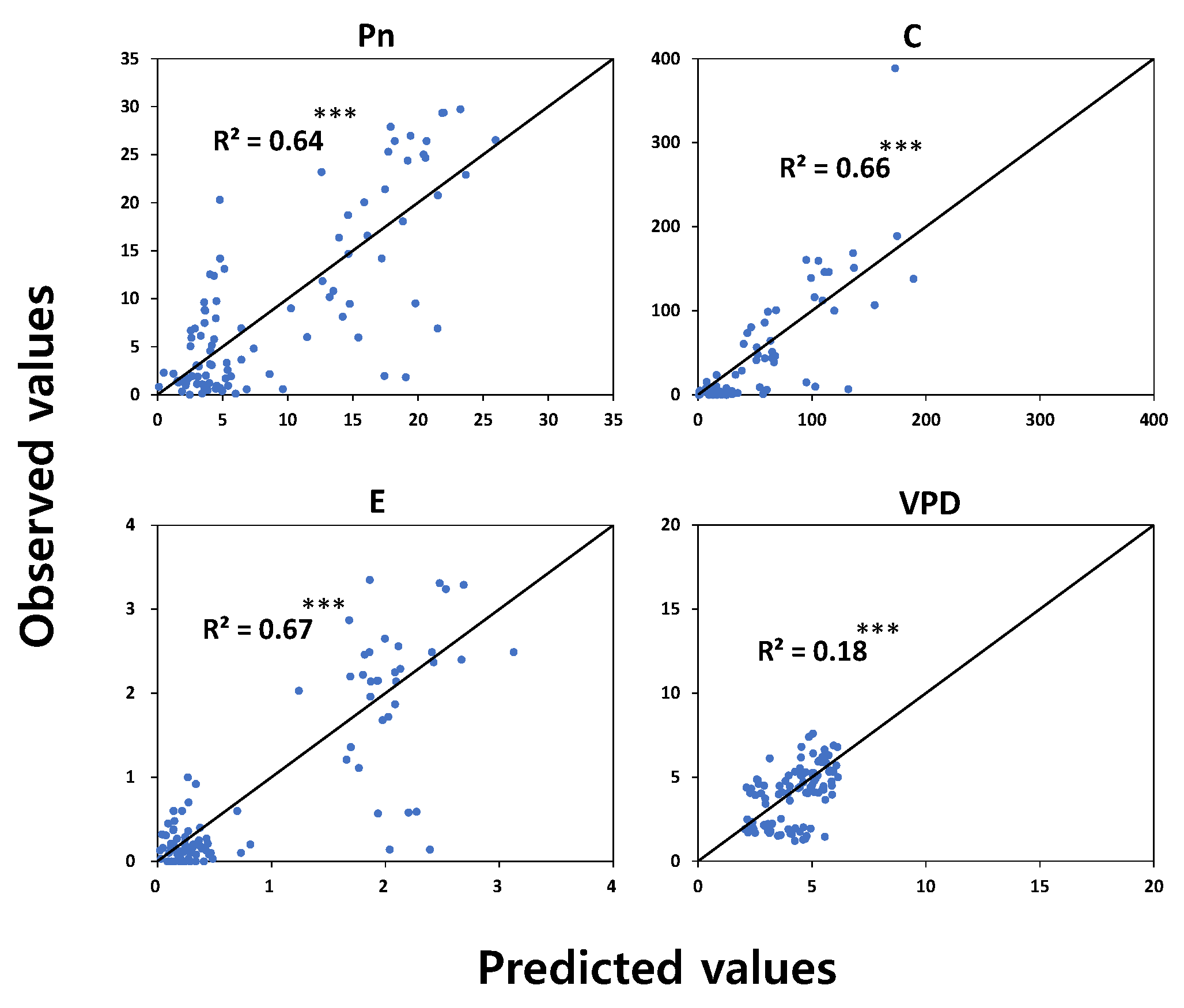

Figure 2. Relationship between observed values and predicted values based on the PLS model using hyperspectral reflectance and photosynthesis parameters. *** represents significance level at p < 0.001.
Figure 2. Relationship between observed values and predicted values based on the PLS model using hyperspectral reflectance and photosynthesis parameters. *** represents significance level at p < 0.001.
Plants 12 02958 g002
Plants 12 02958 g003

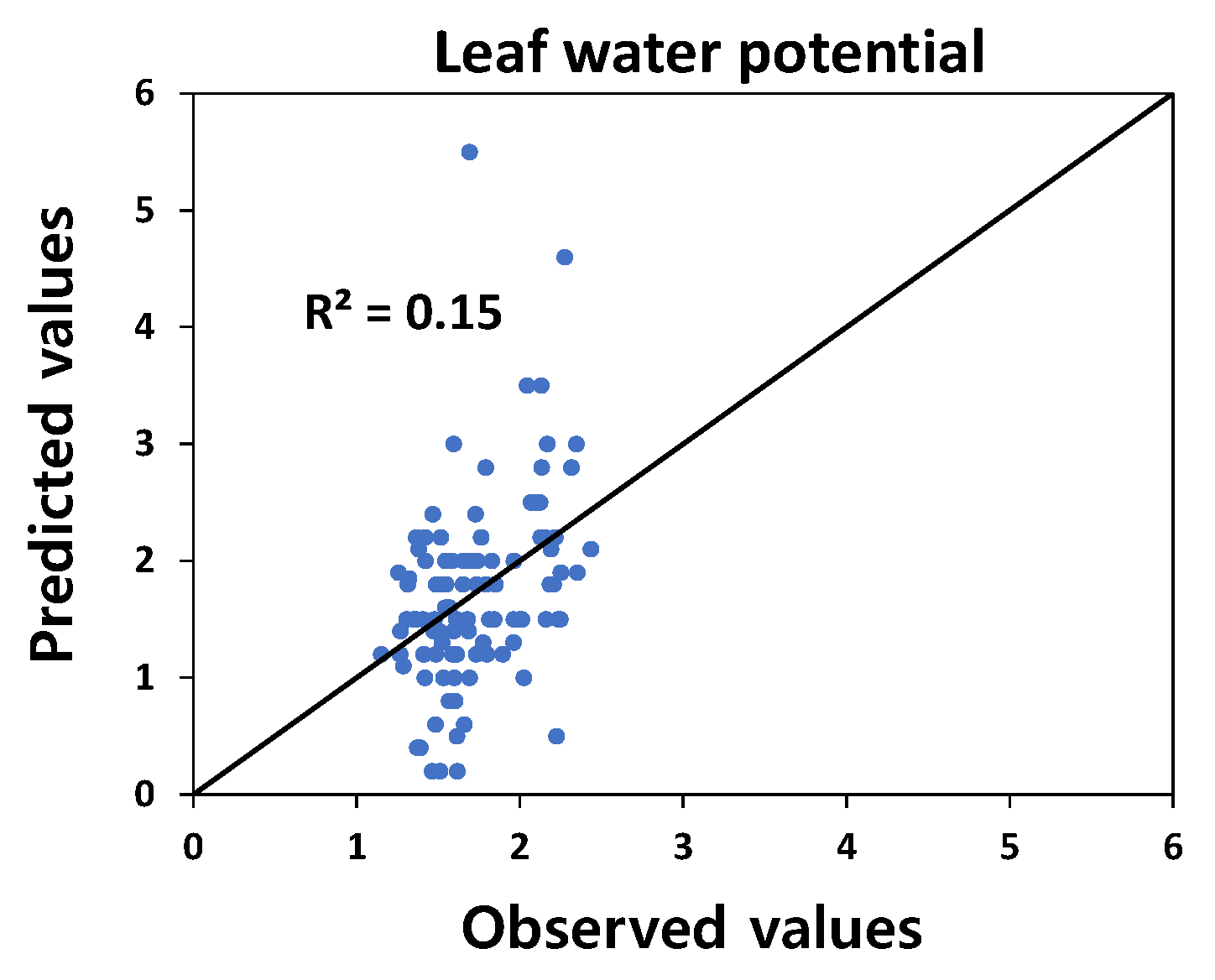

Figure 3. Relationship between observed values and predicted values based on the PLS model using hyperspectral reflectance and leaf water potential.
Figure 3. Relationship between observed values and predicted values based on the PLS model using hyperspectral reflectance and leaf water potential.
Plants 12 02958 g003
Plants 12 02958 g004

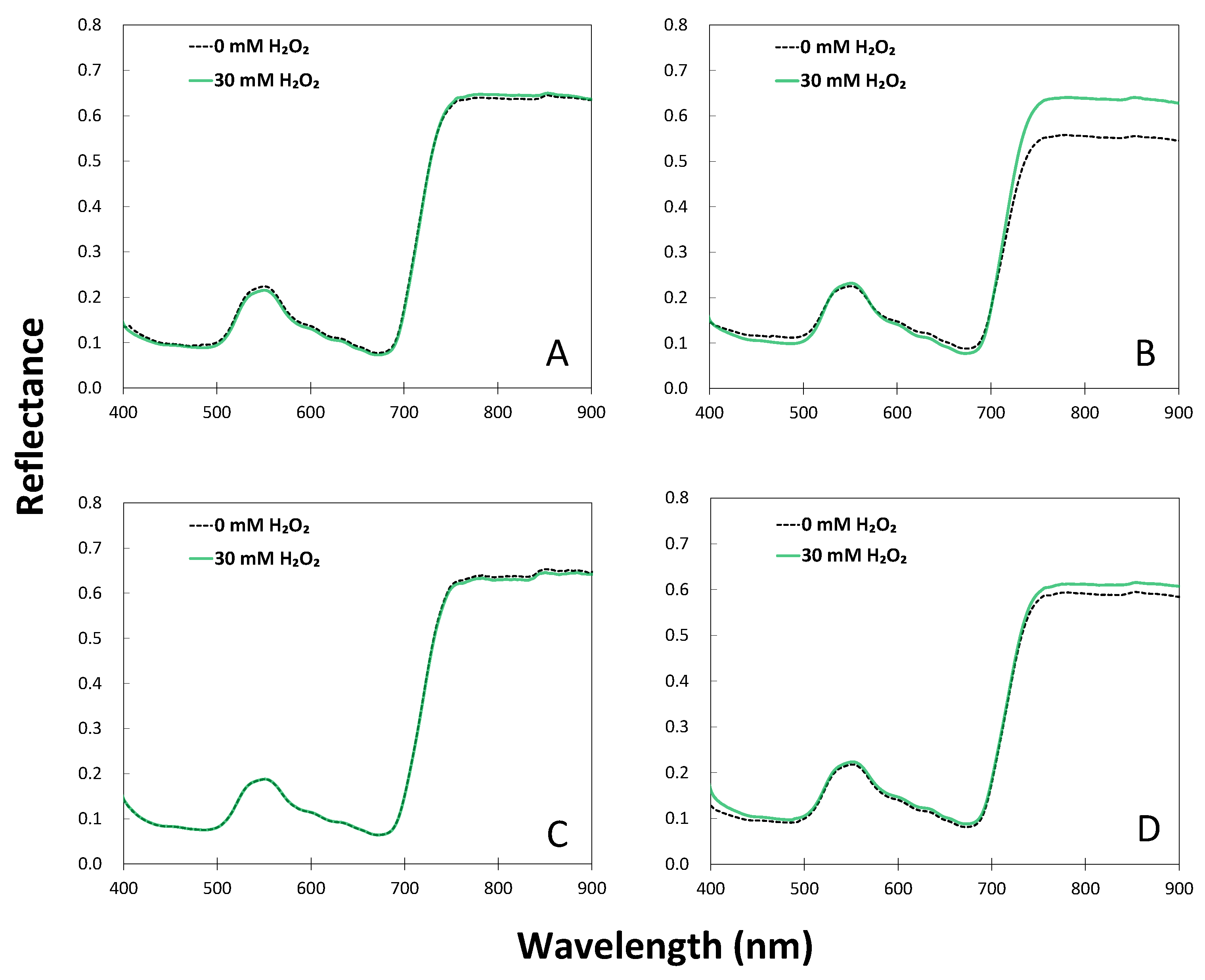

Figure 4. Changes in hyperspectral reflectance by drought and hydrogen peroxide treatments in sorghum seedlings. (A,B) Indicate the reflectance at 10 DAT, and (C,D) at 20 DAT.
Figure 4. Changes in hyperspectral reflectance by drought and hydrogen peroxide treatments in sorghum seedlings. (A,B) Indicate the reflectance at 10 DAT, and (C,D) at 20 DAT.
Plants 12 02958 g004
Table 1. Changes in vegetation indices by hydrogen peroxide treatments in sorghum seedlings.
Table 1. Changes in vegetation indices by hydrogen peroxide treatments in sorghum seedlings.
Index10 DAT20 DAT
Well-WateredDroughtWell-WateredDrought
0 mM H2O230 mM H2O20 mM H2O230 mM H2O20 mM H2O230 mM H2O20 mM H2O230 mM H2O2
NDVI 10.780 a*0.793 a0.725 b0.781 a0.812 a0.816 a0.753 b0.747 b
RE-NDVI 20.446 a0.463 a0.407 b0.448 a0.502 a0.502 a0.427 b0.430 b
MRE NDVI 30.579 a0.596 a0.584 a0.596 a0.634 a0.624 a0.561 b0.573 b
NRI 40.416 a0.420 a0.373 b0.430 a0.413 a0.430 a0.393 a0.377 a
GI 52.434 a2.453 a2.196 b2.515 a2.430 a2.517 a2.312 a2.219 a
SRI 68.132 a8.540 a6.175 b8.030 a9.912 a10.123 a7.185 b6.924 b
GNDVI 70.471 b0.489 a0.416 c0.460 b0.537 a0.532 a0.453 b0.455 b
VOG REI 1 81.387 b1.412 a1.348 c1.383 b1.485 a1.486 a1.377 b1.390 b
PRI 90.042 a0.043 a0.035 b0.036 b0.044 a0.041 a0.029 b0.025 b
PSRI 10−0.033 a−0.030 a−0.049 c−0.03 b−0.022 a−0.022 a−0.027 a−0.027 a
SIPI 110.966 a0.964 a0.940 a0.949 a0.968 a0.972 a0.974 a0.972 a
BI 121.021 a1.060 a1.041 a1.066 a1.093 a1.072 a1.046 b1.021 b
PSSRa 138.190 a8.676 a6.287 b8.167 a9.748 a9.974 a7.271 a7.008 a
PSSRb 145.945 ab6.300 a4.631 c5.790 b7.037 a7.018 a5.241 a5.153 a
PSSRc 156.487 ab6.928 a4.840 c6.233 b8.054 a8.190 a6.022 b5.969 b
SR 515/570 160.758 b0.754 b0.790 a0.744 b0.753 a0.738 a0.749 a0.750 a
RI 170.277 b0.264 b0.318 a0.273 b0.239 b0.238 b0.300 a0.300 a
PhRi 180.048 a0.048 a0.041 b0.050 a0.049 a0.051 a0.049 a0.049 a
GCI 191.860 b2.008 a1.475 c1.766 b2.423 a2.367 a1.716 b1.756 b
mSR 705 203.773 a3.958 a3.835 a3.968 a4.497 a4.337 a3.577 b3.712 b
CIR 212.278 a2.367 a2.105 b2.281 a2.623 a2.624 a2.204 b2.222 b
SRPI 220.755 a0.736 a0.726 a0.690 a0.752 a0.776 a0.817 a0.826 a
CCI 230.364 a0.369 a0.319 b0.367 a0.352 a0.358 a0.329 a0.315 a
CRI 550 243.883 a4.093 a3.046 b3.791 a4.786 a5.011 a3.789 b3.598 b
PRIm3 25−0.450 b−0.455 b−0.403 a−0.459 b−0.449 ab−0.462 b−0.417 ab−0.398 a
PRIm4 26−0.200 a−0.200 a−0.209 a−0.192 a−0.202 a−0.195 a−0.199 a−0.201 a
PRI*CI 27−0.114 b c−0.125 c−0.076 a−0.099 b−0.142 b−0.134 b−0.072 a−0.060 a
RGI 280.460 b0.455 b0.496 a0.438 b0.476 a0.458 a0.493 a0.508 a
RARS 294.682 a4.932 a3.747 b4.580 a5.577 a5.632 a4.384 b4.368 b
HI_2013 300.086 ab0.092 ab0.079 b0.106 a0.084 ab0.096 a0.064 ab0.054 b
NPQI 310.083 a0.074 a0.047 a0.066 a0.101 a0.088 a0.058 a0.063 a
ARI 1 32−1.349 a−1.410 a−1.330 a−1.536 a−1.390 ab−1.541 b−1.224 ab−1.137 a
ARI 2 332.767 ab3.007 a1.627 c2.487 b3.745 a3.855 a2.584 b2.520 b
SR 400/690 341.320 a1.440 a1.317 a1.474 a1.613 a1.425 a1.232 a1.314 a
SR 750/700 353.620 a3.797 a3.149 b3.661 a4.186 a4.224 a3.368 b3.348 b
* Means with the same letter within rows are not significantly different (Tukey’s test, p < 0.01). 1 Normalized difference vegetation index, 2 Normalized difference 750/710 red edge NDVI, 3 modified normalized difference 705, 4 nitrogen reflectance index, 5 greenness index, 6 simple ratio, 7 green normalized difference vegetation index, 8 Vogelmann index, 9 photochemical reflectance index, 10 plant senescence reflectance index, 11 structural independent pigment index, 12 blue index, 13 pigment specific simple ratio (chlorophyll a), 14 pigment specific simple ratio (chlorophyll b), 15 pigment specific simple ratio (carotenoids), 16 simple ratio 515/570, 17 redness index, 18 physiological reflectance index, 19 green chlorophyll index, 20 modified red-edge ratio, 21 chlorophyll index red edge, 22 simple ratio pigment index, 23 chlorophyll/carotenoid index, 24 carotenoids reflectance index, 25 photochemical reflectance index 670, 26 photochemical reflectance index 670 and 570, 27 carotenoid/chlorophyll ratio index, 28 red/green index, 29 ratio analysis of reflectance spectra, 30 health index, 31 normalized phaeophytinization index, 32 anthocyanin reflectance, 33 anthocyanin reflectance, 34 simple ration index, 35 simple ration index.
Table 2. Vegetation indices calculated from hyperspectral reflectance in the experiment.
Table 2. Vegetation indices calculated from hyperspectral reflectance in the experiment.
IndexFormula 1Reference
Normalized difference vegetation index (NDVI)(R800 − R680)/(R800 + R680)[52]
Normalized difference 750/710 red edge NDVI (RE-NDVI)(R750 − R710)/(R750 + R710)[35]
Modified normalized difference 705 (MRE NDVI)(R750 − R705)/(R750 + R705 – 2 × R445)[53]
Nitrogen reflectance index (NRI)(R570 − R670)/(R570 + R670)[54]
Greenness index (GI)R570/R670[55]
Simple ratio (SRI)R900/R680[56]
Green normalized difference vegetation index (GNDVI)(R750 − R550)/(R750 + R550)[57]
Vogelmann index (VOG REI 1)R740/R720[58]
Photochemical reflectance index (PRI)(R531 − R570)/(R531 + R570)[59]
Plant senescence reflectance index (PSRI)(R680 − R500)/R750[60]
Structural independent pigment index (SIPI)(R800 − R445)/(R800 + R680)[61]
Blue index (BI)R450/R490[55]
Pigment specific simple ratio (chlorophyll a) (PSSRa)R800/R680[45]
Pigment specific simple ratio (chlorophyll b) (PSSRb)R800/R635[45]
Pigment specific simple ratio (carotenoids) (PSSRc)R800/R500[45]
Simple ratio 515/570 (SR 515/570)R515/R570[62]
Redness index (RI)R700/R670[63]
Physiological reflectance index (PhRi)(R550 − R531)/(R550 + R531)[64]
Green chlorophyll index (GCI)(R780/R550) − 1[65]
Modified red-edge ratio (mSR 705)(R750 − R445)/(R705 − R445)[66]
Chlorophyll index red edge (CIR)(R750/R710)[67]
Simple ratio pigment index (SRPI)(R430/R680)[56]
Chlorophyll/carotenoid index (CCI)(R531 − R645)/(R531 − R645)[68]
Carotenoids reflectance index (CRI 550)(1/R510) − (1/R550)[69]
Photochemical reflectance index 670 (PRIm3)(R670 − R531)/(R670 + R531)[70]
Photochemical reflectance index 670 and 570 (PRIm4)(R570 − R531 − R670)/(R570 + R531 + R670)[51]
Carotenoid/chlorophyll ratio index (PRI*CI)(R531 − R570)/(R531 + R570) × ((R760/R700) − 1)[59]
Red/green index (RGI)(R690/R550)[71]
Ratio analysis of reflectance spectra (RARS)(R746/R513)[72]
Health index (HI_2013)(R534 − R698)/(R534 + R698) − 0.5 × R704[73]
Normalized phaeophytinization index (NPQI)(R415 − R435)/(R415 + R435)[74]
Anthocyanin reflectance (ARI1)(1/R550 − 1/R700)[75]
Anthocyanin reflectance (ARI2)R800(1/R500 − 1/R700)[69]
Simple ration index (SR400/690)(R400/R690)[76]
Simple ration index (SR750/700)(R750/R700)[52]
1 RXXX means the reflectance value at a certain wavelength (XXX nm).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Song, K.E.; Hong, S.S.; Hwang, H.R.; Hong, S.H.; Shim, S.-i. Effect Analysis of Hydrogen Peroxide Using Hyperspectral Reflectance in Sorghum [Sorghum bicolor (L.) Moench] under Drought Stress. Plants 2023, 12, 2958. https://doi.org/10.3390/plants12162958

AMA Style

Song KE, Hong SS, Hwang HR, Hong SH, Shim S-i. Effect Analysis of Hydrogen Peroxide Using Hyperspectral Reflectance in Sorghum [Sorghum bicolor (L.) Moench] under Drought Stress. Plants. 2023; 12(16):2958. https://doi.org/10.3390/plants12162958

Chicago/Turabian Style

Song, Ki Eun, Se Sil Hong, Hye Rin Hwang, Sun Hee Hong, and Sang-in Shim. 2023. "Effect Analysis of Hydrogen Peroxide Using Hyperspectral Reflectance in Sorghum [Sorghum bicolor (L.) Moench] under Drought Stress" Plants 12, no. 16: 2958. https://doi.org/10.3390/plants12162958

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
