Article

Plant Growth Hormones and Micro-Tuberization in Breaking the Seed Dormancy of Bunium persicum (Boiss.) Fedts

1
Advanced Research Station for Saffron and Seed Spices, Sher-e-Kashmir University of Agricultural Sciences & Technology of Kashmir, Pampore 192 121, India
2
Department of Clinical Pharmacy, College of Pharmacy, King Saud University, Riyadh 11451, Saudi Arabia
3
Department of Plant Resources and Environment, Jeju National University, Jeju 63243, Republic of Korea
4
Department of Horticulture, Kongju National University, Yesan 32439, Republic of Korea
*
Authors to whom correspondence should be addressed.
Plants 2023, 12(17), 3163; https://doi.org/10.3390/plants12173163
Submission received: 3 August 2023 / Revised: 1 September 2023 / Accepted: 1 September 2023 / Published: 3 September 2023
(This article belongs to the Special Issue Plant Growth Promoters: The Eliciting Role of Recycled Biomasses)

Abstract

:
Bunium persicum is a valuable medicinal plant with limited production but high market demand. It thrives predominantly in high-altitude regions. The main challenges hindering its widespread cultivation are seed dormancy and a lengthy seed-to-seed cycle, making its large-scale cultivation difficult. Six genotypes of Bunium persicum were collected from different altitudes to evaluate its germination behavior and seed dormancy. The study was conducted during 2020–23 and comprised three experiments (viz., seed germination under an open field, controlled conditions, and micro-tuberization). Under open field conditions, germination percent was genotype dependent, and the highest germination percentage, root length, and shoot length were recorded in Shalimar Kalazeera-1. Germination behavior assessment of the Bunium persicum revealed that treatment T9 (GA3 (25 ppm) + TDZ (9 µM/L)) is effective in breaking the dormancy of Bunium persicum as well as in obtaining a higher germination percent for early development of the tubers. Similarly, with regard to the effect of temperature and moisture conditions, stratification under moist chilling conditions showed effectiveness in breaking seed dormancy as the germination percentage in stratified seeds was at par with the most efficient growth hormone. With regard to the in vitro micro-propagation, direct regeneration showed multiple shoot primordia at the base of the tubers without intervening callus phase from the MS medium supplemented with BA (22.2 µM) and NAA (13.95 µM) 4 weeks after sub-culturing. Similarly, medium supplemented with JA (8.0 mg/L) and BA (22.2 µM) produced well-organized somatic embryos with shiny surfaces, which appeared at the swelled basal portion of apical stems. Further, the combination of JA (6.0 mg/L) and BA (22.2 M) was effective in developing the micro-tubers and also enhanced the weight and length of Bunium persicum micro-tubers.

1. Introduction

Bunium persicum ((Boiss.) Fedts.) is a low-volume high-value spice belonging to the family Umbelliferaceae. The cultivation of the crop is restricted to the high altitudes, forest areas, grassy slopes, and low-mid alpine pastoral areas of J&K [1]. It is used as a spice for culinary purposes, and the essential oil extracted from the crop has high pharmaceutical value in national and international markets [2,3,4]. Despite all the known properties of this valuable plant, there are many unknown and unexplored facts about this amazing species. Genus Bunium has tubers of hypocotyl or root origin. The plant reproduces naturally by sexual means through seeds, but seedlings come to flowering after four seasons of growth [5]. The demand for Bunium persicum is hastily increasing, while its natural habitat is shrinking because of overharvesting. The commercial cultivation of Bunium persicum is limited by several restraints (i.e., the crop only grows wild in scattered subpopulations; long duration of the seed-to-seed cycle, with plants reaching their first flowering after three sowing seasons; low yield and uncertain product quality; poor seed germination; and no tuber multiplication) [3]. Further, in recent years, haphazard harvesting of its seeds from wild habitats for quick economic profit has genetically eroded its ecotype and turned the plant into an endangered species. The entire crop is collected by the local natural population and sold in the market as Kalazeera or Shahi-jeera [6].
Seed germination and early crop stand are the main stages for the normal growth and development of this plant. It is a multifaceted physiological process that is influenced by various environmental factors (viz., water potential, light period, etc.). Generally, it is controlled by growth inhibitors [7]. Low seed germination is a major limitation for mass-scale cultivation of this crop. According to the reports, the main reason for the low germination rate of Umbelliferaceae species is that the embryos are small and lack oxygen during seed germination. Naturally, the seeds germinate in 90–100 days after passing through the chilling temperatures of the winter season and produce only two leaves and pinhead-sized tubers, approximately 4–6 mm, during the first year of cultivation [1,8]. The reproductive period (seed production) of Bunium persicum begins after 4 years and lasts up to 8–10 years as the tuber continues to grow. The economic production of the crop starts after 4 years when the tuber weight is >3 g, and this long duration from sowing of seed to flower production hinders the cultivation of this valuable crop by farmers [3].
Vleeshouwers et al. [9] and Warghat et al. [10] reported that stratification (chilling temperatures) plays an important role in removing the dormancy of C. carvi and Bunium persicum, respectively. In earlier works, induction of embryogenic callus under the influence of 2, 4-D and kinetin has been demonstrated in Bunium persicum, and in many other umbellifers as well [11]. Enhancement in initiation and development of micro tubers during in vitro studies of Bunium persicum were related to the concentrations of macro- and micro-constituents of MS medium, kinetin, and sucrose level in the medium. The use of different levels of kinetin showed a synergistic effect on growth and tuber formation, with approximately five times increase in tuber weight when sucrose concentration was increased to 60 g L−1. When embryo explants were used for cumin tissue culture, tremendous shoots were produced in a shorter time and without any sub-culturing [12]. Further, Tawfik and Noga [13] observed callus proliferation and stem elongation of cumin when cultures were transferred to basal medium without PGRs.
Many plant species require longer periods at low temperatures for the breaking of seed dormancy [14], while some require hot temperatures during post-harvest ripening of seed for germination when feasible conditions are available (Chauhan and Johnson, 2008). Mostly in temperate crop species, warm temperatures followed by chilling periods are required for breaking the seed dormancy, which is generally associated with morpho-physiological dormancy having underdeveloped embryos [15]. GA3 is a known growth hormone that plays an important role in germination, internode elongation, and flower development [16]. Various chemical treatments as well as stratification methods were used by Sharma and Sharma [17] for breaking seed dormancy, and they reported that continuous moist chilling treatments at 4 °C are effective for the release of dormancy in differentially stored and freshly harvested seeds. Furthermore, germination ceased upon shifting the seeds from 4 °C to 25 °C.
Successful cultivation of this crop species is limited by two main problems (viz., poor seed germination and long seed-to-seed cycle due to a longer dormancy period). In vitro plant regeneration of somatic embryogenesis has been performed on calli from mericarp, but very little research work has been performed on the micro-tuberization of Bunium persicum. Therefore, the aim of this study is to develop a protocol for breaking seed dormancy and micro-tuber development under in vitro conditions.

2. Results

2.1. Germination and Seedling Traits

For the recording of observations of seedling traits, the seeds of six genotypes were sown during the 2nd fortnight of October, and the germination of seeds began during the 2nd fortnight of February. Shalimar Kalazeera-1 and Srinagar genotype showed early germination, while other genotypes germinated a few days later. The data presented in Table 1 and Figure 1 reveal that the seedling traits showed significant variation with regard to the genotypes. Among all genotypes, Shalimar Kalazeera-1 showed, significantly, the highest germination percentage (58.09%), followed by genotype (SRS/KZ/183) (46.88%) and Srinagar genotype (SRS/KZ/141) (42.80%).
However, the SRS/KZ/132 genotype (31.59%) showed the lowest germination percentage over the rest of the genotypes. As far as root length is concerned, Shalimar Kalazeera-1 revealed, significantly, the highest root length (10.40 cm), which was at par with the genotype (SRS/KZ/158) (9.98 cms) over other genotypes, while the lowest root length was recorded for genotype (SRS/KZ/132). A similar trend was also noticed for shoot length, with the highest and lowest values for Shalimar Kalazeera-1 and SRS/KZ/132, respectively, (Figure 1 and Figure 2).

2.2. Seed Viability

For quantification of seed viability, the seed material was used from the germplasm bank of Kalazeera located at the Advanced Research Station for Saffron and Seed Spices. Freshly harvested seeds of Bunium persicum exhibited 89.0% viability, which was maintained at least for 10–12 months of storage. The seed viability gradually decreases with an increase in the storage period. At 22–24 months of storage, 24% decline in seed viability was noticed as compared to freshly harvested seeds.

2.3. Germination Behaviour Assessment

Results of seed germination showed that stratification at a chilling temperature of 2–5 °C increased the percentage of seed germination. The combination of stratification and treatment with PGRs greatly improved the germination percentage and had a significant influence on breaking the dormancy of Bunium persicum seeds. A perusal of pooled data over years, presented in Table 2 and depicted in Figure 3, showed that amongst various PGRs used, the combination treatment T8 (GA3 (25 ppm) + TDZ (6 µM/L)) showed the highest germination percentage, which was at par with T9 (GA3 (25 ppm) + TDZ (9 µM/L)) at 20 days as compared to other combination treatments, as well as control; however, amongst the sole treatments, treatment T6 (TDZ (9 µM/L) exhibited a higher germination percent as compared to other treatments, while T3 (GA3 (50 ppm)) showed no effect on seed germination at the 20 days interval. At 40 days after treatment, the germination percent ranged between 23.0 and 70.0%. Among treatments, T9 (GA3 (25 ppm) + TDZ (9 µM/L)) revealed the maximum germination percent, followed by T12 (GA3 (25 ppm) + TDZ (3 µM/L) + jasmonic acid (50 ppm)), T7 (GA3 (25 ppm) + TDZ (3 µM/L)), and T8 (GA3 (25 ppm) + TDZ (6 µM/L)), while the lowest germination percent of 23.0 was recorded under the control treatment.
Data recorded at 60 days after treatment revealed the maximum germination percentage in T9 (GA3 (25 ppm) + TDZ (9 µM/L)), followed by T3 (GA3 (50 ppm)) and T8 (GA3 (25 ppm) + TDZ (6 µM/L)), respectively, while the lowest germination percent of 34.67 was recorded in the control (Figure 2, Figure 3 and Figure 4). Based on the observation of the two-year data, it is concluded that treatment of Bunium persicum seeds with T9 (GA3 (25 ppm) + TDZ (9 µM/L)) is effective in breaking the dormancy of the seed, as well as in obtaining a higher germination percent for early development of the tubers.
Fourteen treatments used under lab conditions were also planted under the open field conditions during the 2nd fortnight of October 2020. Under the tested conditions, the treatments follow the same trend for the highest germination percent as was depicted previously: treatment T9 (GA3 (25 ppm) + TDZ (9 µM/L)) was followed by treatment T3 (GA3 (50 ppm)) and T8 (GA3 (25 ppm) + TDZ (6 µM/L)), respectively, while the lowest germination percentage was recorded for the control treatment (Figure 4). These treatments showed early germination by 25–30 days as compared to other treatments, including control. After three years, the tubers from all the treatments were uprooted, and it was noticed that the treatments T9 (GA3 (25 ppm) + TDZ (9 µmol/L)), T3 (GA3 (50 ppm)), T8 (GA3 (25 ppm) + TDZ (6 µM/L)) and T13 (GA3 (25 ppm) + TDZ (3 µM/L) + jasmonic acid (100 ppm)) produced higher and flower-bearing tubers, weighing more than 3 g as compared to other treatments (Figure 4).

2.4. Effects of Temperature and Moisture

Studies revealed a high impact of chilling temperature and moisture on the breaking of seed dormancy, as depicted in Table 3. Observations revealed that seeds kept under moist conditions and exposed to chilling temperature at 2–5 °C (stratification) showed the highest germination percentage as compared to dry and absence of chilling conditions. Under room temperature conditions, the dry as well as moist seeds failed to germinate and showed complete dormancy. Dry seeds at 2–5 °C showed initial germination at 40 days, and maximum germination (7.11%) was recorded after 60 days of chilling treatment. However, the seeds under moist conditions that were also exposed to chilling temperature showed germination after 20 days, and maximum germination (65.91%) was recorded after 60 days of stratification. Results of this experiment depicted that stratification along with moist conditions was responsible for breaking seed dormancy as the germination percentage in the moist-chilling seed treatment was almost at par with the most efficient growth hormone.
Furthermore, under moist conditions, treatment of TDZ, JA, and GA3 exhibited significant variation in seed germination at 20, 40, and 60 days after sowing. At 20 days, TDZ showed, significantly, the highest germination (2.67%) over all other treatments, while the lowest germination (0.11%) was recorded in the control. However, GA3-treated seeds showed, significantly, the highest germination of 37.89% and 64.13% at 40 and 60 days of sowing, respectively, followed by jasmonic acid, with germination percentages of 11.39% and 27.67%, respectively. TDZ showed the least effect on the breaking of seed dormancy under moist chilling conditions and showed germination percentages of 12.59% and 9.76%, while the untreated control exhibited 1.21% and 3.67% germination after 40 and 60 days, respectively (Table 4).

2.5. In Vitro Micro-Tuberization

The findings of the study show that after six weeks of inoculation, a hormonal combination of BA and NAA in lower concentrations was successful in promoting shoot and root multiplication in the explants over all other treatments. Among the explants used, maximum initiation was observed for tuber explants. After 4 weeks of sub-culturing, when the apical shoot with tuber was transferred to MS medium supplemented with BA (22.2 µM) and NAA (13.95 µM), multiple shoot primordia were directly regenerated from the base of the tuber and the meristematic region surrounding the apical shoot base without an intervening callus phase (Table 5, Figure 5). In MS media treated with various concentrations of JA, the highest number of multiple shoot primordia were initiated, and swelling at the base of the apical stem (meristematic area) was also seen.
Observations recorded after fortnight intervals revealed enlargement at the tip of the meristematic region in MS medium enriched with different concentrations of JA and NAA. Medium supplemented with JA (6.0 mg/L) and NAA (10.8 µM) revealed 88.8% response; this was followed by JA (6.0 mg/L) and BA (22.2 µM), which showed 62.5% response (Table 6). For another 3–4 weeks, the middle and tip of the apical stem remained green until turning necrotic (Figure 6a,b), and after 8 weeks of development in media supplemented with JA (8.0 mg/L) and BA (22.2 µM), well-organized, cream-colored, spherical somatic embryos with shining surfaces emerged at the swollen basal part (Bp) of apical stems without an intervening callus phase (Figure 6c,d). Amongst different combinations of hormones, the combined treatment of JA (6.0 mg/L) and BA (22.2 µM) and the sole treatment of JA (6.0 mg/L) proved efficient in micro-tuber development after 6 months of inoculation followed by combined treatment of JA (6.0 mg/L) and BA (44.4 µM) over other treatments. As far as the length and weight of Bunium persicum micro-tubers is concerned, MS media supplemented with a combination treatment of JA (6.0 mg/L) and BA (22.2 µM) and sole treatment of JA (6.0 mg/L) substantially enhanced the size of micro-tubers over other treatments (Figure 6e).

3. Discussion

In the present study, it was noticed that seed germination was genotype dependent and could not be taken as the only indicator for seed dormancy. The germination behavior of seeds is greatly affected by exposing the seeds to low temperatures of 2–5 °C, and the combination of low temperature with moisture and growth hormones increases the germination rate. Sharifi and Pouresmael [3] showed that cold stratification increased the germination rate of Bunium persicum and longer duration of stratification further increased the germination percentage. The combination of low temperatures with growth hormones, particularly GA3 and BA, showed an enhanced effect on the germination rate. The results indicate that the various processes, such as protein synthesis and respiratory systems as glycolysis, citric acid cycle, and pentose phosphate pathway, will not occur in dry seeds at room temperature, as reported by Nonogaki et al. [18], since the various physiological processes are responsible for providing the energy (adenosine triphosphate) required for germination. However, El-Dengawy et al. [19] reported that low temperatures under moist conditions trigger genes in dormant seeds, while some genes are controlled by plant hormones. Under room temperature, low germination percentage in imbibed seeds is due to the inactivation of various processes, and in fact, chilling temperature permits respiratory enzymes to retain their cell membrane structure [3]. These results are in accordance with the studies of El-Dengawy et al. [19], who reported that the effect of GA3 on seed germination under room temperature conditions showed that seed dormancy in Bunium persicum was from intermediate to low morpho-physiological dormancy. The present results are further confirmed by Hossain et al. [20], who noticed that exogenous application of GA3 leads to an increase in the ratio of endogenous germination promoters and cell metabolism. Therefore, the high seed germination under moist-chilling conditions pre-treated with a combination of TDZ and GA3 is due to an increase in the activity of endogenous phytohormones [21,22,23]. Furthermore, it is reported that the effect of TDZ on the breaking of seed dormancy is due to an increase in endogenous auxins and cytokinins of the seeds [24,25]. Bahadori and Javanbakht [26] reported that pre-treatment application of hormones causes a higher percentage of germination; however, a combination of kinetin and gibberellic acid improved the speed of germination and vigor index. The present results were also confirmed by the findings of various workers who observed the effects of stratification and chemicals on the seed germination of Bunium persicum [24,27].
In an experimental study, the effect of hormones on in vitro cultures showed that sole application of BA and NAA increased the growth rate of callus, while the combined application of BA and NAA were effective in shoot and root multiplication of the explants. The callus induction time in explants from various treatments was affected by many factors, including differences in shoot and root elongation, concentration of growth regulators added to the medium, different endogenous hormone concentrations in the explant, and differences in the cell potential, respectively. It has been reported that the interaction between auxins and cytokinins plays an important role in cell differentiation and organogenesis in tissue and other cultures [28]. Fresh weight of the callus was affected by the absorption of water and other substances in the basal environment, which is responsible for cell expansion, cell division, and new material, which leads to an increase in callus dry weight, as well as shoot and root formation [29]. The type and concentration of growth regulators, such as auxins and cytokinins, are considered as important components in callus initiation for production of secondary metabolites [30]. The present findings are well supported by the previous studies that have revealed good growth of callus by using a combination of NAA and BA in epicotyl and leaf explants of black cumin [31,32,33].
As noted by Campbell [34], in addition to gibberellin, there are other growth hormones such as auxin and cytokinin that affect the growth of shoots. The optimal application of auxins and cytokinins will promote cell divisions and differentiations to produce new shoots. According to Santoso [35], the difference in endogenous hormones in each explant, even when cultured in the same culture medium, can affect its response to the addition of growth regulators. The relationship between the growth regulators (exogenous) and plant endogenous substances will increase the growth and morphogenesis of the culture [24,36]. Murni [37] reported that seeds contain growth regulators such as auxins, cytokinins, gibberellins, and so on, which help in the growth and development of the seedling under in vitro as well as in vivo conditions.
The present study revealed that jasmonic acid as sole treatment and in combination with BAA was effective in producing micro-tubers and increased the weight and length of micro-tubers in comparison with other treatments. This effect of JA on tuber formation and tuber growth has been previously reported by Pelacho and Mingo-Castel [38] while working with potato. They demonstrated that after 30 days in culture, potato tuber fresh weight was increased 6.4 times compared to kinetin-induced tuber weight. Similar to those outcomes, in Bunium persicum, JA may function as a chemical signal in Bunium persicum to initiate senescence-related processes such as tuber production, which happens after an adequate vegetative development. They further reported that this could be as a result of pleiotropic effects brought on by the influx of jasmonates from the outside, such as the stimulation or inhibition of physiological and biochemical processes in certain plant organs. These findings are also in line with the earlier reports of Jasik and Mantell [39], Cenzanoa et al. [40], Mardani et al. [41], and Gautam et al. [42], who reported that JA is effective in tuber formation under in vitro conditions. Many morphogenetic phenomena in plants, including tuberization, blooming, bulb and tuberous root formation, and so on, depend on JA and related chemicals. A thorough review has been performed on each of these topics [39,43]. Furthermore, according to some other researchers, exogenously applied JA may have a negative effect on storage organs, such as garlic bulbs [44]. Castro et al. [43] reported that JA causes plants to produce more tuberonic acid and its glucoside (TAG), which serve as signals for tuberization. According to Jasik and Mantell [39], JA, when introduced as a vapor, releases methyl jasmonates, which prevent tuberization, but when added to the medium, it accelerates micro-tuber formation. They concluded that when JA is applied solely or in combination with cytokinins in lower concentrations, it increases the young cell growth and thereby cell expansion, thus specifically inducing and increasing the weight of micro-tubers.

4. Materials and Methods

The present investigation was carried out at Saffron Research, SKUAST-K, J&K, located at 74° E longitude, 34° N latitude, and approximately 1650 mts, during 2020–2023 (Figure 7). Climatically, the experimental site is in a temperate zone, characterized by cold winters and hot summers, with average annual precipitation of 812 mm, ranging between 676 to 1193 mm. The experimental material used for the present study comprises six genotypes, including Shalimar Kalazeera-1, which were collected from different altitudes with due consideration given to tuber and seed variability and participatory rural appraisal (PRA) regarding the inherent production potential of the sample. The collected planting material was planted in a randomized block design, and 20 plants were randomly selected for making observations on various seedlings and growth traits.

4.1. Seed Viability Determination and Surface Sterilization

For checking the viability of seeds in a short duration of time, triphenyl tetrazolium chloride (TTC) test was conducted during the storage period at regular intervals. The seeds were transversely cut into two halves and stained with TTC and then incubated for 24 h for examining staining pattern and intensity. Viable seeds, after the test, showed completely stained embryos. Surface sterilization was performed by gently washing the seeds under running tap water for 10 min, and then subjecting them to fungicide dip in hexaconazole and mancozeb. The seeds were then sterilized by shaking in 70% ethanol by placing on a magnetic stirrer for 60 s, followed by sterilization in 100 mL of 2 g/L sodium hypochlorite solution with 2 drops of Tween-20 for 15 min. The seeds were thoroughly washed three times in sterile distilled water to remove the traces of sodium hypochlorite at intervals of 10 min. After sterilization, the seeds were aseptically placed on autoclaved petri-plates lined with autoclaved filter papers, which were moistened with sterilized distilled water. The seeds were allowed to germinate by placing the petri dishes in a seed germinator at 25 ± 1 °C under continuous illumination (PAR: 40µM/m2/s) provided by \ fluorescent white light. Seed were treated as germinated seeds upon radicle emergence of ≥2 mm, and the germinated seeds were counted periodically.

4.2. Germination Behavior Assessments

Sterilized seeds were transferred into flasks and were subjected to different concentrations of GA3 (12, 25, and 50 ppm), TDZ (3, 6, and 9 µM/L), jasmonic acid (JA) (50 and 100 ppm), and combination treatments including GA3 (25 ppm) + TDZ (3 µM/L), GA3 (25 ppm) + TDZ (6 µM/L), GA3 (25 ppm) + TDZ (9 µM/L), GA3 25 ppm + TDZ 3 µM/L + JA 50 ppm, and GA3 25 ppm + TDZ 3 µM/L + JA 100 ppm for a duration of 24 h. Seeds dipped in sterilized distilled water served as control. After treatment, the seeds were placed in sterilized petri dishes, which were lined with sterilized filter paper with the help of sterilized forceps, at 2–5 °C for germination. The experiment was performed in a randomized complete block design with three replications for each treatment. The seeds were observed at fortnight intervals, and the numbers of germinated seeds were compared after 20, 40, and 60 days of treatment (Table 7).

4.3. Seed Dormancy

For breaking seed dormancy, freshly harvested seeds as well as one-year-old stored seeds were used. The seeds were first subjected to stratification at a chilling temperature of 2–5 °C, followed by dip treatments of seeds with different PGRs.

4.4. In Vitro Micro-Tuberization

The trials for the development of the micro-propagation protocol of Bunium persicum were conducted at the Tissue Culture Lab, ARSSSS SKUAST, Kashmir, India.
Explants used: Seeds, tuber slices, the apical stem of Bunium persicum plants.
Sterilization: Explants were washed under running tap water for 10 min, followed by surface sterilization with 70 percent ethanol for 1 min, and 1.5% (w/v) sodium hypochlorite solution for 15 min. Before inoculation, seeds were washed repeatedly 3 times with sterilized distilled water under laminar airflow.
Media used: For tuber induction, MS media [45] supplemented with 3% sucrose and vitamins were used. The pH of the media was maintained at 5.7, which was then autoclaved at 121 °C for 15–20 min.
Hormones: Hormones used throughout the experimentation were 6-benzylaminopurine (BAP), jasmonic acid, and α-naphthalene acetic acid (NAA). Details of the PGRs used are presented in Table 8.

4.5. Data Analysis

Analysis of recorded data was performed as per the method suggested by Cochran and Cox [46]. Differences in mean were calculated between and among the treatments by F-test, and critical difference (C.D) at a 5% level of significance was calculated.

5. Conclusions

The following conclusions can be drawn from the present study. The first major finding is that stratification alone causes 65.91% seed germination after 60 days. Additionally, GA3 (25 ppm) + TDZ (9 µM/L) is effective in breaking the dormancy of seeds as well as obtaining a higher germination percent for the early development of tubers. Furthermore, MS media supplemented with a combination treatment of JA (6.0 mg/L) and BA (22.2 M) and sole treatment with JA (6.0 mg/L) are effective for tuber development and for increasing the weight and length of Bunium persicum micro-tubers.

Author Contributions

Methodology, M.H.K., N.A.D., B.A.A., G.H.M. and B.B.; software, U.F.; validation, M.H.K., B.A.A., A.K., S.M. and S.H.; formal analysis, M.H.K., B.A.A., G.H.M., U.F., A.K., Y.S.C., S.H. and B.B.; investigation, M.H.K., N.A.D., G.H.M., A.A., Y.S.C. and S.M.; resources, B.A.A. and A.K.; data curation, S.M. and B.B.; writing—original draft, M.H.K., N.A.D., U.F.; A.A., S.M., S.H. and B.B.; visualization, M.H.K., B.A.A., G.H.M., A.K., Y.S.C., S.M. and S.M.; supervision, M.H.K. and N.A.D. All authors have read and agreed to the published version of the manuscript.

Funding

The Basic Science Research Program supported this research through the National Research Foundation of Korea (NRF), funded by the Ministry of Education (2019R1A6A1A11052070).

Data Availability Statement

No data can be made available on request to the corresponding author.

Acknowledgments

The authors are highly thankful to Science and Engineering Research Board (SERB), GoI, New Delhi, India, for providing financial support to carry out this research work, and Sher-e-Kashmir University of Agricultural Sciences and Technology of Kashmir (J&K) India for providing lab and field facilities. The authors would like to extend their sincere appreciation to the Researchers Supporting Project Number RSP2023R350, King Saud University, Riyadh, Saudi Arabia.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sofi, P.A.; Zeerak, N.A.; Singh, P. Kala zeera (Bunium persicum Bioss.): A Kashmirian high value crop. Turk. J. Biol. 2009, 33, 249–258. [Google Scholar]
  2. Aminzare, M.; Amiri, E.; Abbasi, Z.; Hassanzadazar, H.; Hashemi, M. Evaluation of In vitro Antioxidant Characteristics of Corn Starch Bioactive Films Impregnated with Bunium persicum and Zataria multiflora Essential Oils. Annu. Res. Rev. Biol. 2017, 15, 1–9. [Google Scholar]
  3. Sharifi, M.; Pouresmael, M. Breaking Seed Dormancy in Bunium persicum by stratification and chemical substances. Asian J. Plant Sci. 2006, 5, 695–699. [Google Scholar]
  4. Singh, S.; Kumar, V.; Ramesh, A. Biology, genetic improvement and agronomy of Bunium persicum (Boiss.) Fedtsch.: A comprehensive review. J. Appl. Res. Med. Aromat. Plants 2021, 22, 100304. [Google Scholar]
  5. Mandegary, A.; Arab-Nozari, M.; Ramiar, H.; Sharififar, F. Anticonvulsant activity of the essential oil and methanolic extract of Bunium persicum (Boiss). B. Fedtsch. J. Ethnopharmacol. 2012, 140, 447–451. [Google Scholar]
  6. Abraham, J.; Cheruvathur, M.K.; Mani, B.; Thomas, T.D. A rapid invitro multiplication system for commercial propagation of pharmaceutically important Cylcea peltata (Lam) Hooke &Thomas. based on enhanced axillary branching. Ind. Crops Prod. 2010, 31, 92–98. [Google Scholar]
  7. Angevine, R.; Chabot, B.F. Seed germination syndromes in higher plants. In Topics in Plant Population Biology; Solbrig, O.T., Jain, S., Johnson, G.B., Raven, P.H., Eds.; Columbia University Press: New York, USA, 1979; pp. 188–206. [Google Scholar]
  8. Robinson, R.W. Seed Germination problems in the Umbelliferae. Bot. Rev. 1954, 20, 531–550. [Google Scholar]
  9. Vleeshouwers, L.M.; Bouwmeester, H.J.; Karssen, C.M. Redefining seed dormancy: An attempt to integrate physiology and ecology. J. Ecol. 1995, 83, 1031–1037. [Google Scholar]
  10. Warghat, A.R.; Bajpai, P.K.; Srivastava, R.B.; Chaurasia, O.P.; Chauhan, R.S.; Sood, H. In vitro protocorm development and mass multiplication of an endangered orchid, Dactylorhiza hatagirea. Turk. J. Bot. 2014, 38, 737–746. [Google Scholar]
  11. Wakhlu, A.K.; Nagari, S.; Barna, K.S. Somatic embryogensis and plant regeneration from callus cultures of Cuminum cyminum Bioss. Plant Cell Rep. 1990, 9, 137–138. [Google Scholar] [CrossRef]
  12. Ebrahimie, E.; Habashi, A.A.; Ghareyazie, B.; Ghannadha, M.; Mohammadie, M. A rapid and efficient method for regeneration of plantlets from embryo explants of cumin (Cuminum cyminum). Plant Cell Tissue Organ Cult. 2003, 75, 19–25. [Google Scholar]
  13. Tawfik, A.; Noga, A. Adventitious shoot proliferation from hypocotyl and internodal stem explants of cumin. Plant Cell Tissue Organ Cult. 2001, 66, 141–147. [Google Scholar]
  14. Bradbeer, L.B. Vegetable Production and Their Uses; Africana Publication Limited: Lagos, Nigeria, 1992; pp. 67–70. [Google Scholar]
  15. Durrani, M.J.; Qadir, S.A.; Farrulch, H.; Hussain, F. Germination ecology of Bunium persicum (Boiss) Fedtsch and Ferulaoopoda (Boiss and Bulse) Boiss. Hamdard Med. 1997, 40, 86–90. [Google Scholar]
  16. Sharma, R.K.; Sharma, S.; Sharma, S.S. Seed germination behavior of some medicinal plants of Lahaul and Spiti cold desert (Himachal Pradesh): Implications for conservation and cultivation. Curr. Sci. 2006, 90, 1113–1118. [Google Scholar]
  17. Sharma, R.K.; Sharma, S. Effect of storage and cold-stratification on seed physiological aspects of Bunium persicum: A threatened medicinal herb of Trans-Himalaya. Int. J. Bot. 2010, 6, 151–156. [Google Scholar]
  18. Nonogaki, H.; Bassel, G.W.; Bewley, J.D. Germination-still a mystery. Plant Sci. 2010, 179, 574–581. [Google Scholar]
  19. El-Dengawy, E.R. Promotion of seed germination and subsequent seedling growth of loquat (Eriobotrya japonica, Lindl) by moist chilling and GA3 applications. Sci. Hortic. 2005, 105, 331–342. [Google Scholar]
  20. Hossain, M.M.; Sharma, M.; Teixeira da Silva, J.A.; Pathak, P. Seed germination and tissue culture of Cymbidium giganteum Wall. ex Lindl. Sci. Hortic. 2010, 123, 479–487. [Google Scholar]
  21. Guleryuz, G.; Kirmizi, S.; Arslan, H.; Sakar, F.S. Dormancy and germination in Stachys germanica L. subsp. bithynica (Boiss.) Bhattacharjee seeds: Effects of short-time moist chilling and plant growth regulators. Flora Morphol. Distrib. Funct. Ecol. Plants 2011, 206, 943–948. [Google Scholar]
  22. Emamipoor, Y.; Maziah, M. An efficient method in breaking of dormancy from Bunium persicum (Boiss) Fedtsch seeds: A valuable herb of Middle East and Central Asia. Asian Pac. J. Trop. Biomed. 2014, 4, 642–649. [Google Scholar]
  23. Talezade, M.; Nezami, A.; Parsa, M.; Afshari, R.T.; Nabati, J. Optimization of culture media for seedling establishment of Bunium persicum (Boiss.) B. Fedtsch. Iran. J. Med. Aromat. Plants 2019, 35, fa551–fa563. [Google Scholar]
  24. Bonyanpour, A.R.; Khosh-Khui, M. Factors influencing seed germination and seedling growth in black zira [Bunium persicum (Boiss.) B. Fedtsch.]. J. Herbs Spices Med. Plants 2001, 8, 79–85. [Google Scholar] [CrossRef]
  25. de Melo Ferreira, W.; Barbante Kerbauy, G.; Elizabeth Kraus, J.; Pescador, R.; Mamoru Suzuki, R. Thidiazuron influences the endogenous levels of cytokinins and IAA during the flowering of isolated shoots of dendrobium. J. Plant Physiol. 2006, 163, 1126–1134. [Google Scholar] [CrossRef] [PubMed]
  26. Bahadori, F.; Javanbakht, A. Effect of pre-treatments on seed germination and seedling growth of Bunium persicum of Semnan. Iran. J. Rangel. For. Plant Breed. Genet. Res. 2006, 13, 163–169. [Google Scholar]
  27. Saeidnehad, A.H.; Khajeh-Hosseini, M.; Askarzadeh, M.A. Breaking dormancy of seeds from eight populations of Bunium persicum (Apiaceae). Seed Sci. Technol. 2013, 41, 452–457. [Google Scholar] [CrossRef]
  28. Arianto, A.; Basri, Z.; Wahyudi, I. Pengaruh Pemberian Giberelin dan Berbagai Medium Tanam terhadap Perkecambahan dan Pertumbuhan Benih Pala (Myristica fragrans Houtt). Mitra Sains 2018, 6, 232. [Google Scholar]
  29. Bhati, A.; Singh, D.; Garg, S.; Sivalingam, P. Effect of 2,4-D and NAA on callus induction in date palm cv Halawy and Medjool. Int. J. Farm Sci. 2017, 7, 132–136. [Google Scholar]
  30. Neibaur, I.; Gallo, M.; Altpeter, F. The effect of auxin type and cytokinin concentration on callus induction and plant regeneration frequency from immature inflorescence segments of seashore paspalum (Paspalum vaginatum Swartz). In Vitro Cell. Dev. Biol. Plant 2008, 44, 480–486. [Google Scholar] [CrossRef]
  31. Sharma, R.K. In vitro tuberization and plant regeneration in Bunium persicum Bioss. Internat. J. Plant Sci. 2011, 6, 193–195. [Google Scholar]
  32. Chaudhry, H.; Fatima, N.; Ahmad, I. Establishment of callus and cell suspension cultures of Nigella sativa L. For thymol production. Int. J. Pharm. Pharm. Sci. 2014, 6, 788–794. [Google Scholar]
  33. Pandey, P.; Mehta, R.; Upadhyay, R. Effect of explants type and different plant growth regulators on callus induction and plantlet regeneration in Psoralea corylifolia L. Int. J. Res. Pharm. Biomed. Sci. 2013, 4, 914–918. [Google Scholar]
  34. Campbell, N.A.; Reece, J.B.; Michell, L.G. Biologi; Erlangga: Jakarta, Indonesia, 2002. [Google Scholar]
  35. Santoso, U.; Nursandi, F. Kultur Jaringan Tanaman; UMM Press: Malang, Indonesia, 2004. [Google Scholar]
  36. Reinert, J.; Bajaj, Y.P.S. Plant Cell, Tissue and Organ Culture; Narosa Publishing House: Mumbai, India, 1989. [Google Scholar]
  37. Murni, P.; Danang, P.H.; Harlis, H. Pengaruh Asam Giberelat (GA3) terhadap Perkecambahan dan Pertumbuhan Vegetatif Duku (Lansium dookoo Griff.). Biospecies 2008, 1, 63–66. [Google Scholar]
  38. Pelacho, A.M.; Martin-Closas, L.; Sanfeliu, J.L.I. In vitro induction of potato tuberization by organic acids. Potato Res. 1999, 42, 585–591. [Google Scholar] [CrossRef]
  39. Jasik, J.; Mantell, S.H. Effect of Jasmonic acid and its methylster on in vitro microtubrization of three food yam (Dioscorea) species. Plant Cell Rep. 2000, 19, 863–867. [Google Scholar] [CrossRef]
  40. Cenzanoa, A.; Abdalaa, G.; Hauseb, B. Cytochemical immunolocalization of allene oxide cyclase, a jasmonic acid biosynthetic enzyme, in developing potato stolons. J. Plant Physiol. 2007, 164, 1449–1456. [Google Scholar] [CrossRef]
  41. Mardani, H.; Ziaratnia, S.M.; Azizi, M.; Aung, H.P.; Appiah, K.S.; Fujii, Y. In vitro micro-tuberization of black Zira (Bunium persicum Boiss.). Afr. J. Biotechnol. 2015, 14, 2080–2087. [Google Scholar]
  42. Gautam, S.; Solis-Gracia, N.; Teale, M.K.; Mandadi, K.; Silva, J.A.D.; Vales, M.I. Development of an in vitro micro-tuberization and temporary immersion bioreactor system to evaluate heat stress tolerance in potatoes (Solanum tuberosum L.). Front. Plant Sci. 2021, 12, 700328. [Google Scholar] [CrossRef]
  43. Castro, G.; Kraus, T.; Abdala, G. Endogenous jasmonic acid and radial cell expansion in buds of potato tubers. J. Plant Physiol. 1999, 155, 706–710. [Google Scholar] [CrossRef]
  44. Ravnikar, M.; Zel, J.; Plaper, I.; Spacapan, A. Jasmonic acid stimulates shoot and bulbs formation in garlic in vitro. J. Plant Growth Regul. 1993, 12, 73–77. [Google Scholar] [CrossRef]
  45. Murashige, T.; Skoog, F. A revised medium for rapid growth and bio assays with tobacco tissue cultures. Physiol. Plant. 1962, 15, 473–497. [Google Scholar] [CrossRef]
  46. Cochran, G.C.; Cox, M.M. Experimental Designs; Asia Publishing House: Mumbai, India, 1963; pp. 293–316. [Google Scholar]
Figure 1. Seedling and tuber development of Bunium persicum under field conditions.
Figure 1. Seedling and tuber development of Bunium persicum under field conditions.
Plants 12 03163 g001
Figure 2. Influence of PGRs on seed germination of Bunium persicum.
Figure 2. Influence of PGRs on seed germination of Bunium persicum.
Plants 12 03163 g002

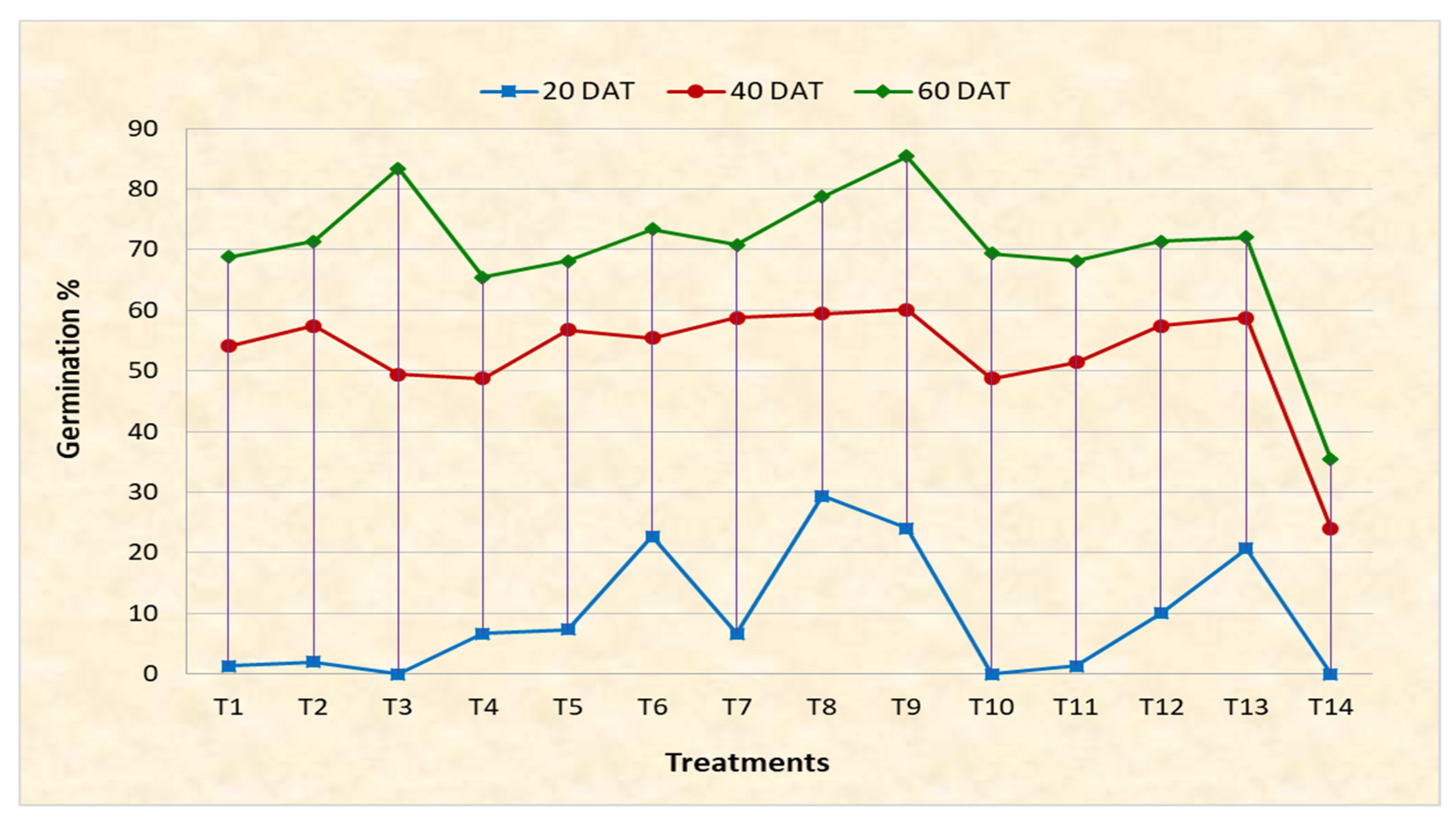

Figure 3. Germination behavior of Bunium persicum genotypes under controlled conditions.
Figure 3. Germination behavior of Bunium persicum genotypes under controlled conditions.
Plants 12 03163 g003

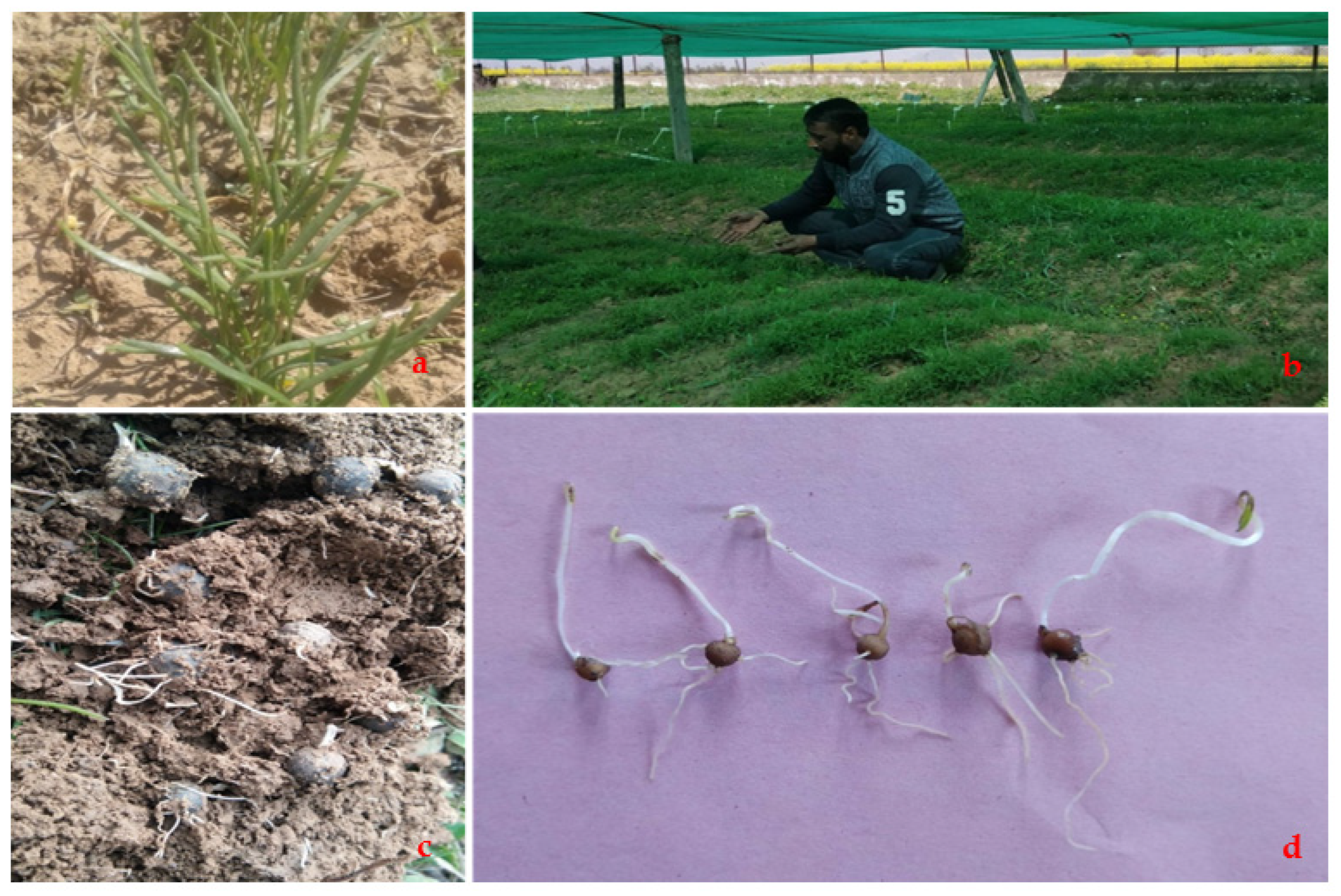

Figure 4. Tuber development of Bunium persicum under field conditions: (a) seed germination under pot culture; (b) nursery development of 14 treatments; (c) tuber development after 3 years; and (d) treatment effect on tuber development.
Figure 4. Tuber development of Bunium persicum under field conditions: (a) seed germination under pot culture; (b) nursery development of 14 treatments; (c) tuber development after 3 years; and (d) treatment effect on tuber development.
Plants 12 03163 g004

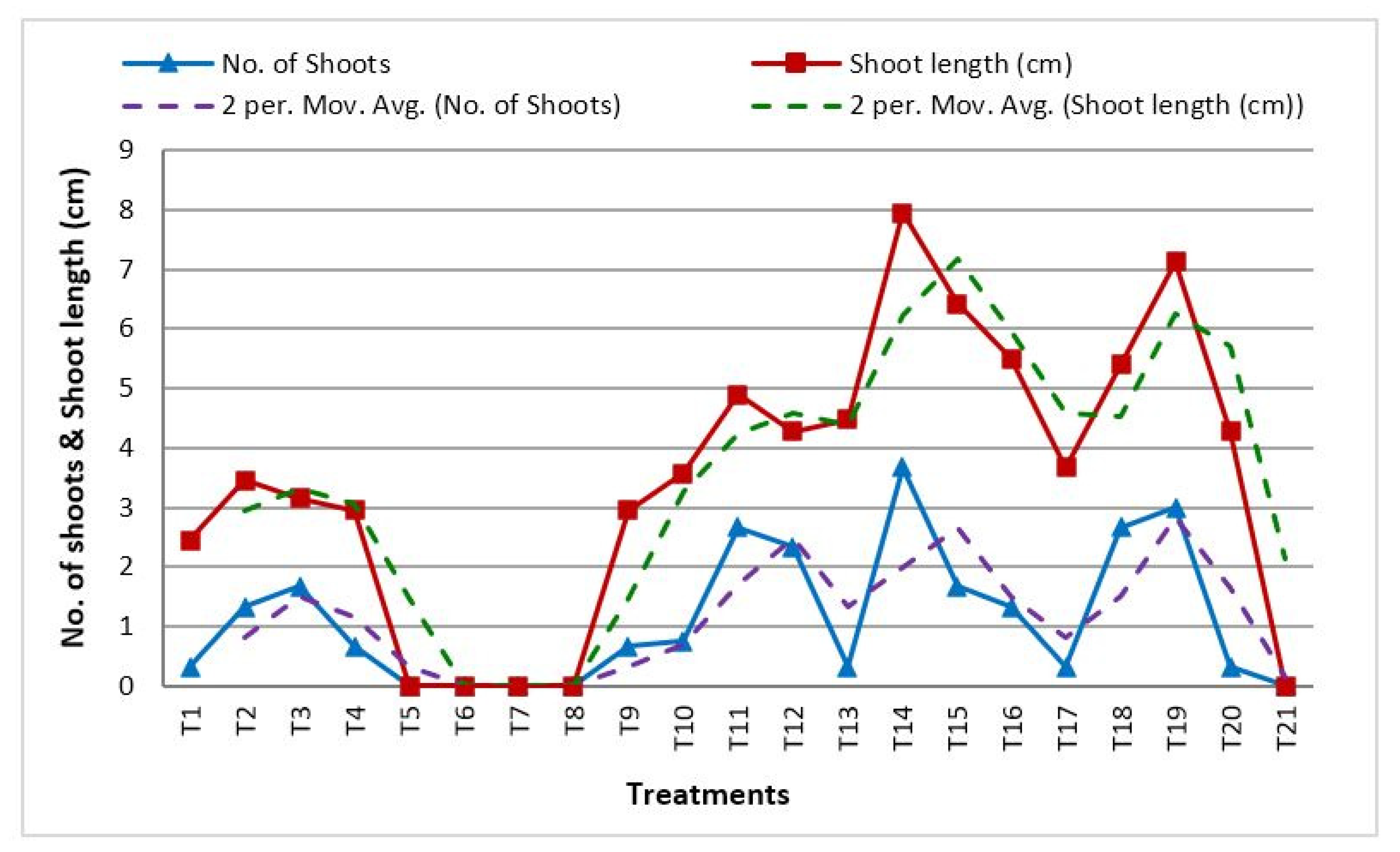

Figure 5. Shoot parameters as affected by PGR treatments under in vitro conditions.
Figure 5. Shoot parameters as affected by PGR treatments under in vitro conditions.
Plants 12 03163 g005
Figure 6. Different stages of micro-tuber development in Bunium persicum (a) green tip of apical stem; (b) middle portion of apical stem; (c,d) swollen basal part of apical stems; (e) micro-tubers.
Figure 6. Different stages of micro-tuber development in Bunium persicum (a) green tip of apical stem; (b) middle portion of apical stem; (c,d) swollen basal part of apical stems; (e) micro-tubers.
Plants 12 03163 g006

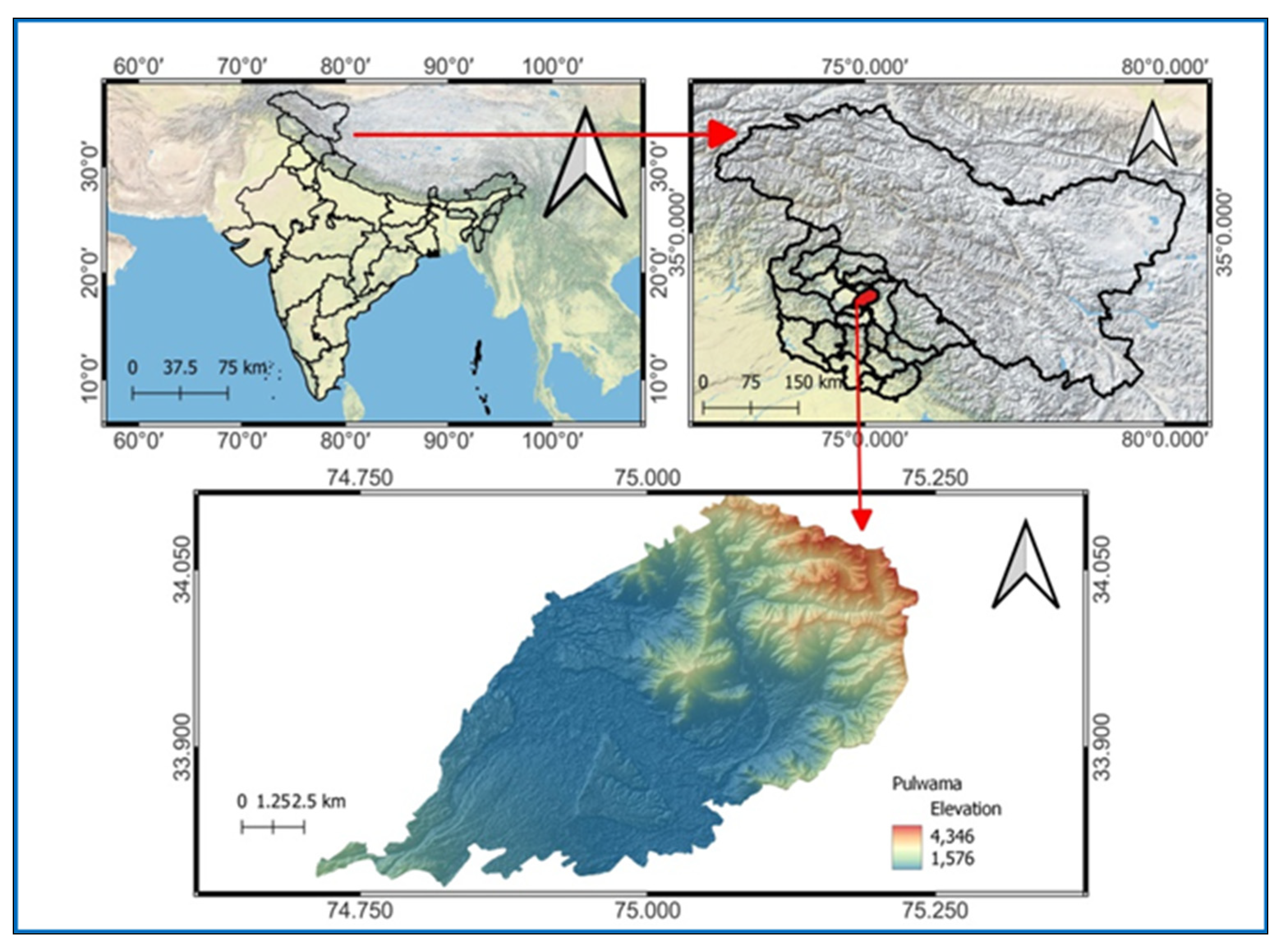

Figure 7. Experimental site.
Figure 7. Experimental site.
Plants 12 03163 g007
Table 1. Germination and seedling data of Bunium persicum genotypes under open field conditions.
Table 1. Germination and seedling data of Bunium persicum genotypes under open field conditions.
GenotypesLocationAltitude (mts)Coordinates
(Degree)
Germination (%)Root Length (cm)Shoot Length (cm)Root Shoot Ratio
SRS/KZ/124Khrew160734.02 N, 74.93 E39.748.569.491.11
SRS/KZ/132Budgam157733.80 N, 75.10 E31.593.775.211.38
SRS/KZ/141Srinagar159234.08 N, 74.79 E42.807.347.651.04
SRS/KZ/158Kishtwar164033.15 N, 76.09 E35.679.9810.461.05
SRS/KZ/183Gurez258034.63 N, 74.83 E46.885.617.961.42
Shalimar Kalazeera-1Srinagar158734.08 N 74.83 E58.0910.4011.431.10
SE(m)---0.9770.1770.181-
CD (p = 0.05)---3.1200.5650.586-
Table 2. Effect of different PGRs and chilling temperatures on germination.
Table 2. Effect of different PGRs and chilling temperatures on germination.
Treatments20 Days after Treatment40 Days after Treatment60 Days after Treatment
T11.3354.0568.74
T22.0057.3971.40
T30.0049.3883.41
T46.6848.7265.40
T57.3456.7368.07
T622.6955.3973.40
T76.6858.7370.74
T829.3659.3978.75
T924.0260.0685.42
T100.0048.7269.40
T111.3351.3868.07
T1210.0157.3971.40
T1320.6958.7372.07
T140.0024.0235.37
CD (p = 0.05)1.3655.3417.589
SE(m)0.4671.8272.596
Table 3. Effect of moisture and temperature conditions on germination.
Table 3. Effect of moisture and temperature conditions on germination.
Temperature (°C)MoistureSeed Germination
20 Days40 Days60 Days
15Dry000
20Moist000
2–5Dry06.197.11
2–5Moist2.9032.0065.91
Table 4. Effect of growth hormones on germination under dry and moist room conditions.
Table 4. Effect of growth hormones on germination under dry and moist room conditions.
HormonesSeed Germination
20 Days40 Days60 Days
GA30.8037.8964.13
JA1.7011.3927.67
TDZ2.679.7612.59
Untreated0.111.213.67
CD (p = 0.05)0.1912.6334.791
SE (m)0.0540.7460.127
Table 5. In vitro shoot regeneration in Bunium persicum from apical bud.
Table 5. In vitro shoot regeneration in Bunium persicum from apical bud.
TreatmentsNAA (µM)Jasmonic Acid (mg/L)BAP (µM)Number of ShootsShoot Length (cm)
T110.8000.332.45
T216.2001.333.46
T321.6001.673.16
T427.0000.672.96
T502.0000
T604.0000
T706.0000
T808.0000
T9002.220.672.96
T10004.440.763.57
T110022.22.674.89
T120044.42.334.28
T1310.82.000.334.48
T1416.24.003.677.95
T1521.66.001.676.42
T1627.08.001.335.50
T1710.802.220.333.67
T1816.204.442.675.40
T1921.6022.23.007.13
T2027.0044.40.334.28
T2100000
CD (p = 0.05)---0.1830.286
Table 6. Micro-tuber production from in vitro leaf explants.
Table 6. Micro-tuber production from in vitro leaf explants.
TreatmentsNAA (µM)Jasmonic Acid (mg/L)BAP (µM)Swelling at Base of In Vitro Leaf (%)
T110.82.0028.57
T216.24.0033.33
T321.66.0088.89
T427.08.0033.33
T510.802.2212.50
T616.204.4414.28
T721.6022.228.57
T827.0044.450.00
T902.02.2244.44
T1004.04.4450.00
T1106.022.262.50
T1208.044.428.57
CD (p = 0.05)---4.604
Table 7. The details of PGR treatments.
Table 7. The details of PGR treatments.
S.noTreatmentsPGR Concentration
GA3 (ppm)TDZ (µM/L)Jasmonic Acid (ppm)
1.T112.00.00.0
2.T225.00.00.0
3.T350.00.00.0
4.T40.03.00.0
5.T50.06.00.0
6.T60.09.00.0
7.T725.03.00.0
8.T825.06.00.0
9.T925.09.00.0
10.T100.00.050.0
11.T110.00.0100.0
12.T1225.03.050.0
13.T1325.03.0100.0
14.T14Control (untreated)
Table 8. Details of hormone treatments under in vitro conditions.
Table 8. Details of hormone treatments under in vitro conditions.
S. NoHormones
BAP (µM)NAA (µM)Jasmonic Acid (mg/L)
1.2.2210.82.0
2.4.4416.24.0
3.22.221.66.0
4.44.427.08.0
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Khan, M.H.; Dar, N.A.; Alie, B.A.; Mir, G.H.; Fayaz, U.; Khan, A.; Bashir, B.; Ahmad, A.; Mansoor, S.; Chung, Y.S.; et al. Plant Growth Hormones and Micro-Tuberization in Breaking the Seed Dormancy of Bunium persicum (Boiss.) Fedts. Plants 2023, 12, 3163. https://doi.org/10.3390/plants12173163

AMA Style

Khan MH, Dar NA, Alie BA, Mir GH, Fayaz U, Khan A, Bashir B, Ahmad A, Mansoor S, Chung YS, et al. Plant Growth Hormones and Micro-Tuberization in Breaking the Seed Dormancy of Bunium persicum (Boiss.) Fedts. Plants. 2023; 12(17):3163. https://doi.org/10.3390/plants12173163

Chicago/Turabian Style

Khan, Mudasir Hafiz, Niyaz Ahmad Dar, Bashir Ahmad Alie, Ghulam Hassan Mir, Uzma Fayaz, Azra Khan, Basharat Bashir, Ajaz Ahmad, Sheikh Mansoor, Yong Suk Chung, and et al. 2023. "Plant Growth Hormones and Micro-Tuberization in Breaking the Seed Dormancy of Bunium persicum (Boiss.) Fedts" Plants 12, no. 17: 3163. https://doi.org/10.3390/plants12173163

APA Style

Khan, M. H., Dar, N. A., Alie, B. A., Mir, G. H., Fayaz, U., Khan, A., Bashir, B., Ahmad, A., Mansoor, S., Chung, Y. S., & Heo, S. (2023). Plant Growth Hormones and Micro-Tuberization in Breaking the Seed Dormancy of Bunium persicum (Boiss.) Fedts. Plants, 12(17), 3163. https://doi.org/10.3390/plants12173163

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
