1. Introduction
In recent years, the release of volatile organic compounds (VOCs) has increased with rapid industrialization. Acetone is a well-known colorless VOC with a strong odor and widely used in laboratories, factories, and pharmaceutical manufacturing plants [
1,
2]. Additionally, it is a key solvent in the production of methacrylate, which is used in plastic manufacturing [
3]. The inhalation of acetone can lead to headaches, allergies, and anesthesia, as it is toxic to the nervous system. Exposure to high concentrations of acetone (>173 ppm) can anesthetize the central nervous system, causing damage to important organs in the human body [
4,
5]. Consequently, major safety institutions such as the National Institute of Occupational Safety and Health (NIOSH) and the European Agency for Safety and Health at Work (EU-OSHA) restrict the level of human exposure to acetone in indoor and work environments [
6]. In the regulation of acetone exposure, NIOSH specifies a time-weighted average (TWA) limit of 250 ppm on its official website
https://www.cdc.gov/niosh/npg/npgd0004.html (accessed on 27 November 2023). Meanwhile, EU-OSHA has established an 8 h time-weighted average limit of 500 ppm, as specified on its official website
https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX%3A02000L0039202105-20 (accessed on 27 November 2023). These limits are established to restrict acetone exposure in occupational settings, aiming to minimize health impacts and maintain a safe working environment. Therefore, the acetone gas sensors used in indoor and workplace environments should exhibit sufficiently high sensitivity to detect ppm-level concentrations of acetone with exceptional selectivity for acetone.
Metal oxide semiconductors (MOSs) are commonly applied as detectors in gas sensors due to their low cost, rapid response, and excellent detection characteristics [
7]. Several studies have investigated sensors for detecting acetone gas using materials such as SnO
2, Fe
2O
3, WO
3, and ZnO [
8,
9,
10,
11]. Among these, ZnO is an N-type semiconductor easily manufactured and allows mass production with good responses to gases. Consequently, different methods have been explored to enhance the gas detection ability of ZnO [
12]. Doping is an effective way to improve the sensitivity response of the gas sensor. Yoo et al. explored various materials for doping ZnO, including Cu, Co, and Al, and investigated the sensing responses of these materials to various concentrations of acetone. Among the studied materials, Al-doped ZnO exhibits the highest sensitivity to acetone gas [
13].
Traditionally, ZnO thin films have been produced through sputtering or thermal deposition for use as detection layers in sensors [
14,
15]. However, these processes require high temperatures or vacuum conditions, adding complexity and expense to the production process. To overcome these drawbacks, various research centers and corporations have been investigating electrode printing [
16]. Electrode printing utilizes general printing techniques, conductive materials, semiconductors, and dielectric materials to create electronic products. Devices fabricated using this technology are thin and lightweight. This environmentally friendly process offers cost advantages over traditional semiconductor methods and allows for large-scale production offering the advantage of low cost. In contrast, the conventional semiconductor process requires costly devices and involves multiple steps including deposition, washing, masking, and etching to form a patterned layer. The electrode-printing process requires fewer steps and allows for continuous processing, including lamination, with the possibility of micro-patterning and thin film coating [
17,
18]. Electrode-printing methods include gravure offset, reverse offset, and screen printing as contact processes, as well as inkjet, slot-die, and electrostatic spray deposition (ESD) as non-contact processes [
19,
20,
21,
22,
23,
24].
The ESD process is initiated by applying a voltage across the nozzle of the system. The resulting electrostatic force between the capillary tube and the substrate leads to the spraying of the solution at the tip of the capillary tube. Although this process has primarily been used in the painting and coating industries in the past, its scope of application has recently expanded to include the production of transparent electrodes, organic solar cells, and gas sensors. ESD has also been utilized in the production of gas sensors, such as for fabricating ZnO thin films for NO
2 gas sensors or H
2S gas sensors with WO
3 as the detection layer [
25,
26]. Utilizing an acetone gas sensor enables the diagnosis of medical conditions through respiratory analysis. The acetone concentration in the breath of a healthy individual typically ranges from 0.2 to 1.8 ppm. In contrast, diabetic patients exhibit higher acetone concentrations in their breath, ranging from 1.25 to 2.5 ppm. Therefore, employing an acetone gas sensor allows for the early detection of diabetes by confirming elevated acetone levels in the patient’s breath [
13].
In this study, we have developed a fabrication process of the gas sensor using the printing process. The electrostatic spray deposition (ESD) process is employed to deposit ZnO and Al-doped ZnO (AZO) thin films onto the SiO2 wafer by varying the voltage level, and the film thickness is analyzed to identify the conditions for fabricating thin films with the highest uniformity. By printing an Ag electrode on the coated films using the reverse offset process, acetone gas sensors were created. The gas response of the ZnO and AZO thin films were investigated in the range of 250–400 °C. Different gas response properties, such as sensitivity, selectivity and response and recovery time, were measured. Analysis of the sensing response of the fabricated ZnO and AZO gas sensors revealed that AZO showed a better performance than ZnO thin film, and compared to other (NH3 and CO) gases, the selectivity of the AZO sensor showed the highest response towards acetone gas.
Hence, our present study deals with the detailed fabrication process of fully printed gas sensors. By printing electrodes on films produced through the ESD process, we demonstrate the applicability of gas sensors fabricated through the ESD process.

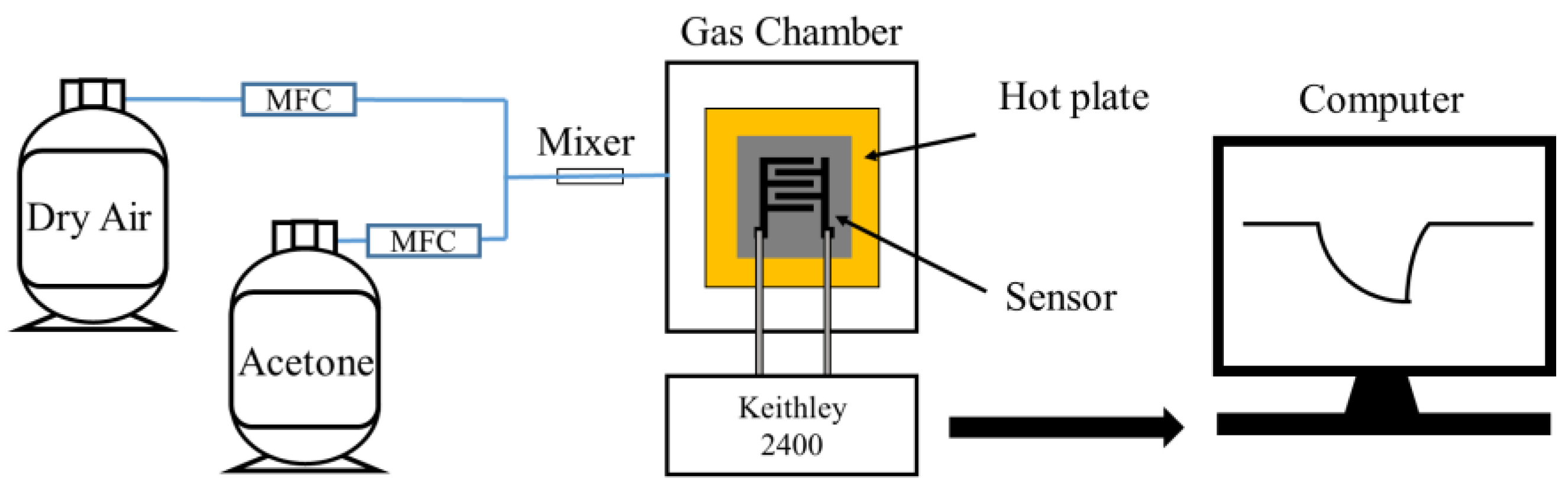

3. Results and Discussion
3.1. XRD Crystal Structure Analysis

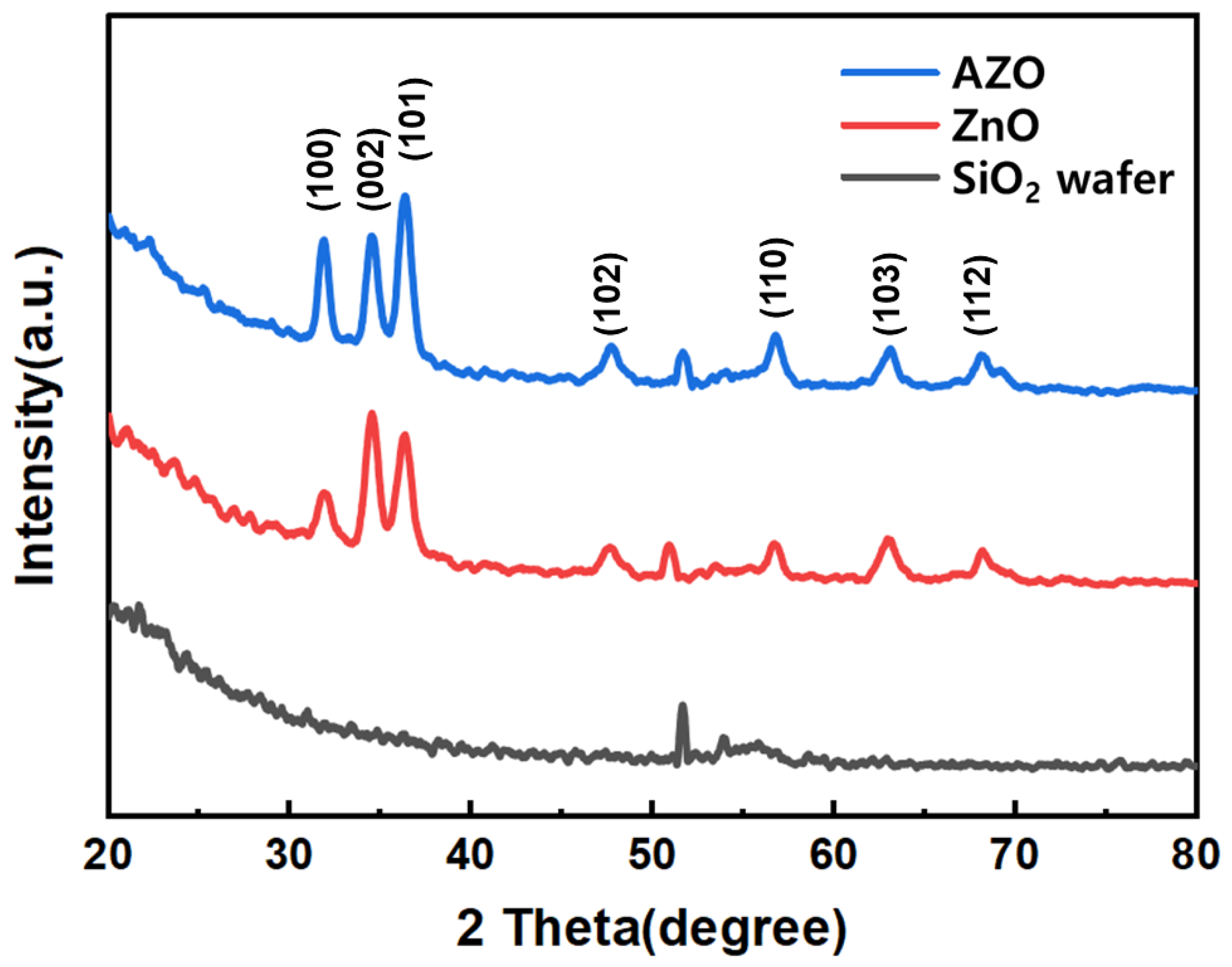

Figure 5 represents the XRD patterns of ZnO and AZO. The XRD patterns of ZnO and AZO match well with JCPDS: #36-1451 and exhibit hexagonal wurtzite structure. Three strong peaks corresponding to (100), (002), and (101) were observed in both ZnO and AZO nanoparticles (NPs). No other impurity peaks were observed, confirming that the hexagonal structure of ZnO remained unaltered despite Al
3+ doping [
27,
28,
29].
The crystallite sizes (D) of ZnO and AZO were calculated using Scherrer’s formula (Equation (2)), where β represents the full width at half maximum (FWHM) of a peak, and λ is the wavelength of incident X-rays [
30]. The ZnO particle size is 10.57 nm, and AZO particle size is 25.44 nm.
To assess the impact of Al doping, an analysis of the (101) peak in the XRD graph was conducted. The results revealed that the peak for pure ZnO was at 36.32°, while for AZO, it shifted to 36.34°, indicating a 0.02° shift due to Al doping. This shift of the (101) peak position by 0.02° is attributed to the smaller atomic radius of the doped Al
3+ (0.53 Å) ion, as opposed to the atomic radius of Zn
2+ (0.74 Å) [
13].
3.2. Analysis of Thin Films Formed by the ESD Process
Figure 6 illustrates the spray pattern observed at each applied voltage when the thin films were coated onto the substrate using ZnO and AZO nanoparticle inks via the ESD process. The applied voltage was incrementally increased by 0.3 kV starting at 2.9 kV for ZnO and 2.6 kV for AZO with measurements taken at consistent intervals. With the use of ZnO ink, both the ink quantity and spray angle increased and the dispersed ink was concentrated at the center as the electrostatic force applied to the ink increased with the rising voltage. In the case of the AZO ink, an increase in the applied voltage led to a greater quantity of dispersed ink, resulting in an expanded spray angle. Therefore, the minimum voltage was required for coating to achieve the maximum uniformity of the thin films. Subsequently, the thickness of the center and the right and left sides of the coated films were analyzed. Images for the film thickness analysis were acquired using an S-4800FE-SEM device (HITACHI, Tokyo, Japan).

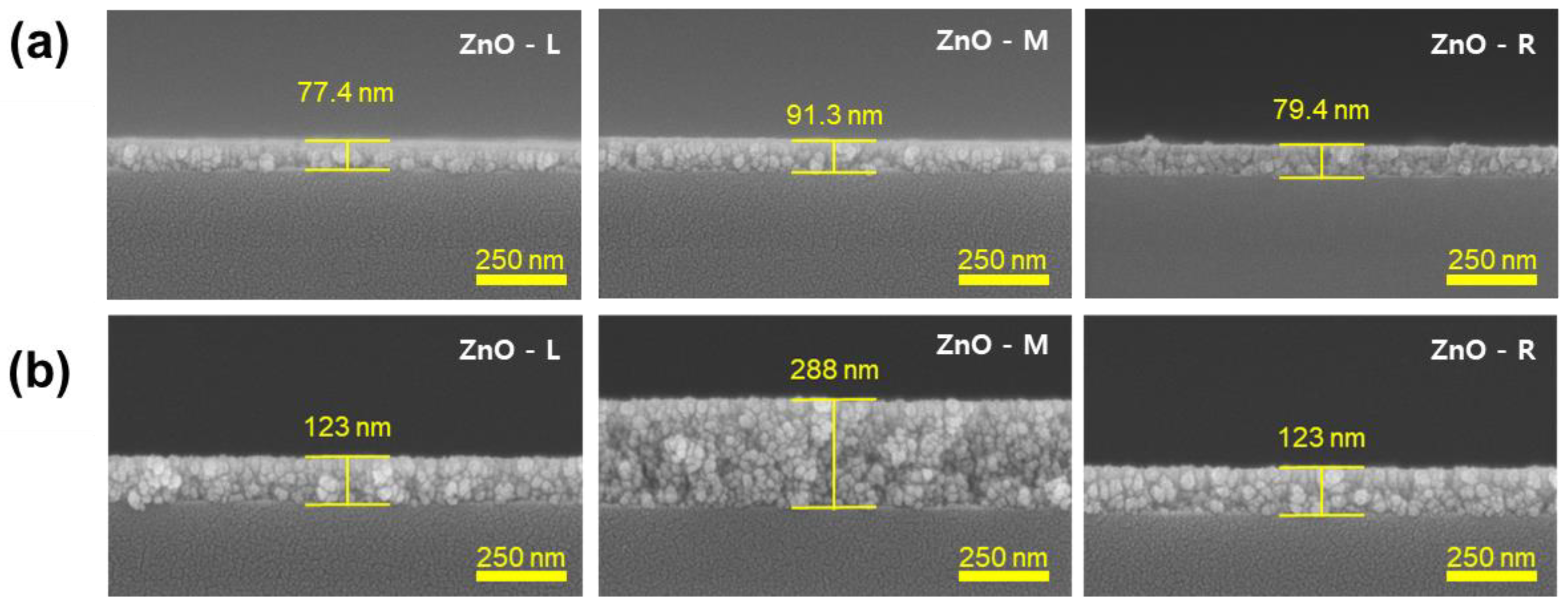

Figure 7 displays the images used to analyze the thickness variation in the thin films coated onto the substrate using ZnO at 2.9 kV and 3.8 kV. For coating times of 100 s,
Figure 8 presents the images used for the analysis of the thickness variation in the thin films coated onto the substrate using AZO at 2.6 kV and 3.5 kV. As is evident in these figures, raising the applied voltage increased the amount of ink dispersed at the center of the film, leading to increased thickness variation. Additional images for the thickness variation analysis with variation in the applied voltage are presented in
Figures S1 and S2.
Analysis of the thicknesses of the ZnO and AZO thin films coated onto the substrate for 100 s at each applied voltage revealed that the highest level of uniformity was achieved at the minimum applied voltage of 2.9 kV for ZnO and 2.6 kV for AZO. Based on these findings, the final voltage for the coating process was set at 2.9 kV for ZnO and 2.6 kV for AZO.

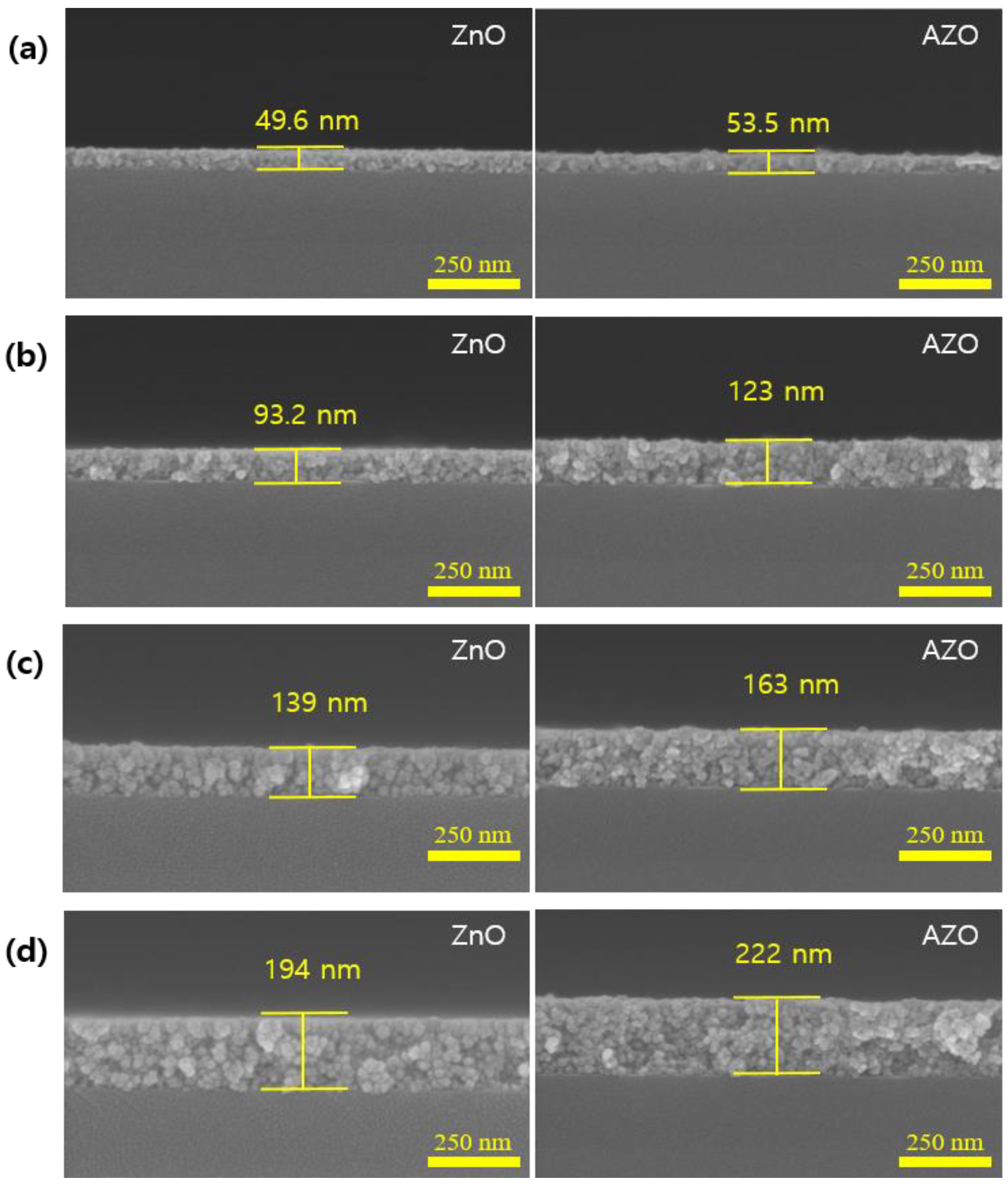

Figure 9 displays the images used to analyze the thicknesses of the thin films coated onto the substrate at the minimum applied voltage (2.9 kV for ZnO and 2.6 kV for AZO) based on the total coating time. As shown, the thicknesses were uniform across the fabricated thin films, regardless of the total coating time. According to the figure, despite the lower applied voltage for AZO compared to ZnO, the thickness of the film was greater. This is attributed to the enhanced conductivity of AZO ink due to the aluminum doping, which facilitates the ejection of a larger volume of ink even at lower applied voltages.
3.3. The Effect of Coating Time on the Sensing Response

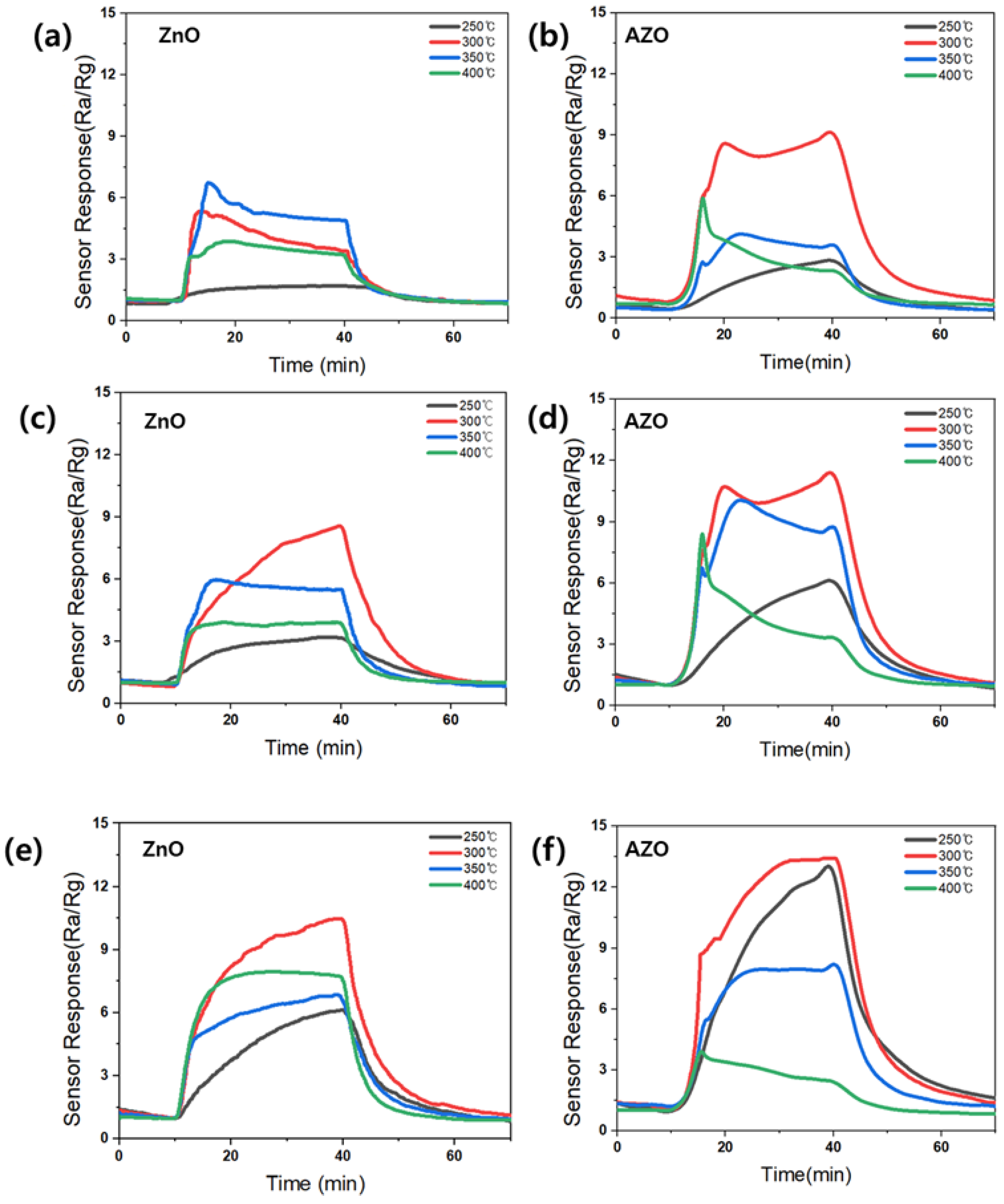

Figure 10 shows the response to acetone for the fabricated gas sensors employing the ZnO and AZO films deposited with different coating times. The sensors employing the films deposited by coating for 100, 150, and 200 s are denoted as ZnO (AZO)_100, 150, and 200, respectively. The measurements at 50 s indicated no sensing response and were thus excluded. Each sensor was exposed to 10 ppm acetone gas at varying temperatures, and the sensing responses were analyzed.
Figure 11 provides a summary of the maximum responses recorded for the fabricated sensors. Both ZnO and AZO sensors coated for 200 s exhibited the strongest response at 300 °C. The response of the fabricated sensors increased as the detection temperature increased to 300 °C. However, beyond a certain optimal temperature level, a decrease in the response was observed, possibly due to the desorption of oxygen adsorbed onto the surface of ZnO [
31]. The ZnO/AZO thin films coated for 200 s consist of nanoparticles, as depicted in
Figure 8, and their performance in detecting acetone gas is enhanced by increasing the film thickness. Nonetheless, a significant difference in the sensing response of the ZnO and AZO gas sensors was noted. When exposed to 10 ppm acetone gas at the same temperature, the AZO sensor exhibited a stronger response than the ZnO sensor. This enhancement in the gas detection characteristics of ZnO is likely attributed to the contribution of Al doping.
3.4. Surface Defects and the Analysis of Mechanisms
To analyze the surface chemical properties of the coated ZnO and AZO thin films, XPS analysis was performed. The results are presented in
Figure 12.
Figure S3 shows the survey scan spectra for ZnO and AZO. In
Figure S3, the Al peak at a binding energy of 74.7 eV corresponds to the Al 2p peak, indicating the successful inclusion of Al atoms by substituting Zn
2+ into ZnO [
32]. The peaks at 1044.94 eV and 1021.84 eV in the Zn spectrum (
Figure 12a) correspond to the Zn 2p1/2 and Zn 2p3/2 states of Zn
2+, respectively. Additionally, the difference in the binding energy of the two peaks in the Zn 2p spectrum for ZnO and AZO is 23.1 eV, indicating a 2+ oxidation state of Zn [
33]. The binding energy of the ZnO samples with Al doping (
Figure 12b) is slightly higher than that of the pure ZnO samples. An increase in the binding energy reflects electronic interactions between ZnO and the dopant, which accounts for the improved gas-sensing response of ZnO with Al doping [
34].
Figure 12c,d represent the O1s spectra of ZnO and AZO, respectively. The weak peaks at 530.3 eV for ZnO and at 530.8 eV for AZO correspond to the O
2− ion in the Zn-O bond [
35,
36]. The strong peak at 532.1 eV corresponds to oxygen vacancy, indicating a hypoxic state caused by the loss of surface oxygen. Compared to the XPS profile of ZnO, that of AZO (
Figure 12d) displayed a peak at a higher binding energy of 532.6 eV. This implies that as a result of the oxygen vacancies in AZO, the sensing response increased compared to that of pure ZnO [
37].
Figure 13 represents a schematic diagram of the sensing mechanism of the acetone gas sensors, which primarily follows the behavior of N-type semiconductors. As the temperature of ZnO increases, the transition of electrons occurs from the valence band to the conduction band [
13]. These conduction band electrons then react with the atmospheric oxygen on the surface, leading to adsorption. Adsorption of atmospheric oxygen creates a depletion region, resulting in an increase in the resistance [
3]. When a reducing gas like acetone enters into this region, it reacts with the adsorbed oxygen on the ZnO surface and induces a response as described in Equation (3), thus releasing the adsorbed electrons. Consequently, the resistance of the gas sensor exposed to the gas decreases. In the case of AZO, the higher electronegativity of the Al
3+ dopant compared to that of Zn
2+ leads to more adsorption than in pure ZnO, enhancing the sensing response.
3.5. The Sensitivity and Selectivity of Sensors
The response of each sensor was analyzed under the optimal conditions (temperature: 300 °C; thickness: 200 nm) with varying acetone gas concentrations, as shown in
Figure 14a. The responses were measured at different acetone gas concentrations of 2, 4, 6, 8, and 10 ppm.
Figure 14b shows the maximum responses of ZnO and Al-doped ZnO NPs to acetone gas, indicating that the response decreased as the gas concentration decreased for both the ZnO and AZO sensors. A concentration-dependent variation in the response to acetone gas was observed for both sensors. The AZO sensor exhibited stronger responses at all concentrations compared to the ZnO sensor. In the presence of 10 ppm acetone gas, the response of the AZO sensor was 13.41, higher than that of the ZnO sensor (9.25). This confirms that the AZO sensor with the Al-doped film is more effective for acetone gas detection. The strong responses at low concentrations indicate potential utility of the AZO sensor in advanced chemical gas detection.
Figure 14c summarizes the response time and recovery time of the ZnO and AZO sensors upon exposure to acetone gas at 300 °C. The response time was the time taken for the sensor to reach 90% of the total resistance change after exposure to acetone gas. The response times of the samples were analyzed at various acetone concentrations ranging from 2 to 10 ppm. ZnO did not exhibit a consistent trend in its response time and recovery time with respect to acetone concentration, whereas AZO showed a concentration-dependent trend. AZO demonstrated response times of approximately 3.334, 4.32, 5.19, 7.23, and 7.5 min at acetone concentrations of 2, 4, 6, 8, and 10 ppm, respectively, showing that the sensor’s response time increased with higher gas concentrations.
The recovery time of the sample was the time required for the sensor to return to 90% of its original resistance after exposure to acetone gas. Unlike the response time, the sensors’ recovery times increased with higher acetone concentrations. AZO exhibited recovery times of 22.63, 21.46, 20.79, 19.99, and 20.07 min at acetone concentrations of 2, 4, 6, 8, and 10 ppm, respectively. The phenomenon of longer recovery times at lower concentrations can be attributed to acetone gas molecules being partially adsorbed onto the ZnO surface. This partial adsorption interferes with the complete desorption process, delaying the recovery time of sensors responding to higher concentrations. This phenomenon can be attributed to acetone gas molecules that remain partially adsorbed onto the ZnO surface, preventing complete desorption and slowing down the recovery time of sensors responding to higher concentrations.
Analyzing the sensors’ response times, it is observed that AZO, which exhibited consistent response and recovery times depending on the gas concentration, outperformed ZnO gas sensors. Therefore, it is concluded that AZO demonstrated superior performance compared to ZnO gas sensors.

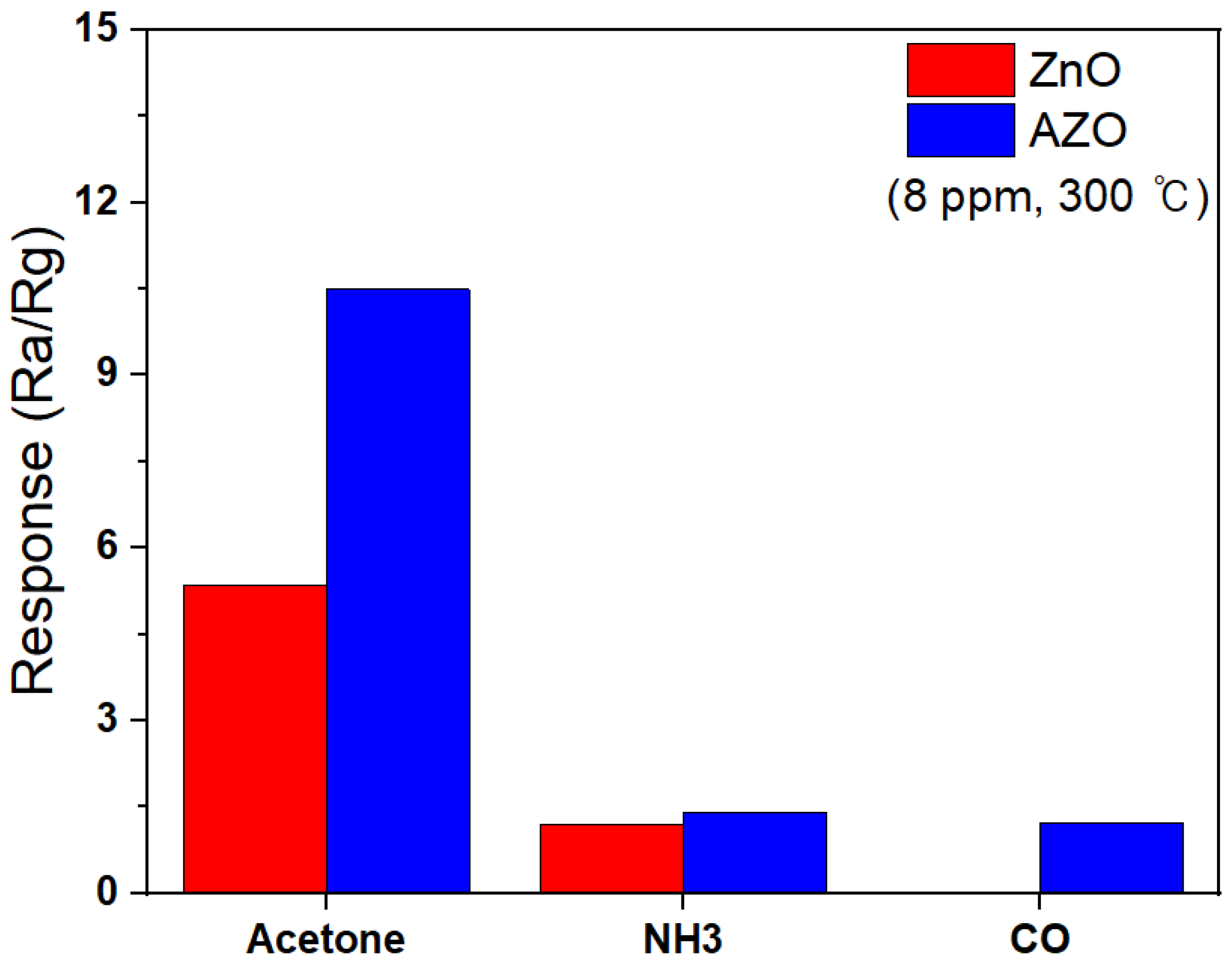

Figure 15 shows the selectivity responses of ZnO and Al-doped ZnO NPs to 8 ppm of various target gases at 300 °C. Both NH
3 and CO gases are detected in human breath, and even trace levels of exposure to these gases can have toxic effects on the human body. Therefore, the ability of these novel detectors to selectively sense acetone in a mixture with these gases was tested.
Figure 15 represents the response of the ZnO and AZO gas sensors when exposed to identical concentrations of acetone, NH
3, and CO gases at 8 ppm. The ZnO and AZO sensors both exhibited the strongest responses in the presence of acetone compared to the other gases, and the ZnO sensor showed no response to CO gas. The response of the AZO sensor was 1.40 when exposed to NH
3 and 1.23 when exposed to CO, whereas the response to acetone gas was significantly higher at 7.48. These results suggest that in the presence of a gas mixture, the AZO sensor can selectively detect acetone.
The reproducibility of the AZO gas sensor towards 10 ppm acetone gas at 300 °C was measured, as depicted in
Figure 16a. The responses were measured over three consecutive measurements, and no significant changes were observed in the sensor responses.
Additionally, considering the significance of the stability of the gas sensor, a measurement of the stability of the AZO gas sensor was conducted.
Figure 16b illustrates the stability of the sensor at 300 °C towards 10 ppm acetone gas over four months after sensor fabrication. The dashed black line on the graph represents the initial reactivity of the AZO gas sensor, which is 13.41, immediately after fabrication. The sensor response after four months remained at 12, showing consistency with the initial reactivity and indicating no significant difference. Therefore, the AZO gas sensor demonstrates both excellent reproducibility and stability.
4. Conclusions
This study investigated the optimal conditions for the thickness of films formed through the ESD process and summarized the sensors’ responsiveness based on the total coating time. This work provides insights into the applicability of the sensors.
Analyzing the thickness variation with varying applied voltages in the ESD process revealed that as the applied voltage increased, the variation in the thicknesses at the center and sides of the thin films tended to increase. Consequently, thin films were fabricated using the minimum applied voltage for different durations, demonstrating that the thicknesses of the thin films increased uniformly according to the coating time. As a gas detection material, Al-doped ZnO showed higher sensing responses compared to pure ZnO. A maximum response of 13.41 was observed for thin films fabricated by 200 s of coating at 300 °C. The enhanced gas detection ability of AZO is associated with a higher level of oxygen vacancies resulting from Al doping and confirmed by XPS analysis. Furthermore, the fabricated gas sensors exhibited sensing responses even at a low gas concentration of 2 ppm, demonstrating their effectiveness towards acetone gas in comparison to other gases and confirming high selectivity. The sensor results exhibited good reproducibility and long stability. Through their responsiveness at low concentrations, it is possible to detect acetone in the breath of diabetic patients.
