Species-Specific Unbound Fraction Differences in Highly Bound PFAS: A Comparative Study across Human, Rat, and Mouse Plasma and Albumin

by
Sangwoo Ryu
1,2,
Woodrow Burchett
2,
Sam Zhang
2,
Seyed Mohamad Sadegh Modaresi
1,
Juliana Agudelo Areiza
1,
Emily Kaye
1,
Fabian Christoph Fischer
1,3,* and
Angela L. Slitt
1,*
1
Department of Biomedical and Pharmaceutical Sciences, University of Rhode Island, Kingston, RI 02881, USA
2
Pharmacokinetics, Dynamics and Metabolism, Pfizer Worldwide Research & Development, Pfizer Inc., Groton, CT 06340, USA
3
Harvard John A. Paulson School of Engineering and Applied Sciences, Harvard University, Cambridge, MA 02138, USA
*
Authors to whom correspondence should be addressed.
Toxics 2024, 12(4), 253; https://doi.org/10.3390/toxics12040253
Submission received: 6 February 2024 / Revised: 17 March 2024 / Accepted: 22 March 2024 / Published: 29 March 2024
(This article belongs to the Special Issue PFAS Toxicology and Metabolism)
Browse Figures
Versions Notes

Abstract

:
Per- and polyfluoroalkyl substances (PFAS) are a diverse group of fluorinated compounds which have yet to undergo comprehensive investigation regarding potential adverse health effects and bioaccumulative properties. With long half-lives and accumulative properties, PFAS have been linked to several toxic effects in both non-clinical species such as rat and mouse as well as human. Although biological impacts and specific protein binding of PFAS have been examined, there is no study focusing on the species-specific fraction unbound (fu) in plasma and related toxicokinetics. Herein, a presaturation equilibrium dialysis method was used to measure and validate the binding of 14 individual PFAS with carbon chains containing 4 to 12 perfluorinated carbon atoms and several functional head-groups to albumin and plasma of mouse (C57BL/6 and CD-1), rat, and human. Equivalence testing between each species-matrix combination showed positive correlation between rat and human when comparing fu in plasma and binding to albumin. Similar trends in binding were also observed for mouse plasma and albumin. Relatively high Spearman correlations for all combinations indicate high concordance of PFAS binding regardless of matrix. Physiochemical properties of PFAS such as molecular weight, chain length, and lipophilicity were found to have important roles in plasma protein binding of PFAS.

1. Introduction

Per- and polyfluoroalkyl substances (PFAS) constitute a large group of manufactured chemicals that possess unique physical and chemical properties which make them desirable for commercial and residential uses, such as resistance to oil, water, heat, and biodegradation [1,2]. These characteristics have made PFAS broadly used for numerous applications including firefighting foams, textiles, nonstick cookware, fast food packaging, and cosmetics. PFAS use has expanded since their introduction in the 1940s, and it is estimated that there are 10,000+ PFAS present in the environment. Because most PFAS are highly persistent, production and use have led to extensive environmental contamination [2,3,4,5,6,7]. Exposure to certain PFAS (e.g., perfluorooctanoic acid [PFOA] and perfluorooctanesulfonic acid [PFOS]) has been linked to various health issues, including kidney and testicular cancer [8], decreased response to vaccination [9,10], reduced birth weight [11,12,13], elevated serum cholesterol levels, and hypothyroidism [14]
PFOS and PFOA are long carbon-chain PFAS, which are considered to be “legacy PFAS”. They are of particular toxicological concern because they are highly persistent in the environment and bioaccumulate in living organisms despite having been phased out of production [15,16,17]. PFOS and PFOA are thought to be bioaccumulative, in part, because they do not undergo extensive metabolism and breakdown by living systems. For example, NHANES data from 2017–2018 revealed that PFOA and PFOS are detected in over 99% of the general population sampled, indicating their widespread presence at measurable levels among the US population [18,19]. In humans, the bioaccumulation of certain PFAS is extensive—with elimination half-lives ranging from weeks to years [20,21]—and is generally dependent on carbon chain length. Data shows that PFAS with long perfluorinated carbon chains such as PFHxS (ηpfc = 6), PFOA (ηpfc = 7), PFOS (ηpfc = 8), and PFDA (ηpfc = 9) have reported elimination half-lives (t1/2) ranging from 3 to 12 years [20,22,23]. Whereas short-chain PFAS, such as perfluorobutanoic acid (PFBA) (ηpfc = 3) and perfluorobutanesulfonic acid (PFBS) (ηpfc = 4), have half-lives of 3 and 26 days [21], respectively. PFAS exhibit species-specific t1/2, with human having a much higher t1/2 than mouse or rat [24]. In addition to renal reabsorption [25], it is postulated that t1/2, in part, is dictated by PFAS retention in plasma via binding to plasma proteins, such as albumin. Albumin has been shown to be the major carrier of several PFAS in the body regardless of species, with PFAS binding to albumin in rat and human being similar in strength [26,27]. Although the role of albumin has been studied, few studies have consistently evaluated plasma and albumin binding in a systematic and thorough manner.
Bioaccumulation models that incorporate PFAS protein and lipid binding have been put forward by several groups [28,29,30]. While these simulations provide mechanistic insights into PFAS interactions with biological matrices, they lack accurate physiologically-relevant plasma protein binding data. In assessing xenobiotic binding to plasma, a fraction unbound (fu) is usually derived to determine the unbound xenobiotic concentration available to interact with molecular targets, which elicits toxic effects. Plasma protein binding is also a direct parameter to calculate t1/2, as compounds that are bound to plasma are unavailable to be distributed to and eliminated by the kidney or liver [31]. It is assumed that the extent of PFAS binding to plasma proteins is influenced by physicochemical properties (e.g., pKa, functional head-group and logD) [32,33]. Several computational models and fluorescence quenching methods have been utilized to determine PFAS binding to albumin, but these methods are indirect and may be limited in their precision and accuracy for several highly bound PFAS [34,35,36,37]. Other direct methods, such as ultrafiltration and equilibrium dialysis, have reported protein binding of PFAS. But many of these studies used bovine serum albumin (BSA) and human serum albumin (HSA), rather than physiologically relevant plasma or serum [27,38,39,40].
Equilibrium dialysis is the current industry-standard methodology to assess protein binding [32]. A challenge for accurately determining PFAS binding is high binding affinity, which can make quantification difficult, and can confound data interpretation [39,40,41]. Therefore, a robust and accurate method, which is broadly applicable for fu derivation, is needed to advance mechanistic understanding of PFAS and evaluate species differences. Herein, a validated presaturation equilibrium dialysis method developed for highly bound compounds [42,43,44] was utilized to derive fu for 14 PFAS with diverse chain lengths (ηpfc = 3–11) and functional head groups. fu values were measured for both albumin and plasma for four species/strains (CD-1 and C57BL/6 mice, Wistar-Han rats, and humans). All fu comparison combinations were assessed and evaluated against inter-species and inter-matrix correlations and equivalence. Overall, the aim of the work herein was to establish physiologically relevant fu values that can be utilized as more accurate input parameters to model toxicokinetics and understand human translation. Furthermore, the findings described in this manuscript provide essential data to elucidate the mechanisms that drive bioaccumulation and overall elimination of PFAS for rodents and humans with the goal of more physiologically accurate functional translation.

2. Materials and Methods

2.1. Chemicals and Reagents

The molecular structures of the 14 PFAS evaluated are in Figure S1 and physiochemical properties, such as molecular weight (MW) and logD shown in Table S1. The following fourteen PFAS were either obtained from Accustandard, Inc. (New Haven, CT, USA) or Sigma-Aldrich (St. Louis, MO, USA): Perfluorobutanoic acid (PFBA), perfluoropentanoic acid (PFPA), perfluorohexanoic acid (PFHxA), perfluoroheptanoic acid (PFHpA), perfluorooctanoic acid (PFOA), perfluorononanoic acid (PFNA), perfluorodecanoic acid (PFDA), perfluoroundecanoic acid (PFUDA), perfluorododecanoic acid (PFDoDA), perfluorohexanesulfonic acid (PFHxS), perfluorooctanesulfonamide (PFOSA), 6:2 fluorotelomer sulfonate (6:2 FtS), perfluorobutanesulfonic acid (PFBS), and perfluorooctanesulfonic acid (PFOS). Human, rat (Wistar-Han), and mouse (CD-1; C57BL/6) equal sex pooled (minimum of 3 male and 3 female) plasma was obtained from BioIVT (Hicksville, NY, USA). The equilibrium dialysis device (HTD96) and cellulose membranes with a molecular weight cutoff of 12–14 kDa were obtained from HTDialysis, LLC (Gales Ferry, CT, USA). Human, rat, and mouse albumin, along with all other reagents were obtained from Sigma-Aldrich unless specified otherwise.

2.2. Pre-Saturation Equilibrium Dialysis

The methods used herein to determine PFAS binding to plasma and albumin binding were comparable with those previously reported [42,43,44]. The cellulose membranes were hydrated first in deionized (DI) water for 15 min, then transferred to 30% ethanol/DI water for 15 min, and then submerged in Dulbecco’s phosphate-buffered saline (DPBS) for at least 15 min prior to the experiment. The equilibrium dialysis device (EQD) HTD96 (Gales Ferry, CT, USA) was assembled according to manufacturer instructions. DPBS buffer solutions were prepared by adding PFAS with a concentration of either approximately five-fold of the estimated fu values based on initial available data or assumed to be 0.001 if no data was available. The dialysis apparatus and membranes assembled were pre-saturated (250 µL) three times in total with PFAS spiked DPBS buffer solution; twice for 1 h followed by a final 18-h pre-saturation. This same solution was used on the receiver side of the EQD. Species specific matrices with 4% albumin in DPBS solution were prepared for human serum albumin (HSA), rat serum albumin (RSA), and mouse serum albumin (MSA), as well as species specific plasma in human, rat (Wistar-Han), and mouse (CD-1 and C57BL/6). This 4% albumin was used in the albumin binding study to recapitulate plasma concentration, as human albumin concentration in plasma is 3.5–4.5 g/dL (530–680 µM) [45]. The matrix was diluted five-fold using DPBS for PFAS that had preliminary fu values lower than 0.01. Dimethylsulfoxide (DMSO) stock solutions of test PFAS were prepared at 500 μM and added to species-specific plasma or 4% albumin to a final concentration of 5 μM with 1% DMSO. Next, 150 μL of PFAS spiked DPBS was added to the receiver side of the membrane and 150 μL of compound spiked matrix was added to the donor side. The molar ratio between PFAS:albumin avoids any saturation related effects. The HTD apparatus was sealed with a gas permeable membrane (Sigma-Aldrich; Z380059-1PAK) and placed onto an orbital shaker (200 rpm) in a CO2 incubator (5% CO2/air, 75% relative humidity) for 18 h at 37 °C. Each PFAS:matrix combination was assessed in quadruplicate. For sample collection, 15 μL of buffer and 45 μL of matrix were sampled from the dialysis device into a 96-deep well plate and matrix-matched with either blank buffer or matrix. The samples were then quenched with 200 μL of cold acetonitrile containing internal standard (tolbutamide 30 nM and carbamazepine 12 nM) to precipitate proteins. Next, the plates were sealed and placed on a vortex mixer for 1 min, and then centrifuged (Beckman Coulter, Fullerton, CA, USA) at 3000 rpm for 5 min at room temperature. Lastly, the supernatant was transferred to a new 96-well plate, fully dried down under nitrogen gas, reconstituted with 200 µL of 50/50 (v/v) HPLC grade water/acetonitrile, and vortexed for 1 min prior to LC-MS/MS analysis.

2.3. LC-MS/MS Quantification

LC-MS/MS analyses were performed on a SCIEX Triple Quad 5500 mass spectrometer (SCIEX, Concord, ON, Canada) equipped with Turbo Ion Spray interface. The HPLC systems consisted of an CTC PAL autosampler (LEAP Technologies, Morrisville, NC, USA) equipped with a model 1290 binary pump (Agilent, Santa Clara, CA, USA). All instruments were controlled and synchronized by SCIEX Analyst software (version 1.6.3). Mobile phases compositions were 0.1% formic acid in water (mobile phase A) and 0.1% formic acid in acetonitrile (mobile phase B). The gradient for PFAS was maintained at 10% B for 0.8 min, followed by a 0.6-min linear increase to 95% B, and kept at 95% B for 4 min before a linear decrease to 10% in 0.1 min. The column was equilibrated at 5% B for 0.5 min before injecting samples. The total run time for each injection was 6 min. The chromatographic separation was conducted on a Phenomenex Kinetex C18 100Å 30 × 2.1 mm column (Torrance, CA, USA) with a flow rate of 0.5 mL/min. The injection volume for each sample was 5 µL. Quadrupoles Q1 and Q3 were set on unit resolution and mass over charge (m/z) of the analytes and are shown in Table S2. Multiple-reaction-monitoring (MRM) mode using specific precursor/product ion transitions was used for quantification. Data processing was performed using SCIEX Analyst software (version 1.6.3).

2.4. Unbound Fraction Calculations

The calculations for fu are shown in Equations (1) and (2), where D is the dilution factor and f u , d is the diluted fu shown below [46]. All calculations are based on area ratios (analyte peak area/IS peak area), and MS responses used for calculations were all in linear ranges. Stability and recovery values for each experiment were run in parallel and passed validation criteria of greater than 70%.
D i l u t e d   f u d = R e c e i v e r   A r e a   R a t i o D o n o r   A r e a   R a t i o
U n d i l u t e d   f u = 1 / D 1 f u , d − 1 + 1 D

2.5. Scalar Determination and Statistical Data Analysis

Based on previous publications [46,47], geometric mean fu values were computed for every species, tissue, and compound combination and analyzed on the log scale. A scatterplot matrix was generated to visually assess the relationships between each pairwise combination of species and tissue. These relationships were numerically assessed using Spearman’s rank correlation, the mean absolute fold difference (MAFD), and the geometric mean fold differences. Statistical equivalence within a 2-fold threshold was determined by applying the two one-sided tests (TOST) average bioequivalence procedure to pairwise combination of species and tissue [48,49]. Additionally, the ℓ-correction [50] was applied to adjust the confidence intervals and p-values to maintain a family-wise error rate of 0.05 in the presence of 21 total comparisons (all pairwise comparisons of the 7 matrix combinations). This adjustment is designed specifically for multiplicity correction of TOST p-values when all pairwise combinations are considered. The same analysis was applied separately to the data in the 3% and 4% albumin cases. The data were analyzed using R [51] and the plots were created via the ggplot2 package [52].

3. Results

Species Dependence for PFAS Plasma and Albumin fu
The plasma and albumin binding for 14 PFAS (9 perfluoroalkyl carboxylates, 3 perfluoroalkyl sulfonates, 1 perfluoroalkyl sulfonamide, and 1 fluorotelomer sulfonate) and three species (i.e., human, rat, and mouse) was determined by equilibrium dialysis. The carbon chain lengths ranged from 4 to 12, MW ranged from 214 to 614 Da and logD derived from internal data ranged from 2.23 to 8.54. The fu for the PFAS evaluated was a wide range, from 0.0000796 to 0.77 across the entire data set, demonstrating several orders of magnitude difference in binding (Figure 1). For most PFAS, fu was lower for plasma compared to albumin, indicating that binding affinity was higher in plasma than albumin. The full dataset of individual fu values and coefficient of variation (CV) values are summarized in Table 1.
Next, the relationship between fu and molecular weight or logD were compared (Figure 2A,B). A highly concordant inverse correlation was observed for PFAS plasma or albumin binding and MW or logD (Figure 2). The R2 values for a semi log linear fit (X is linear, Y is log) had a range of 0.928 to 0.99 for all fu values against MW, and a range of 0.913 to 0.996 against logD.
Next, the association between plasma and albumin for the 14 PFAS was compared (Figure 3). For human, rat, and mouse, the fu for plasma and albumin were highly concordant. Notably, the fu for PFHxS was lower than expected and did not follow the same trend as the other PFAS.

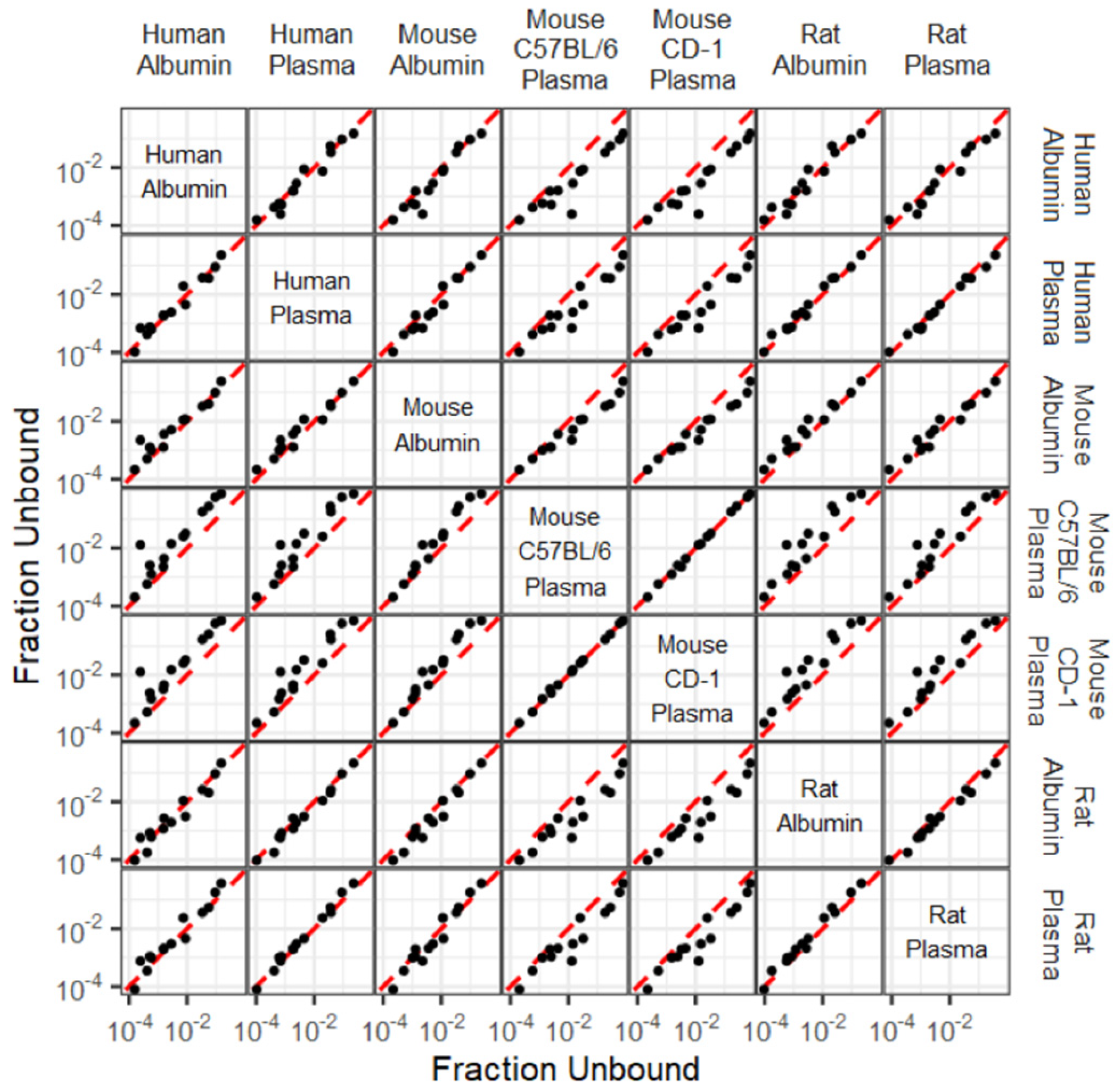

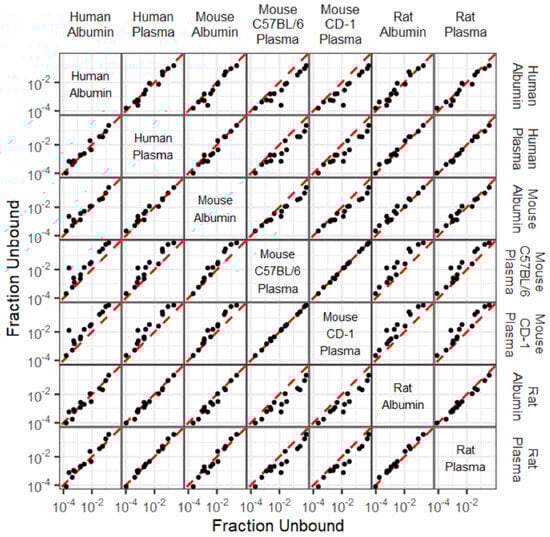

Figure 4 illustrates pairwise comparisons for each pair of albumin or plasma against human, rat (Wistar-Han), and mice (CD-1; C57BL/6) for all 14 PFAS. Comparisons indicate a strong correlation between fu determinations per compound across species and matrix types.

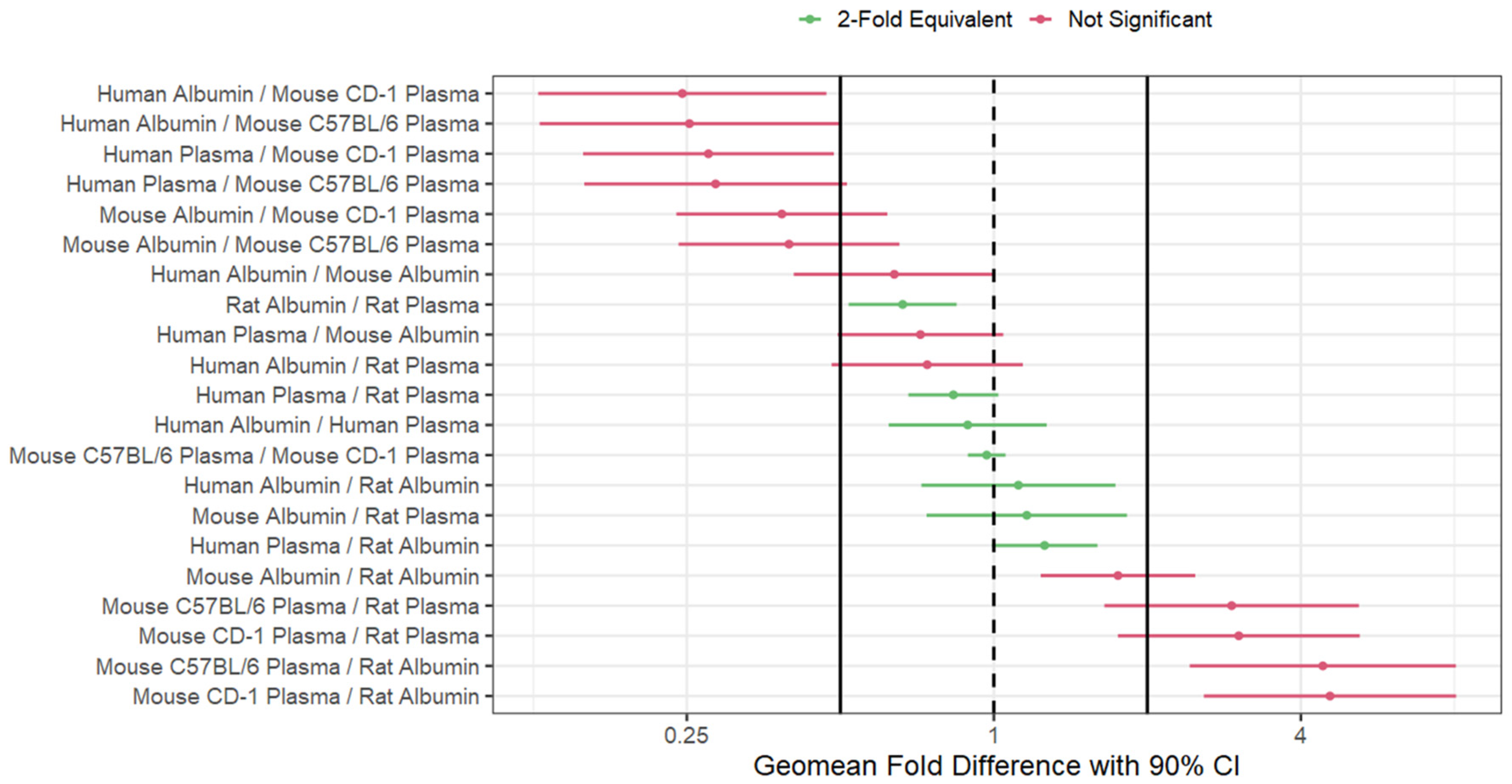

Next, to determine whether plasma and albumin are essentially equivalent matrices, ℓ-correction adjusted two one-sided test (TOST) equivalence tests were run against within-matrix pairwise comparisons for all fu values (Figure 5). The mean absolute fold difference (MAFD) for all combinations ranged from 1.09 to 7.22, and the Spearman rank correlations among all comparisons ranged from 0.92 to 1.00. Individual MAFD, geometric mean fold difference, and Spearman rank correlation values per combination comparison is shown in Table S3. Of the 21 combination equivalence tests conducted, seven matrix combinations showed 2-fold equivalence (rat albumin: rat plasma; human plasma: rat plasma; human albumin: human plasma; mouse C57BL/6 plasma: mouse CD-1 plasma; human albumin: rat albumin; mouse albumin: rat plasma; human plasma: rat albumin). The equivalence test results were also ordered by the specific matrix in the numerator of the fold difference (Figures S2 and S3) and ordered by fold differences on ratios where the pairwise matrix combinations were ordered such that the fold difference was always greater than 1. When comparing species dependent albumin: plasma fu values, human albumin: human plasma and rat albumin: rat plasma was 2-fold equivalent. Within mouse albumin against both C57BL/6 and CD-1 plasma were not equivalent, and MAFD values were above 3. When considering species independence of plasma fu values, human to rat and CD-1 to C57BL/6 showed 2-fold equivalence with an MAFD of 1.32 and 1.09, respectively. However, human to mouse and rat to mouse comparisons both showed MAFD values greater than 4 across different subspecies of mouse suggesting non-equivalence.
Albumin concentrations for rodents have been reported in the literature as rat: 3.0 g/dL; CD-1 mice: 2.7 g/dL; C57BL/6 mice: 2.9 g/dL [53]. Therefore, supplemental analysis of albumin binding for rodents were evaluated at a concentration of 3% albumin to compare physiologically relevant albumin concentrations against other matrices in this study. The values of 3% albumin fu values are shown in Table S4 and did not significantly change the range of fu values within our study. Further pairwise fu comparisons and equivalency tests substituting the 3% albumin concentrations for rodents against the 14 PFAS are shown in Figures S4 and S5 respectively.

4. Discussion

With 10,000+ PFAS identified, there is an overwhelming need to predict bioaccumulation patterns in humans using vetted, high-throughput assays for in vitro–in vivo extrapolation. Plasma binding values are critical in measuring free PFAS concentration within the blood compartment of preclinical species and humans. It is a necessary parameter for the assessment of t1/2, pharmacokinetic-pharmacodynamic (PKPD) relationships, physiological-based pharmacokinetic modeling (PBPK), and drug–drug interactions (DDI) [31,54]. Within the PFAS space, rodents offer a more comprehensive dataset on toxicokinetics compared to other species [24]. In light of this, our study integrates both rodent and human plasma and albumin to compare protein binding across multiple species.
Several studies have examined protein binding for a handful of PFAS using equilibrium dialysis. A limitation to those studies is that binding was BSA or HSA were used instead rather than whole serum or plasma, which are more relevant matrices than isolated protein [38,39,40]. A study by Ohmori, et al. [55] compared rat plasma binding of different perfluorocarboxylic acids (PFHpA, PFOA, PFNA, and PFDA) by an ultrafiltration method and observed greater than 98% were bound. However, the study did not quantitatively distinguish binding values for each PFAS. This is likely attributed to the exceptionally strong binding properties of these PFAS, which pose a challenge to obtain precise measurements using ultrafiltration due to high nonspecific binding to the device [56]. Historically, methodologies concerning protein and tissue binding have hindered the measurement of fu below 1% (fu < 0.01), largely attributed to FDA regulatory concerns due to low experimental confidence [57]. Yet, recent progress within the field has increased accuracy to measure fu below 1% [42,43,44,58]. Employing an innovative pre-saturation equilibrium dialysis technique used for the development of pharmaceuticals, PFAS fu values for 14 PFAS were obtained in this study, with fu as low as 0.0000796 (bound%: 99.992). With this newly optimized presaturation method, this study surpassed prior limitations to accurately measure protein binding for physiochemically diverse PFAS.
Established structural and physiochemical properties of a compound highly influences its ability to bind to plasma proteins [59,60]. Particularly, an increase in lipophilicity is generally associated with increased plasma protein binding [61]. All of the tested PFAS in this set are acids [62], which are expected to bind primarily to albumin compared to other plasma proteins within the blood such as lipoproteins or globulins [63,64]. Several PFAS within this set have high logD values, and as lipophilicity increases, a decrease in fu was observed for all species in both plasma and albumin. logD was also positively correlated with the number of fluorinated carbons of PFAS. This observation could potentially elucidate the higher binding affinity of longer-chained PFAS to plasma proteins. This is consistent with the findings observed by Alesio et al. [40] using BSA. The outcomes revealed a similar trend wherein the longer chained carboxylate, PFDA (C10), was more bound than shorter chained, PFOA (C8), and the longer chained sulfonate, PFOS (C8), was more bound than the shorter chained, PFBS (C4). Increased association constants (Ka) of PFAS to BSA were observed as carbon chain length increased [38]. Similarly, a decreasing trend was seen for dissociation constants (Kd) of PFAS against HSA when chain length was increased [65,66]. Within this study, carboxylates with a lower logD were less bound than sulfonates when they have the same number of fluorinated carbon chains. For example, carboxylates, PFPA (ηpfc = 4; logD: 3.02) and PFNA (ηpfc = 8; logD:6.17), were less bound than their fluorinated carbon chain respective sulfonates, PFBS (ηpfc = 4; logD: 3.73) and PFOS (ηpfc = 8; logD: 6.88) (Figure 6), for all species matrix combinations in this study.
This suggests that logD is an important underlying determinant for protein binding influenced by both fluorinated carbon chain-length and different functional headgroups. Notably, PFHxS (C6; logD: 5.3) had lower fu values for both human and rat plasma compared to PFOS (C8; logD: 6.88). PFHxS is an interesting outlier as it has also shown a longer t1/2 than PFOS in human but not in rat [20,24]; suggesting species specific mechanisms may be involved in elimination.
It has been reported that within plasma, the main binding protein against PFOA in human and rat plasma is albumin [27]. It has been further illustrated that albumin is the major carrier protein for PFOS, PFOA, PFHxS, PFNA, and PFDA in native human plasma [26]. Moreover, in whole blood once absorbed, PFAS such as PFOA, PFOS, and PFHxS are not found intracellularly and do not attach to red blood cells [67]. Within this study, plasma and albumin (4%) fu values were equivalent to each other for both human and rat. Physiologically relevant rat albumin (3%) concentrations against rat plasma, although not 2-fold equivalent, yielded an MAFD below 2, suggesting high concordance to each other. Further mechanistic evaluation against species differences of RSA and HSA against PFOA binding by Han et al. [27] showed Kd and number of binding sites to be similar between these two species. For our PFAS set, human albumin and rat albumin show equivalent fu values when equal protein concentrations are used. This further validates that there were no species differences when comparing human and rat in both their plasma or albumin fu values within this PFAS set and albumin is the main binding protein within plasma. Similarly, binding values of several drug development compounds within the pharmaceutics space have shown high correlation between human and rat plasma against respective albumin [68].
This equivalence however is not observed when mouse plasma of either strains (CD-1; C57BL/6) is compared with human or rat plasma. Moreover, the albumin fu values of mouse against human or rat albumin also show a lack of equivalence. This may be due to protein structural differences leading to different binding pockets for these PFAS against mouse albumin protein. Unlike tissue homogenate or cell binding which are species independent [33,46,47,69,70], plasma protein binding is reported to be species dependent [31,68,71] which makes using a surrogate species for plasma challenging. It has been suggested that, although not as common, large differences in protein binding can occur between species, observing variances in plasma protein binding of human to mouse reaching fold differences as high as ~17 for some compounds [68]. Although amino acid sequences for albumin across distinct species are similar to human, there are species dependent differences. With 73% of the amino acid sequence of albumin conserved in rat and 72% in mouse, implying specific binding sites may vary leading to differences in protein binding values in plasma [72,73]. Notably, although fu values of mouse matrices lacked equivalence, the Spearman rank correlations for all combinations were high with R2 values above 0.92. This indicates that the individual physiochemical properties per PFAS dictated their binding ability more so than specific binding matrix.
The plasma fu values of the different mouse strains (CD-1; C57BL/6) were equivalent to each other. However, when comparing plasma for both strains of mice against mouse albumin fu values, they were not equivalent in either the 3% or 4% albumin concentrations with an MAFD greater than ~3 for all comparisons. Interestingly, our PFAS set was more highly bound to mouse albumin than its corresponding plasma which may suggest endogenous compounds (e.g., fatty acids and bilirubin) within the mouse plasma competing for the binding pockets against PFAS [74,75]. Protein binding plays a significant role in overall clearance as it influences the amount of PFAS available. When a compound is bound to plasma proteins, they are unavailable for excretion, potentially leading to slower elimination and longer t1/2 [31,61]. Our data supports this, as fu in human plasma is inversely correlated with observed elimination half lives in humans (Figure 7).
Most PFAS generally show high resistance against biotransformation in humans and rodents [76] and are eliminated unchanged by biliary and renal clearance pathways for several different species [77,78,79,80,81]. The fu of PFAS and their respective t1/2 in humans are positively correlated (Figure 7). This trend can be seen for both carboxylates and sulfonates. Specifically, for carboxylates, PFBA with a human plasma fu (fu, hp) value of 0.23 reports a t1/2 of 3.1 days, while PFOA (fu, hp: 0.0025) reports a t1/2 of 2.3–5.4 years. This trend is also seen for sulfonates as PFBS (fu, hp: 0.037) has a t1/2 of 26 days, while the more highly bound PFOS (fu, hp: 0.00075) has a t1/2 of 3.3–5.4 years [24]. These comparisons suggest that the high binding nature of PFAS may be the major driver of their strong accumulation and long t1/2 in most species. Previous studies have shown sex-dependence in rat for PFAS half-life, with females showing a significantly shorter half-life than males [22,80,81,82]. However, Han et al. [27] have shown PFOA’s underlying binding to RSA or HSA was sex-independent. Therefore, utilizing pooled plasma and purified albumin is not expected to affect our overall results.

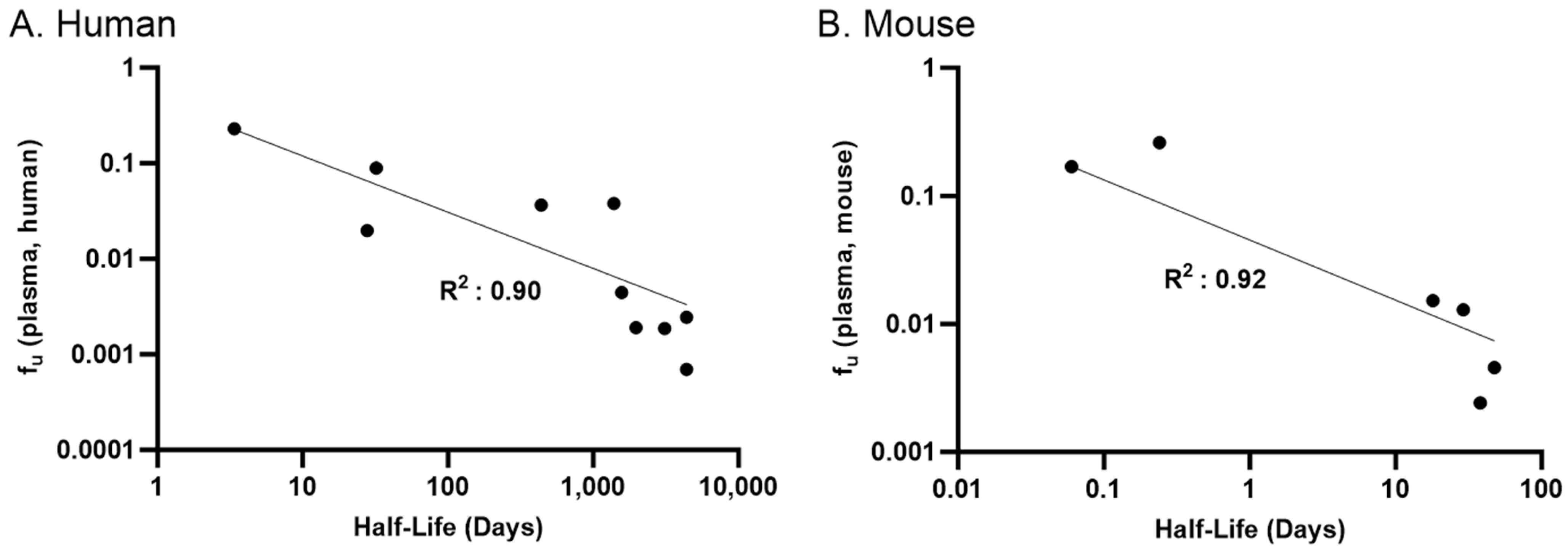

Although protein binding plays a significant role in clearance, with several species and even sex differences for half-life against different PFAS, other mechanisms of elimination of PFAS need to be considered in conjunction with protein binding. It has been reported PFOA and PFOS undergo a high rate of enterohepatic reabsorption [77]. Transporter activity such as Organic anion transporter (OAT) [83,84] and Organic anion transporting polypeptides (OATP) [85], permeability, as well as tissue binding all need to be considered to fully elucidate the toxicokinetics of PFAS.

5. Conclusions

The investigation herein evaluated plasma protein binding across mice, rats, and humans for 14 PFAS and compared species and matrix differences, providing valuable insights for further bioaccumulation, elimination half-life, and toxicity research. The pre-saturation methodology used in this study is novel in the PFAS field and allowed the generation of fu values robustly below 1% (fu < 0.01). The results herein illustrate similar binding trends among the three species, and also between plasma and albumin. While minimal differences in protein binding affinity were observed for rat and human, PFAS binding affinity was lower in mouse compared to rat and human. Physiochemical descriptors such as logD, were associated with PFAS binding. With an extensive number of PFAS classified as contaminants that persist and accumulate in the environment, exposure in humans can occur over time through contaminated water and food. This research helps elucidate the degree of binding through trends of different PFAS to better understand the environmental impact and toxicity, so that strategies can be developed to better minimize exposure and accumulation of these toxic chemicals.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/toxics12040253/s1, Figure S1: Chemical structures of 14 PFAS selected in study; Figure S2: ℓ-correction adjusted TOST equivalence tests conducted for within-matrix pairwise comparisons fu values for all species and plasma/ albumin combinations grouped by numerator; Figure S3: ℓ-correction adjusted TOST equivalence tests conducted for within-matrix pairwise comparisons fu values for all species and plasma/ albumin combinations sorted by geomean fold difference with matrix ratios ordered such that the geomean fold difference is always greater than 1; Figure S4: Pairwise fraction unbound (fu) comparison for all species and subspecies for human, rat, and mouse (CD-1 and C57BL/6) plasma and 3% albumin for rodents; Figure S5: ℓ-correction adjusted TOST equivalence tests conducted for within-matrix pairwise comparisons fraction unbound (fu) values for all species and plasma/3% albumin combinations organized from least to highest geomean fold difference; Table S1: 14 total PFAS within the study including perfluoroalkyl carboxylates, perfluoroalkyl sulfonates, perfluoroalkyl sulfonamide, and fluorotelomer sulfonate with respective PFAS acronym, full PFAS name, number of carbons within carbon chain, molecular weight (g/mol), and logD; Table S2: PFAS LC-MS/MS multiple reaction monitoring (MRM) conditions including, quadrupoles (Q1, Q3), polarity, declustering potential (DP), and collision energy (CE); Table S3: Species and matrix combination comparisons including mean absolute fold-difference (MAFD), spearman rank-correlation, and geometric mean fold difference; Table S4: Fraction unbound (fu) and %CV for species specific 3% serum albumin [rat (RSA), and mouse (MSA)].

Author Contributions

S.R.: conceptualization of the study, performed PFAS binding assays, data processing and interpretation, data analysis and presentation, and writing; W.B.: data analysis and statistics; S.Z.: sample preparation; S.M.S.M., J.A.A. and E.K.: conceptualization and writing, F.C.F. and A.L.S.: conceptualization, test design, reviewing the data and analysis, writing and revision. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Institute of Health grant number P42ES027706 awarded by the NIEHS Superfund Research Program (SRP).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Dataset available on request from the authors.

Acknowledgments

The authors would like to thank University of Rhode Island faculty members, Roberta King and Rainer Lohmann for their insights. The authors would also like to thank Li Di and Manthena Varma at Pfizer Global Research Pfizer for discussion and feedback.

Conflicts of Interest

Woodrow Burchett and Sam Zhang were employed by the company Pfizer Worldwide Research & Development, Pfizer Inc. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Gaines, L.G.T. Historical and current usage of per- and polyfluoroalkyl substances (PFAS): A literature review. Am. J. Ind. Med. 2023, 66, 353–378. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, Z.; DeWitt, J.C.; Higgins, C.P.; Cousins, I.T. A Never-Ending Story of Per- and Polyfluoroalkyl Substances (PFASs)? Environ. Sci. Technol. 2017, 51, 2508–2518. [Google Scholar] [CrossRef]
  3. Giesy, J.P.; Kannan, K. Global distribution of perfluorooctane sulfonate in wildlife. Environ. Sci. Technol. 2001, 35, 1339–1342. [Google Scholar] [CrossRef]
  4. Martinez, B.; Da Silva, B.F.; Aristizabal-Henao, J.J.; Denslow, N.D.; Osborne, T.Z.; Morrison, E.S.; Bianchi, T.S.; Bowden, J.A. Increased levels of perfluorooctanesulfonic acid (PFOS) during Hurricane Dorian on the east coast of Florida. Environ. Res. 2022, 208, 112635. [Google Scholar] [CrossRef] [PubMed]
  5. Thompson, J.; Roach, A.; Eaglesham, G.; Bartkow, M.E.; Edge, K.; Mueller, J.F. Perfluorinated alkyl acids in water, sediment and wildlife from Sydney Harbour and surroundings. Mar. Pollut. Bull. 2011, 62, 2869–2875. [Google Scholar] [CrossRef] [PubMed]
  6. Yu, X.; Dunstan, J.; Jacobson, S.W.; Molteno, C.D.; Lindinger, N.M.; Turesky, T.K.; Meintjes, E.M.; Jacobson, J.L.; Gaab, N. Distinctive neural correlates of phonological and reading impairment in fetal alcohol-exposed adolescents with and without facial dysmorphology. Neuropsychologia 2022, 169, 108188. [Google Scholar] [CrossRef] [PubMed]
  7. Nystrom, J.; Benskin, J.P.; Plassmann, M.; Sandblom, O.; Glynn, A.; Lampa, E.; Gyllenhammar, I.; Moraeus, L.; Lignell, S. Demographic, life-style and physiological determinants of serum per- and polyfluoroalkyl substance (PFAS) concentrations in a national cross-sectional survey of Swedish adolescents. Environ. Res. 2022, 208, 112674. [Google Scholar] [CrossRef] [PubMed]
  8. Barry, V.; Winquist, A.; Steenland, K. Perfluorooctanoic Acid (PFOA) Exposures and Incident Cancers among Adults Living Near a Chemical Plant. Environ. Health Perspct. 2013, 121, 1313–1318. [Google Scholar] [CrossRef] [PubMed]
  9. Grandjean, P.; Heilmann, C.; Weihe, P.; Nielsen, F.; Mogensen, U.B.; Budtz-Jorgensen, E. Serum Vaccine Antibody Concentrations in Adolescents Exposed to Perfluorinated Compounds. Environ. Health Perspct. 2017, 125, 077018. [Google Scholar] [CrossRef]
  10. Grandjean, P.; Heilmann, C.; Weihe, P.; Nielsen, F.; Mogensen, U.B.; Timmermann, A.; Budtz-Jorgensen, E. Estimated exposures to perfluorinated compounds in infancy predict attenuated vaccine antibody concentrations at age 5-years. J. Immunotoxicol. 2017, 14, 188–195. [Google Scholar] [CrossRef]
  11. Darrow, L.A.; Stein, C.R.; Steenland, K. Serum Perfluorooctanoic Acid and Perfluorooctane Sulfonate Concentrations in Relation to Birth Outcomes in the Mid-Ohio Valley, 2005–2010. Environ. Health Perspct. 2013, 121, 1207–1213. [Google Scholar] [CrossRef] [PubMed]
  12. Fei, C.Y.; McLaughlin, J.K.; Tarone, R.E.; Olsen, J. Perfluorinated chemicals and fetal growth: A study within the Danish National Birth Cohort. Environ. Health Perspct. 2007, 115, 1677–1682. [Google Scholar] [CrossRef] [PubMed]
  13. Geiger, S.D.; Xiao, J.; Ducatman, A.; Frisbee, S.; Innes, K.; Shankar, A. The association between PFOA, PFOS and serum lipid levels in adolescents. Chemosphere 2014, 98, 78–83. [Google Scholar] [CrossRef] [PubMed]
  14. Lin, P.I.D.; Cardenas, A.; Hauser, R.; Gold, D.R.; Kleinman, K.P.; Hivert, M.F.; Fleisch, A.F.; Calafat, A.M.; Webster, T.F.; Horton, E.S.; et al. Per- and polyfluoroalkyl substances and blood lipid levels in pre-diabetic adults-longitudinal analysis of the diabetes prevention program outcomes study. Environ. Int. 2019, 129, 343–353. [Google Scholar] [CrossRef] [PubMed]
  15. Hu, X.D.C.; Andrews, D.Q.; Lindstrom, A.B.; Bruton, T.A.; Schaider, L.A.; Grandjean, P.; Lohmann, R.; Carignan, C.C.; Blum, A.; Balan, S.A.; et al. Detection of Poly- and Perfluoroalkyl Substances (PFASs) in US Drinking Water Linked to Industrial Sites, Military Fire Training Areas, and Wastewater Treatment Plants. Environ. Sci. Technol. Lett. 2016, 3, 344–350. [Google Scholar] [CrossRef] [PubMed]
  16. Barber, J.L.; Berger, U.; Chaemfa, C.; Huber, S.; Jahnke, A.; Temme, C.; Jones, K.C. Analysis of per- and polyfluorinated alkyl substances in air samples from Northwest Europe. J. Environ. Monit. 2007, 9, 530–541. [Google Scholar] [CrossRef] [PubMed]
  17. Holder, C.; DeLuca, N.; Luh, J.; Alexander, P.; Minucci, J.M.; Vallero, D.A.; Thomas, K.; Hubal, E.A.C. Systematic Evidence Mapping of Potential Exposure Pathways for Per- and Polyfluoroalkyl Substances Based on Measured Occurrence in Multiple Media. Environ. Sci. Technol. 2023, 57, 5107–5116. [Google Scholar] [CrossRef] [PubMed]
  18. CDC. National Health and Nutrition Examination Survey. Available online: https://www.cdc.gov/nchs/nhanes/index.htm (accessed on 1 October 2023).
  19. Graber, J.M.; Alexander, C.; Laumbach, R.J.; Black, K.; Strickland, P.O.; Georgopoulos, P.G.; Marshall, E.G.; Shendell, D.G.; Alderson, D.; Mi, Z.Y.; et al. Per and polyfluoroalkyl substances (PFAS) blood levels after contamination of a community water supply and comparison with 2013–2014 NHANES. J. Expo. Sci. Environ. Epidemiol. 2019, 29, 172–182. [Google Scholar] [CrossRef]
  20. Olsen, G.W.; Burris, J.M.; Ehresman, D.J.; Froehlich, J.W.; Seacat, A.M.; Butenhoff, J.L.; Zobel, L.R. Half-life of serum elimination of perfluorooctanesulfonate, perfluorohexanesulfonate, and perfluorooctanoate in retired fluorochemical production workers. Environ. Health Perspect. 2007, 115, 1298–1305. [Google Scholar] [CrossRef]
  21. Nicole, W. Breaking It Down: Estimating Short-Chain PFAS Half-Lives in a Human Population. Environ. Health Perspect. 2020, 128, 114002. [Google Scholar] [CrossRef]
  22. Chang, S.C.; Noker, P.E.; Gorman, G.S.; Gibson, S.J.; Hart, J.A.; Ehresman, D.J.; Butenhoff, J.L. Comparative pharmacokinetics of perfluorooctanesulfonate (PFOS) in rats, mice, and monkeys. Reprod. Toxicol. 2012, 33, 428–440. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, Y.; Beesoon, S.; Zhu, L.; Martin, J.W. Biomonitoring of perfluoroalkyl acids in human urine and estimates of biological half-life. Environ. Sci. Technol. 2013, 47, 10619–10627. [Google Scholar] [CrossRef] [PubMed]
  24. Pizzurro, D.M.; Seeley, M.; Kerper, L.E.; Beck, B.D. Interspecies differences in perfluoroalkyl substances (PFAS) toxicokinetics and application to health-based criteria. Regul. Toxicol. Pharm. 2019, 106, 239–250. [Google Scholar] [CrossRef] [PubMed]
  25. Bruno, S.; Bersani, M.; Astore, S.; Chiabotto, G.; Barge, A.; Binello, A.; Spyrakis, F. Lack of interaction of the fluorosurfactant C6O4 with human renal transporters: In vitro/in silico analysis. Toxicology 2022, 476, 153257. [Google Scholar] [CrossRef] [PubMed]
  26. Forsthuber, M.; Kaiser, A.M.; Granitzer, S.; Hassl, I.; Hengstschlager, M.; Stangl, H.; Gundacker, C. Albumin is the major carrier protein for PFOS, PFOA, PFHxS, PFNA and PFDA in human plasma. Environ. Int. 2020, 137, 105324. [Google Scholar] [CrossRef] [PubMed]
  27. Han, X.; Snow, T.A.; Kemper, R.A.; Jepson, G.W. Binding of perfluorooctanoic acid to rat and human plasma proteins. Res. Toxicol. 2003, 16, 775–781. [Google Scholar] [CrossRef]
  28. Ng, C.A.; Hungerbuhler, K. Bioaccumulation of Perfluorinated Alkyl Acids: Observations and Models. Environ. Sci. Technol. 2014, 48, 4637–4648. [Google Scholar] [CrossRef] [PubMed]
  29. Dassuncao, C.; Pickard, H.; Pfohl, M.; Tokranov, A.K.; Li, M.L.; Mikkelsen, B.; Slitt, A.; Sunderland, E.M. Phospholipid Levels Predict the Tissue Distribution of Poly- and Perfluoroalkyl Substances in a Marine Mammal. Environ. Sci. Tech. Let. 2019, 6, 119–125. [Google Scholar] [CrossRef] [PubMed]
  30. Baumert, B.O.; Fischer, F.C.; Nielsen, F.; Grandjean, P.; Bartell, S.; Stratakis, N.; Walker, D.I.; Valvi, D.; Kohli, R.; Inge, T.; et al. Paired Liver:Plasma PFAS Concentration Ratios from Adolescents in the Teen-LABS Study and Derivation of Empirical and Mass Balance Models to Predict and Explain Liver PFAS Accumulation. Environ. Sci. Technol. 2023, 57, 14817–14826. [Google Scholar] [CrossRef]
  31. Kerns, E.H.; Di, L. Drug-like Properties: Concepts, Structure Design and Methods: From ADME to Toxicity Optimization Introduction. In Drug-Like Properties: Concepts, Structure Design and Methods; Elevier: London, UK, 2008; pp. 3–5. [Google Scholar] [CrossRef]
  32. Di, L.; Breen, C.; Chambers, R.; Eckley, S.T.; Fricke, R.; Ghosh, A.; Harradine, P.; Kalvass, J.C.; Ho, S.; Lee, C.A.; et al. Industry Perspective on Contemporary Protein-Binding Methodologies: Considerations for Regulatory Drug-Drug Interaction and Related Guidelines on Highly Bound Drugs. J. Pharm. Sci. 2017, 106, 3442–3452. [Google Scholar] [CrossRef]
  33. Margolis, J.M.; Obach, R.S. Impact of nonspecific binding to microsomes and phospholipid on the inhibition of cytochrome P4502D6: Implications for relating in vitro inhibition data to in vivo drug interactions. Drug Metab. Dispos. 2003, 31, 606–611. [Google Scholar] [CrossRef]
  34. Chen, Y.M.; Guo, L.H. Fluorescence study on site-specific binding of perfluoroalkyl acids to human serum albumin. Arch. Toxicol. 2009, 83, 255–261. [Google Scholar] [CrossRef]
  35. Chen, H.; He, P.; Rao, H.; Wang, F.; Liu, H.; Yao, J. Systematic investigation of the toxic mechanism of PFOA and PFOS on bovine serum albumin by spectroscopic and molecular modeling. Chemosphere 2015, 129, 217–224. [Google Scholar] [CrossRef]
  36. Fedorenko, M.; Alesio, J.; Fedorenko, A.; Slitt, A.; Bothun, G.D. Dominant entropic binding of perfluoroalkyl substances (PFASs) to albumin protein revealed by F-19 NMR. Chemosphere 2021, 263, 128083. [Google Scholar] [CrossRef]
  37. Qin, P.; Liu, R.; Pan, X.; Fang, X.; Mou, Y. Impact of carbon chain length on binding of perfluoroalkyl acids to bovine serum albumin determined by spectroscopic methods. J. Agric. Food Chem. 2010, 58, 5561–5567. [Google Scholar] [CrossRef]
  38. Allendorf, F.; Berger, U.; Goss, K.U.; Ulrich, N. Partition coefficients of four perfluoroalkyl acid alternatives between bovine serum albumin (BSA) and water in comparison to ten classical perfluoroalkyl acids. Environ. Sci. Process. Impacts 2019, 21, 1852–1863. [Google Scholar] [CrossRef]
  39. Bischel, H.N.; MacManus-Spencer, L.A.; Luthy, R.G. Noncovalent Interactions of Long-Chain Perfluoroalkyl Acids with Serum Albumin. Environ. Sci. Technol. 2010, 44, 5263–5269. [Google Scholar] [CrossRef]
  40. Alesio, J.L.; Slitt, A.; Bothun, G.D. Critical new insights into the binding of poly- and perfluoroalkyl substances (PFAS) to albumin protein. Chemosphere 2022, 287, 131979. [Google Scholar] [CrossRef]
  41. Kerstner-Wood, C.; Coward, L.; Gorman, G. Protein Binding of Perfluorobutane Sulfonate, Perfluorohexane Sulfonate, Perfluorooctane Sulfonate and Perfluorooctanoate to Plasma (Human, Rat and Monkey), and Various Human-Derived Plasma Protein Fractions; U.S. EPA docket AR-226-1354; 3M Company: St. Paul, MN, USA, 2003. [Google Scholar]
  42. Riccardi, K.; Cawley, S.; Yates, P.D.; Chang, C.; Funk, C.; Niosi, M.; Lin, J.; Di, L. Plasma Protein Binding of Challenging Compounds. J. Pharm. Sci. 2015, 104, 2627–2636. [Google Scholar] [CrossRef]
  43. Ryu, S.; Tess, D.; Di, L. Addressing the Accuracy of Plasma Protein Binding Measurement for Highly Bound Compounds Using the Dilution Method. AAPS J. 2022, 25, 7. [Google Scholar] [CrossRef]
  44. Ryu, S.; Riccardi, K.; Patel, R.; Zueva, L.; Burchett, W.; Di, L. Applying Two Orthogonal Methods to Assess Accuracy of Plasma Protein Binding Measurements for Highly Bound Compounds. J. Pharm. Sci. 2019, 108, 3745–3749. [Google Scholar] [CrossRef]
  45. Farrugia, A. 5 Human Albumin. Transfus. Med. Hemother. 2009, 36, 399–407. [Google Scholar]
  46. Ryu, S.; Tess, D.; Chang, G.; Keefer, C.; Burchett, W.; Steeno, G.S.; Novak, J.J.; Patel, R.; Atkinson, K.; Riccardi, K.; et al. Evaluation of Fraction Unbound Across 7 Tissues of 5 Species. J. Pharm. Sci. 2020, 109, 1178–1190. [Google Scholar] [CrossRef]
  47. Riccardi, K.; Ryu, S.; Lin, J.; Yates, P.; Tess, D.; Li, R.; Singh, D.; Holder, B.R.; Kapinos, B.; Chang, G.; et al. Comparison of Species and Cell-Type Differences in Fraction Unbound of Liver Tissues, Hepatocytes, and Cell Lines. Drug Metab. Dispos. 2018, 46, 415–421. [Google Scholar] [CrossRef]
  48. Schuirmann, D.J. A comparison of the two one-sided tests procedure and the power approach for assessing the equivalence of average bioavailability. J. Pharmacokinet. Biopharm. 1987, 15, 657–680. [Google Scholar] [CrossRef]
  49. Walker, E.; Nowacki, A.S. Understanding equivalence and noninferiority testing. J. Gen. Intern. Med. 2011, 26, 192–196. [Google Scholar] [CrossRef]
  50. Lauzon, C.; Caffo, B. Easy Multiplicity Control in Equivalence Testing Using Two One-Sided Tests. Am. Stat. 2009, 63, 147–154. [Google Scholar] [CrossRef]
  51. R Core Team. R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing. Available online: https://www.R-project.org/ (accessed on 1 October 2023).
  52. Wickham, H. ggplot2 Elegant Graphics for Data Analysis Introduction; Use R; Springer: New York, NY, USA, 2009; pp. 1–7. [Google Scholar] [CrossRef]
  53. Zaias, J.; Mineau, M.; Cray, C.; Yoon, D.; Altman, N.H. Reference Values for Serum Proteins of Common Laboratory Rodent Strains. J. Am. Assoc. Lab. Anim. 2009, 48, 387–390. [Google Scholar]
  54. Di, L. An update on the importance of plasma protein binding in drug discovery and development. Expert Opin. Drug Discov. 2021, 16, 1453–1465. [Google Scholar] [CrossRef]
  55. Ohmori, K.; Kudo, N.; Katayama, K.; Kawashima, Y. Comparison of the toxicokinetics between perfluorocarboxylic acids with different carbon chain length. Toxicology 2003, 184, 135–140. [Google Scholar] [CrossRef]
  56. Humphreys, S.C.; Davis, J.A.; Iqbal, S.; Kamel, A.; Kulmatycki, K.; Lao, Y.; Liu, X.; Rodgers, J.; Snoeys, J.; Vigil, A.; et al. Considerations and recommendations for assessment of plasma protein binding and drug-drug interactions for siRNA therapeutics. Nucleic Acids Res. 2022, 50, 6020–6037. [Google Scholar] [CrossRef]
  57. Food and Drug Administration Center for Drug Evaluation and Research (CDER). Guidance for Industry: In Vitro Drug Interaction Studies—Cytochrome P450 Enzyme- and Transporter-Mediated Drug Interactions; US Department of Health and Human Services: Washington, DC, USA, 2000.
  58. Kalvass, J.C.; Phipps, C.; Jenkins, G.J.; Stuart, P.; Zhang, X.M.; Heinle, L.; Nijsen, M.J.M.A.; Fischer, V. Mathematical and Experimental Validation of Flux Dialysis Method: An Improved Approach to Measure Unbound Fraction for Compounds with High Protein Binding and Other Challenging Properties. Drug Metab. Dispos. 2018, 46, 458–469. [Google Scholar] [CrossRef]
  59. del Amo, E.M.; Ghemtio, L.; Xhaard, H.; Yliperttula, M.; Urtti, A.; Kidron, H. Applying Linear and Non-Linear Methods for Parallel Prediction of Volume of Distribution and Fraction of Unbound Drug (vol 8, e74758, 2013). PLoS ONE 2015, 10, e0141943. [Google Scholar] [CrossRef]
  60. Testa, B. Pharmacokinetic Profiling in Drug Research: Biological, Physicochemical, and Computational Strategies; Wiley-VCH: Hoboken, NJ, USA, 2006. [Google Scholar]
  61. Fessey, R. The Role of Plasma Protein Binding in Drug Discovery; Wiley: Hoboken, NJ, USA, 2006. [Google Scholar]
  62. The Interstate Technology & Regulatory Council. PFAS—Per- and Polyfluoroalkyl Substances Technical and Regulatory Guidance. 2022. Available online: https://pfas-1.itrcweb.org/ (accessed on 1 December 2023).
  63. Rowland, M.; Tozer, T.N. Clinical Pharmacokinetics and Pharmacodynamics: Concepts and Applications, 4th ed.; Wolters Kluwer Health/Lippincott William & Wilkins: Philadelphia, PA, USA, 2011. [Google Scholar]
  64. Fischer, F.C.; Ludtke, S.; Thackray, C.; Pickard, H.M.; Haque, F.; Dassuncao, C.; Endo, S.; Schaider, L.; Sunderland, E.M. Binding of Per- and Polyfluoroalkyl Substances (PFAS) to Serum Proteins: Implications for Toxicokinetics in Humans. Environ. Sci. Technol. 2024, 58, 1055–1063. [Google Scholar] [CrossRef]
  65. Woodcroft, M.W.; Ellis, D.A.; Rafferty, S.P.; Burns, D.C.; March, R.E.; Stock, N.L.; Trumpour, K.S.; Yee, J.; Munro, K. Experimental Characterization of the Mechanism of Perfluorocarboxylic Acids’ Liver Protein Bioaccumulation: The Key Role of the Neutral Species. Environ. Toxicol. Chem. 2010, 29, 1669–1677. [Google Scholar] [CrossRef]
  66. Zhang, L.Y.; Ren, X.M.; Guo, L.H. Structure-Based Investigation on the Interaction of Perfluorinated Compounds with Human Liver Fatty Acid Binding Protein. Environ. Sci. Technol. 2013, 47, 11293–11301. [Google Scholar] [CrossRef]
  67. Ehresman, D.J.; Froehlich, J.W.; Olsen, G.W.; Chang, S.C.; Butenhoff, J.L. Comparison of human whole blood, plasma, and serum matrices for the determination of perfluorooctanesulfonate (PFOS), perfluorooctanoate (PFOA), and other fluorochemicals. Environ. Res. 2007, 103, 176–184. [Google Scholar] [CrossRef]
  68. Colclough, N.; Ruston, L.; Wood, J.M.; MacFaul, P.A. Species differences in drug plasma protein binding. Medchemcomm 2014, 5, 963–967. [Google Scholar] [CrossRef]
  69. Hsu, F.; Chen, Y.C.; Broccatelli, F. Evaluation of Tissue Binding in Three Tissues across Five Species and Prediction of Volume of Distribution from Plasma Protein and Tissue Binding with an Existing Model. Drug Metab. Dispos. 2021, 49, 330–336. [Google Scholar] [CrossRef]
  70. Di, L.; Umland, J.P.; Chang, G.; Huang, Y.; Lin, Z.; Scott, D.O.; Troutman, M.D.; Liston, T.E. Species independence in brain tissue binding using brain homogenates. Drug Metab. Dispos. 2011, 39, 1270–1277. [Google Scholar] [CrossRef]
  71. Greenfield, S.R.; Eng, H.; Yang, Q.Y.; Guo, C.Y.; Byrnes, L.; Dantonio, A.; West, G.; Di, L.; Kalgutkar, A.S. Species differences in plasma protein binding of the severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) main protease inhibitor nirmatrelvir. Xenobiotica 2023, 53, 12–24. [Google Scholar] [CrossRef]
  72. Peters, T. All About Albumin: Biochemistry, Genetics, and Medical Applications; Academic Press: London, UK, 1996. [Google Scholar]
  73. Ghuman, J.; Zunszain, P.A.; Petitpas, I.; Bhattacharya, A.A.; Otagiri, M.; Curry, S. Structural basis of the drug-binding specificity of human serum albumin. J. Mol. Biol. 2005, 353, 38–52. [Google Scholar] [CrossRef]
  74. Piafsky, K.M. Disease-induced changes in the plasma binding of basic drugs. Clin. Pharmacokinet. 1980, 5, 246–262. [Google Scholar] [CrossRef]
  75. Krekels, E.H.J.; Rower, J.E.; Constance, J.E.; Knibbe, C.A.J.; Sherwin, C.M.T. Chapter 8—Hepatic Drug Metabolism in Pediatric Patients. In Drug Metabolism in Diseases; Xie, W., Ed.; Academic Press: Boston, MA, USA, 2017; pp. 181–206. [Google Scholar]
  76. Agency for Toxic Substances and Disease Registry (ATSDR). Toxicological Profile for Perfluoroalkyls; Agency for Toxic Substances and Disease Registry: Atlanta, GA, USA, 2021.
  77. Harada, K.H.; Hashida, S.; Kaneko, T.; Takenaka, K.; Minata, M.; Inoue, K.; Saito, N.; Koizumi, A. Biliary excretion and cerebrospinal fluid partition of perfluorooctanoate and perfluorooctane sulfonate in humans. Environ. Toxicol. Pharmacol. 2007, 24, 134–139. [Google Scholar] [CrossRef]
  78. Zhang, T.; Sun, H.W.; Qin, X.L.; Gan, Z.W.; Kannan, K. PFOS and PFOA in paired urine and blood from general. Environ. Sci. Pollut. Res. 2015, 22, 5572–5579. [Google Scholar] [CrossRef]
  79. Butenhoff, J.L.; Kennedy, G.L.; Hinderliter, P.M.; Lieder, P.H.; Jung, R.; Hansen, K.J.; Gorman, G.S.; Noker, P.E.; Thomford, P.J. Pharmacokinetics of perfluorooctanoate in cynomolgus monkeys. Toxicol. Sci. 2004, 82, 394–406. [Google Scholar] [CrossRef]
  80. Kemper, R.A.; Jepson, G.W. Pharmacokinetics of perfluorooctanoic acid in male and female rats. Toxicol. Sci. 2003, 72, 148. [Google Scholar]
  81. Chang, S.C.; Das, K.; Ehresman, D.J.; Ellefson, M.E.; Gorman, G.S.; Hart, J.A.; Noker, P.E.; Tan, Y.M.; Lieder, P.H.; Lau, C.; et al. Comparative pharmacokinetics of perfluorobutyrate in rats, mice, monkeys, and humans and relevance to human exposure via drinking water. Toxicol. Sci. 2008, 104, 40–53. [Google Scholar] [CrossRef]
  82. Butenhoff, J.L.; Kennedy, G.L.; Chang, S.C.; Olsen, G.W. Chronic dietary toxicity and carcinogenicity study with ammonium perfluorooctanoate in Sprague-Dawley rats. Toxicology 2012, 298, 1–13. [Google Scholar] [CrossRef]
  83. Nakagawa, H.; Terada, T.; Harada, K.H.; Hitomi, T.; Inoue, K.; Inui, K.; Koizumi, A. Human Organic Anion Transporter hOAT4 is a Transporter of Perfluorooctanoic Acid. Basic Clin. Pharmacol. 2009, 105, 136–138. [Google Scholar] [CrossRef]
  84. Weaver, Y.M.; Ehresman, D.J.; Butenhoff, J.L.; Hagenbuch, B. Roles of rat renal organic anion transporters in transporting perfluorinated carboxylates with different chain lengths. Toxicol. Sci. 2010, 113, 305–314. [Google Scholar] [CrossRef] [PubMed]
  85. Zhao, W.; Zitzow, J.D.; Weaver, Y.; Ehresman, D.J.; Chang, S.C.; Butenhoff, J.L.; Hagenbuch, B. Organic Anion Transporting Polypeptides Contribute to the Disposition of Perfluoroalkyl Acids in Humans and Rats. Toxicol. Sci. 2017, 156, 84–95. [Google Scholar] [CrossRef] [PubMed]
Toxics 12 00253 g001

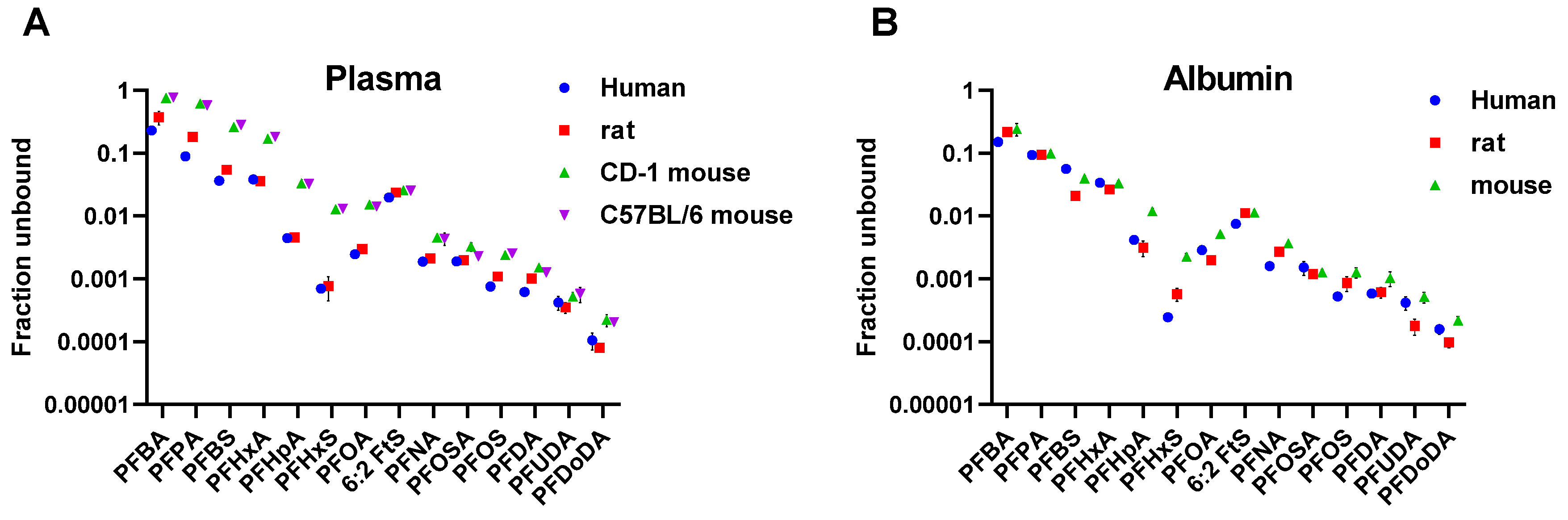

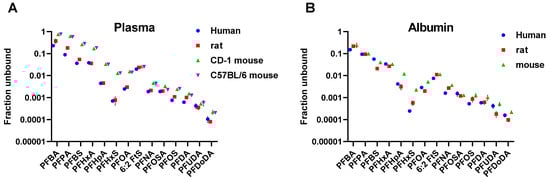

Figure 1. Fraction unbound (fu) values for 14 PFAS for human, rat, and mouse plasma (A) and albumin (B) in binding assays plotted against ascending molecular weight (MW) of the PFAS.
Figure 1. Fraction unbound (fu) values for 14 PFAS for human, rat, and mouse plasma (A) and albumin (B) in binding assays plotted against ascending molecular weight (MW) of the PFAS.
Toxics 12 00253 g001
Toxics 12 00253 g002

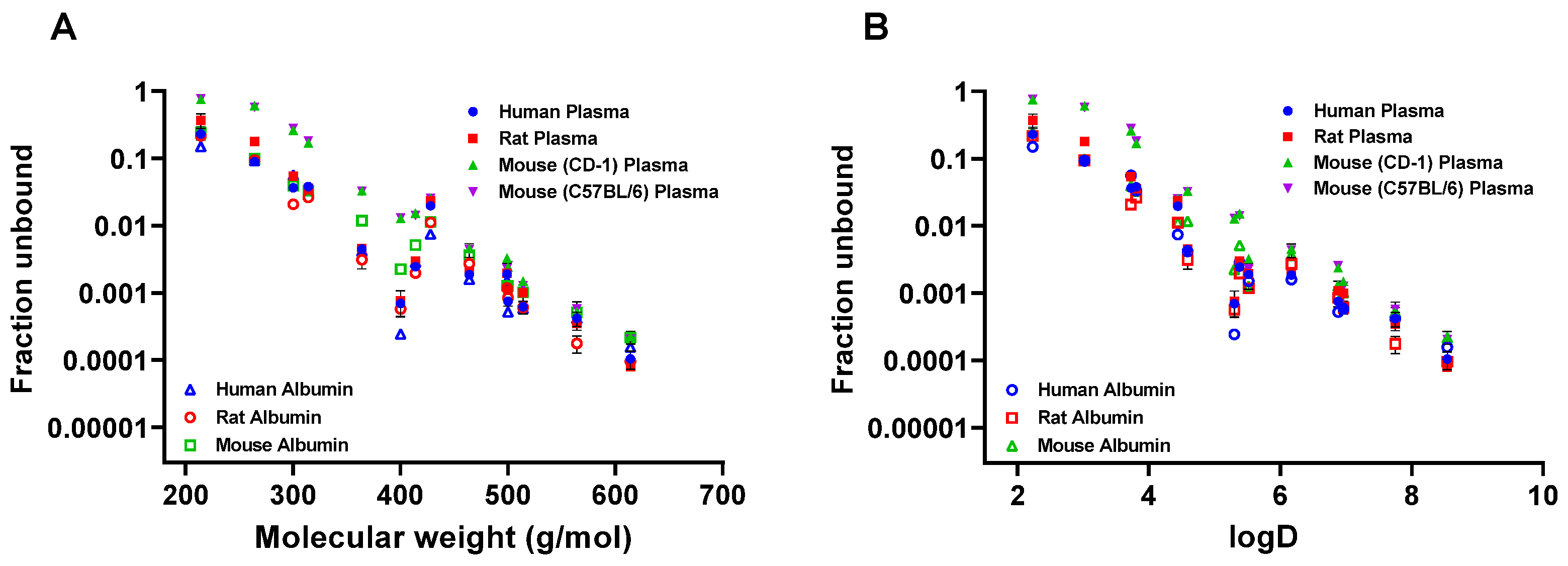

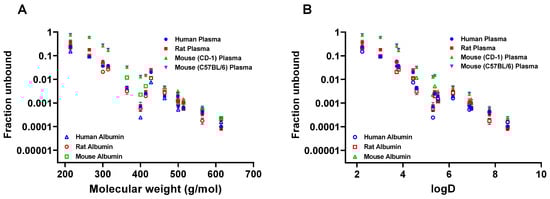

Figure 2. Fraction unbound (fu) for 14 PFAS using human, rat, and mouse (CD-1 and C57BL/6) plasma and albumin. (A) fu versus molecular weight (MW) (g/mol) and (B) fu versus logD.
Figure 2. Fraction unbound (fu) for 14 PFAS using human, rat, and mouse (CD-1 and C57BL/6) plasma and albumin. (A) fu versus molecular weight (MW) (g/mol) and (B) fu versus logD.
Toxics 12 00253 g002
Toxics 12 00253 g003

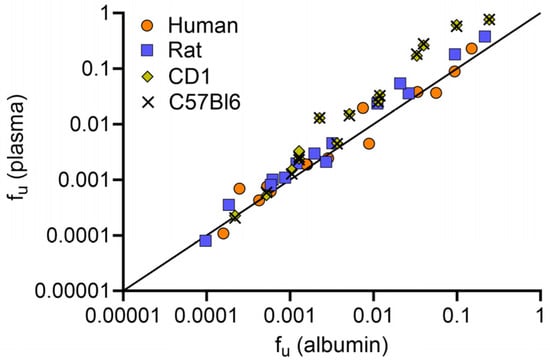

Figure 3. Fraction unbound (fu) of plasma and albumin for human, rat, and mouse CD-1 and C57BL/6. The black line represents 1:1 agreement, with fu(plasma) = 0.97 × fu(albumin) − 0.06, R2 = 0.94; SD = 0.25.
Figure 3. Fraction unbound (fu) of plasma and albumin for human, rat, and mouse CD-1 and C57BL/6. The black line represents 1:1 agreement, with fu(plasma) = 0.97 × fu(albumin) − 0.06, R2 = 0.94; SD = 0.25.
Toxics 12 00253 g003
Toxics 12 00253 g004
Figure 4. Pairwise comparison of fu for human, rat, and mouse plasma and albumin. Dotted red lines represent 1:1 agreement.
Figure 4. Pairwise comparison of fu for human, rat, and mouse plasma and albumin. Dotted red lines represent 1:1 agreement.
Toxics 12 00253 g004
Toxics 12 00253 g005
Figure 5. ℓ-correction adjusted TOST equivalence tests conducted for within-matrix pairwise comparisons fu values for all species and plasma/ albumin combinations organized from least to highest geomean fold difference. The dashed line represents a fold difference of 1. The 2-fold difference thresholds were employed to determine equivalence accounting for established assay variance and are shown as black lines (0.5 and 2).
Figure 5. ℓ-correction adjusted TOST equivalence tests conducted for within-matrix pairwise comparisons fu values for all species and plasma/ albumin combinations organized from least to highest geomean fold difference. The dashed line represents a fold difference of 1. The 2-fold difference thresholds were employed to determine equivalence accounting for established assay variance and are shown as black lines (0.5 and 2).
Toxics 12 00253 g005
Toxics 12 00253 g006

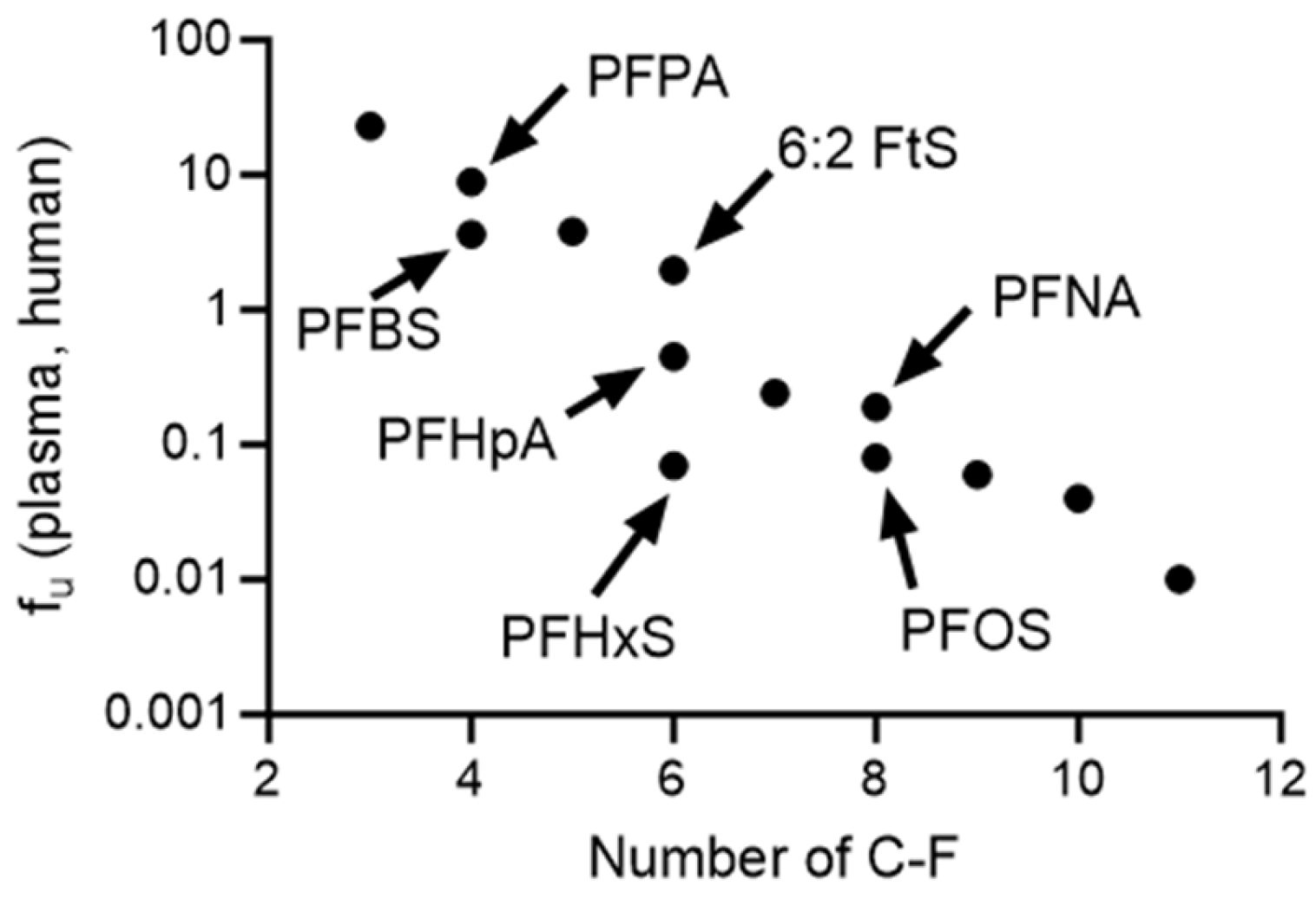

Figure 6. Fractions unbound in human plasma against the number of perfluorinated carbons of the PFAS. PFAS with similar number of perfluorinated carbons but different functional group (carboxylic vs. sulfonic acids) are highlighted in the figure.
Figure 6. Fractions unbound in human plasma against the number of perfluorinated carbons of the PFAS. PFAS with similar number of perfluorinated carbons but different functional group (carboxylic vs. sulfonic acids) are highlighted in the figure.
Toxics 12 00253 g006
Toxics 12 00253 g007
Figure 7. Linear relationship between fu in human and mouse plasma measured in this study and elimination half-lives for PFAS observed in humans (A) and mice (B).
Figure 7. Linear relationship between fu in human and mouse plasma measured in this study and elimination half-lives for PFAS observed in humans (A) and mice (B).
Toxics 12 00253 g007
Table 1. Fraction unbound (fu) and coefficient of variance (CV) for human, rat, and mouse (CD-1 and C57BL/6) against plasma and 4% serum albumin in PBS [Human (HSA), rat (RSA), mouse (MSA).].
Table 1. Fraction unbound (fu) and coefficient of variance (CV) for human, rat, and mouse (CD-1 and C57BL/6) against plasma and 4% serum albumin in PBS [Human (HSA), rat (RSA), mouse (MSA).].
PFASFraction Unbound (fu) and Coefficient of Variance (CV)
Human PlasmaRat PlasmaCD-1 PlasmaC57BL/6 PlasmaHSARSAMSA
PFBA0.229(4%)0.37(24%)0.757(6%)0.767(2%)0.15(5%)0.216(3%)0.24(22%)
PFPA0.0888(3%)0.18(2%)0.609(4%)0.577(5%)0.0933(6%)0.0942(4%)0.0987(11%)
PFHxA0.038(6%)0.0358(7%)0.169(5%)0.182(7%)0.0336(7%)0.0264(4%)0.0329(11%)
PFHpA0.00445(7%)0.00454(5%)0.0331(13%)0.0323(2%)0.0336(7%)0.00313(27%)0.0118(12%)
PFOA0.00245(4%)0.00298(3%)0.0152(5%)0.0142(4%)0.00285(6%)0.00196(3%)0.00513(5%)
PFNA0.00187(3%)0.0021(6%)0.00455(6%)0.00438(22%)0.00285(6%)0.00271(2%)0.00364(6%)
PFDA0.000618(9%)0.001(9%)0.0015(4%)0.00127(9%)0.000584(8%)0.000608(19%)0.00102(26%)
PFUDA0.000419(24%)0.000349(20%)0.000524(15%)0.00127(9%)0.000417(23%)0.000178(28%)0.000513(19%)
PFDoDA0.000105(29%)0.0000796(10%)0.000222(21%)0.000205(9%)0.000157(16%)0.0000964(16%)0.000217(15%)
PFBS0.0365(4%)0.0542(3%)0.261(7%)0.28(5%)0.056(5%)0.0208(8%)0.0396(11%)
PFHxS0.000695(3%)0.00076(39%)0.0128(11%)0.013(3%)0.000245(13%)0.000573(23%)0.00225(13%)
PFOS0.000753(3%)0.00109(4%)0.0128(11%)0.00256(8%)0.000524(13%)0.000852(25%)0.00126(19%)
PFOSA0.0019(8%)0.00197(4%)0.00326(15%)0.0023(3%)0.00152(24%)0.00118(11%)0.00127(11%)
6:2 FtS0.0197(2%)0.0236(4%)0.0255(2%)0.0253(2%)0.00746(0%)0.0111(4%)0.0113(9%)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ryu, S.; Burchett, W.; Zhang, S.; Modaresi, S.M.S.; Agudelo Areiza, J.; Kaye, E.; Fischer, F.C.; Slitt, A.L. Species-Specific Unbound Fraction Differences in Highly Bound PFAS: A Comparative Study across Human, Rat, and Mouse Plasma and Albumin. Toxics 2024, 12, 253. https://doi.org/10.3390/toxics12040253

AMA Style

Ryu S, Burchett W, Zhang S, Modaresi SMS, Agudelo Areiza J, Kaye E, Fischer FC, Slitt AL. Species-Specific Unbound Fraction Differences in Highly Bound PFAS: A Comparative Study across Human, Rat, and Mouse Plasma and Albumin. Toxics. 2024; 12(4):253. https://doi.org/10.3390/toxics12040253

Chicago/Turabian Style

Ryu, Sangwoo, Woodrow Burchett, Sam Zhang, Seyed Mohamad Sadegh Modaresi, Juliana Agudelo Areiza, Emily Kaye, Fabian Christoph Fischer, and Angela L. Slitt. 2024. "Species-Specific Unbound Fraction Differences in Highly Bound PFAS: A Comparative Study across Human, Rat, and Mouse Plasma and Albumin" Toxics 12, no. 4: 253. https://doi.org/10.3390/toxics12040253

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
