Prediction of the Unconfined Compressive Strength of a One-Part Geopolymer-Stabilized Soil Using Deep Learning Methods with Combined Real and Synthetic Data

Abstract

This study focused on exploring the utilization of a one-part geopolymer (OPG) as a sustainable alternative binder to ordinary Portland cement (OPC) in soil stabilization, offering significant environmental advantages. The unconfined compressive strength (UCS) was the key index for evaluating the efficacy of OPG in soil stabilization, traditionally demanding substantial resources in terms of cost and time. In this research, four distinct deep learning (DL) models (Artificial Neural Network [ANN], Backpropagation Neural Network [BPNN], Convolutional Neural Network [CNN], and Long Short-Term Memory [LSTM]) were employed to predict the UCS of OPG-stabilized soft clay, providing a more efficient and precise methodology. Among these models, CNN exhibited the highest performance (MAE = 0.022, R² = 0.9938), followed by LSTM (MAE = 0.0274, R² = 0.9924) and BPNN (MAE = 0.0272, R² = 0.9921). The Wasserstein Generative Adversarial Network (WGAN) was further utilized to generate additional synthetic samples for expanding the training dataset. The incorporation of the synthetic samples generated by WGAN models into the training set for the DL models led to improved performance. When the number of synthetic samples achieved 200, the WGAN-CNN model provided the most accurate results, with an R² value of 0.9978 and MAE value of 0.9978. Furthermore, to assess the reliability of the DL models and gain insights into the influence of input variables on the predicted outcomes, interpretable Machine Learning techniques, including a sensitivity analysis, Shapley Additive Explanation (SHAP), and 1D Partial Dependence Plot (PDP) were employed for analyzing and interpreting the CNN and WGAN-CNN models. This research illuminates new aspects of the application of DL models with training on real and synthetic data in evaluating the strength properties of the OPG-stabilized soil, contributing to saving time and cost.

1. Introduction

Ordinary Portland cement (OPC) is one of the most common materials in construction engineering. Nonetheless, the production of OPC is accompanied by the generation and emission of significant quantities of carbon dioxide, which imposes substantial damage on the environment [1,2,3]. Therefore, in the context of the global emphasis on sustainable development, many researchers have begun to search for alternative materials and options to replace OPC. Geopolymer is a novel type of cementitious material synthesized from industrial by-products. It represents a promising alternative to conventional cement. These by-products include fly ash (FA), ground granulated blast furnace slag (GGBFS), rice husk ash, steel slag, and waste glass powder, among others [4,5,6,7]. The application of geopolymer in structural and geotechnical engineering has attracted significant attention in recent years [8,9]. Geopolymer is found to improve the strength of stabilized soil by developing a three-dimensional microstructure with calcium silicate hydrate (C-S-H) and sodium aluminosilicate hydrate (N-A-S-H) gels.

Normally, the preparation of the geopolymer involves two methods: one-part and two-part methods [7,10]. The distinguishing feature of the one-part geopolymer (OPG) lies in its unique composition, which entails a mixture of solid aluminosilicate materials (known as precursors), solid alkaline activators, and water, setting it apart from the two-part geopolymer formulations. It can be seen that OPG stands out for in situ construction projects due to its potential to reduce environmental damage and low storage and transportation costs compared to the two-part geopolymer.

As for ground improvement, the unconfined compressive strength (UCS) is commonly used to evaluate the mechanical performance of cement-stabilized soil. Time-consuming and costly laboratory experiments are often required for determining the UCS of OPG-stabilized soil. Moreover, the existing findings regarding the application of OPG in soil stabilization remain relatively limited [10,11,12,13,14,15]. It has been observed that the adoption of OPG can substantially improve the mechanical properties of soil. Notably, it has been identified that the OPG prepared by combining solid binary precursors (FA and GGBFS) and a solid activator (sodium hydroxide or sodium silicate) with water can markedly improve the UCS and shear strength of the soft soil [12,13,16,17,18]. Nevertheless, the mechanical behavior of geopolymer-stabilized soil is affected by various influences, including the formulation of precursors, blending processes, surrounding curing environment, etc. Especially, gaining a comprehensive understanding of how precursors and activators impact on the strength performance of OPG-stabilized soil needs a comprehensive experimental examination and study, presenting difficulties regarding time, costs, and labor [13,19,20,21]. Hence, accurately predicting the UCS of geopolymer-stabilized soil represents a challenging task.

In recent years, with the rapid development of Machine Learning (ML) technology, its application in the field of materials science has attracted more and more attention. The contribution of ML techniques to concrete-like materials brings a great change in the computation of physical and mechanical properties [22,23,24,25,26,27,28], such as the modulus, strength, durability [29,30], and impermeability [31,32,33]. The basic principle of ML is data driven using the logic created by computation coding, allowing the computer to independently explore implicit relationships between the data and complete specified tasks, such as predicting target values. ML is widely employed in predicting the compressive strength of concrete and demonstrates that there is significant potential for utilizing ML in evaluating the mechanical performance of geopolymer. Among them, the ensemble learning and Boosting algorithms are the most widely adopted because of their intuitive and easy-to-understand principles, ease of construction, and fast speeds of fitting and prediction. Some cutting-edge ML models, such as Random Forest (RF) [34,35,36,37,38,39,40,41], Boosted Tree (BT) [42], Extra Trees [43], Gradient Boosting Regression Tree (GBRT) [44], Adaptive Boosting (AdaBoost) [6,40,45,46], and Extreme Gradient Boosting (XGB) [34,36,47,48,49,50], have been already used to predict the materials’ performance in civil and mechanical engineering. However, overfitting tends to occur for ensemble learning models when the training dataset is not ideal. For example, ensemble learning models improve predictive performance by constructing multiple base learners, particularly in cases where the training set has high dimensions and a sparse distribution. Under such circumstances, the base learners of the ensemble learning models may struggle to capture the overall features. This is because each subsequent base learner is trained based on the results of the previous one, which induces the ensemble learning model to be less effective than models such as neural networks and support vector machines.

As a subset of ML, deep learning (DL) has the ability to handle more complex data and predict the output more accurately. DL has now achieved convincing results in predicting the compressive strength of concrete and geopolymer-based concrete (GPC). Contemporary mainstream deep learning networks can be categorized into several types: fully connected networks, Convolutional Neural Networks, recurrent neural networks, attention mechanism networks, and graph convolutional networks. Notably, attention mechanism networks and graph convolutional networks are more suited for text and image data, which do not align with the data types utilized in this paper. Artificial Neural Network (ANN), a simple and effective network model that mimics the thinking behavior of the human brain [51], has been applied to predict the compressive strength of materials by many scholars [35,42,46,48,52,53,54,55,56,57,58,59,60,61,62,63]. Subsequently, advancements in computer technology and computational power have led to the development of more complex networks based on ANN. This progression gives rise to the Deep Neural Network (DNN) [37,48,56,57,64] and deep Residual Networks (ResNet) [56,57,65] which further increases the number of hidden layers and neurons. For example, the Backpropagation Neural Network (BPNN) incorporates a feedforward algorithm to adjust neuron parameters [66]. The Convolutional Neural Network (CNN) utilizes convolutional calculations for feature extraction [67], and the Long Short-Term Memory (LSTM) network incorporates the attention mechanism for extracting time series features [68,69].

Table 1. Summary of the ML and DL models used to predict the compressive strength of GPC.

Reference	Type of GPC	Algorithms	Best Model (R2)
Zhou et al. [70]	Slag- and CCA-modified GPC	GEP	GEP (0.96)
Parhi and Patro [39]	FA-based GPC	RF, NN, MARS, HEML	HEML (0.97)
Nazar et al. [55]	FA-based GPC	ANFIS, ANN, GEP	GEP (0.94)
Ngo et al. [63]	Coal ash-based GPC	RF, ANN, XGB, GB, PSO	ANN (0.9808)
Oyebisi et al. [64]	GGBFS-CCA-based GPC	DNN	DNN (0.986)
Huo et al. [48]	Calcium-based GPC	KNN, SVM, RF, GBDT, BA, ET, XGB, DNN	XGB (0.91)
Kumar Dash et al. [71]	GGBS-based GPC	ELM, ELM-CSO, ELM-ECSO	ELM-ECSO (0.94)
Shahmansouri et al. [58]	GGBS-based GPC	ANN	ANN (0.924)
Huynh et al. [65]	FA-based GPC	ANN, DNN, ResNet	ResNet (0.937)
Dong et al. [62]	FA-based GPC	ANFIS, ANN	ANFIS (0.879)

Note: CCA is corn cob ash; GGBS is ground granulated blast slag; HEML is hybrid ensemble machine learning; ECSO is enhanced cat swarm; GEP is gene expression programming; ANFIS is adaptive neuro-fuzzy inference system; MARS is multivariate adaptive regression spline.

summaries the applications of the ML and DL models in predicting the compressive strength of GPC.

Despite their prevalence, numerous DL models pose ongoing challenges in terms of deciphering their internal processes [72]. In the last few years, interpretable approaches have been developed to elevate the explanation of ML models [73,74,75]. Explainable ML techniques, such as Shapley Additive Explanation (SHAP) [47,48,76,77,78,79,80,81] and Partial Dependence Plot (PDP) [80,81,82,83], make it clear how the models predict through inputs and provide a thorough comprehension of the link between inputs and outputs.

The aforementioned findings showed that ML and DL models can be adeptly applied to assess the physical and mechanical properties of geopolymer materials. For the focuses of the current study, only relying on the limited samples obtained from laboratory and field tests may fall short of meeting the data volume requirements for typical data-driven DL models. Therefore, there is a need to introduce data augmentation techniques to expand the training dataset and consequently enhance the performance of DL models. After the data augmentation methods based on Generative Adversarial Networks (GANs) were proposed in 2014 [84], there have been significant applications and research in the field of image restoration [85,86,87], paving the way for one of the trending directions in DL [88]. GANs achieve the objective of dataset augmentation by learning the distribution characteristics of the original training dataset to imitate and generate convincingly realistic synthetic data. By utilizing GANs to generate convincingly synthetic samples, data augmentation serves to address the shortfall in small sample sizes for DL models, thereby improving the models’ performance. In light of the data types considered in this study, the ANN, BPNN, CNN, and LSTM models were selected for predictions. This choice is justified by their distinct computational and predictive mechanisms, making them all exemplary and representative options from the perspective of predictive value. Therefore, in this study, four different DL models were first employed to predict the UCS of OPG-stabilized soil by training the experimental data. Furthermore, to enhance the performance of DL models, the Wasserstein Generative Adversarial Network (WGAN) was utilized to generate additional synthetic samples by learning the features of the experimental data. The developed DL models with and without data augmentation were then compared to achieve better performance on predicting the UCS of the OPG-stabilized soil. Finally, a sensitivity analysis and SHAP and PDP methods were applied to the DL model with data augmentation for elucidating the inherent mechanism between the input features and output. The findings of this study may stimulate the employment of DL models in assessing the strength performance of the OPG-stabilized soil by incorporating both real and synthetic data into the training process, thereby attaining a balance between resource allocation and exactitude.

2. Deep Learning Models

2.1. ANN

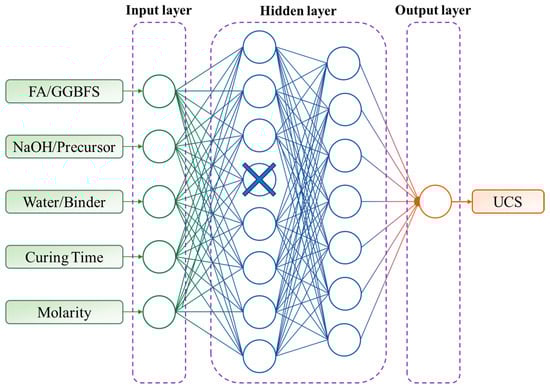

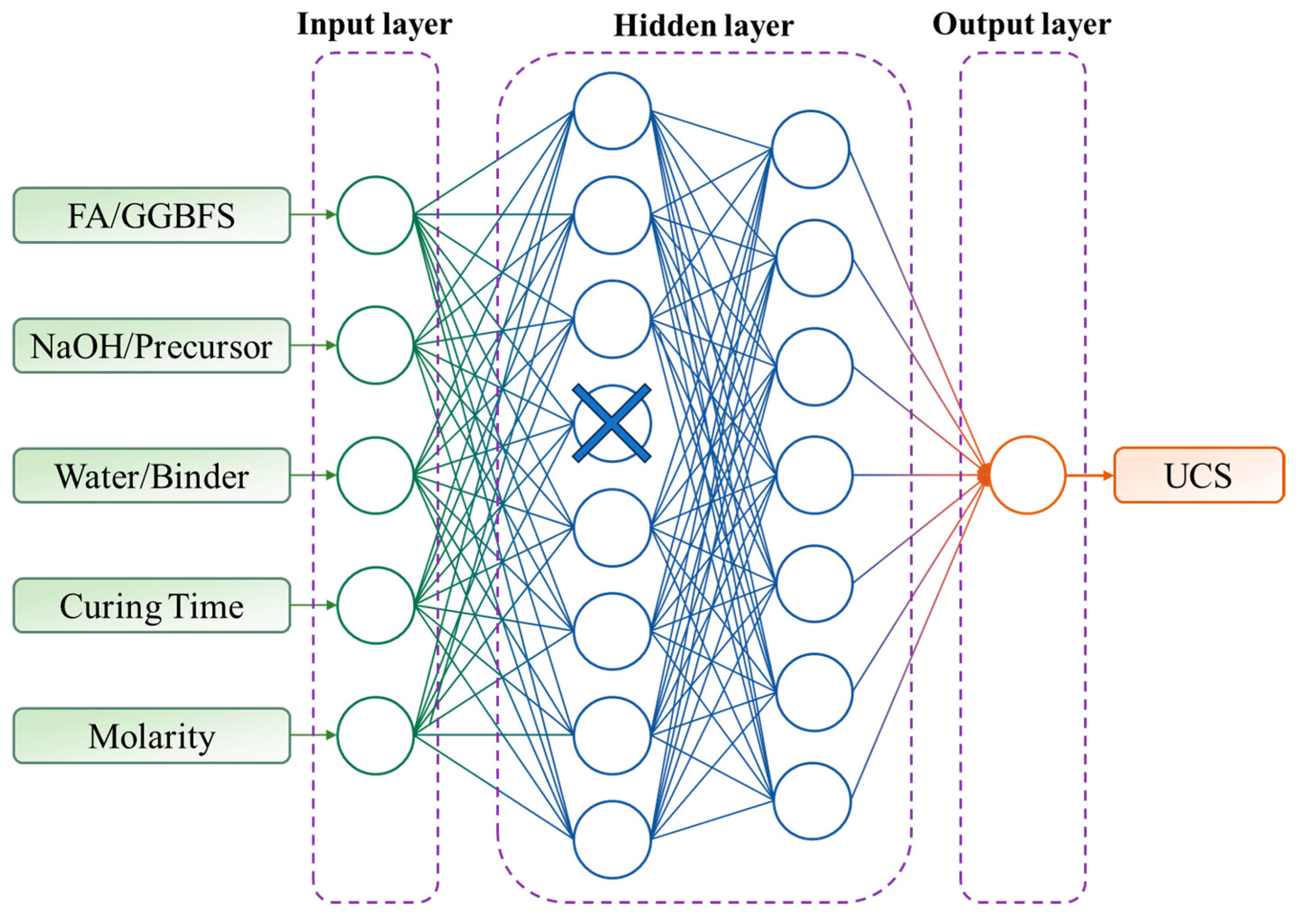

Neural networks are a class of ML models that simulate the functioning of neurons in the human brain. With the continuous advancement of neural networks, particularly in conjunction with the increasing scale of data, these networks have progressively transitioned from shallow architectures to deeper structures, ultimately evolving into DL models.

The most fundamental neural network is the Artificial Neural Network (ANN), which can approximate any nonlinear function by increasing the number of neurons and hidden layers. The input layer, hidden layers, and output layer make up the three primary components of the ANN’s structure, as shown in Figure 1. In the ANN, the neurons are the fundamental blocks of neural networks, which are responsible for receiving input from other neurons, applying weighted sums of these inputs using activation functions, and then transmitting the results to the next layer of neurons or the output layer. This process imitates the response mechanism of biological neurons. The hidden layers, located between the input and output layers in a neural network, consist of one or multiple neurons that facilitate information transmission and processing. The output of neurons can be expressed in the computational form illustrated in Equation (1). Many neural networks derived based on the ANN are suitable for processing complex data.

$$z=f\left({\displaystyle \sum _{i=1}^p{\omega }_i{x}_i+b}\right),i=1,2,\dots ,p,$$

(1)

where $z$ is the output of a neuron, $x_i$ represents the inputs received by the neuron. $\omega$ denotes the weights of each input node and $b$ denotes the bias of the neuron. $f$ is defined as the activation function.

Before training, the types of functions associated with the network in the study must be defined, primarily encompassing the activation functions, loss functions, and optimization functions. The activation function determines the information output by the neurons and is a crucial component enabling the neural network to fit nonlinear relationships. Commonly used activation functions include Rectified Linear Unit (ReLU), Sigmoid, and tanh. In this study, apart from the output layer, all other layers utilize the ReLU activation function, as expressed in Equation (2). A notable feature of the ReLU is that its derivative is 0 on the negative half-axis. Therefore, the connected neuron will output 0 via the ReLU activation function when the activation value is negative. The structure of networks can be relatively sparse under this mechanism, thereby enhancing the training efficiency and improving the model’s generalization capability [89]. The selection of the loss function primarily depends on the type of data. Given that the problem addressed in this study involves regression, the Mean Squared Error (MSE) function, which is commonly used for regression problems, is employed for the loss function, as shown in Equation (3). The optimization function, also referred to as the optimizer, serves the purpose of updating the model parameters, specifically the weights and biases of the neurons, according to the gradient of the loss function. In this study, the Adam optimizer is utilized, characterized by its high computational efficiency and its suitability for non-convex optimization problems. It is particularly effective for handling sparse gradients and noise, and does not require additional adjustments for hyperparameters such as the learning rate [90].

Furthermore, to address the issue of overfitting that may arise during training, a Dropout layer is introduced into the neural network. In the training progress, a certain proportion of neurons will randomly output 0 due to this layer. This configuration reduces the network’s complexity while enhancing the model’s capacity [91]. Since the current study aimed to predict the UCS value, the output layer was typically set to a single neuron.

$$f_{Relu}\left(x\right)=max\left(0,x\right),$$

(2)

$$MSE={\displaystyle \frac{{\displaystyle \sum _{i=1}^N|UC{S}_{predict}-UC{S}_{true}|}}{N}}.$$

(3)

2.2. BPNN

The Back Propagation Neural Network (BPNN), first proposed by Rumelhart et al. [92], involves updating the parameters of the neural network through the backpropagation algorithm. Compared to the ANN, the BPNN exhibits a better generalization ability, enabling it to handle more complex data [93]. In the ANN, forward propagation is used solely to compute and obtain the neural network’s output without adjusting the network’s parameters.

Error backpropagation refers to the process of adjusting the weights and biases of the preceding layers based on the error generated by comparing the actual output values with the expected values, with the aim of minimizing this error as much as possible. This process can be encapsulated in two stages. The first stage is forward propagation, which begins at the input layer and progresses through the calculations of the hidden layers, ultimately reaching the output layer. This stage involves computing the output results at each layer and evaluating the associated errors. The second stage is backward propagation, which starts at the output layer; when the output results do not align with the actual results, the error is calculated using a loss function and subsequently, each neuron’s weights are updated through an optimization function. These two steps are alternated, optimizing the parameters of each neuron and thereby reducing the discrepancy between the predicted values and the actual values [94,95].

2.3. CNN

The Convolutional Neural Network (CNN) is a type of feed-forward neural network that is similar to the ANN. The CNN model adopts Convolutional layers, Pooling layers, and fully connected layers (referred to the Dense layers) for feature extraction and classification [96,97]. Using Convolutional layers, the CNN model can identify features from input sequences, which leverages local correlations and weight sharing to reduce the model’s parameter count, thereby enhancing the training speed and generalization capabilities.

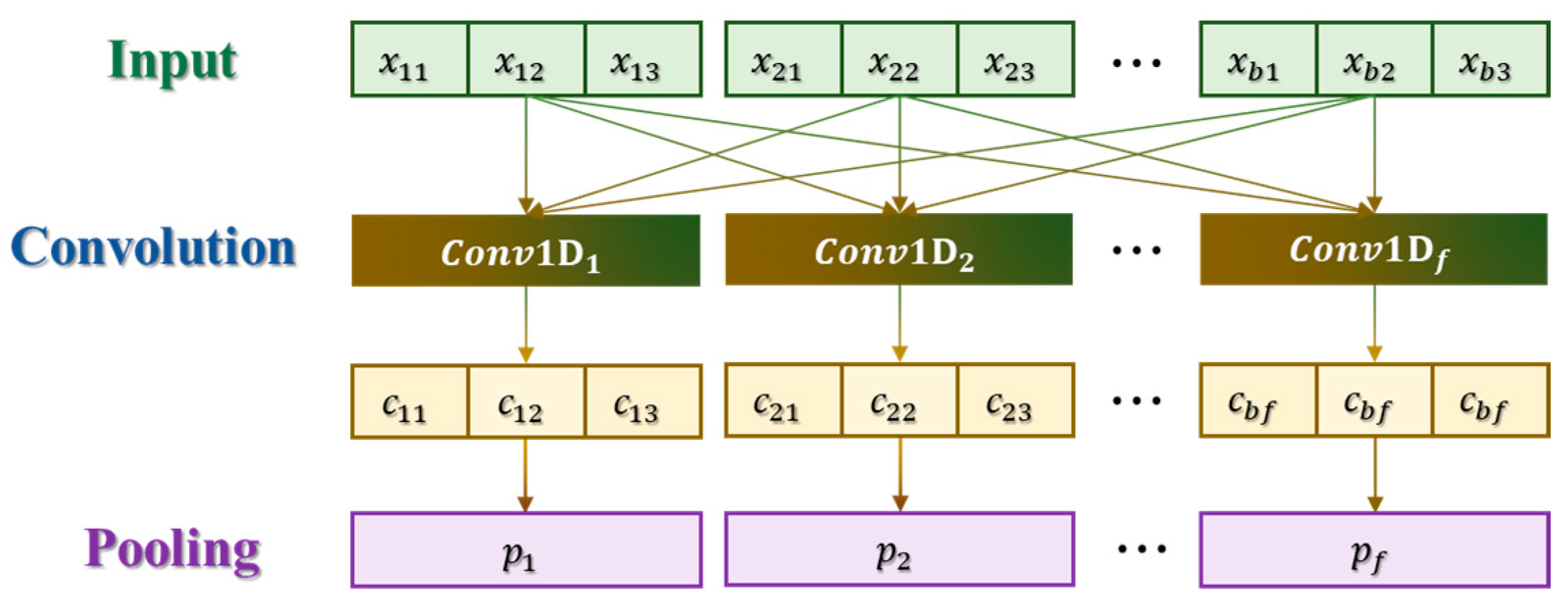

A conventional CNN model is composed of the five layers: Convolutional layers, Pooling layers, Activation layers, Normalization layers, and Dense layers. The key of the CNN structure is the Convolutional layers. Adjusting the filter and kernel_size parameters in the 1D Convolutional layer can yield different effects on the feature extraction. The filter parameter determines the number of Convolutional kernels used to operate on the input data, while the kernel_size parameter plays a significant role in CNN performance. A larger kernel_size can capture broader features, while a smaller one can capture finer details. The purpose of the Pooling layer is to reduce dimensionality and accelerate the computation of the results from the Convolutional layer. Average pooling retains the overall feature information, while max pooling preserves local detailed features. As illustrated in Figure 2, for a tensor with input shape $\left[b,3,1\right]$ and setting $f$ filters, a three-dimensional tensor of shape $\left[b,3,f\right]$ is obtained, which is then dimensionally reduced by the Pooling layer to output a two-dimensional tensor of shape $\left[b,f\right]$.

2.4. LSTM

The recurrent neural network (RNN) has a greater advantage in handling time series data compared to the neural networks by using Dense layers and Convolutional layers [98,99]. The RNN is derived from the BPNN by adding a recurrent core to enhance short-term memory. In its recurrent structure, each neuron is determined not only by the parameters of the current input but also includes the output of the hidden layer from the previous time step. However, the traditional RNNs may encounter the vanishing or exploding gradient problem when dealing with long sequences, causing unstable training, an inability to increase network depth, and difficulty in effectively capturing long-range dependencies.

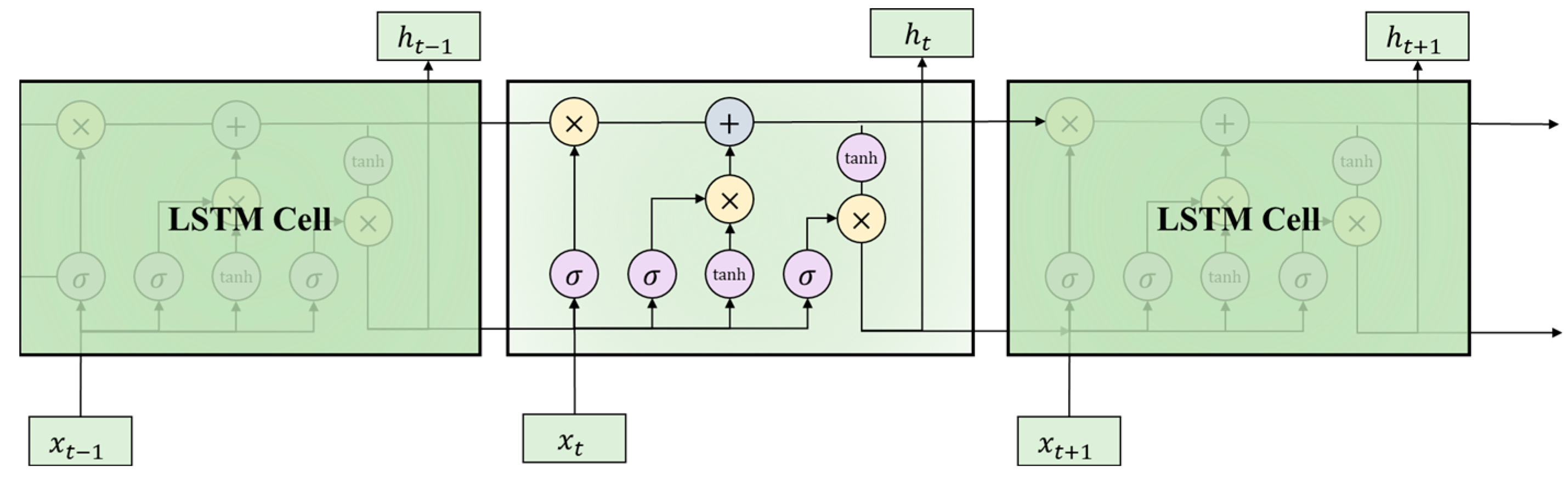

As one of the improved RNN models, the Long Short-Term Memory (LSTM) network has the characteristics of three gate designs, that is, the forget gate, input gate, and output gate [100,101]. These three gates manage units, which are used for the management of information forgetting and updating. The LSTM structure, as depicted in Figure 3, has $x$ as the input feature at the current time step $h_{t-1}$ that captures the preserved state details from the preceding time step, and $h_t$ that stores the output for the present state. The forget gate regulates the influence of the memory from the previous time step on the current time step. The input gate controls the acceptance level of the input by the LSTM network, obtained through a non-linear transformation of $x$ and $h_{t-1}$. The output gate, which is determined by the input gate and the tanh activation function, decides the output $h_t$ at the current time step.

2.5. WGAN

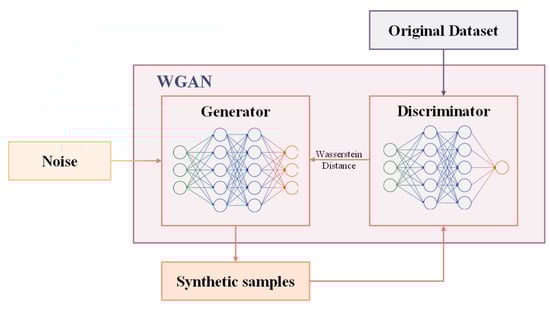

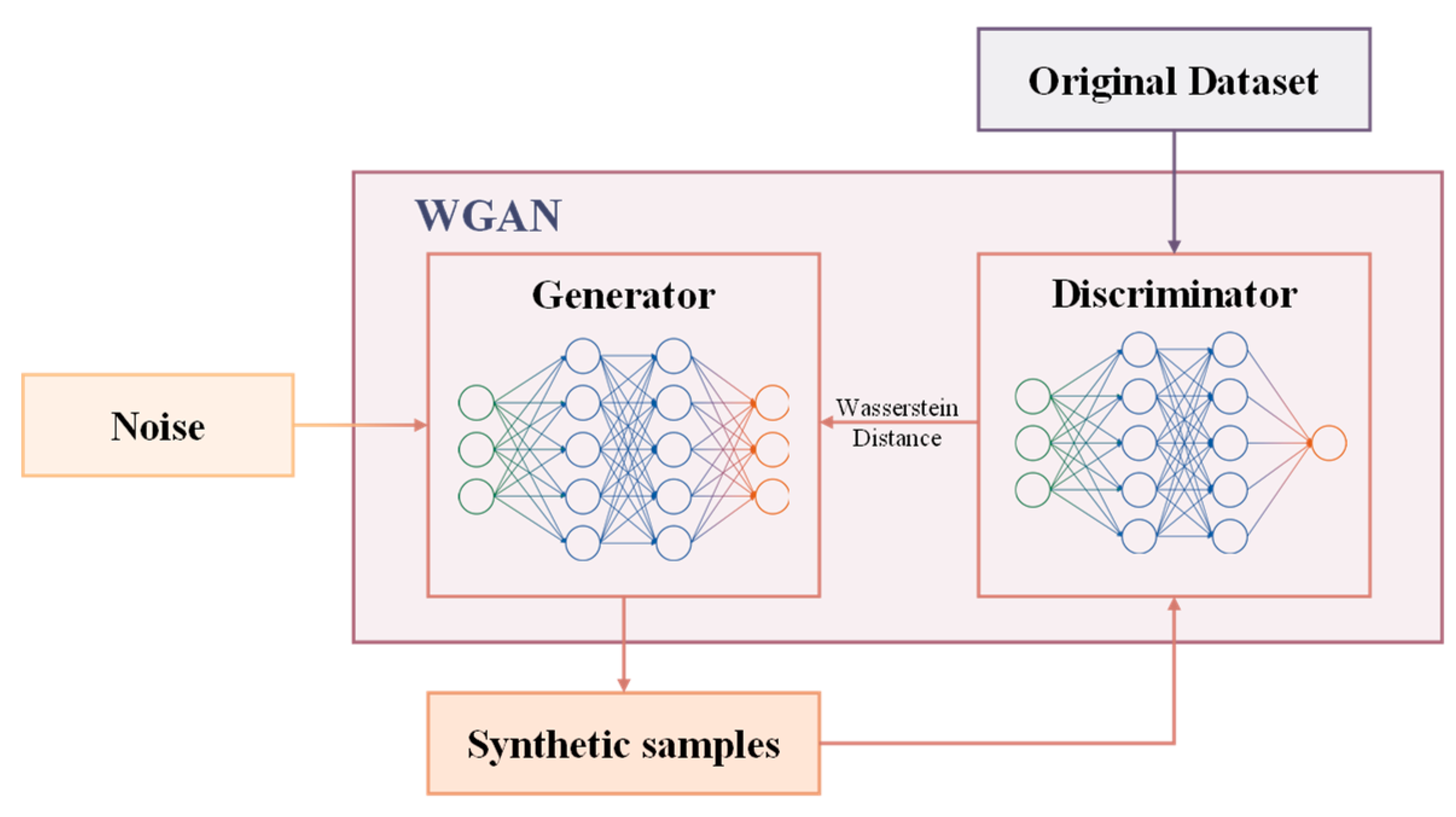

Generative Adversarial Network (GAN), formally introduced in 2014 [84], consists of two neural network structures, the Generator and the Discriminator, as depicted in Figure 4. Through the adversarial interplay between these two networks, GAN can generate synthetic data. The Generator learns the distribution of real samples and then produces a series of synthetic samples, while the Discriminator distinguishes between synthetic samples generated by the Generator and real samples. The basic GAN model is prone to the issue of mode collapse, in which the Generator tends to generate a small number of high-quality synthetic samples in a narrow range. As these synthetic samples approach the real distribution, they can receive high scores from the Discriminator, inducing poor diversity and the concentration of generated synthetic samples within a small range [102,103]. Thus, various improved networks have been derived from GAN to address the mode collapse, such as the Wasserstein Generative Adversarial Network (WGAN) [103], Deep Convolutional Generative Adversarial Network (DCGAN) [104], and Cycle-Consistent Adversarial Network (CycleGAN) [105].

The WGAN identifies Jensen–Shannon Divergence (JSD) as the cause of unstable GAN training. JSD is a method for measuring the similarity between two probability distributions. For non-overlapping distributions, the gradient surface is constantly zero, meaning that the distribution probability of generated samples does not overlap with that of real samples, resulting in a JSD value of log2. This leads to a situation where the gradient at the generated sample location is always zero, making it impossible to update the Generator’s parameters effectively and thereby affecting training performance. In GAN, real samples are labelled as 1 and synthetic samples are set to 0, and the Discriminator’s objective function is used to minimize the error between real samples (label 1) and synthetic samples (label 0).

The WGAN introduces the Wasserstein distance, also known as the Earth-Mover (EM) Distance, which calculates the minimum cost of transforming one distribution into another. The calculation of the Wasserstein distance can be expressed in Equation (4), which can effectively address the lack of gradient information due to the JSD [103,106]. Generating low-quality synthetic samples induces a greater Wasserstein distance, and thus forces the Generator’s parameters to be updated. In the WGAN, the Discriminator also serves as the unit for calculating the Wasserstein distance. The more accurate the Discriminator’s distance calculation, the more beneficial it is for the Generator. Therefore, in each iteration, the Generator is trained once while the Discriminator is trained five times to obtain a more accurate calculation of the Wasserstein distance. In terms of Generator design, based on the structure of the BPNN, a smaller Convolutional kernel size is used for 1D convolutions to capture the distribution and precise features of the original samples.

$$W\left(p,q\right)=\underset{\gamma {\displaystyle \prod \left(p,q\right)}}{\inf }{E}_{\left(x,y\right) \gamma }\left[\Vert x-y\Vert \right],$$

(4)

where ${\displaystyle \prod \left(x-y\right)}$ represents the collection of all possible joint distributions formed by the combination of distributions $p$ and $q$. For each of these potential joint distributions $y~{\displaystyle \prod \left(x-y\right)}$, the expected distance $E_{\left(x,y\right)~\gamma }\left[\Vert x-y\Vert \right]$ is computed, with $\left(x,y\right)$ being sampled from the joint distribution $\gamma$. The term $\inf \left\{\cdot \right\}$ signifies the infimum of the set.

2.6. K-Fold Cross-Validation

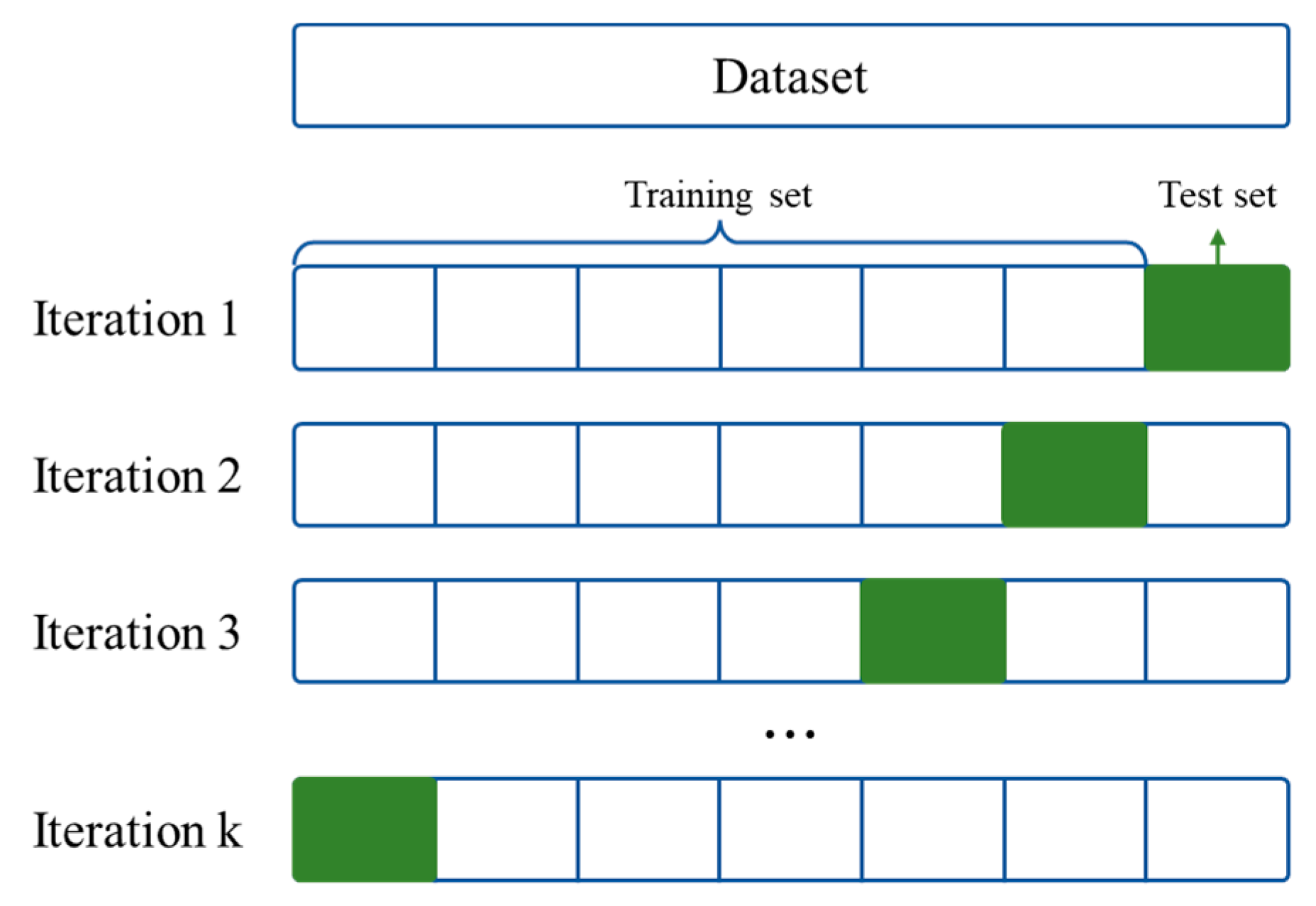

K-Fold cross-validation is a common method to validate and evaluate the performance of models [107]. The basic idea is to divide a dataset into $k$ groups, in which $k-1$ groups are used as the training set for model training and the remaining group is taken as the test set for model testing and validation, as illustrated in Figure 5. This process results in $k$ models, in which the average results are taken as the final performance of the model. K-Fold cross-validation can extract as much valuable information as possible from limited data, thereby avoiding poor model performance due to the uneven distribution of the training set, and can further reduce the likelihood of overfitting and increase the stability of the model. Most studies recommend using 5-fold or 10-fold cross-validation to obtain the final model results [108,109]. In this study, 5-fold cross-validation was chosen, with the average values of each metric taken as the final conclusion.

2.7. Interpretable Methods

2.7.1. Sensitivity Analysis

Most ML models exhibit considerable structural complexity, particularly DL models, making it challenging to comprehend the predictive principles underlying these models. To ascertain the feasibility of such models—specifically, whether the contributions of various input features to the output values align with existing research or whether they can provide clear decision-making justifications—it is essential to implement post hoc interpretability methods [23,110].

Sensitivity analysis reveals how independent variables affect the output [111]. The specific calculation process involves randomly sampling the independent variables within a specified range and using a pre-trained model to predict the output. By employing the one-at-a-time (OAT) method to control variables, the sensitivity analysis perturbs only one independent variable at a time while keeping other variables at their nominal values, and thus the relationship between the output and that variable can be determined [112,113]. Sensitivity analysis can be divided into a global sensitivity analysis and local sensitivity analysis. In contrast to the local sensitivity analysis, the global sensitivity analysis focuses on the impacts of all input variables on the output and can consider interactions between variables. Notably, this study adopted a global sensitivity analysis method based on Sobol coefficients, which include first- and second-order sensitivity analyses. The first-order sensitivity analysis primarily focuses on the impacts of individual input parameters on the model output. The second-order sensitivity analysis reflects the degree to which interactions between two input parameters affect the model output, providing a more comprehensive understanding of how interactions between parameters influence the model output. The calculation of the first-order sensitivity Sobol index is shown in Equation (5), while the calculation of the second-order sensitivity Sobol index is shown in Equation (6).

$$S_i={\displaystyle \frac{V_i}{V}}={\displaystyle \frac{Var(E\left(Y\left|X^{\left(i\right)}\right)\right)}{Var\left(Y\right)}},$$

(5)

$$S_{ij}={\displaystyle \frac{V_{ij}}{V}}={\displaystyle \frac{Var\left(E\left(Y|X^{\left(i\right)},X^{\left(j\right)}\right)\right)-V_i-V_j}{Var\left(Y\right)}},$$

(6)

where $E$ describes the mathematical expectation. $V_i$ is determined by the ANOVA variance decomposition formula $V_i=Var(E\left(Y\left|X^{\left(i\right)}\right)\right)$.

2.7.2. SHAP

SHAP, which is short for Shapley Additive Explanation, is an interpretive method that is deeply influenced by game theory. As indicated by its nomenclature, the SHAP method primarily facilitates post hoc explanations through the computation of Shapley values. In the context of cooperative game theory, the Shapley value (hereinafter referred to as the SHAP value) serves to quantify the contribution of each participant to the value generated by the collaboration. When applied to machine learning models, it evaluates the contribution of each input feature to the resulting output label. In SHAP methods, the model’s prediction progress is interpreted as a linear function of binary variables [114], as shown in Equation (7). Additionally, the computation of SHAP value is shown in Equations (8) and (9).

$$g\left(z\right)={\varphi }_0+{\displaystyle \sum _{k=1}^N}{\varphi }_k{z}_i^{\prime },$$

(7)

where $g$ is explainable DL model; $z$ denotes the input feature; and $N$ is the number of inputs. ${\varphi }_k$ is the SHAP value of feature $k$. ${\varphi }_0$ is a constant.

$${\varphi }_k={\displaystyle \sum _{K\subseteq M\left\{i\right\}}\frac{\left|K\right|!\left(N-\left|K\right|-1\right)!}{N!}\left[g_X\left(K\cup \left\{i\right\}\right){-g}_X\left(K\right)\right]},$$

(8)

$$g_X\left(K\right)=E\left[g\left(x\right)|x_K\right],$$

(9)

where $M=\left\{x_1,x_2,\dots ,x_N\right\}$ is the set of input features. $E\left[g\left(x\right)|x_K\right]$ represents the expected value of the subset $K$.

2.7.3. PDP

The Partial Dependence Plot (PDP) is a visualization technique that illustrates the marginal effects of features on the predictions of the trained ML model [115]. Its advantage is to generate plots to display the relationship between the target and input variables. This makes it easier to comprehend how each input specifically affects the model’s predictions, which improves the interpretability of the DL models. The PDP method elucidates the relationship between inputs and outputs by utilizing all available data points within the dataset [116,117]. The partial dependence function $f_{x_s}\left(x_s\right)$ can be estimated by calculating the mean values within the training data, as illustrated in Equation (10):

$$f_{x_s}\left(x_s\right)={\displaystyle \frac{1}{n}}{\displaystyle \sum _{k=1}^{n}DL\left(x_s,x_c^{\left(k\right)}\right)},$$

(10)

where $x_s$ is the feature of partial dependence in the set $S$; $x_c^{\left(k\right)}$ denotes the actual values within the dataset corresponding to the features in the feature space, excluding the specified set $S$; $n$ is the total number of instances in the dataset; and DL is the trained DL model.

2.8. Performance Index

In the present study, the three metrics, including MAE, RMSE, and R², were employed to evaluate the performance of DL models. These metrics play crucial roles in evaluating the accuracy and explanatory power of predictive models. Specifically, MAE and RMSE quantify the disparities between the forecasted and real values, shedding light on the model’s precision and consistency. On the other hand, R² serves as a pivotal indicator of how well the independent variable elucidates the variations in the dependent variable. Equations (11)–(13) delineate the precise methodologies for computing MAE, RMSE, and R², respectively.

$$MAE={\displaystyle \frac{1}{N}}{\displaystyle \sum _{i=1}^N|UC{S}_{predict}-UC{S}_{true}|},$$

(11)

$$RMSE=\sqrt{{\displaystyle \frac{{\displaystyle \sum _{i=1}^N{\left(UC{S}_{predict}-UC{S}_{true}\right)}^2}}{N}}},$$

(12)

$$R^2=1-{\displaystyle \frac{{\displaystyle \sum _{i=1}^N{\left(UC{S}_{true}-UC{S}_{predict}\right)}^2}}{{\displaystyle \sum _{i=1}^N{\left(UC{S}_{true}-\overline{UC{S}_{true}}\right)}^2}}},$$

(13)

3. Methodology

3.1. Workflow of the Current Research

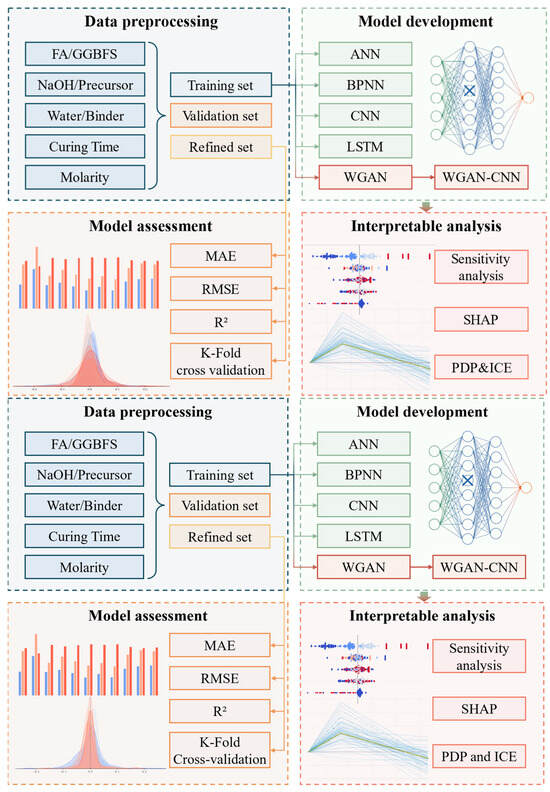

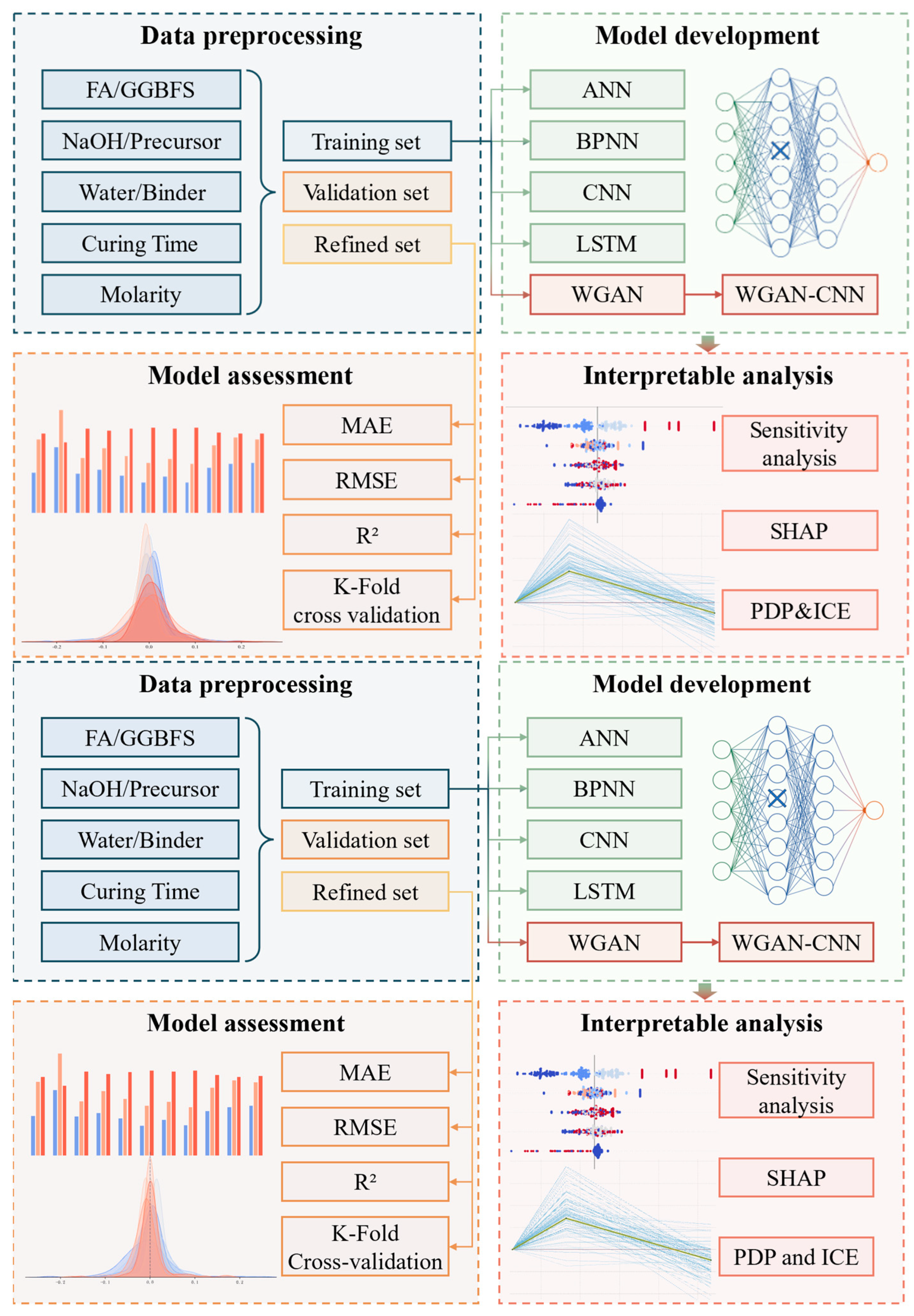

The framework of the current study was divided into four parts, data processing, model development, model assessment, and interpretable analysis, as illustrated in Figure 6.

In the data processing section, to mitigate the effect of different scales, the collected dataset was first standardized using Z-score normalization, as shown in Equation (14). The original real data were then divided into a training set and validation set at the ratio of 9:1. In addition, the mean UCS for the parallel samples with the same mixing proportion in the original real data was defined as the refined set. In the model development part, five different DL models were constructed: ANN, BPNN, CNN, LSTM, and WGAN-CNN. Notably, the WGAN-CNN model involved the synthetic samples generated by WGAN, which were added into the training set for the CNN model. For model assessment, three evaluation metrics (MAE, RMSE, and R²) and the K-Fold cross-validation method were employed. In the interpretable analysis section, the best-performing DL models were further analyzed by the three types of interpretable methods (sensitivity analysis, SHAP, and PDP) to further validate the feasibility of the DL models in the prediction of the mechanical properties of the OPG-stabilized soil.

$$X_i={\displaystyle \frac{\left(x_i-\mu \right)}{\sigma }},$$

(14)

where $X_i$ is the $i$th input after normalization, $x_i$ is the $i$th input, $\mu$ represents the sample mean, and $\sigma$ represents the sample standard deviation. Standardizing the data allows them to be mapped to a range centered around zero for easier processing alongside other data.

3.2. Data Collection

The data utilized in this study originated from the laboratory experiments conducted by our study team. Initially, a solid alkali activator (NaOH), water, and binary precursors (GGBFS and FA) were blended to create the one-part geopolymer (OPG) paste. Subsequently, the OPG paste was cast into the remolded soil. The strength development of the OPG-stabilized soil was primarily influenced by the quantities of FA, GGBFS, NaOH, and water, since the one-part method was adopted in present study. Thus, the input variables for DL models were defined as the mass ratios for FA/GGBFS, NaOH/precursor, and water/binder. To investigate the impact of the alkaline concentration on the stabilized soil’s strength, the molarity was also selected as an input variable in this study. Equation (15) illustrates the calculation of the molarity for the one-part geopolymer. After the casting process, the OPG-stabilized soil samples were subjected to standard curing conditions for durations of 3, 7, 14, and 28 days prior to conducting the UCS tests. Consequently, the curing time was included as an input parameter, and the UCS of OPG-stabilized soil served as the output. In current study, at least three samples for each design mixture were conducted. Therefore, a total of 390 data points were obtained from the experiment.

$$Molarity={\displaystyle \frac{n_{NaOH}}{V_{NaOH}}}={\displaystyle \frac{m_{NaOH}/M_{NaOH}}{m_{NaOH}/{\rho }_{NaOH}}},$$

(15)

where $m_{NaOH}$ represents the mass of solid NaOH. $M_{NaOH}$ represents molar mass of NaOH. $n_{NaOH}$ represents the molar concentration of NaOH. $V_{NaOH}$ represents the amount of NaOH. ${\rho }_{NaOH}$ represents the density of the NaOH solution.

The statistical description of the dataset is presented in

Table 2. Statistical description of inputs and output.

Type	Variable	Standard Deviation	Mean	Min	Max
Independent	FA/GGBFS	0.120	0.134	0	0.43
	NaOH/Precursor	0.034	0.151	0.1	0.2
	Water/Binder	0.084	0.620	0.5	0.7
	Curing time (days)	8.103	11.318	3	28
	Molarity (mol/L)	0.663	4.754	3.27	8.33
Dependent	UCS (MPa)	0.638	1.229	0.1	3.282

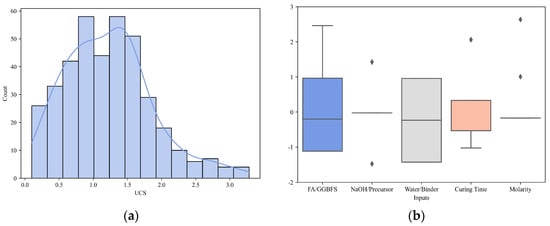

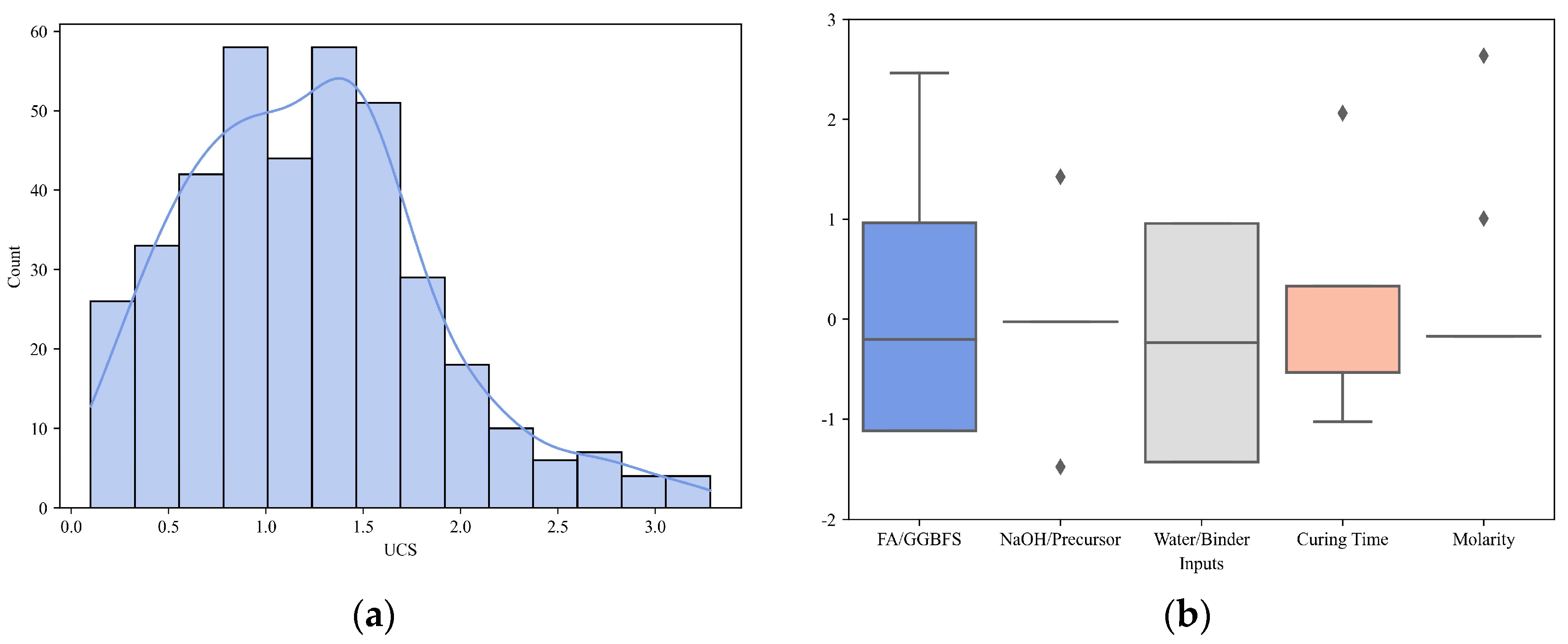

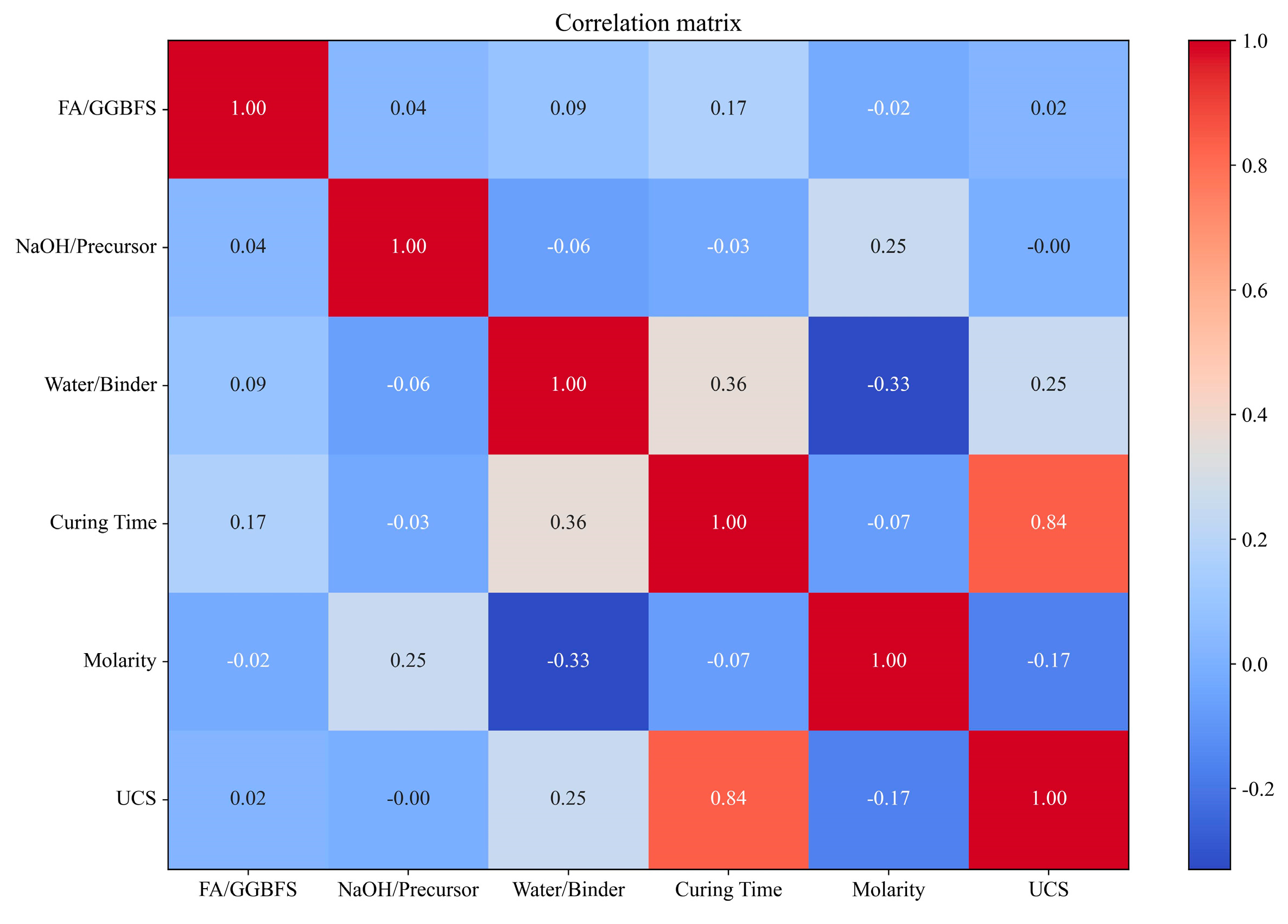

, with corresponding visual representations in Figure 7 (histogram and box diagram). Figure 7a displays the distribution of UCS in a histogram. Figure 7b illustrates the distributions of the five input variables after standardization. The box diagram in Figure 7b shows that the distributions of NaOH/precursor and molarity are relatively discrete. The linear correlation coefficient was computed to clarify the relationships among the variables, as presented in Equation (16) and illustrated in Figure 8.

$$Corr\left(X,Y\right)={\displaystyle \frac{cov\left(X,Y\right)}{S{D}_{X}S{D}_Y}}={\displaystyle \frac{\left[{\displaystyle \sum _{i=1}^n\left(X_i-\overline{X}\right)\left(Y_i-\overline{Y}\right)}\right]/\left(n-1\right)}{\sqrt{Var\left[X\right]Var\left[Y\right]}}},$$

(16)

where $cov\left(X,Y\right)$ is the covariance of $X$ and $Y$. $Var$ is the variance. $SD$ denotes the standard deviation.

4. Results and Discussion

4.1. Performance of the DL Models

The study was executed on a Windows operating system, employing Python programming within the Visual Studio Code platform. In terms of training time, the WGAN model required the most extensive training duration, while the CNN and LSTM took slightly longer than the BPNN and ANN.

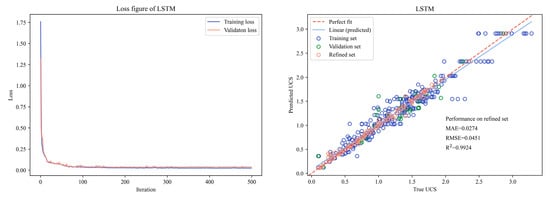

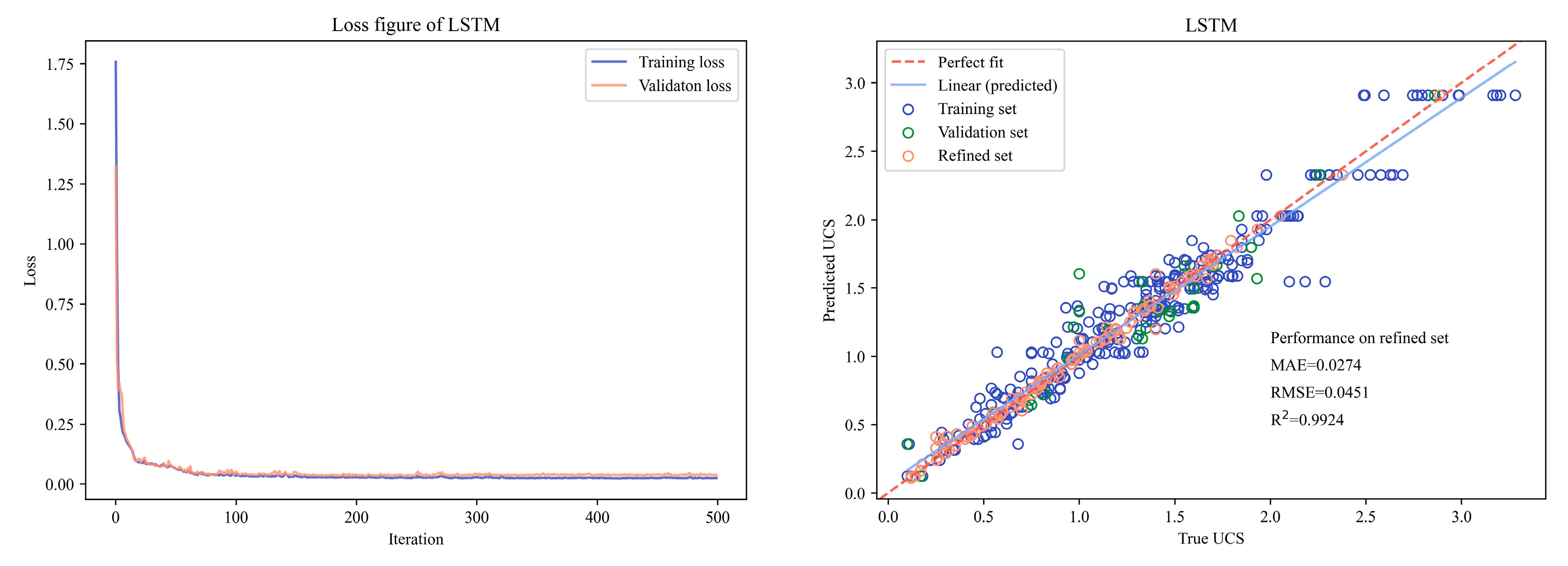

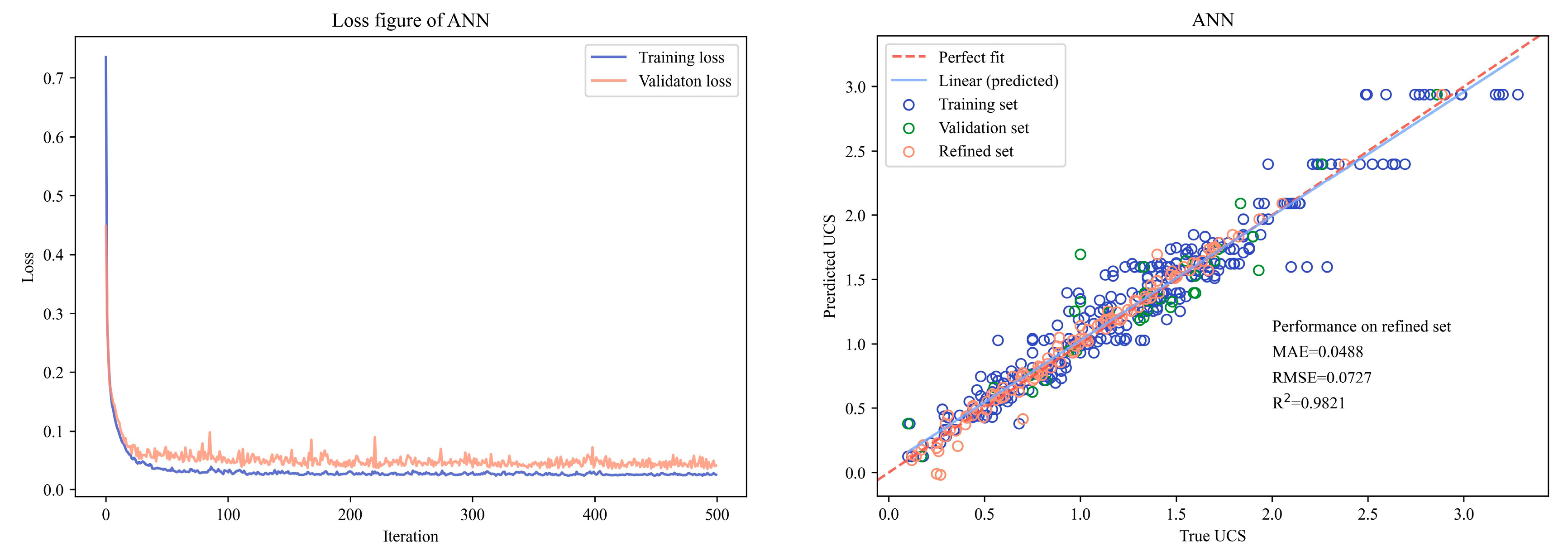

The performance results and error analyses of the four DL models are shown in Figure 9, Figure 10, Figure 11, Figure 12, Figure 13 and Figure 14. From the loss figures in Figure 9, Figure 10, Figure 11 and Figure 12, it can be observed that the loss functions of all four DL models converged. In comparison to the other models, the loss figure of the ANN in Figure 9 shows that the loss for the validation set did not completely approach 0, but exhibited some fluctuations. This is likely due to the absence of a backpropagation algorithm in the ANN to adjust the parameters of the preceding neural network units, which caused the model’s predictions for the refined set to not be completely concentrated on the best fit line.

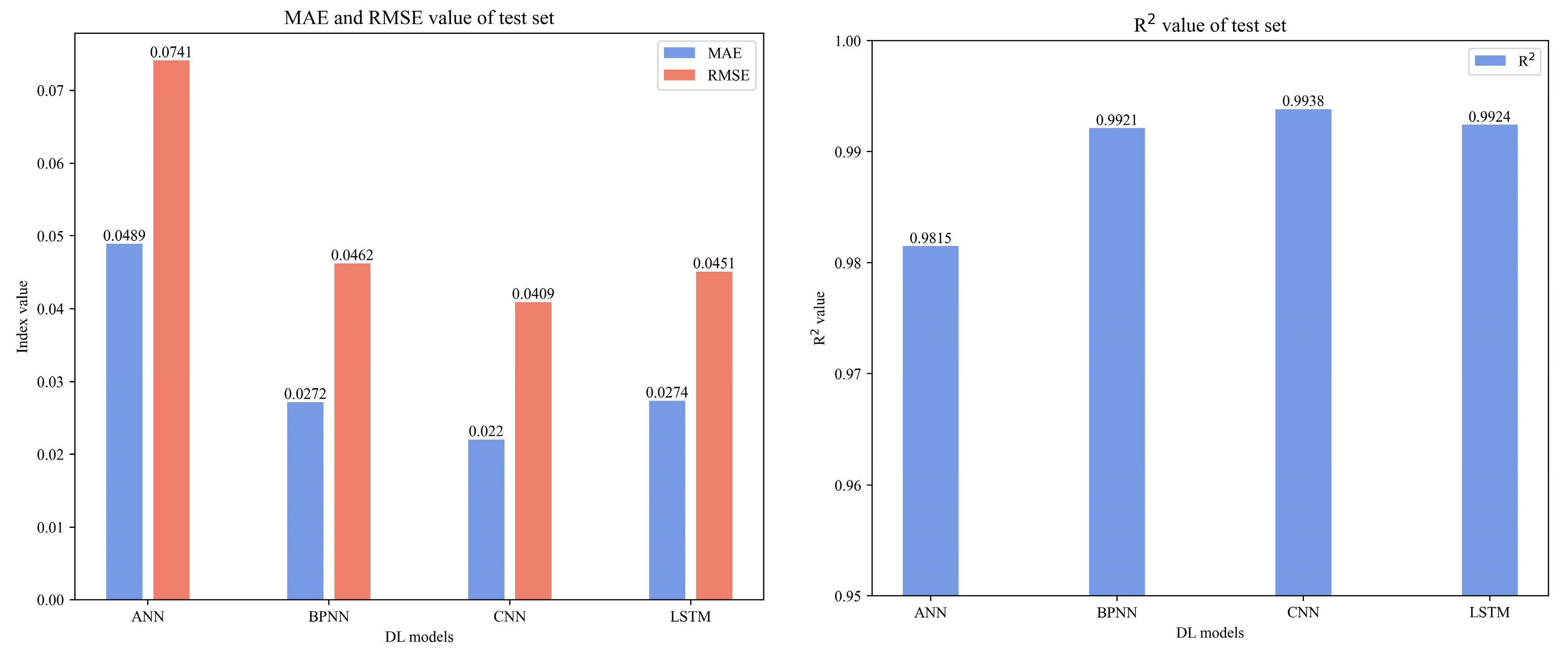

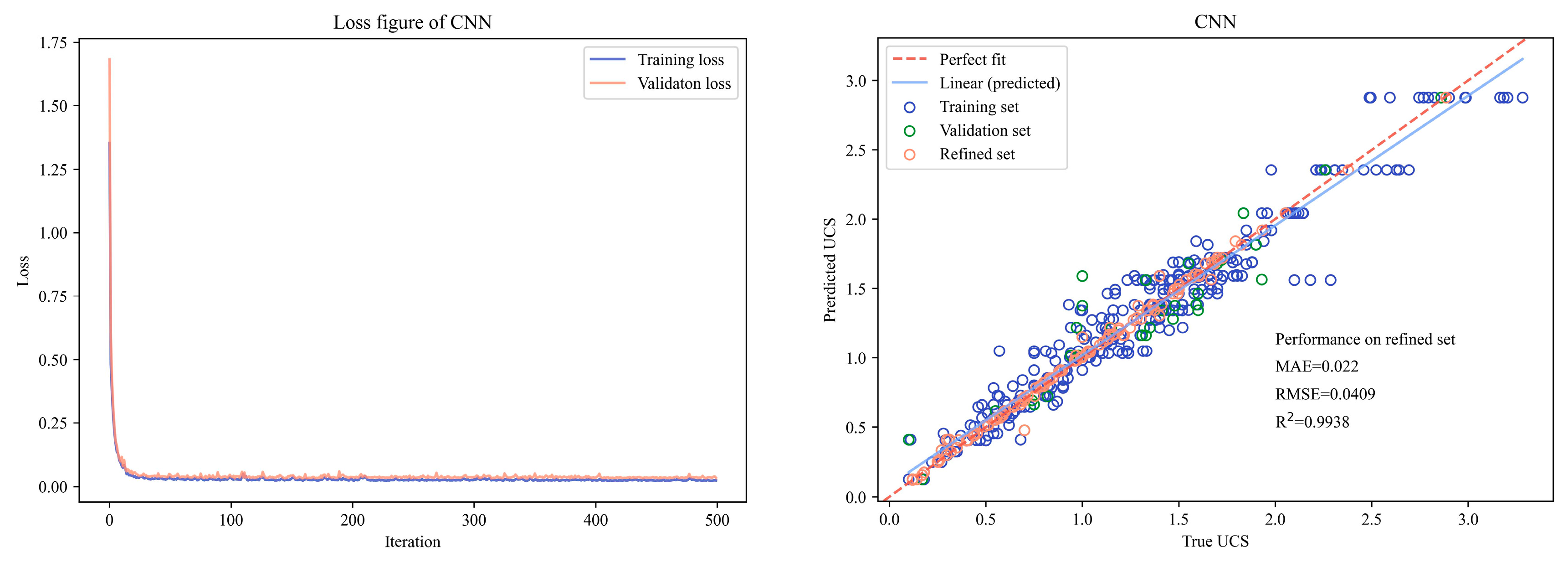

Among all four DL models, the CNN exhibited the best performance (as shown in Figure 11, MAE = 0.022, RMSE = 0.0409, R² = 0.9938), followed by LSTM (as shown in Figure 12, MAE = 0.0274, RMSE = 0.0451, R² = 0.9924) and BPNN (as shown in Figure 10, MAE = 0.0272, RMSE = 0.0462, R² = 0.9921). The linear (prediction) lines in Figure 9, Figure 10, Figure 11 and Figure 12 represent the linear regression of the predicted and actual UCS of original dataset. For the BPNN, CNN, and LSTM models, these lines exhibited some deviation from the best fit line, primarily due to the limited training data for the UCS beyond 2.5 MPa and the presence of experimental errors in the samples. However, when adopting the mean UCS for the same mixing group as the refined set for DL models, the predictions from the DL models aligned with the best fit line (red dot line in the figures), indicating that the models did not exhibit overfitting and performed well in predicting the mean UCS for each group. Furthermore, the CNN, BPNN, and LSTM developed in the current study were capable of mitigating sample errors. The LSTM outperformed the BPNN in terms of R² and RMSE, but the BPNN had a lower MAE value than that of the LSTM, implying that the recurrent computation in the LSTM leaded to fewer outlier values during the prediction process and was less susceptible to the influence of input outliers.

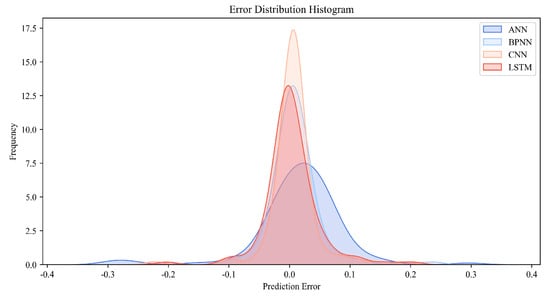

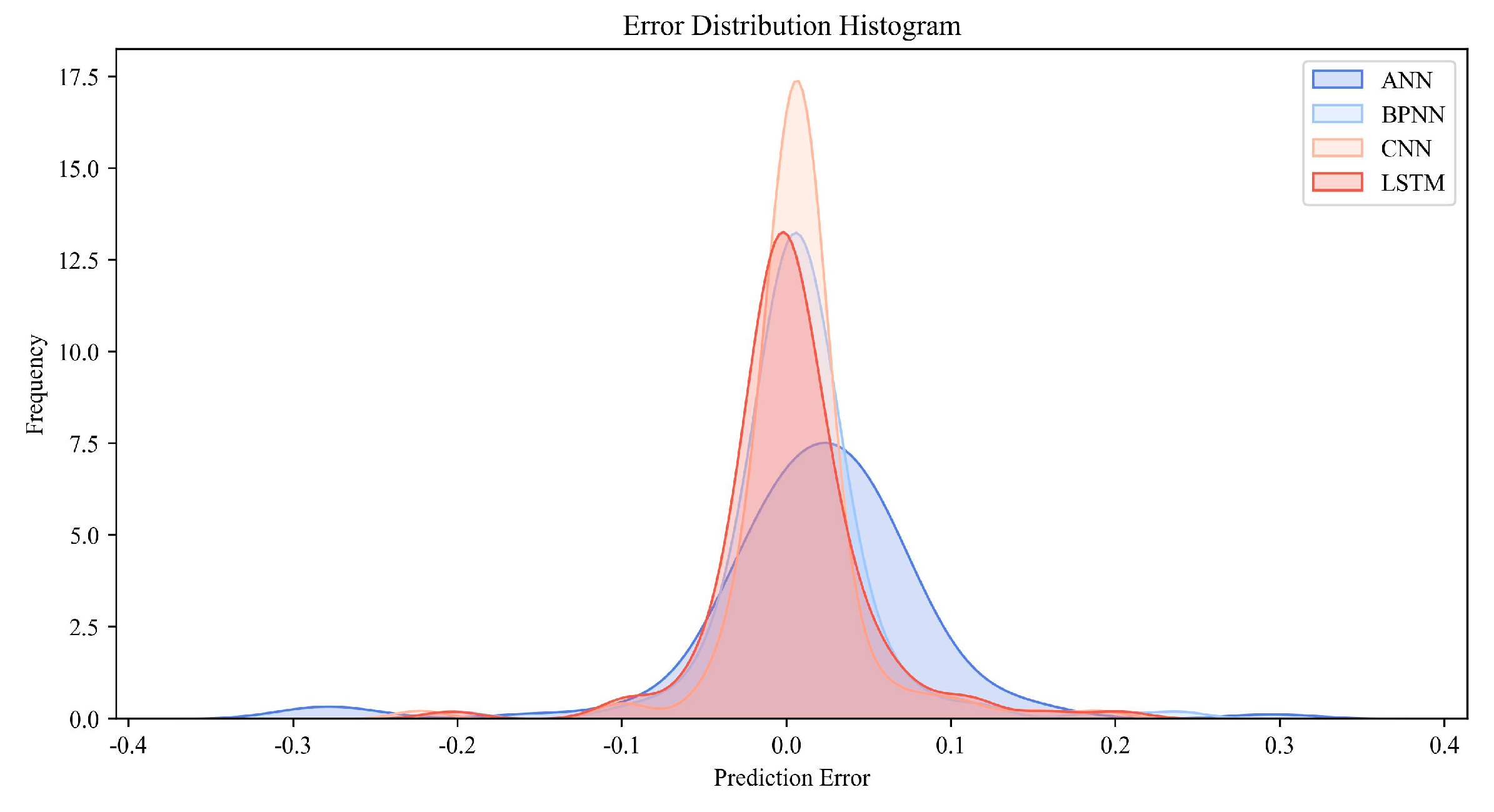

The Kernel Density Estimation (KDE) plots of the four models, which are presented in Figure 14, can be used to analyze the distribution of errors for each model. It is evident that the errors for the CNN model were most concentrated around 0, followed by the LSTM, which had smaller errors compared to the BPNN, and the ANN gave the largest errors among the four models. Based on the above analysis, the CNN model had better performance than the other DL models in the present study.

4.2. Performance of WGAN-CNN

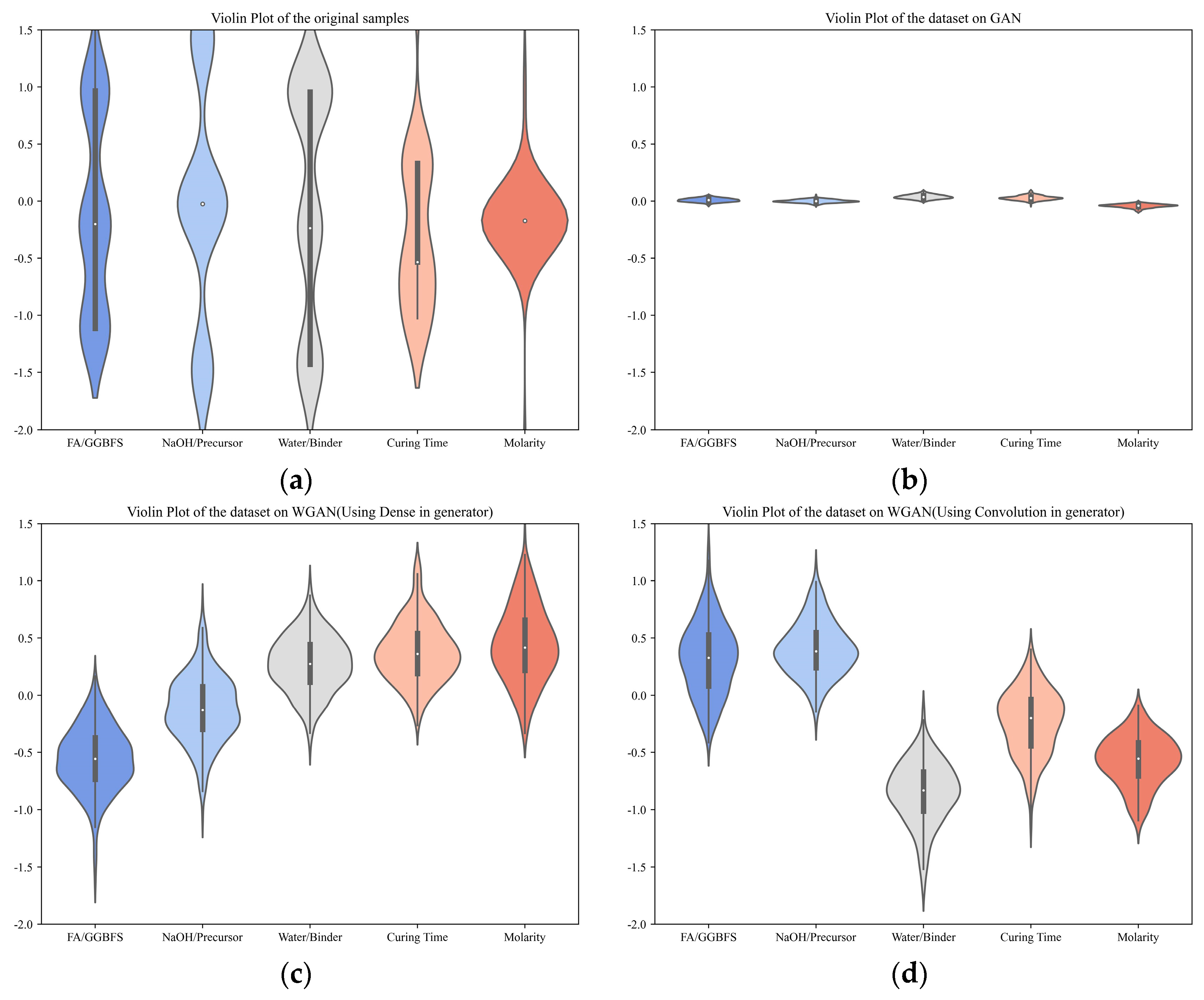

Firstly, standardized preprocessing was applied to the source data, and then violin plots were generated using synthetic samples distributed by GAN and WGAN (Dense layers [118] and Convolutional layers [85]), as shown in Figure 15. The distribution of input variables in the original dataset is shown in Figure 15a. Based on Figure 15b, it can be observed that using GAN alone induced model collapse, in which the generated synthetic samples were concentrated within a small range and failed to effectively capture the distribution of the original data samples. At the same time, the WGAN generator with Dense layers, as shown in Figure 15c, can extract more diverse features, and the WGAN generator with Convolutional layers, as shown in Figure 15d, can capture a complementary distribution. Obviously, the combination of the generator with dense and Convolutional layers can have more comprehensive, synthetic data, compensating for the lack of distribution in some ranges. Taking the input variable of curing time as an example, the original data only included the UCS at 3, 7, 14, and 28 curing days. Through the combination of the synthetic data from the WGAN generators with Dense and Convolutional layers, the data for the UCS within a month can be obtained, further expanding the distribution for the training set.

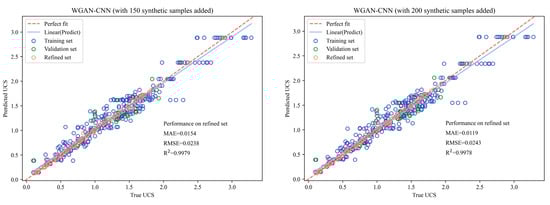

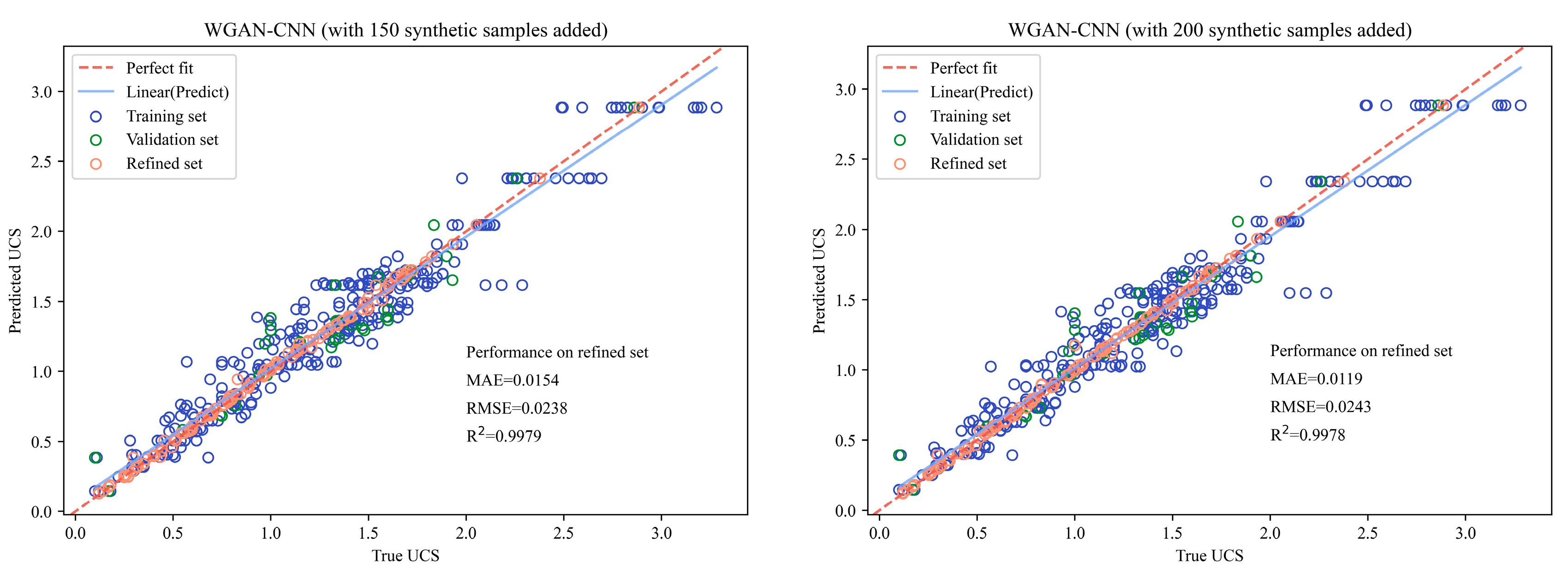

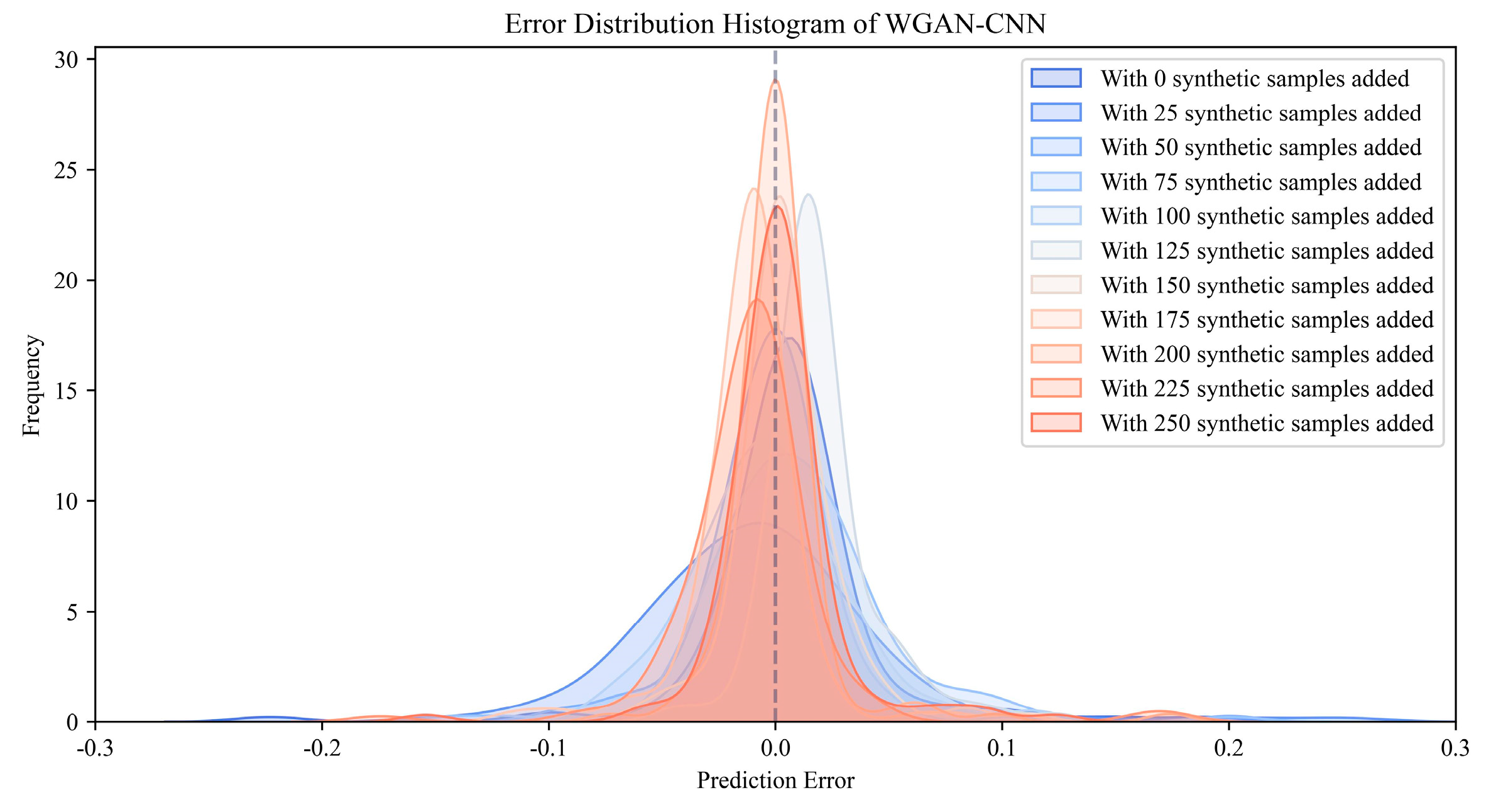

Hence, in present study, the synthetic samples used to augment the training set were composed of samples generated by two different WGAN generators (Dense layers and Convolutional layers). By assigning a fixed random seed, the synthetic data were randomly sampled for each group of CNN training. Different synthetic samples were added to the original training set while keeping the refined set unchanged, resulting in the outcomes shown in Figure 16 and Figure 17. It can be observed that the performance of the WGAN-CNN models was obviously improved when 100 to 200 synthetic samples were added in the training set. Particularly, the WGAN-CNN models with 150 and 200 groups of synthetic samples provided excellent results, in which the R² values approached 0.9979 and 0.9978, respectively. Additionally, the corresponding MAE values were 0.0154 and 0.0119, and the RMSE values were 0.0238 and 0.0243, respectively. According to the KDE plot illustrated in Figure 17, the WGAN-CNN model trained with 200 synthetic samples exhibited the optimum performance, with the errors being concentrated at zero. The scatter plots with linear fit lines are shown in Figure 18, which compared the predicted UCS values from these two WGAN-CNN models with the actual UCS values. It can be observed that the scatter points of the WGAN-CNN model with 200 synthetic samples were closer to the perfect fit line. Thus, it can be concluded that the performance of the WGAN-CNN model with 200 synthetic samples was slightly better than that of the model with 150 synthetic samples. In the subsequent sections, the term “WGAN-CNN” refers to the WGAN-CNN model with the incorporation of 200 WGAN-generated synthetic samples.

4.3. Interpretable Analysis

4.3.1. Results of Sensitivity Analysis

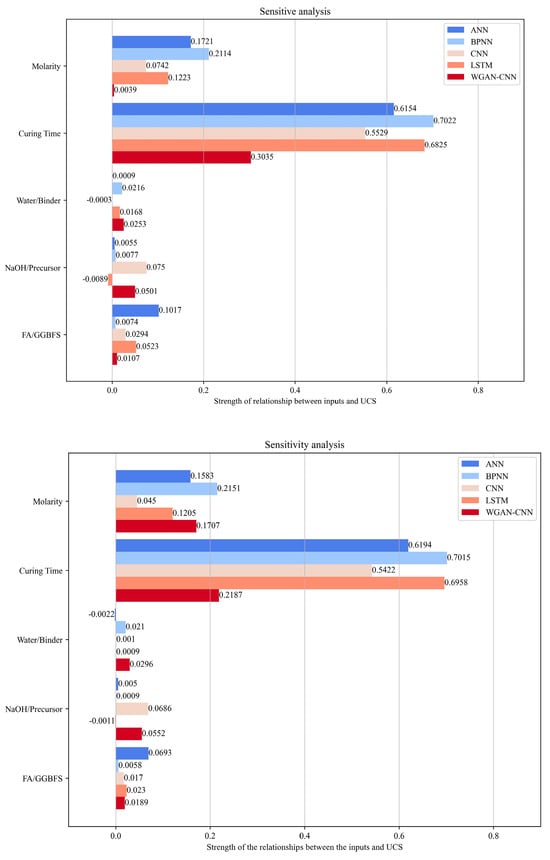

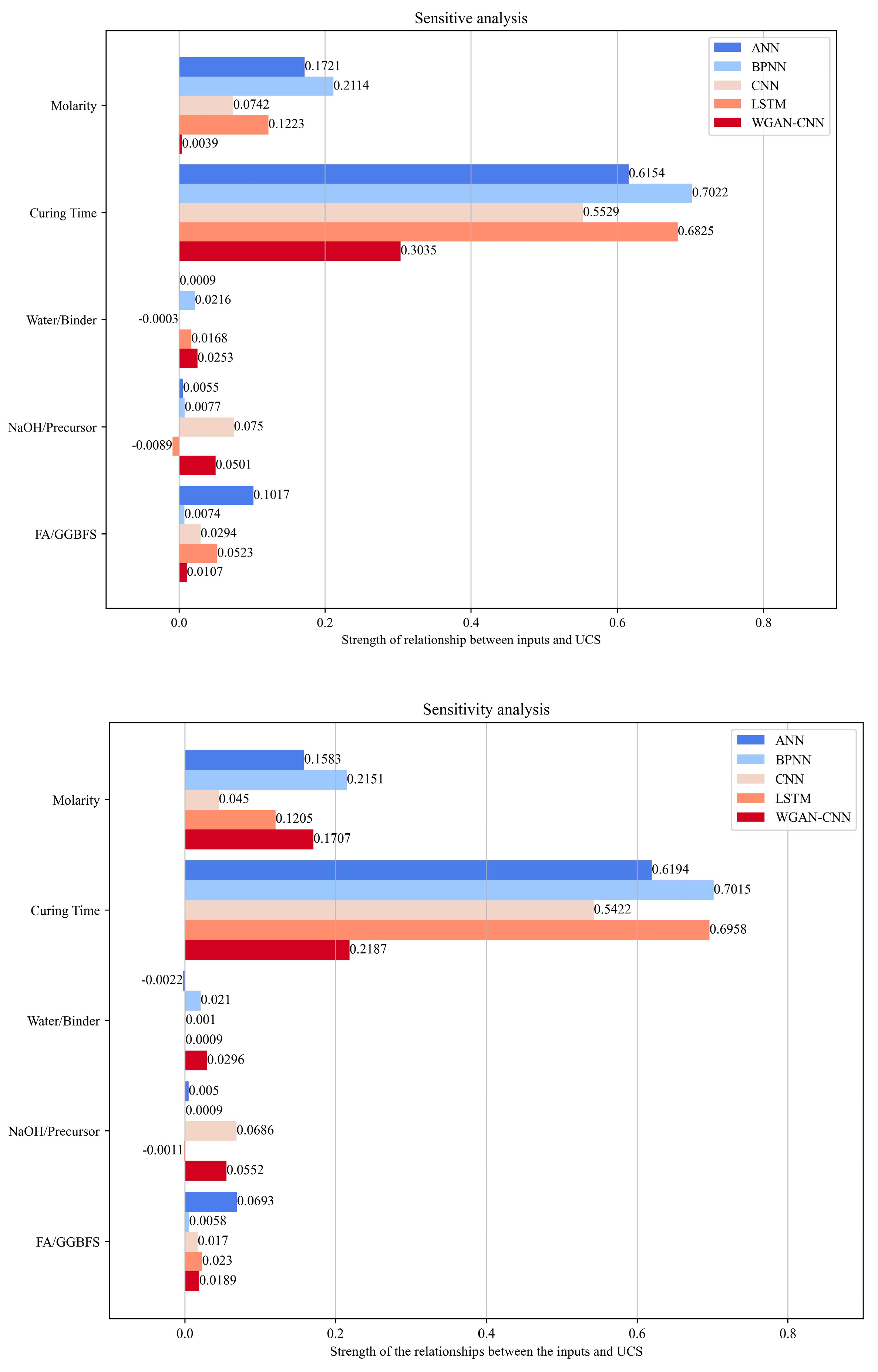

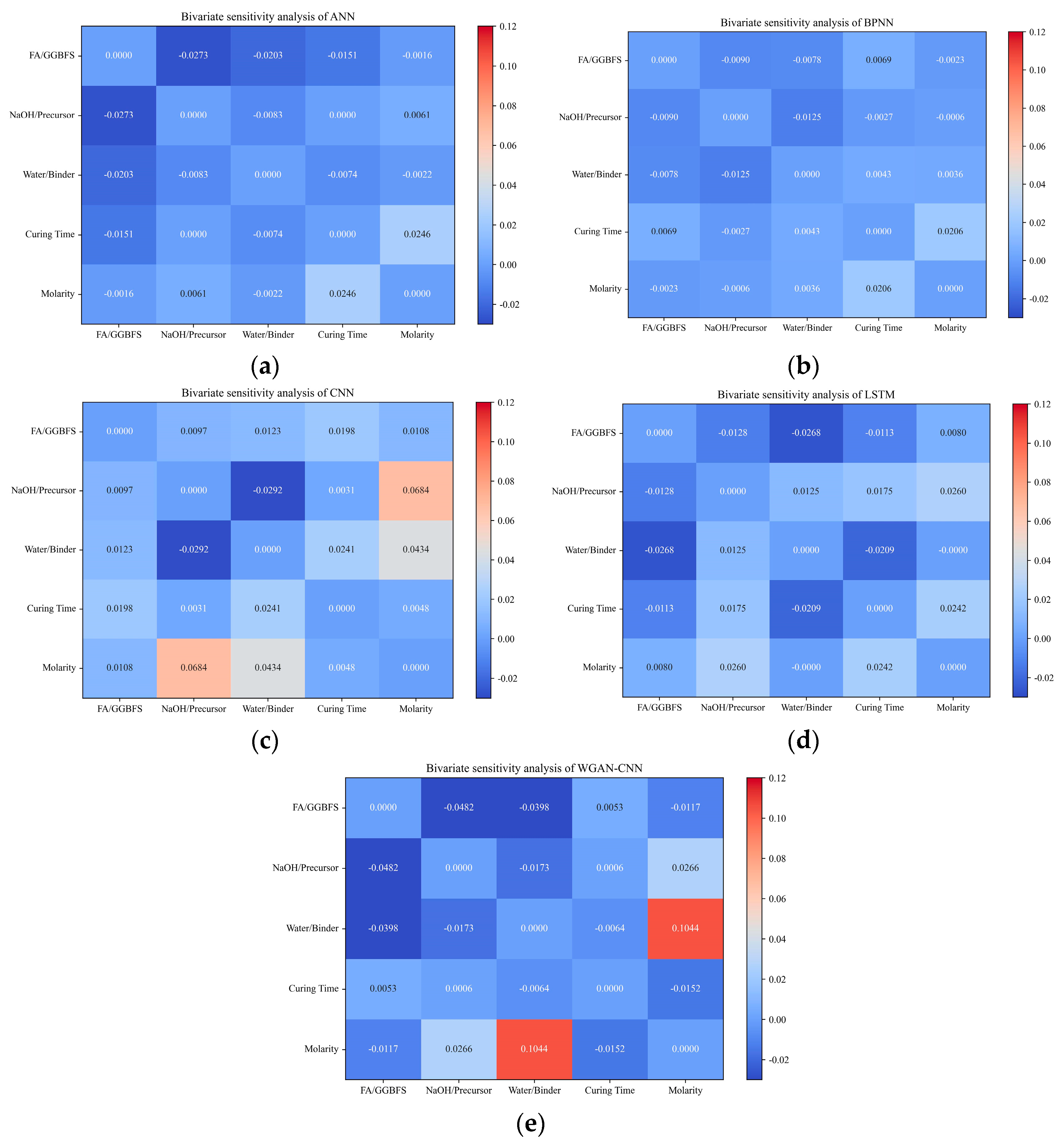

First-order and second-order sensitivity analyses were conducted on the five DL models, and the corresponding results are shown in Figure 19 and Figure 20, respectively. Based on the first-order sensitivity analysis, as given in Figure 19, all models indicted that the most important feature of the UCS prediction was the curing time. The top-performing CNN and WGAN-CNN models showed a consistent ranking of influencing factors, with only slight differences in the rankings of water/binder and molarity, which were placed third and fifth, respectively.

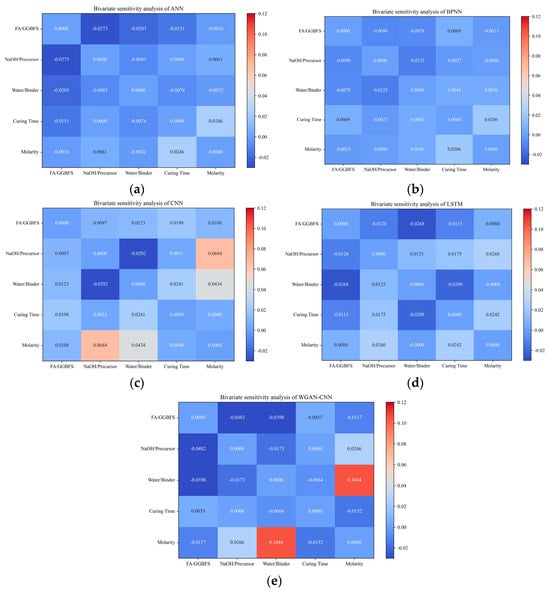

The second-order sensitivity analysis revealed the interactions between inputs and their impacts on the UCS. The sensitivity analyses in Figure 20a,b,d did not exhibit significant interaction relationships. From Figure 20c,e, it can be observed that both the CNN and WGAN-CNN models demonstrated that the interaction between water/binder and molarity had a significant impact on the UCS. However, the sensitivity analysis only identified the degree of influence by varying the input parameters and could not reveal the nonlinear relationship between the input variable and the output. Therefore, more robust interpretability methods such as SHAP and PDP were adopted in the following analyses.

4.3.2. SHAP Results

In the interpretability analysis, the focus was on examining the CNN and WGAN-CNN models with superior performance. The SHAP values were calculated and visualized in Figure 21 and Figure 22.

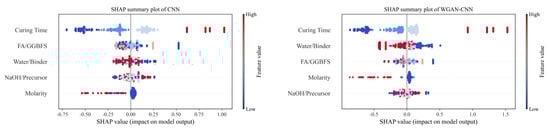

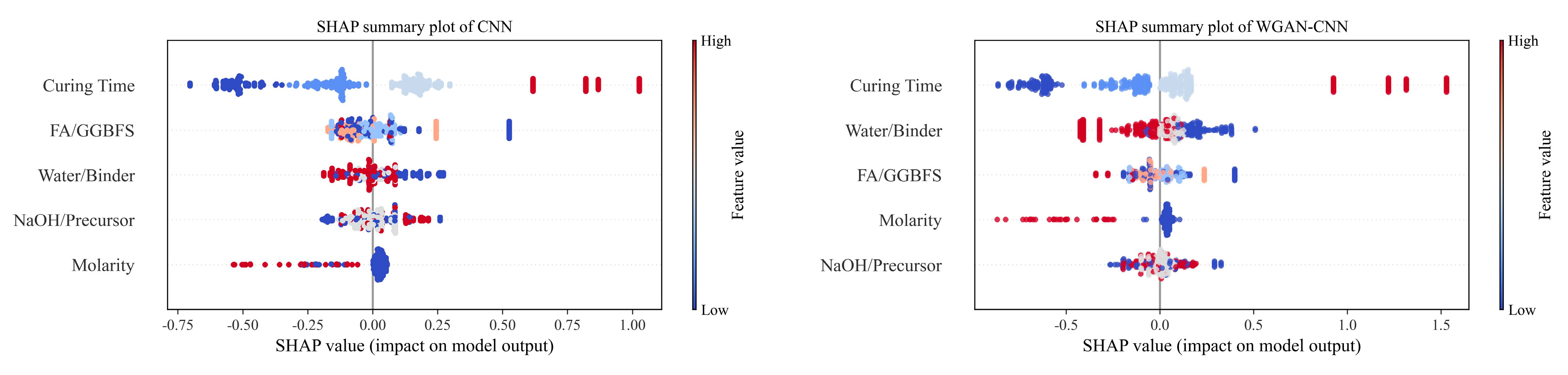

As depicted in Figure 21, the SHAP global analysis revealed that the two DL models yielded essentially identical SHAP values and global interpretations. The difference occurred in the sequence of the second-to-third and third-to-fourth rankings. This finding resonated with previous research indicating that the SHAP value increased when the curing time increased, signifying the improvement of the UCS. Furthermore, Figure 8 indicated a strong linear correlation coefficient between the UCS and curing time, further implying that the curing time could be a crucial factor in the development of UCS of the samples. As shown in Figure 21, the trend between the SHAP value and FA/GGBFS did not demonstrate a complete negative correlation. This suggested that FA/GGBFS within a lower range could improve the UCS. Similarly, lower values of molarity, as depicted by the SHAP values concentrating around 0.1, were found to have a positive impact on UCS as well. Conversely, the water/binder variable generally displayed a negative correlation with the UCS. The NaOH/precursor ratio exhibited relatively low SHAP values, making it difficult to establish a direct relationship with the UCS.

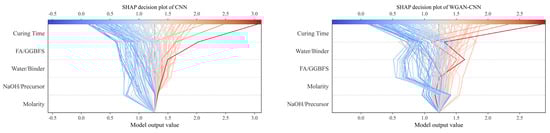

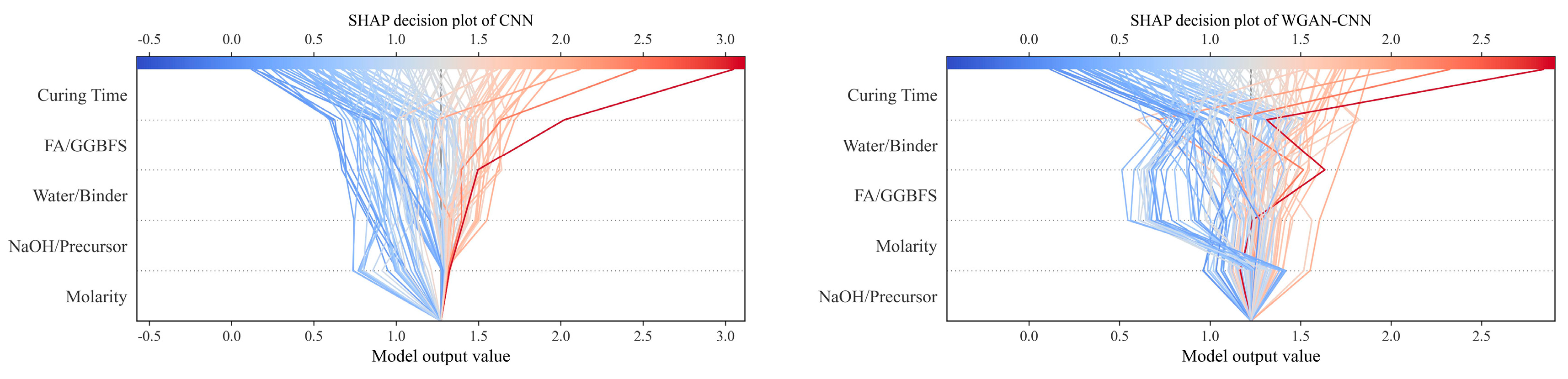

The decision plots for the two models, presented in Figure 22, illustrate the influence of the inputs on the models’ outputs for all samples. The x-axis depicts the direction and trend of the effect of each feature on the output, and the plot can also detect outlier samples.

Through the SHAP interaction analysis, the changes in SHAP values for one input feature interacting with another can be obtained. As shown in Figure 23, Figure 24 and Figure 25, the trends of the CNN and WGAN-CNN models in the SHAP analysis were generally consistent. By examining the interaction plot of the curing time with other factors in Figure 23, it is evident that due to the overall increase in scatter distribution with the increase in curing time, the input of curing time was found to be the dominant factor. From Figure 23a, c, it can be inferred that at lower values of the curing time (below 10 days), higher FA/GGBFS and water/binder ratios induced a decrease in the SHAP value for the curing time. Figure 23b indicates that when the curing time exceeds 15 days, a NaOH/precursor ratio greater than 0.15 increased the SHAP value of the curing time. As illustrated in Figure 23d, it is noticeable that beyond 20 days of curing time, higher molarity caused a reduction in the SHAP value for the curing time, and vice versa. This observation suggested that a certain NaOH/precursor ratio accelerated the hydration in the sample at an early curing age, implying that the UCS trend of the soil increased fast at the early curing time.

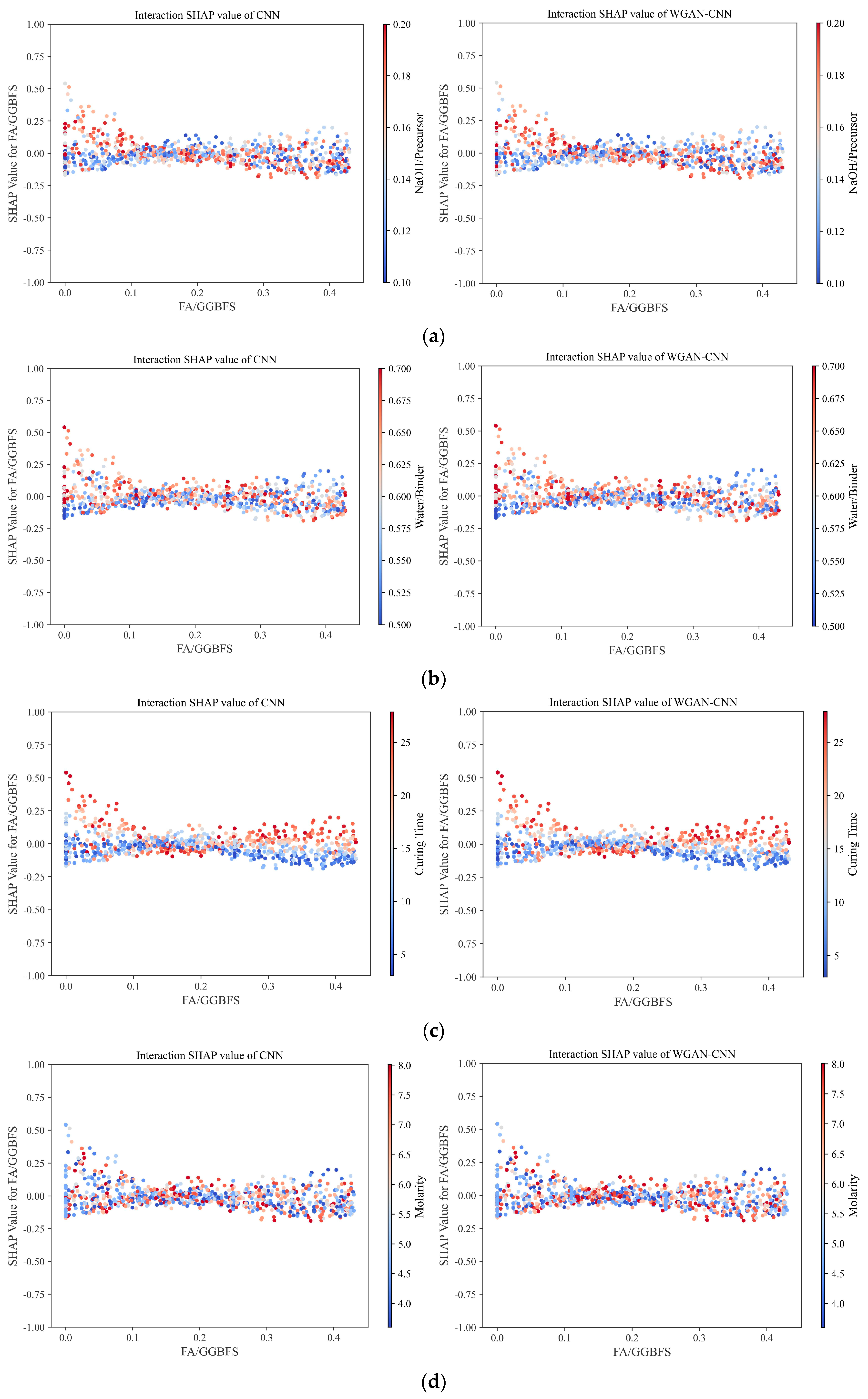

In Figure 24a, with the increase in NaOH/precursor, the SHAP value of FA/GGBFS below 0.2 increased, indicating an improvement of the UCS. Conversely, the SHAP value of FA/GGBFS above 0.2 decreased as the NaOH/precursor increased. This phenomenon was primarily attributed to the higher NaOH content in the OPG that activated more Ca and Si components in the precursor, leading to the formation of numerous hydrated areas in the soil.

Figure 24b revealed that when FA/GGBFS was less than 0.3, a higher water/binder ratio resulted in an increase in the SHAP value of FA/GGBFS. This is due to the fact that a lower water content made it more difficult for the OPG binder and soil to mix evenly, which decreased the UCS.

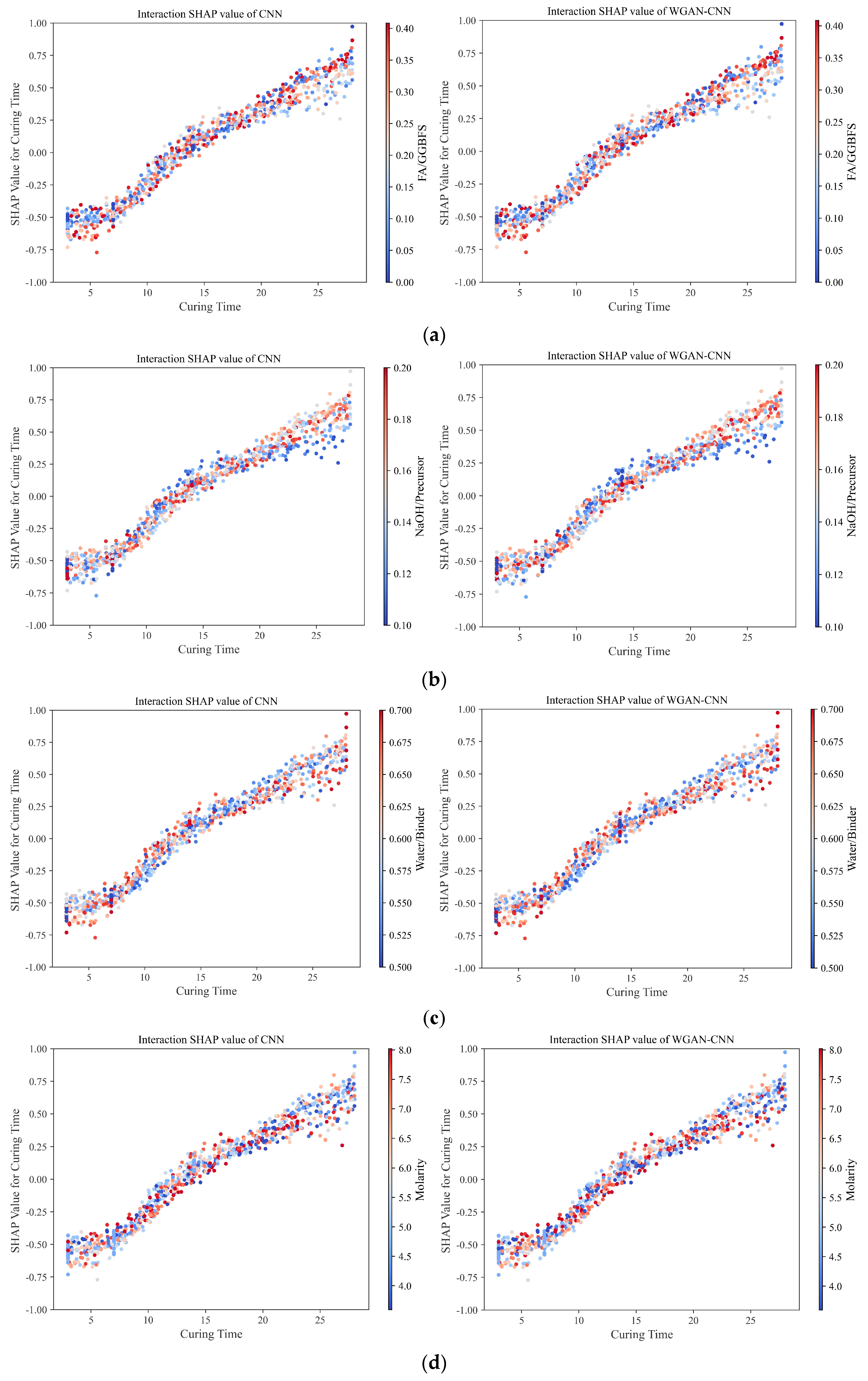

Figure 24c illustrates the impact of curing time variations on FA/GGBFS. It is observed that FA/GGBFS in the range of 0.12 to 0.25 might reduce the model’s dependence on the curing time to some extent, in which an increase in the curing time led to a reduction in the SHAP value of FA/GGBFS. However, when the FA/GGBFS was beyond 0.25, an increase in the curing time induced an increase in the SHAP value of FA/GGBFS. This might be possible because the optimal addition of FA enhanced the workability of the OPG binder, ensuring the more uniform spread of the binder in the soil. Additionally, the existence of FA participated in secondary pozzolanic reaction during later curing times, thereby enhancing the UCS of the stabilized soil.

Figure 24d demonstrates the effect of molarity variations on the SHAP value for FA/GGBFS. When FA/GGBFS ranged between 0.12 and 0.25, higher molarity could increase the SHAP value for FA/GGBFS. The findings aligned with the understanding that a lower molarity may not effectively catalyze the aluminosilicate components in FA and GGBFS to produce hydration gels, inducing a limited contribution to the improvement of the UCS of the stabilized soil. Conversely, a higher molarity could lead to a rapid release of Ca and Si ions from FA and GGBFS, thereby decreasing the OPG binder’s setting time. In this case, the soil particles may not be efficiently connected by the hydration gels from the binder [12,80].

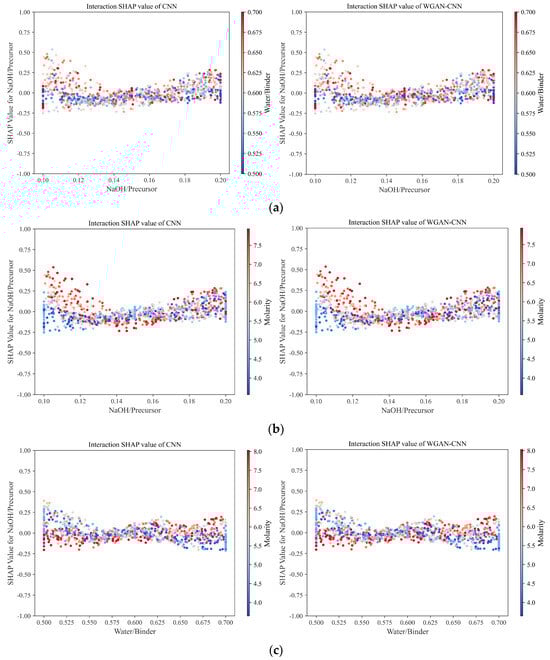

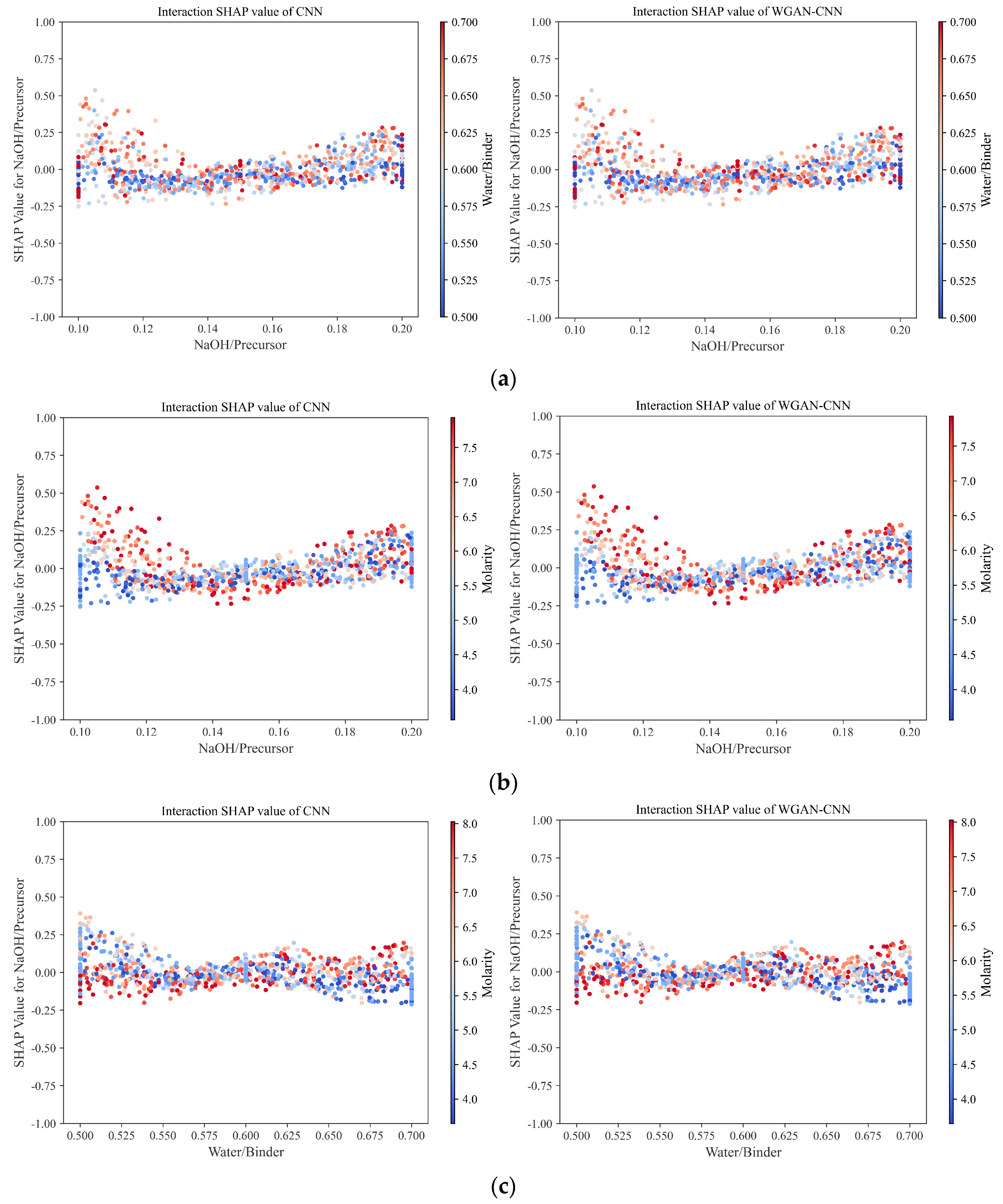

In Figure 25a, it is shown that when the NaOH/Precursor exceeded 0.14, a decrease in the water/binder led to an increase in the SHAP value for NaOH/precursor. This is because, for a specific amount of NaOH, a lower water content led to a higher concentration of the NaOH solution, which enhanced geopolymerization in OPG binder. Figure 25b,c reveals that with an increase in molarity, both the SHAP values for NaOH/precursor and water/binder exhibited a concave curve. This trend suggested that an excessively high or low molarity of the NaOH solution did not significantly enhance the properties of the soil. The OPG binder has an ideal molarity for fixed precursor or binder contents.

4.3.3. PDP Results

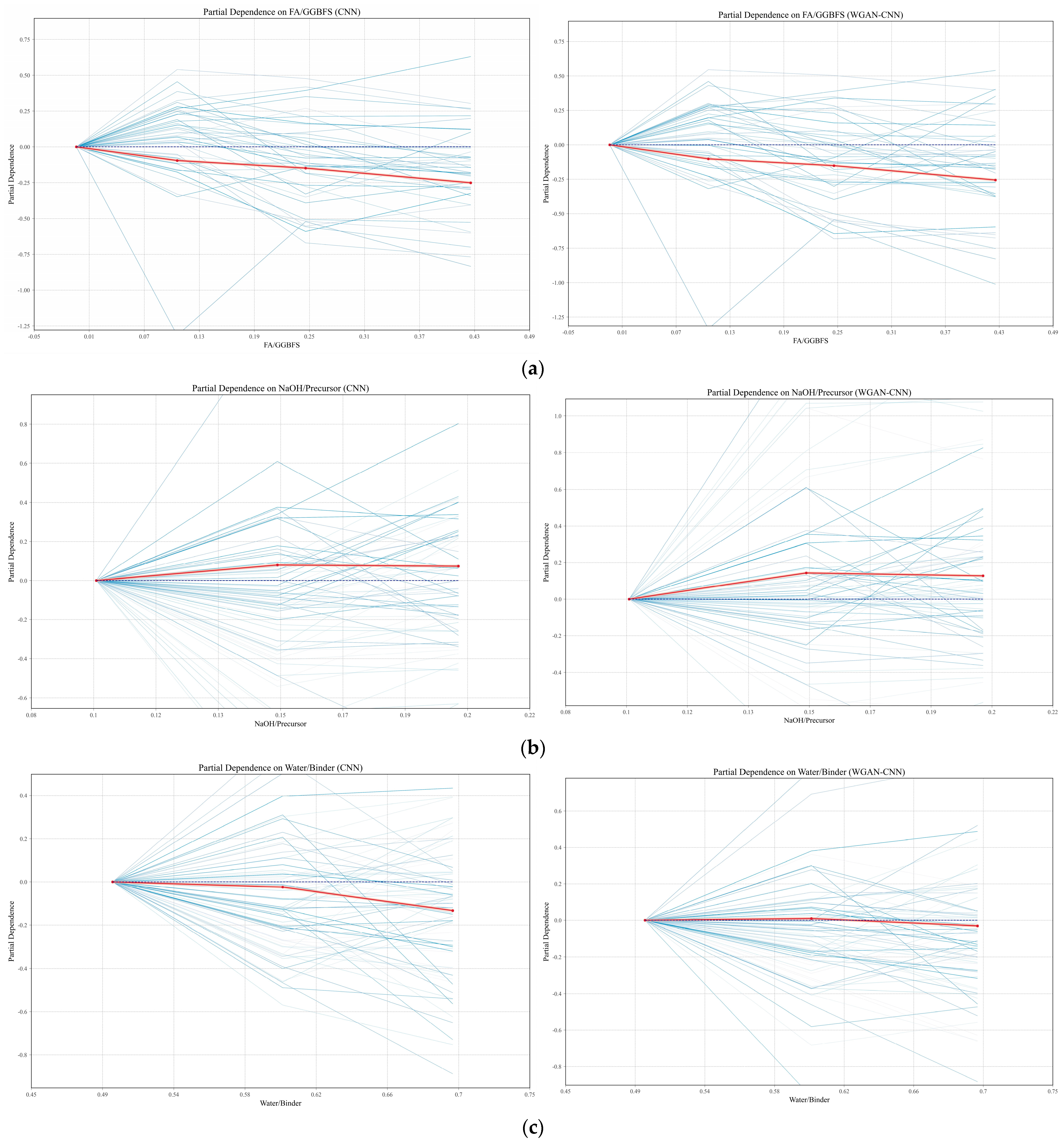

The analysis of 1D Partial Dependence Plots (PDPs) for the CNN and WGAN-CNN models is depicted in Figure 26. It is evident that the 1D PDP tendency for both DL models demonstrated consistency. It should be noted that the 1D PDP analysis only displayed the average responses (indicated by red line in figures). In order to visualize how the output depends on each input, the Individual Conditional Expectation (ICE) is introduced in the study (indicated by blue lines in the figures) in Figure 26. ICE provided a way to observe the influence of individual features by keeping other variables constant and analyzing how the prediction changed with variations in a single feature. For the current study, 390 samples were used, leading to the creation of 390 ICE lines. ICE, like 1D-PDP, assumed independence among variables, limiting its ability to showcase the effects of interconnected variables on the ultimate prediction of the model.

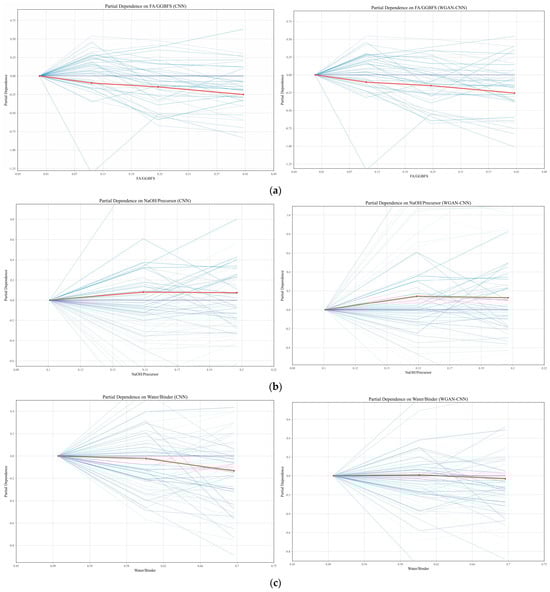

The effect of FA/GGBFS on the partial dependence is reported in Figure 26a. Overall, a slight decrease in partial dependence was observed as FA/GGBFS increased. Particularly, there was a significant decrease in partial dependence as FA/GGBFS increased from 0.25 to 0.43. This phenomenon aligned with previous findings indicating that excess FA increased the soil’s porosity, thereby exerting a detrimental effect on the UCS [12,13,80,81].

In Figure 26b, it is noted that the partial dependence increased when the NaOH/precursor increased within range of 0.1 to 0.15. However, for NaOH/precursor values greater than 0.15, the partial dependence did not change. Notably, the ICE results from both DL models exhibited larger variations for NaOH/precursor at 0.2. This implied that the UCS was responsive to a NaOH/precursor ratio of 0.2.

Figure 26c shows a decreasing trend in partial dependence when the water/binder increased. It was true that for a fixed amount of the precursors, with the increase in water, the concentration of the alkaline solution became lower, which could not effectively activate the Al and Si ions from FA and GGBFS. Under such circumstances, the amount of hydrated gels was less, thereby affecting the strength development of the UCS of the sample.

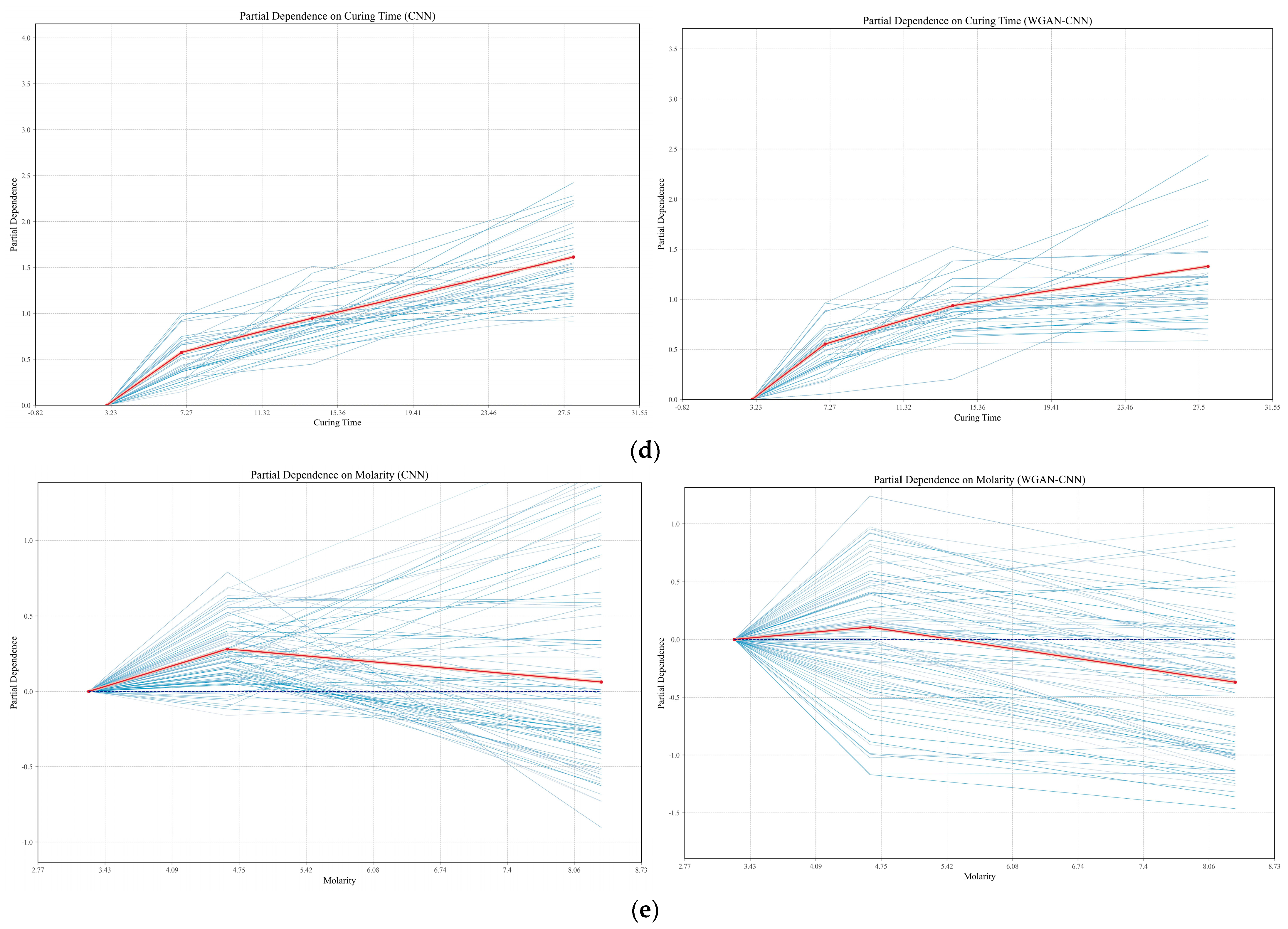

In Figure 26d, a significant increase in partial dependence was observed as the curing time progressed. The ICE lines displayed more significant variations during curing durations of 14 to 28 days relative to 0 to 14 days, indicating that the strength enhancement of soil mainly took place in the later curing period [19].

Figure 26e illustrates a two-stage linear correlation between molarity and the partial dependence. A rise in molarity from 3.27 to 4.64 positively influenced the partial dependence. However, once the molarity surpassed 4.64, further increases led to a reduction in the partial dependence. This could be attributed to the dissolution of Si and Al ions from FA and GGBFS subjected to a highly concentrated NH solution, resulting in the formation of stable N-A-S-H gels. These hydrated gels were stable and could not effectively connect the soil particles, thereby weakening the strength development of the soil.

5. Conclusions

This study first utilized four DL models with different principles to predict the OPG-stabilized soil’s UCS. Then, the WGAN model was employed to learn the distribution of the original dataset and generate additional synthetic data for the training dataset, thereby innovatively enhancing the model’s performance and robustness. Additionally, sensitivity analyses and SHAP and PDP methods were applied to elucidate the inherent mechanisms of the two DL models with higher prediction accuracy. The main conclusions were as follows:

(1)

Four DL models with different principles, constructed based on original data, performed well in predicting the UCS of OPG-stabilized soil. After K-Fold cross-validation, all models achieved an R² above 0.98, with the MAE controlled below 0.0489. Among them, the CNN showed the best performance (MAE = 0.022, RMSE = 0.0409, R² = 0.9938), followed by the LSTM (MAE = 0.0274, RMSE = 0.0451, R² = 0.9924) and BPNN (MAE = 0.0272, RMSE = 0.0462, R² = 0.9921).

(2)

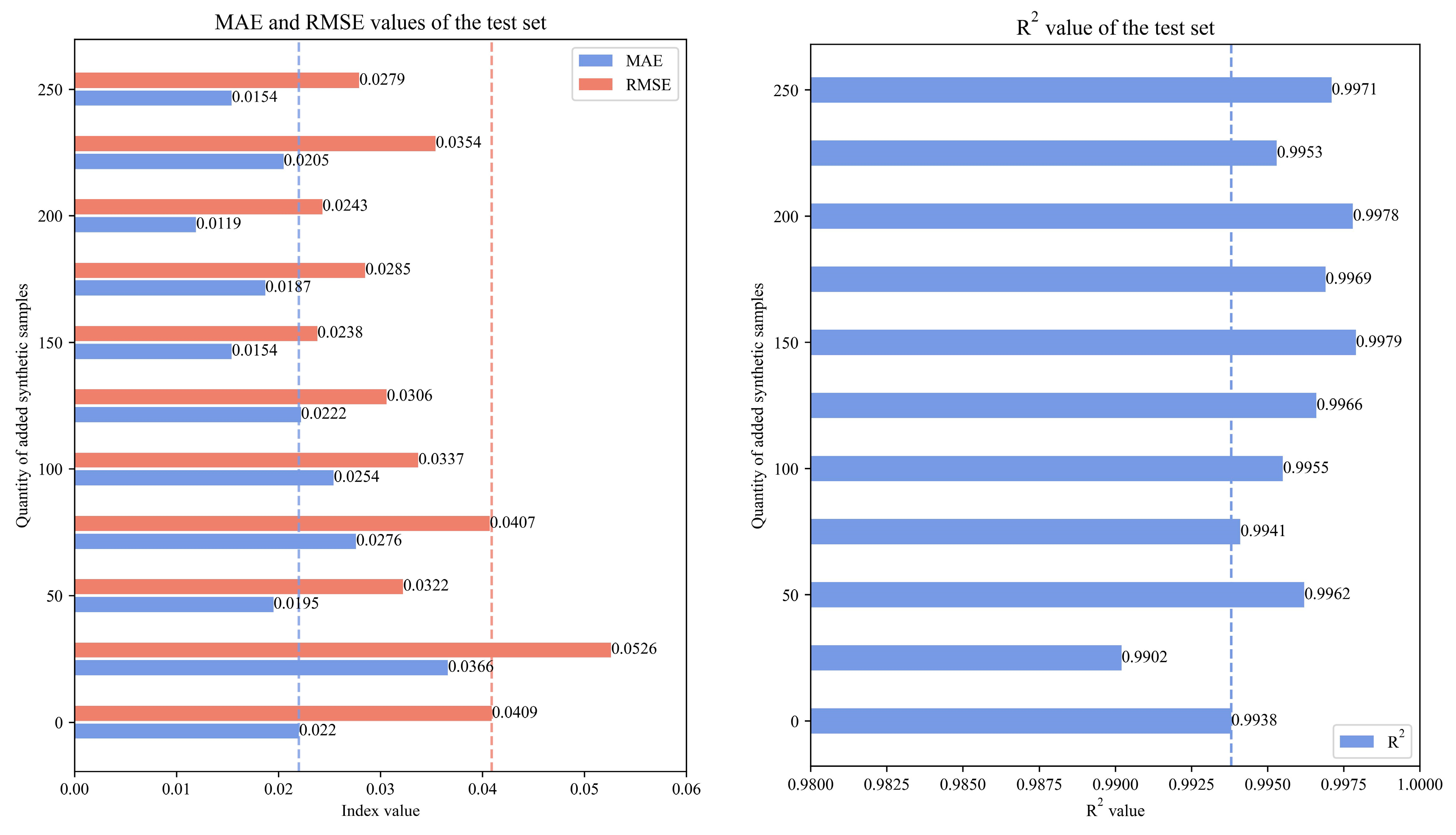

By adding synthetic samples generated by the WGAN models with Dense and Convolutional layers to the training set, the performance of the CNN model improved. The best performance was achieved by the WGAN-CNN model trained with 200 added synthetic samples, in which the R² values reached 0.9978. Therefore, it can be found that in present study, the addition of synthetic data in the training set can significantly improve the accuracy of the DL model. The synthetic data generated by the WGAN models with the combination of the Dense and Convolutional layers can have more comprehensive distributions with high quality.

(3)

Three interpretability analyses (sensitivity analysis, SHAP, and PDP) were conducted on the best-performing CNN and WGAN-CNN models. The results showed that the analyses of both models were essentially the same, identifying the curing time as the most significant factor influencing the UCS. In particular, it was revealed that the UCS of OPG-stabilized soil primarily occurred at later curing times. The moderate addition of FA/GGBFS is beneficial for increasing UCS and holds practical value. The similar observation from the CNN and WGAN-CNN models implied that the DL model with the combined of the real and synthetic data can predict the mechanical properties of OPG-stabilized soil well. The conclusion is that the developed WGAN-CNN model achieved the balance between the resource and accuracy. Moreover, the observation that the WGAN-CNN exhibited the same predictive trend as the CNN based on interpretable methods further validated the effectiveness and rationality of the synthetic data generated by the WGAN model developed in this study.

The limitations of this study lie in the fact that we have only compared various DL models based on differing principles, without employing any optimization algorithms aimed at enhancing the performance of specific models. Furthermore, there remains room for broader considerations regarding the factors influencing UCS, and as the experiments are expanded, the model’s capabilities can be further enhanced.
