Mitigation of Drought Stress for Quinoa (Chenopodium quinoa Willd.) Varieties Using Woodchip Biochar-Amended Soil

by
Muhammad Zubair Akram
1,2,3,
Anna Rita Rivelli
2,
Angela Libutti
4,
Fulai Liu
3 and
Christian Andreasen
3,*
1
Ph.D. Program in Agricultural, Forest and Food Sciences, University of Basilicata, Via dell’Ateneo Lucano 10, 85100 Potenza, Italy
2
School of Agricultural, Forest, Food and Environmental Sciences, University of Basilicata, Via dell’Ateneo Lucano 10, 85100 Potenza, Italy
3
Department of Plant and Environmental Sciences, University of Copenhagen, Højbakkegaard Allé 13, 2630 Taastrup, Denmark
4
Department of Agricultural Sciences, Food, Natural Resources and Engineering (DAFNE), University of Foggia, Via Napoli 25, 71122 Foggia, Italy
*
Author to whom correspondence should be addressed.
Plants 2024, 13(16), 2279; https://doi.org/10.3390/plants13162279
Submission received: 29 July 2024 / Revised: 14 August 2024 / Accepted: 14 August 2024 / Published: 15 August 2024
(This article belongs to the Special Issue Worldwide Evaluations of Quinoa and Amaranth—Biodiversity and Food Security under Climate Change Pressures Volume II)
Browse Figures
Versions Notes

Abstract

:
Drought stress deteriorates agro-ecosystems and poses a significant threat to crop productivity and food security. Soil amended with biochar has been suggested to mitigate water stress, but there is limited knowledge about how biochar affects the physiology and vegetative growth of quinoa plants under soil water deficits. We grew three quinoa (Chenopodium quinoa Willd.) varieties, Titicaca (V1), Quipu (V2), and UAFQ7 (V3) in sandy loam soil without (B0) and with 2% woodchip biochar (B2) under drought conditions. The drought resulted in significant growth differences between the varieties. V3 performed vegetatively better, producing 46% more leaves, 28% more branches, and 25% more leaf area than the other two varieties. Conversely, V2 displayed significantly higher yield-contributing traits, with 16% increment in panicle length and 50% more subpanicles compared to the other varieties. Woodchip biochar application significantly enhanced the root development (i.e., root biomass, length, surface, and projected area) and plant growth (i.e., plant height, leaf area, and absolute growth rate). Biochar significantly enhanced root growth, especially fresh and dry weights, by 122% and 127%, respectively. However, biochar application may lead to a trade-off between vegetative growth and panicle development under drought stress as shown for V3 grown in soil with woodchip biochar. However, V3B2 produced longer roots and more biomass. Collectively, we suggest exploring the effects of woodchip biochar addition to the soil on the varietal physiological responses such as stomatal regulations and mechanisms behind the increased quinoa yield under water stress conditions.

1. Introduction

Quinoa (Chenopodium quinoa Willd.) belongs to the Amaranthaceae family [1]. It is an annual C3 crop originally from the South American highlands known for its tolerance to adverse abiotic stresses, particularly salinity and drought [2]. It demonstrates remarkable adaptability to grow in poor soils and under extreme climatic conditions [3]. Quinoa’s drought tolerance is caused by its deep and extensive root system, white reflective and hygroscopic papillae on the leaf surface [4], leaf area reduction by shedding leaves to reduce water loss through transpiration, presence of special vesicular glands (i.e., small thick-walled cells used for water storage reservoirs maintaining turgor during water limitations [5]), and stomatal closure [6]. Jensen et al. [7] revealed that the leaf water potential threshold for stomatal closure in quinoa varies between cultivars, occurring at −1.2 to −1.6 MPa. Quinoa’s tolerance to drought is also attributed to its phenotypic plasticity, tissue elasticity, and inherently low osmotic potential [7]. This phenotypic plasticity, highlighted by Stanschewski et al. [8], underscores the importance of exploring quinoa germplasm from diverse geographical locations. The vast genetic diversity within quinoa germplasm includes genes conferring resistance to both biotic and abiotic stresses [9], suggesting its crucial role in quinoa’s ability to adapt to various environmental challenges.
Inter-varietal variation in drought tolerance mechanisms necessitates targeted screening of quinoa germplasm for specific water deficit conditions [10]. Earlier studies have shown that significant variations were evident between five quinoa ecotypes in drought tolerance mechanisms [11]. The ecotype Salares performed better under drought stress than other ecotypes through extensive root systems, low osmotic potential, epidermal bladder cells and stomatal control [4]. Notable varieties from this ecotype are UAFQ7 [2] and Quipu [12], the first approved quinoa varieties in Pakistan and Italy, respectively. Akram et al. [2] studied 13 superior genotypes screened from 117 imported quinoa lines from the United States Department of Agriculture (USDA) [10] and showed that UAFQ7 has longer roots and higher yield than other genotypes. Similarly, Valley and Altiplano ecotypes are considered short-duration and fast-growing varieties, like Titicaca, that showed drought escape mechanisms by completing their life cycle earlier to avoid the drought effects at later stages. However, it was more susceptible to water deficits under prolonged drought conditions [13].
Application of organic amendments, including compost, manure, and biochar, can significantly mitigate the adverse effects of water stress on plant growth [14]. They improve soil structure, water retention, and nutrient availability [15]. Among these, biochar is particularly advantageous due to its exceptional water-holding capacity, nutrient adsorption, and ability to stimulate beneficial soil microbial communities, and thereby enhance plant growth under water stress conditions [16]. Biochar, a carbon-rich byproduct of pyrolysis [17], offers a promising approach to mitigating climate change and enhancing agricultural productivity under drought stress. Several studies have documented its positive effects on plant growth [18,19], yield [20], nutrient uptake [21], and plant physiological properties [22] under drought. Specifically for quinoa, biochar application has been shown to enhance both vegetative [23] and reproductive growth [18] under drought stress through changes in soil physicochemical and biological properties [24]. Studies have documented significant improvement in soil structure, water-holding capacity, and other physicochemical properties under drought conditions after biochar application [25]. The improved soil environment enhances plant biomass and nutrient uptake [18]. Furthermore, biochar application positively influences plant physiological attributes under drought stress, such as increased photosynthetic rate, stomatal conductance, and plant water status in quinoa [26]. Biochar’s porous structure retains water and may enhance root proliferation and growth. Thus, an improved root system could maintain leaf turgor pressure, stomatal conductance and photosynthesis during drought stress by facilitating increased water and nutrient uptake [27]. In biochar-amended soil, Kammann et al. [18] observed better quinoa growth and water-use efficiency under drought conditions.
Apart from its advantages, biochar can adversely affect plant growth by immobilizing essential nutrients through altering soil pH [28]. High application rates can create physical barriers, hindering root development due to the highly porous nature of the biochar which accelerates the loss of water and nutrients from the soil [29]. The influence of biochar application on quinoa’s physiological response to drought stress throughout vegetative development remains understudied [30]. While previous work has shown that biochar can enhance the growth of the drought-sensitive quinoa cultivar Titicaca [23], the effect under prolonged water deficits remains unknown [19].
With the significant phenotypic diversity within quinoa germplasm in mind, this study aimed to contribute substantially to our understanding of drought tolerance mechanisms of quinoa varieties under biochar application. We studied the impact of woodchip biochar application at a rate of 2% in the soil to enhance drought tolerance among different quinoa varieties grown under water stress conditions. We utilized morphological and physiological analyses to evaluate the impact of successive water stress cycles on quinoa growth and physiology to elucidate the interaction between drought stress and biochar application, mainly focusing on their combined effects during the vegetative growth stage. We hypothesized that application of woodchip biochar to the soil helps the quinoa varieties to avoid the negative impact of water stress conditions occurring during the vegetative growing cycle of the plant.

2. Results

2.1. Plant Growth and Biomass during the Experiment

At all three harvests (t1, t3 and t4) in both experiments, there were significant differences between the varieties’ response to biochar (Exp. 1: t1: p ≤ 0.0008; t3: p ≤ 0.0000; t4: p ≤ 0.0066; Exp. 2: t1: p ≤ 0.0042; t3: p ≤ 0.0024; t4: p ≤ 0.0320) in height (PH). Plants grown in biochar-amended soil were taller (Exp. 1: t1: p ≤ 0.0055; t3, t4: p ≤ 0.0000; Exp. 2: t1, t3: p ≤ 0.0000; t4: p ≤ 0.0329), but there was no significant interaction between varieties and soil type. In both experiments, V1 was the tallest at t1, while V2 was the tallest at the final harvest (t4) (Figure 1a). Contrarily, in Exp. 2, an interaction was observed for plant height at t1 and t3 (t1, p ≤ 0.0227; t3, p ≤ 0.0109). In particular, V1 grown with biochar attained the greatest height at both harvests. Plants grown in soil with biochar achieved higher numbers of leaves (NL), branches (NB), and larger leaf areas (LA). Similarly, an interaction was recorded for the number of leaves and branches at t3 and t4 for Exp. 2 (t3, t4: p ≤ 0.0000). At both times, V3 showed a positive response to biochar possessing a higher number of leaves and branches.
In both experiments, at all three harvest times, V3 produced the highest number of leaves (Exps. 1 and 2: t1, t3, t4: p ≤ 0.0000), branches (Exp. 1: t1: p ≤ 0.0008; t3, t4: p ≤ 0.0000; Exp. 2: t1, t4: p ≤ 0.0000; t3: p ≤ 0.0013), and leaf areas (Exps. 1 and 2: t1, t3, t4: p ≤ 0.0000). All varieties grown in soil with biochar had significantly higher numbers of leaves, branches, and leaf areas at all harvests (Figure 1b–d). A significant two-factor interaction was observed in Exp. 2 at t1, t3 and t4 (t1, t3, t4: p ≤ 0.0000). Consistent with the number of leaves and branches, V3 showed the positive effect of biochar addition by always producing bigger leaf areas. Importantly, at t4 biochar treatment enhances the number of leaves by 18% and 40% in Exp. 1 and 2, respectively. Similarly, plants grown with biochar produced bigger leaf areas than non-amended ones by 20% and 60% in Exp 1. and 2, respectively.
In both experiments, the fresh biomass (FB) varied between varieties (Exp. 1: t1, t3: p ≤ 0.0000, t4: p ≤ 0.0008; Exp. 2: t1, t3, t4: p ≤ 0.0000) and increased for all varieties at all harvests when biochar was added (Exps. 1 and 2: t1, t3, t4: p ≤ 0.0000). In Exp. 1, at t1, there was interaction between the varieties and soils (p ≤ 0.0017). In Exp. 2, an interaction was observed at t1, t3, and t4 (t1, t3, t4: p ≤ 0.0000). In both experiments at all sampling times, consistent with the other growth parameters, V3 produced higher fresh biomass, especially when grown with biochar amendment (Figure 2a). Particularly at t4, plants grown with biochar produced more fresh biomass than controlled soil by 20% and 32% in Exp. 1 and 2, respectively. Dry biomass showed the same trend (Exp. 1: t1, t3, t4: p ≤ 0.0000; Exp. 2: t1, t4: p ≤ 0.0000, t3, p ≤ 0.0425). In both experiments, plants grown in soil with biochar produced more biomass at t3 (Exps. 1 and 2: p ≤ 0.0000) and t4 (Exps. 1 and 2: p ≤ 0.0000). In Exp. 1, there was an interaction between varieties and soils at the t3 (p ≤ 0.0000) and t4 (p ≤ 0.0000). In Exp. 2, fresh biomass and dry biomass accumulation were affected by a two-factor interaction at t1 and t4 (t1: p ≤0.0101, t4: p ≤ 0.0000). In both experiments, V3 consistently had the highest dry matter production, especially in soil amended with biochar. Specifically, biochar-treated plants increased dry biomass in both experiments by 50% at t4 compared to non-amended soils (Figure 2b), indicating a potentially beneficial interaction under drought stress.

2.2. Root Traits during the Experiments

The root traits varied significantly in both experiments between varieties and growth media, and there was also an interaction. At t1 and t4, significant differences were observed between varieties, biochar amendment, and interaction for root fresh (RFW) and dry weight (RDW) and root length (RL). Interestingly, plants grown with biochar-amended soils exhibited 130% and 110% more fresh and dry root biomass, respectively, at t4 in both experiments. V3 produced the largest root weight, especially in soil amended with biochar (Exp. 1: t1: p ≤ 0.0000, t4: p ≤ 0.0096; Exp. 2: t1, t4: p ≤ 0.0000) (Figure 3a–c). In Exp. 1, root shoot ratio (R:S) at t1 and t4 was affected by biochar (t1, t4: p ≤ 0.0001) but not by varieties. In Exp. 2, R:S varied between varieties at t1 (p ≤ 0.0071) and biochar at t4 (p ≤ 0.0342). In both experiments, biochar amendment resulted in a higher R:S, probably by enhancing nutrient availability (Figure 3d).
Similarly, root surface (SA) and projected areas (PA) varied in both experiments between varieties (Exps. 1 and 2: t1, t4: p ≤ 0.0000) and the two soils (Exps. 1 and 2: t1, t4: p ≤ 0.0000) both at t1 and t4 (Figure 4a,b). In both experiments, V3 grown in soil amended with biochar had the highest surface and projected root area at t1 and t4. Root volume and average diameter were different between varieties in Exp. 1 (t1: p ≤ 0.0004, t4: p ≤ 0.0000), soils (t1, t4: p ≤ 0.0000), and there was an interaction between the two factors (t1, t4: p ≤ 0.0000). However, in Exp. 2, root volume (Vol) varied between the varieties at t4 (t4: p ≤ 0.0026) but not at t1. Biochar had a positive effect at both times, i.e., t1 and t4 (t1: p ≤ 0.0091, t4: p ≤ 0.0000). An interaction was also found at t4 (p ≤ 0.0292). In Exp. 2, the average diameter (AvgD) varied between soil types at t4 (p ≤ 0.0000). In soil with biochar, V3 consistently showed the highest values (Figure 4c,d).

2.3. Growth- and Yield-Contributing Traits

During the drought (DP, between t1 to t3) and recovery period (RP, between t3 to t4), the varieties performed differently (Exps. 1 and 2: DP, RP, p ≤ 0.0000). In Exp. 1, soil amended with biochar affected the absolute growth rate positively during DP (DP, p ≤ 0.0000), but not during RP, while in Exp. 2, biochar had a positive effect during both periods (DP, p ≤ 0.0224; RP, p ≤ 0.0000). In Exp. 2, there was also interaction between the two factors (DP, p ≤ 0.0000, RP, p ≤ 0.0046). V3, grown in soil amended with biochar, had the highest growth rate under drought stress (Figure 5a). The varieties also showed different panicle lengths (Exp. 1: p ≤ 0.0000; Exp. 2: p ≤ 0.0003), which was also positively affected by biochar amendment (Exp. 1: p ≤ 0.0002; Exp. 2: p ≤ 0.0000). The plants grown with biochar had 57% and 66% longer panicles than controlled soil in both experiments, respectively. V2 had the longest panicles, which became even longer when the plants were grown in soil amended with biochar (Figure 5b). Similarly, during both experiments, the three varieties produced different numbers of sub-panicles (Exp. 1 and 2: p ≤ 0.0000), and biochar amendment had a positive effect on the number produced (Exp. 1 and 2: p ≤ 0.0000). In Exp. 1, there was also an interaction between the variety and soil (p ≤ 0.0000). V2 grown in soil amended with biochar produced the most sub-panicles (Figure 5c).

2.4. Physiological and Water-Related Parameters

In both experiments, the midday leaf water potential (Ψ) was recorded at three different times: (1) at the end of the 1st drought period (t2), (2) at the end of the 2nd drought period (t3) and (3) after the recovery period (t4). At all times, a difference was recorded between varieties (Exp. 1: t2, t3, t4: p ≤ 0.0000; Exp. 2: t2: p ≤ 0.0153, t3: p ≤ 0.0011) and soil types (Exp. 1: t2: p ≤ 0.0009, t3: p ≤ 0.0000, t4: p ≤ 0.0228; Exp. 2: t2, t3, t4: p ≤ 0.0000), while there were also interactions at t3 (Exp. 1: p ≤ 0.0092; Exp. 2: p ≤ 0.0141) and t4 (Exp. 1: p ≤ 0.0007; Exp. 2: p ≤ 0.0383) in both experiments. At t2, V1 and V3 had lower Ψ values than V2. Biochar amendment significantly improved plant water status. This positive effect of biochar was sustained at t3, where V1 and V3 in soil without biochar amendment exhibited the most negative values in both experiments (Figure 6a). Following rehydration at t4, V3 and V1 plants under biochar application recovered leaf water potential more rapidly, suggesting enhanced recovery potential from drought stress.
The total water consumption by plants in Exp. 1 was not significantly different among all experimental factors, while for Exp. 2 the water consumption significantly varied among soil treatment (p ≤ 0.0000). Importantly, water consumption by plants treated with biochar was 25% larger than without biochar. Based on this water consumption, WUEwp was estimated for two periods: DP (between t1 to t3) and RP (between t3 to t4). For DP, in Exp. 1, WUEwp varied between varieties (p ≤ 0.0000), soil treatments (p ≤ 0.0000), and there was also an interaction (p ≤ 0.0000). During Exp. 2, the differences were observed among varieties (p ≤ 0.0000) but not when they were grown in soil with biochar. More specifically, V3 grown in soil amended with biochar displayed the highest WUEwp in both experiments (Figure 6b). For RP in both experiments, a positive effect was observed among varieties (Exp. 1: p ≤ 0.0011; Exp. 2: p ≤ 0.0000) and also an interaction (Exp. 1: p ≤ 0.0139; Exp. 2: p ≤ 0.0000). There was only an effect of biochar in Exp. 2 (p ≤ 0.0026). V3 grown in soil with biochar maintained the highest WUEwp in both experiments (Figure 6b).
The SPAD value (leaf chlorophyll content index) was measured at t1, t3, and t4 in both experiments (Figure 6c). At t1, t3, and t4, SPAD values differed between varieties (Exp. 1: t1: p ≤ 0.0146, t3: p ≤ 0.0375, t4: p ≤ 0.0146; Exp. 2: p ≤ 0.0218, t3: p ≤ 0.0077, t4: p ≤ 0.0026), however, there was no effect of biochar amendment at t1 but it varied at t3 and t4, (t3 p ≤ 0.0000, t4: p ≤ 0.0146) in Exp. 1, while in Exp. 2, it was different at all times (t1, t3, t4: p ≤ 0.0000). In Exp. 2, a significant interaction was observed at t4 (p ≤ 0.0138). However, in both experiments, V3 had the highest SPAD values, followed by V1. More importantly, control treatment values were significantly reduced, while a sharp increment was observed for biochar-treated plants in both experiments. The same was observed at t4 in Exp. 1 with a difference between varieties (p ≤ 0.0025) and soil treatments (p ≤ 0.0076), while for Exp. 2, V3 increased SPAD values but it became more pronounced when grown with biochar.

2.5. Carbon and Nitrogen Contents

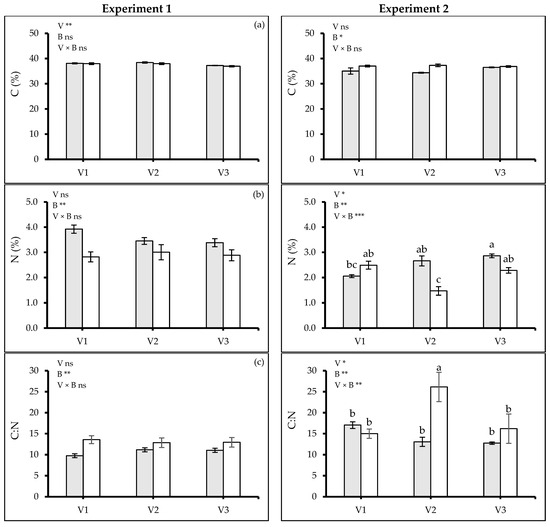

At t4, variations were observed in carbon% (C, %) between varieties in Exp. 1 (p ≤ 0.0024) but not in Exp. 2. However, biochar did not have any effect in Exp. 1 but showed variations in Exp. 2 (p ≤ 0.0335). The highest carbon% was found in V2 followed by V1 in Exp. 1, while for Exp. 2 plants grown with biochar exhibited higher carbon% (Figure 7a). Biochar had a negative effect on the nitrogen% (N, %) during both experiments (Exp. 1: p ≤ 0.0014, Exp. 2: p ≤ 0.0018). It did not vary between varieties in Exp. 1 but a significant variation was recorded in Exp. 2 (p ≤ 0.0100) (Figure 7b). The results demonstrated that the plants treated with biochar had reduced N in leaves by 21% in both experiments. Plants grown in soil amended with biochar had a greater carbon–nitrogen ratio (C:N) (Exp. 1: p ≤ 0.0026, Exp. 2: p ≤ 0.0032) (Figure 7c).

2.6. Correlation Analysis between SPAD Value and Nitrogen Percentages

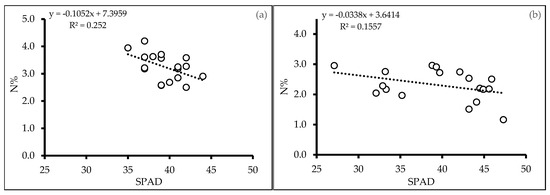

The observed relationship between SPAD and nitrogen content was weak, as indicated by low R2 values of 0.252 and 0.1557, for Exp. 1 and 2, respectively (Figure 8). These findings suggest that while SPAD may be a contributing factor to nitrogen variation, it does not fully explain the observed patterns and highlight the need for further investigation into other factors influencing nitrogen dynamics.

2.7. PCA Correlation Analysis at t4

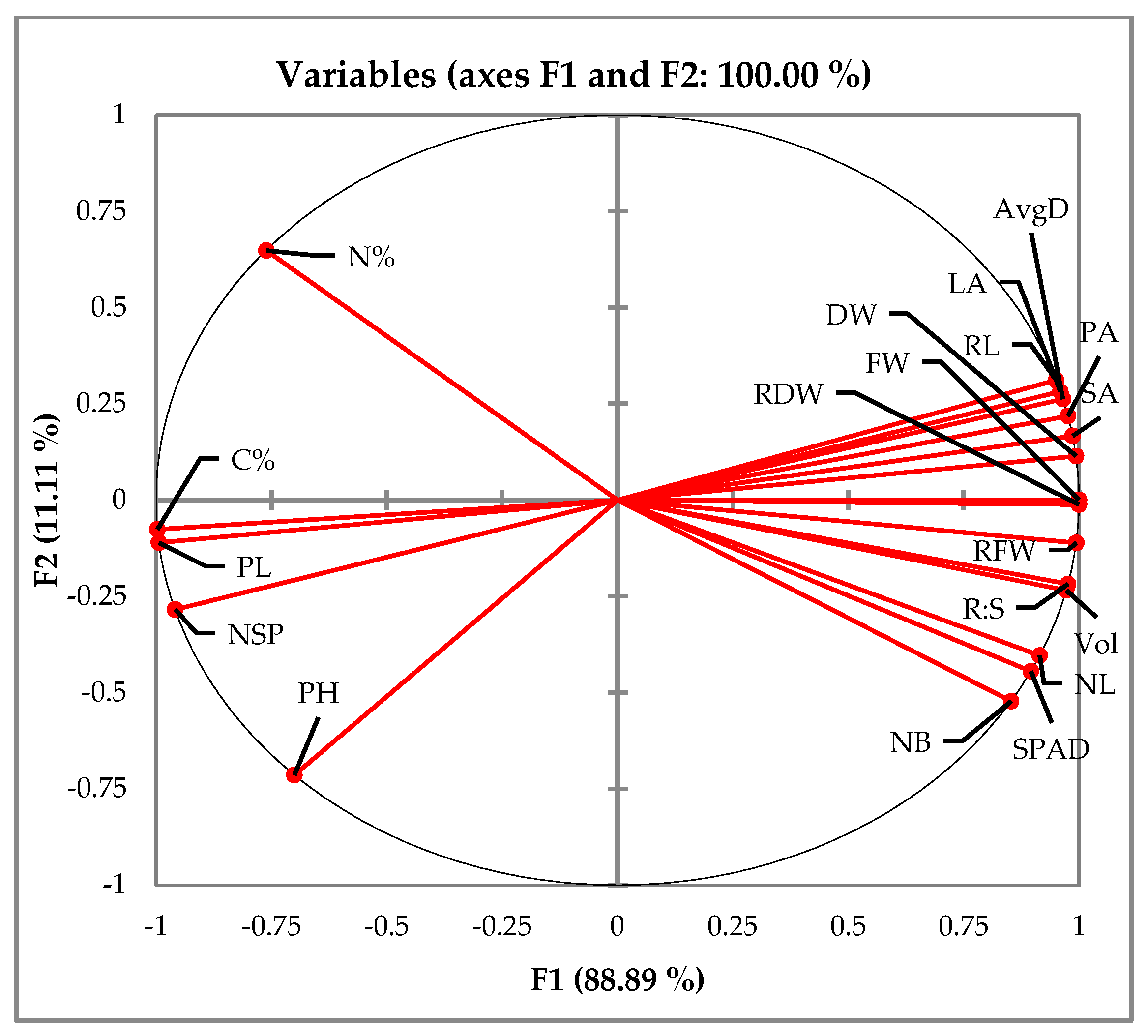

A scatter plot was generated to visualize the relationships among plant traits (Figure 9). The PCA suggested potential positive correlations between plant height (PH) and number of leaves (NL), number of sub-panicles (NSP) and panicle length (PL), carbon percentage (C%) and nitrogen percentage (N%), SPAD, and various root parameters (volume, fresh and dry weight, surface and projected area, and length). Conversely, a potential negative correlation was observed between root to shoot ratio (R:S) and both fresh weight (FW) and dry weight (DW).

3. Discussion

3.1. Influence of Biochar Application on Growth under Drought Conditions

The woodchip biochar application significantly enhanced growth under water stress during the vegetative phase for all varieties but especially for the drought-resistant variety UAFQ7 (V3) (Figure 1 and Figure 2). The drought-sensitive variety Titicaca was more negatively affected by prolonged water shortage than the others even when it grew in soil amended with biochar [19].
The experimental results showed significant differences between varieties in terms of plant height, number of leaves and branches, and leaf area when grown with and without biochar amendment (Figure 1 and Figure 2), which is in line with previous studies [19,23,31]. The drought-sensitive variety Titicaca produced more biomass when it grew in the biochar-amended soil as previously observed [19,23]. Panicle numbers and length are early determinants of grain yield [32], and water stress affected these parameters negatively [33]. Our results confirmed that the application of biochar as soil amendment offers a promising mitigation strategy, as shown before [34]. García-Parra et al. [35] reported that quinoa’s developmental stages influenced the panicle formation and other yield components [36]. The faster vegetative growth of UAFQ7 results in increasing production of leaves and branches, and a larger biomass. However, the enhanced vegetative growth came at the expense of panicle formation [37]. Some UAFQ7 plants even exhibit shorter panicles or lack sub-panicles entirely (Figure 5b,c). This suggests a potential trade-off between vegetative growth and panicle development under biochar application during water limitations.

3.2. Influence of Biochar Application on Physiology and Water-Related Traits under Drought Conditions

Our study revealed that biochar addition to the soil significantly improved the plants’ water status by making the midday leaf water potential less negative than plants grown in unamended soil (Figure 6a). Some studies found that quinoa initiates stomatal closure when leaf water potential falls below −1.2 to −1.6 MPa [38,39]. Accordingly, the stomata might have been closed at the end of drought stress in the present study as the leaf water potential had dropped to below −2.0 MPa (experiment 1) and −1.5 (experiment 2), particularly for those grown in soil without biochar amendment. The lower water potential could be due to the intrinsic lower osmotic potential of the plants [7]. The osmolyte accumulation contributes to lowering the water potential and enhancing root growth in quinoa [7,33].
Our findings support the hypothesis that biochar application helps plants to maintain water status under drought. Gaskin et al. [40] reported an increased accumulation of osmotically active substances like potassium (K+) in plant tissues when biochar was added to the soil. The high cation content in biochar may facilitate improved plant water uptake and higher water use efficiency. Besides, drought tolerance in quinoa has also been linked to dense root elongation supported by our study (Figure 3 and Figure 4) and the presence of hygroscopic calcium oxalate crystals in leaf cuticles, which can further minimize water loss [41]. Issa Ali et al. [42] observed the same for Titicaca and L119 varieties.
Biochar application improved SPAD values in quinoa varieties under water stress (Figure 6c). The increase in SPAD could be caused by the large surface area of biochar, facilitating enhanced adhesion and cohesion with water and increased soil acidity and subsequent heightened production of photosynthetic pigments. Anee et al. [43] also found an increased SPAD index of wheat when plants were grown in soil amended with biochar. However, the increased SPAD value was seemingly not associated with the changes in leaf nitrogen content, as the latter was negatively affected by biochar amendment (Figure 7b).

3.3. Influence of Biochar Application on Root Morphology and Leaf Nutrient Concentrations under Drought Stress

Biochar application stimulated the root growth resulting in a deeper root system (Figure 3 and Figure 4), which could further enhance water acquisition through the finer pores within the biochar itself, reducing the negative leaf water potential and subsequently improving plant water use efficiency (Figure 6a,b). Jabborova et al. [44] reported significant improvement in the root morphology of okra under woody biochar applications likely caused by an enhanced nutrient acquisition [45] and potentially improving the soil microbial community [46]. Biochar amendments significantly enhanced the leaf’s relative water content, osmotic potential, photosynthetic rate, and WUE reflected in higher SPAD values (Figure 6c). Similar results were found for maize cob biochar [26] and woody biochar [18] on quinoa and crops like rice [47], wheat [48], maize [49], soybean [50], and tomato [51]. Our findings on increased root-to-shoot ratio and absolute growth rate under woodchip biochar application (Figure 3d and Figure 5a) align with previous studies [52,53]. The woodchip biochar has probably increased the nutrient absorption capacity of the quinoa roots. Additionally, biochar application may contribute to better plant health by accelerating systemic defenses and reducing the soil pathogen load [45]. Collectively, these mechanisms likely contribute to the observed improvement in plant growth efficiency under biochar application. Furthermore, woodchip biochar addition can increase soil organic carbon, potentially leading to a higher carbon-nitrogen ratio (Figure 7), as reported by Zhao et al. [54]. This can enhance soil nitrification and improve nitrogen bioavailability, ultimately promoting plant biomass accumulation (Figure 2).

4. Materials and Methods

4.1. Plant Material and Growing Conditions

Two identical experiments were conducted under controlled greenhouse conditions at the Department of Plant and Environmental Sciences, University of Copenhagen, Taastrup, Denmark (55.66 N-12.30 E, 27 m a.s.l.). The first experiment (Exp. 1) was conducted from October 2023 to January 2024, and the other (Exp. 2) from January to March 2024. A completely randomized factorial design with nine replicates was employed, with the three varieties Titicaca (V1), Quipu (V2), and UAFQ7 (V3) (Table 1) grown in soil without (B0) and with biochar (B1) resulting in a total of six treatments, i.e., V1B0, V2B0, V3B0, V1B2, V2B2, V3B2.
In each experiment, nine plastic pots (diameter: 26 cm; height: 20 cm; volume: 7.5 L) were filled with sandy loam soil collected from the Taastrup campus fields and nine were filled with sandy loam soil mixed with woodchip biochar manufactured by Nerabiochar (Nerabiochar, Ivrea, Torino, Italy). The properties of the biochar are shown in Table 2 The biochar was incorporated into the soil (Table 3) at the rate of 2% based on the dry weight of the soil. Soil moisture was estimated (Equation (1)) after weighing the soil before (FW) and after drying in a drying chamber for two days at 105 °C (DW). The pots were placed in a greenhouse with 16/8 h light/darkness, at a temperature of 20 ± 2 °C, and a relative humidity of 70 ± 7%.
Soil   water   content % = ( F W - D W ) ( D W ) × 100
Similarly, the soil properties used in the experiment are listed in Table 3.
Ten seeds per pot were sown. When plants had 2−4 leaves, the number of plants was reduced to three uniform plants. At the 6-leaf stage, the plants were thinned to one plant per pot. From emergence to the 12-leaf stage, the plants were kept well-watered. At the 12-leaf stage, two successive drought cycles were imposed.

4.2. Water Stress Treatment

From emergence to the 12-leaf stage, pots were regularly watered to 100% pot water holding capacity (WHC) when soil water content reached 70% of WHC, determined by daily weighing the pots between 8:00−9:00 AM. The 100% pot WHC was defined as pot weight when drainage had stopped after saturation of the soil. At the 12-leaf stage, two progressive drought cycles were applied, one after the other. In both experiments, the stress period started after the water content in all pots was brought to 100% pot WHC at 35 Days After Sowing (DAS) (time = t1). At t1, three replications were harvested at the soil surface, and plant height, number of leaves and branches, leaf area, and fresh and dry biomass of the above-ground plants were recorded. The watering of the remaining pots was retained until all available water was used at 45 DAS (time t2). Then, plants were rewatered to field capacity, and the second drought period began. It finished at 56 DAS (time = t3). At t3, three replications were harvested, and their yield components were recorded. The remaining three replications kept growing under well-watered conditions until flowering initiation happened 80 DAS (Time = t4). Then, plants were harvested, and their yield components were measured.

4.3. Measurements

4.3.1. Morphological Parameters

Plant height (cm), number of leaves (n0), and branches (n0) were recorded at times t1, t3, and t4 by sampling three plants. The fresh weight (g) of above-ground biomass (TFW) was measured at each time. Afterwards, the plants were dried in an oven at 70 °C until constant weight and the dry weights were recorded. Yield components such as main panicle length (cm) and the number of sub-panicles plant−1 were determined at t4. At each harvest point (t1, t3, t4), the leaves were collected, and the leaf area (LA1, LA3, LA4) was determined by a leaf area measuring instrument (model 3100; LI-COR, Inc., Lincoln, NE, USA).
Finally, the Absolute Growth Rate (AGR) (Equation (2)) of the plants was calculated for the drought period (DP, between t1 to t3) by recording the plant dry weight at the start (DW1) and end of the drought treatment (DW2):
A G R ( g   d - 1 ) = ( D W 2 - D W 1 ) ( t 3 - t 1 )
Likewise, AGR was calculated for the recovery period (RP, between t3 to t4) using DW3 and DW2.

4.3.2. Root Measurements

Root fresh and dry weight (g), and root shoot ratio (R:S) were estimated at t1 and t4 from 3 plants. Additionally, at the same time, roots were scanned in a root scanner by using Epson scan 2 software (https://epson.com/Support/Scanners/Expression-Series/Epson-Expression-12000XL---Photo/s/SPT_12000XL-PH?review-filter=Windows+11, accessed on 14 August 2024), and root length (cm), projected area (cm2), surface area (cm2), volume (cm3), and average diameter (mm) were measured via WinRhizo software 7.6.5.

4.3.3. Water-Related Parameters

At the end of the drought periods (t3) and the trials (t4), the total water consumption (TWC) was calculated by cumulating the amount of water consumed by the plants. Water consumption was measured by weighing the pots daily. Then, the whole plant water use efficiency (WUEwp) during the drought period was calculated according to Equation (3) [55]:
WUEwp = DW 2 − DW 1 TWC
where TWC is the total water consumed during the drought period. Likewise, WUEwp was calculated for the recovery period using DW2, DW3 and TWC. Midday leaf water potential (Ψ) was measured in a pressure chamber (Soil Moisture Equipment Corp., Santa Barbara, CA, USA) on three fully expanded upper canopy leaves between 12:00 and 13:00 h at t2, t3 and t4. For that purpose, the young fully expanded leaf was detached from the plant along with its petiole. The leaf was then placed in the chamber with the petiole protruding outside. Afterwards, the pressure was increased gradually in the chamber and the reading was recorded immediately when a droplet of water came out from the protruding petiole surface.

4.3.4. Measurements of SPAD Index

Relative leaf chlorophyll content was assessed using a chlorophyll meter (SPAD-502; Konica Minolta Sensing, Inc., Osaka, Japan). Five measurements were recorded on five fully expanded top leaves of each plant, and the values were subsequently averaged.

4.3.5. Total Leaf Nitrogen and Carbon Contents

Three dried leaf samples were collected at t4 and finely ground. The total leaf N, C, and H content (% DW) were estimated with a CHNS/O elemental analyzer (Flash 2000, Thermo Fisher Scientific, Cambridge, UK) using the dynamic flash combustion technique known as the modified Dumas method [56].

4.4. Statistical Analysis

A two-way analysis of variance was computed using the statistical software RStudio 4.2.0 [57], considering varieties and biochar levels as the main factors. Mean comparisons among treatment groups were performed using Tukey’s Honestly Significant Difference (HSD) test at a significance level of p ≤ 0.05. Similarly, correlation analysis between SPAD values and N% in the leaves and principal component analysis (PCA) was done by using the same software.

5. Conclusions

Biochar application improved plant water status, growth, and root development. The positive effect of woodchip biochar is likely caused by influencing several mechanisms like improved water uptake, soil features, and enhanced nutrient availability. However, biochar application may lead to a trade-off between vegetative growth and panicle development under water stress in some quinoa varieties. Overall, this study suggests that a 2% application of woodchip biochar is a promising strategy for enhancing drought tolerance and growth of quinoa, although the positive effect varies between varieties (Titicaca < Quipu < UAFQ7). As these varieties responded differently to water stress conditions, so, further investigation is needed to elucidate the underlying mechanisms by which biochar influences stomatal behavior and drought response among different quinoa varieties

Author Contributions

Conceptualization, M.Z.A., A.R.R., C.A. and F.L.; methodology, M.Z.A., C.A. and F.L.; software, M.Z.A.; validation, C.A., F.L., A.R.R. and A.L.; formal analysis, M.Z.A.; investigation, M.Z.A.; resources, C.A. and F.L.; data curation, M.Z.A., C.A., F.L. and A.R.R.; writing—original draft preparation, M.Z.A.; writing—review and editing, C.A., F.L., A.R.R. and A.L.; visualization, M.Z.A.; supervision, C.A., F.L., A.R.R. and A.L.; project administration, C.A. and F.L.; funding acquisition, C.A. and F.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the University of Copenhagen, Denmark and the Erasmus+ Traineeship Program 2022-23 by the University of Basilicata, Italy.

Data Availability Statement

The data presented in this study are available upon request from the corresponding authors.

Acknowledgments

We would like to express our sincere gratitude to the Department of Plant and Environmental Sciences, University of Copenhagen, Denmark, for providing access to the greenhouse and laboratory facilities that were instrumental in conducting this experiment. The authors are also grateful to Paolo Casini of Department of Agriculture, Food, Environment and Forestry (DAGRI), University of Florence, Florence, Italy, Shahid Iqbal of Muhammad Nawaz Shareef University of Agriculture (MNSUAM), Multan, Pakistan, and Dario Vannuzzi of Tuttoquinoa Company, Italy for their generous contribution of quinoa seeds used in the experiment.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Rosentrater, K.A.; Evers, A. Introduction to cereals and pseudocereals and their production. Kent’s Technol. Cereals 2018. [Google Scholar] [CrossRef]
  2. Akram, M.Z.; Basra, S.M.A.; Hafeez, M.B.; Khan, S.; Nazeer, S.; Iqbal, S.; Saddiq, M.S.; Zahra, N. Adaptability and yield potential of new quinoa lines under agro-ecological conditions of Faisalabad-Pakistan. Asian J. Agri. Bio. 2021, 2, 1–8. [Google Scholar] [CrossRef]
  3. El-Harty, E.H.; Seleiman, M.F.; Afzal, M.; Alghamdi, S. Water use efficiency (WUE) and productivity of promising quinoa (Chenopodium quinoa Wild.) genotypes grown under three water regimes. Not. Bot. Horti Agrobot. Cluj-Napoca 2023, 51, 13209. [Google Scholar] [CrossRef]
  4. Ain, Q.T.; Siddique, K.; Bawazeer, S.; Ali, I.; Mazhar, M.; Rasool, R.; Mubeen, B.; Ullah, F.; Unar, A.; Jafar, T.H. Adaptive mechanisms in quinoa for coping in stressful environments: An update. PeerJ 2023, 11, e14832. [Google Scholar] [CrossRef] [PubMed]
  5. Otterbach, S.L.; Khoury, H.; Rupasinghe, T.; Mendis, H.; Kwan, K.H.; Lui, V.; Natera, S.H.; Klaiber, I.; Allen, N.M.; Jarvis, D.E. Characterization of epidermal bladder cells in Chenopodium quinoa. Plant Cell Envir. 2021, 44, 3836–3852. [Google Scholar] [CrossRef] [PubMed]
  6. Maestro-Gaitán, I.; Granado-Rodríguez, S.; Poza-Viejo, L.; Matías, J.; Márquez-López, J.C.; Pedroche, J.J.; Cruz, V.; Bolaños, L.; Reguera, M. Quinoa plant architecture: A key factor determining plant productivity and seed quality under long-term drought. Environ. Exp. Bot. 2023, 211, 105350. [Google Scholar] [CrossRef]
  7. Jensen, C.; Jacobsen, S.-E.; Andersen, M.N.; Nunez, N.; Andersen, S.; Rasmussen, L.; Mogensen, V. Leaf gas exchange and water relation characteristics of field quinoa (Chenopodium quinoa Willd.) during soil drying. Eur. J. Agron. 2000, 13, 11–25. [Google Scholar] [CrossRef]
  8. Stanschewski, C.S.; Rey, E.; Fiene, G.; Craine, E.B.; Wellman, G.; Melino, V.J.; SR Patiranage, D.; Johansen, K.; Schmöckel, S.M.; Bertero, D. Quinoa phenotyping methodologies: An international consensus. Plants 2021, 10, 1759. [Google Scholar] [CrossRef]
  9. Murphy, K.M.; Bazile, D.; Kellogg, J.; Rahmanian, M. Development of a worldwide consortium on evolutionary participatory breeding in quinoa. Front. Plant Sci. 2016, 7, 184074. [Google Scholar] [CrossRef] [PubMed]
  10. Hafeez, M.B.; Iqbal, S.; Li, Y.; Saddiq, M.S.; Basra, S.M.; Zhang, H.; Zahra, N.; Akram, M.Z.; Bertero, D.; Curti, R.N. Assessment of phenotypic diversity in the USDA collection of quinoa links genotypic adaptation to germplasm origin. Plants 2022, 11, 738. [Google Scholar] [CrossRef]
  11. Bazile, D. Global trends in the worldwide expansion of quinoa cultivation. Bio. Life Sci. For. 2023, 25, 13. [Google Scholar] [CrossRef]
  12. Casini, P. Varietà di quinoa adatta all’areale italiano. L’Informatore Agrar. 2017, 8, 51–55. [Google Scholar]
  13. Taaime, N.; El Mejahed, K.; Moussafir, M.; Bouabid, R.; Oukarroum, A.; Choukr-Allah, R.; El Gharous, M. Early sowing of quinoa cultivars, benefits from rainy season and enhances quinoa development, growth, and yield under arid condition in Morocco. Sustainability 2022, 14, 4010. [Google Scholar] [CrossRef]
  14. Ullah, N.; Ditta, A.; Imtiaz, M.; Li, X.; Jan, A.U.; Mehmood, S.; Rizwan, M.S.; Rizwan, M. Appraisal for organic amendments and plant growth-promoting rhizobacteria to enhance crop productivity under drought stress: A review. J. Agron. Crop Sci. 2021, 207, 783–802. [Google Scholar] [CrossRef]
  15. Aytenew, M.; Bore, G. Effects of organic amendments on soil fertility and environmental quality: A review. J. Plant Sci. 2020, 8, 112–119. [Google Scholar] [CrossRef]
  16. Niu, M.; Chen, X.; Pan, Y.; Wang, S.; Xue, L.; Duan, Y.; Ahmad, S.; Zhou, Y.; Zhao, K.; Peng, D. Biochar effectively promoted growth of Ardisia crenata by affecting the soil physicochemical properties. Plants 2024, 13, 1736. [Google Scholar] [CrossRef]
  17. Blenis, N.; Hue, N.; Maaz, T.M.; Kantar, M. Biochar production, modification, and its uses in soil remediation: A review. Sustainability 2023, 15, 3442. [Google Scholar] [CrossRef]
  18. Kammann, C.I.; Linsel, S.; Gößling, J.W.; Koyro, H.-W. Influence of biochar on drought tolerance of Chenopodium quinoa Willd and on soil–plant relations. Plant Soil 2011, 345, 195–210. [Google Scholar] [CrossRef]
  19. Rivelli, A.R.; Akram, M.Z.; Libutti, A. Woody biochar rate and water shortage impact on early growth stages of Chenopodium quinoa Willd. Agronomy 2024, 14, 53. [Google Scholar] [CrossRef]
  20. Han, S.; Li, H.; Rengel, Z.; Du, Z.; Hu, N.; Wang, Y.; Zhang, A. Biochar application promotes crops yield through regulating root development and the community structure of root endophytic fungi in wheat-maize rotation. Soil Til. Res. 2023, 234, 105827. [Google Scholar] [CrossRef]
  21. Wan, H.; Liu, X.; Shi, Q.; Chen, Y.; Jiang, M.; Zhang, J.; Cui, B.; Hou, J.; Wei, Z.; Hossain, M.A. Biochar amendment alters root morphology of maize plant: Its implications in enhancing nutrient uptake and shoot growth under reduced irrigation regimes. Front. Plant Sci. 2023, 14, 1122742. [Google Scholar] [CrossRef] [PubMed]
  22. Usman, M.; Ahmad, N.; Raza, W.; Zhao, Z.; Abubakar, M.; Rehman, S.U.; Ikram, S.; Tariq, H. Impact of biochar on the yield and nutritional quality of tomatoes (Solanum lycopersicum) under drought stress. J. Sci. Food Agri. 2023, 103, 3479–3488. [Google Scholar] [CrossRef] [PubMed]
  23. Akram, M.Z.; Libutti, A.; Rivelli, A.R. Evaluation of vegetative development of quinoa under water stress by applying different organic amendments. Agronomy 2023, 13, 1412. [Google Scholar] [CrossRef]
  24. Bogati, K.; Walczak, M. The impact of drought stress on soil microbial community, enzyme activities and plants. Agronomy 2022, 12, 189. [Google Scholar] [CrossRef]
  25. Wei, B.; Peng, Y.; Lin, L.; Zhang, D.; Ma, L.; Jiang, L.; Li, Y.; He, T.; Wang, Z. Drivers of biochar-mediated improvement of soil water retention capacity based on soil texture: A meta-analysis. Geoderma 2023, 437, 116591. [Google Scholar] [CrossRef]
  26. Ramzani, P.M.A.; Shan, L.; Anjum, S.; Ronggui, H.; Iqbal, M.; Virk, Z.A.; Kausar, S. Improved quinoa growth, physiological response, and seed nutritional quality in three soils having different stresses by the application of acidified biochar and compost. Plant Phys. Biochem. 2017, 116, 127–138. [Google Scholar] [CrossRef]
  27. Khan, Z.; Khan, M.N.; Zhang, K.; Luo, T.; Zhu, K.; Hu, L. The application of biochar alleviated the adverse effects of drought on the growth, physiology, yield and quality of rapeseed through regulation of soil status and nutrients availability. Ind. Crops Prod. 2021, 171, 113878. [Google Scholar] [CrossRef]
  28. Brtnicky, M.; Datta, R.; Holatko, J.; Bielska, L.; Gusiatin, Z.M.; Kucerik, J.; Hammerschmiedt, T.; Danish, S.; Radziemska, M.; Mravcova, L. A critical review of the possible adverse effects of biochar in the soil environment. Sci. Total Env. 2021, 796, 148756. [Google Scholar] [CrossRef]
  29. Xu, J.; Niu, W.Q.; Zhang, M.Z.; Li, Y.; Lyu, W.; Li, K.-Y.; Zou, X.-Y.; Liang, B.-H. Effect of biochar addition on soil evaporation. J. App. Eco. 2016, 27, 3505–3513. [Google Scholar] [CrossRef]
  30. Geerts, S.; Mamani, R.S.; Garcia, M.; Raes, D. Response of quinoa (Chenopodium quinoa Willd.) to differential drought stress in the Bolivian Altiplano: Towards a deficit irrigation strategy within a water scarce region. In Proceedings of the 1st International Symposium on Land and Water Management for Sustainable Irrigated Agriculture, Adana Turkey, 4–8 April 2006; pp. 4–8. [Google Scholar]
  31. Akram, M.Z.; Libutti, A.; Rivelli, A.R. Enhancing vegetative growth of quinoa and soil properties under water shortage through targeted organic amendments. Bio. Life Sci. For. 2024, 30, 4. [Google Scholar] [CrossRef]
  32. Raza, M.A.S.; Ibrahim, M.A.; Ditta, A.; Iqbal, R.; Aslam, M.U.; Muhammad, F.; Ali, S.; Çiğ, F.; Ali, B.; Muhammad Ikram, R. Exploring the recuperative potential of brassinosteroids and nano-biochar on growth, physiology, and yield of wheat under drought stress. Sci. Rep. 2023, 13, 15015. [Google Scholar] [CrossRef]
  33. Saddiq, M.S.; Wang, X.; Iqbal, S.; Hafeez, M.B.; Khan, S.; Raza, A.; Iqbal, J.; Maqbool, M.M.; Fiaz, S.; Qazi, M.A. Effect of water stress on grain yield and physiological characters of quinoa genotypes. Agronomy 2021, 11, 1934. [Google Scholar] [CrossRef]
  34. Ali, S.; Rizwan, M.; Qayyum, M.F.; Ok, Y.S.; Ibrahim, M.; Riaz, M.; Arif, M.S.; Hafeez, F.; Al-Wabel, M.I.; Shahzad, A.N. Biochar soil amendment on alleviation of drought and salt stress in plants: A critical review. Environ. Sci. Pol. Res. 2017, 24, 12700–12712. [Google Scholar] [CrossRef]
  35. García-Parra, M.A.; Stechauner-Rohringer, R.; Garcia-Molano, J.F.; Ortiz-Gonzalez, D. Análise do crescimento e desempenho morfofisiológico de três cultivares de quinoa colombiana cultivadas em casa de vegetação. Rev. Ciências Agroveterinárias 2020, 19, 73–83. [Google Scholar] [CrossRef]
  36. Noulas, C.; Tziouvalekas, M.; Vlachostergios, D.; Baxevanos, D.; Karyotis, T.; Iliadis, C. Adaptation, agronomic potential, and current perspectives of quinoa under mediterranean conditions: Case studies from the lowlands of central Greece. Com. Soil Sci. Plant Ana. 2017, 48, 2612–2629. [Google Scholar]
  37. Manjarres-Hernández, E.H.; Arias-Moreno, D.M.; Morillo-Coronado, A.C.; Ojeda-Pérez, Z.Z.; Cárdenas-Chaparro, A. Phenotypic characterization of quinoa (Chenopodium quinoa Willd.) for the selection of promising materials for breeding programs. Plants 2021, 10, 1339. [Google Scholar] [CrossRef]
  38. Jacobsen, S.-E.; Liu, F.; Jensen, C.R. Does root-sourced ABA play a role for regulation of stomata under drought in quinoa (Chenopodium quinoa Willd.). Sci. Hort. 2009, 122, 281–287. [Google Scholar] [CrossRef]
  39. Sun, Y.; Liu, F.; Bendevis, M.; Shabala, S.; Jacobsen, S.E. Sensitivity of two quinoa (Chenopodium quinoa Willd.) varieties to progressive drought stress. J. Agro. Crop Sci. 2014, 200, 12–23. [Google Scholar] [CrossRef]
  40. Gaskin, J.W.; Speir, R.A.; Harris, K.; Das, K.; Lee, R.D.; Morris, L.A.; Fisher, D.S. Effect of peanut hull and pine chip biochar on soil nutrients, corn nutrient status, and yield. Agro. J. 2010, 102, 623–633. [Google Scholar] [CrossRef]
  41. Riccardi, M.; Pulvento, C.; Lavini, A.; d’Andria, R.; Jacobsen, S.E. Growth and ionic content of quinoa under saline irrigation. J. Agro. Crop Sci. 2014, 200, 246–260. [Google Scholar] [CrossRef]
  42. Issa Ali, O.; Fghire, R.; Anaya, F.; Benlhabib, O.; Wahbi, S. Physiological and morphological responses of two quinoa cultivars (Chenopodium quinoa Willd.) to drought stress. Gesunde Pflanz. 2019, 71, 123–133. [Google Scholar] [CrossRef]
  43. Anee, T.I.; Islam, M.N.N.; Hassan, M.M.; Masud, A.A.C.; Alam, M.M.; Hasanuzzaman, M. Organic amendments improve plant morpho-physiology and antioxidant metabolism in mitigating drought stress in bread wheat (Triticum aestivum L.). Phyton Int. J. Exp. Bot. 2022, 911, 1959–1972. [Google Scholar] [CrossRef]
  44. Jabborova, D.; Annapurna, K.; Al-Sadi, A.M.; Alharbi, S.A.; Datta, R.; Zuan, A.T.K. Biochar and Arbuscular mycorrhizal fungi mediated enhanced drought tolerance in Okra (Abelmoschus esculentus) plant growth, root morphological traits and physiological properties. Saudi J. Biol. Sci. 2021, 28, 5490–5499. [Google Scholar] [CrossRef]
  45. Elad, Y.; David, D.R.; Harel, Y.M.; Borenshtein, M.; Kalifa, H.B.; Silber, A.; Graber, E.R. Induction of systemic resistance in plants by biochar, a soil-applied carbon sequestering agent. Phytopathology 2010, 100, 913–921. [Google Scholar] [CrossRef]
  46. Joseph, S.; Cowie, A.L.; Van Zwieten, L.; Bolan, N.; Budai, A.; Buss, W.; Cayuela, M.L.; Graber, E.R.; Ippolito, J.A.; Kuzyakov, Y. How biochar works, and when it doesn’t: A review of mechanisms controlling soil and plant responses to biochar. Gcb Bioen. 2021, 13, 1731–1764. [Google Scholar] [CrossRef]
  47. Zhang, A.; Bian, R.; Pan, G.; Cui, L.; Hussain, Q.; Li, L.; Zheng, J.; Zheng, J.; Zhang, X.; Han, X. Effects of biochar amendment on soil quality, crop yield and greenhouse gas emission in a Chinese rice paddy: A field study of 2 consecutive rice growing cycles. Field Crops Res. 2012, 127, 153–160. [Google Scholar] [CrossRef]
  48. Haider, I.; Raza, M.A.S.; Iqbal, R.; Aslam, M.U.; Habib-ur-Rahman, M.; Raja, S.; Khan, M.T.; Aslam, M.M.; Waqas, M.; Ahmad, S. Potential effects of biochar application on mitigating the drought stress implications on wheat (Triticum aestivum L.) under various growth stages. J. Saudi Chem. Soc. 2020, 24, 974–981. [Google Scholar] [CrossRef]
  49. Foster, E.J.; Hansen, N.; Wallenstein, M.; Cotrufo, M.F. Biochar and manure amendments impact soil nutrients and microbial enzymatic activities in a semi-arid irrigated maize cropping system. Agri. Ecosys. Environ. 2016, 233, 404–414. [Google Scholar] [CrossRef]
  50. Mannan, M.; Halder, E.; Karim, M.; Ahmed, J. Alleviation of adverse effect of drought stress on soybean (Glycine max L.) by using poultry litter biochar. Ban. Agro. J. 2017, 19, 61–69. [Google Scholar] [CrossRef]
  51. Agbna, G.H.; Dongli, S.; Zhipeng, L.; Elshaikh, N.A.; Guangcheng, S.; Timm, L.C. Effects of deficit irrigation and biochar addition on the growth, yield, and quality of tomato. Sci. Hort. 2017, 222, 90–101. [Google Scholar] [CrossRef]
  52. Noguera, D.; Rondón, M.; Laossi, K.-R.; Hoyos, V.; Lavelle, P.; de Carvalho, M.H.C.; Barot, S. Contrasted effect of biochar and earthworms on rice growth and resource allocation in different soils. Soil Bio. Biochem. 2010, 42, 1017–1027. [Google Scholar] [CrossRef]
  53. Liao, F.; Yang, L.; Li, Q.; Xue, J.; Li, Y.; Huang, D.; Yang, L. Effect of biochar on growth, photosynthetic characteristics and nutrient distribution in sugarcane. Sugar Tech. 2019, 21, 289–295. [Google Scholar] [CrossRef]
  54. Zhao, H.; Yu, L.; Yu, M.; Afzal, M.; Dai, Z.; Brookes, P.; Xu, J. Nitrogen combined with biochar changed the feedback mechanism between soil nitrification and Cd availability in an acidic soil. J. Haz. Mat. 2020, 390, 121631. [Google Scholar] [CrossRef]
  55. Akhtar, S.S.; Amby, D.B.; Hegelund, J.N.; Fimognari, L.; Großkinsky, D.K.; Westergaard, J.C.; Müller, R.; Moelbak, L.; Liu, F.; Roitsch, T. Bacillus licheniformis FMCH001 increases water use efficiency via growth stimulation in both normal and drought conditions. Front. Plant Sci. 2020, 11, 297. [Google Scholar] [CrossRef]
  56. Dumas, J. Procédés de l’analyse organique. Ann. Chim. Phys 1831, 47, 198–205. [Google Scholar]
  57. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2013. [Google Scholar]
Plants 13 02279 g001

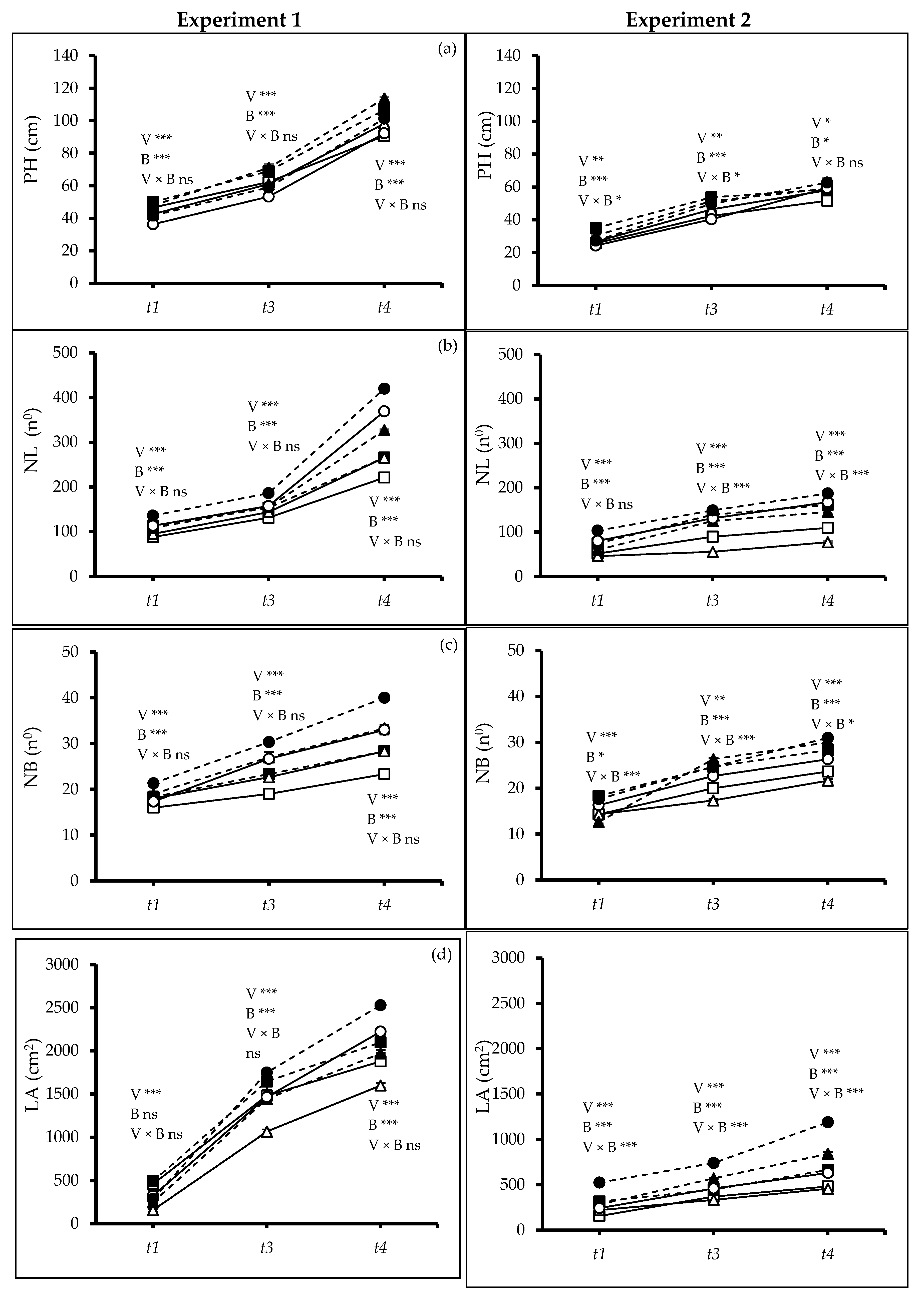

Figure 1. (a) Plant height (PH), (b) number of leaves (NL), (c) number of branches (NB), and (d) leaf area (LA) of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. Values are means (n = 3) ± S.E. In each graph, different stars above and below the lines indicate significant differences among treatments (p ≤ 0.05, Tukey’s test). F-test significant at *—(p ≤ 0.05), **—(p ≤ 0.01), ***—(p ≤ 0.001). t1—start of drought, t3—end of 2nd drought cycle and t4—end of the experiment. White squares: quinoa variety 1 (V1) without biochar. Black squares: quinoa variety 1 (V1) with biochar; white triangles: quinoa variety 2 (V2) without biochar; black triangles: quinoa variety 2 (V2) with biochar; white circles: quinoa variety 3 (V3) without biochar; black circles: quinoa variety 3 (V3) with biochar; solid lines—(B0) no biochar, dash lines—(B2) 2% biochar.
Figure 1. (a) Plant height (PH), (b) number of leaves (NL), (c) number of branches (NB), and (d) leaf area (LA) of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. Values are means (n = 3) ± S.E. In each graph, different stars above and below the lines indicate significant differences among treatments (p ≤ 0.05, Tukey’s test). F-test significant at *—(p ≤ 0.05), **—(p ≤ 0.01), ***—(p ≤ 0.001). t1—start of drought, t3—end of 2nd drought cycle and t4—end of the experiment. White squares: quinoa variety 1 (V1) without biochar. Black squares: quinoa variety 1 (V1) with biochar; white triangles: quinoa variety 2 (V2) without biochar; black triangles: quinoa variety 2 (V2) with biochar; white circles: quinoa variety 3 (V3) without biochar; black circles: quinoa variety 3 (V3) with biochar; solid lines—(B0) no biochar, dash lines—(B2) 2% biochar.
Plants 13 02279 g001
Plants 13 02279 g002

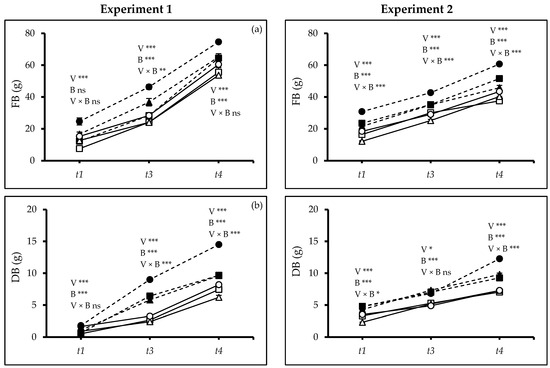

Figure 2. (a) Fresh biomass (FB), and (b) dry biomass (DB) of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. Values are means (n = 3) ± S.E. In each graph, different stars above and below the lines indicate significant differences among treatments (p ≤ 0.05, Tukey’s test). F-test significant at *—(p ≤ 0.05), **—(p ≤ 0.01), ***—(p ≤ 0.001). t1—start of drought, t3—end of 2nd drought cycle and t4—end of the experiment. White squares: quinoa variety 1 (V1) without biochar. Black squares: quinoa variety 1 (V1) with biochar; white triangles: quinoa variety 2 (V2) without biochar; black triangles: quinoa variety 2 (V2) with biochar; white circles: quinoa variety 3 (V3) without biochar; black circles: quinoa variety 3 (V3) with biochar; solid lines—(B0) no biochar, dash lines—(B2) 2% biochar.
Figure 2. (a) Fresh biomass (FB), and (b) dry biomass (DB) of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. Values are means (n = 3) ± S.E. In each graph, different stars above and below the lines indicate significant differences among treatments (p ≤ 0.05, Tukey’s test). F-test significant at *—(p ≤ 0.05), **—(p ≤ 0.01), ***—(p ≤ 0.001). t1—start of drought, t3—end of 2nd drought cycle and t4—end of the experiment. White squares: quinoa variety 1 (V1) without biochar. Black squares: quinoa variety 1 (V1) with biochar; white triangles: quinoa variety 2 (V2) without biochar; black triangles: quinoa variety 2 (V2) with biochar; white circles: quinoa variety 3 (V3) without biochar; black circles: quinoa variety 3 (V3) with biochar; solid lines—(B0) no biochar, dash lines—(B2) 2% biochar.
Plants 13 02279 g002
Plants 13 02279 g003

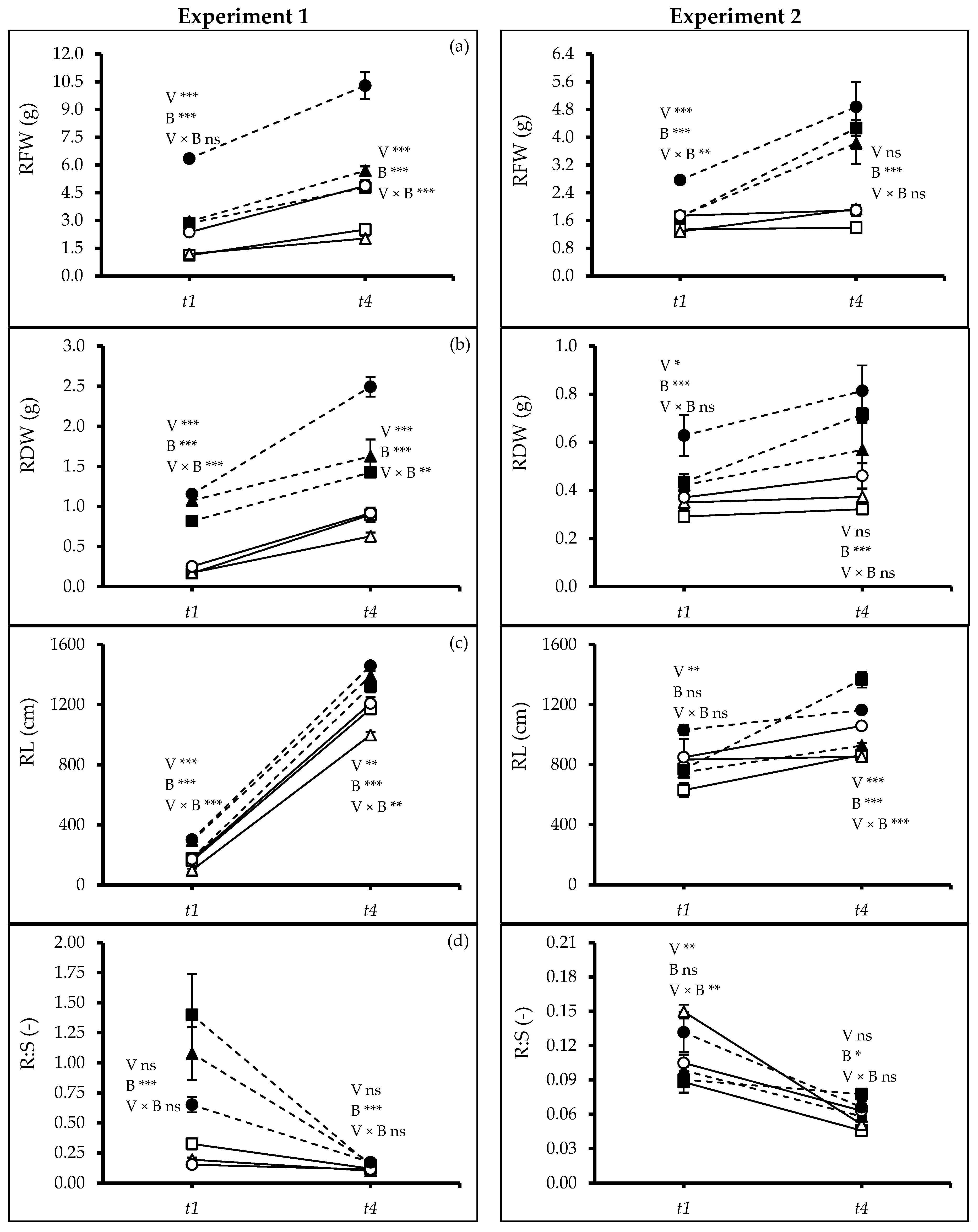

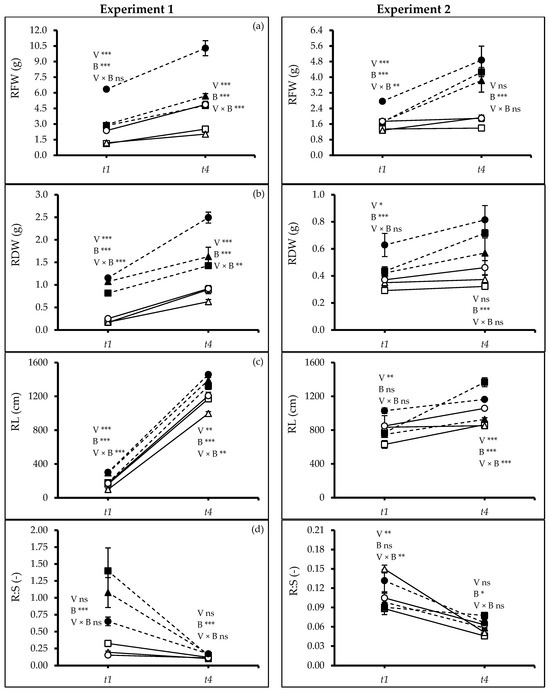

Figure 3. (a) Root fresh weight (RFW), (b) root dry weight (RDW), (c) root length (RL), and (d) root shoot ratio (R:S) of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. In each graph, different stars above and below the lines indicate significant differences among treatments (p ≤ 0.05, Tukey’s test). F-test significant at *—(p ≤ 0.05), **—(p ≤ 0.01), ***—(p ≤ 0.001). t1—start of drought, and t4—end of the experiment. White squares: quinoa variety 1 (V1) without biochar. Black squares: quinoa variety 1 (V1) with biochar; white triangles: quinoa variety 2 (V2) without biochar; black triangles: quinoa variety 2 (V2) with biochar; white circles: quinoa variety 3 (V3) without biochar; black circles: quinoa variety 3 (V3) with biochar; solid lines—(B0) no biochar, dash lines—(B2) 2% biochar.
Figure 3. (a) Root fresh weight (RFW), (b) root dry weight (RDW), (c) root length (RL), and (d) root shoot ratio (R:S) of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. In each graph, different stars above and below the lines indicate significant differences among treatments (p ≤ 0.05, Tukey’s test). F-test significant at *—(p ≤ 0.05), **—(p ≤ 0.01), ***—(p ≤ 0.001). t1—start of drought, and t4—end of the experiment. White squares: quinoa variety 1 (V1) without biochar. Black squares: quinoa variety 1 (V1) with biochar; white triangles: quinoa variety 2 (V2) without biochar; black triangles: quinoa variety 2 (V2) with biochar; white circles: quinoa variety 3 (V3) without biochar; black circles: quinoa variety 3 (V3) with biochar; solid lines—(B0) no biochar, dash lines—(B2) 2% biochar.
Plants 13 02279 g003
Plants 13 02279 g004aPlants 13 02279 g004b

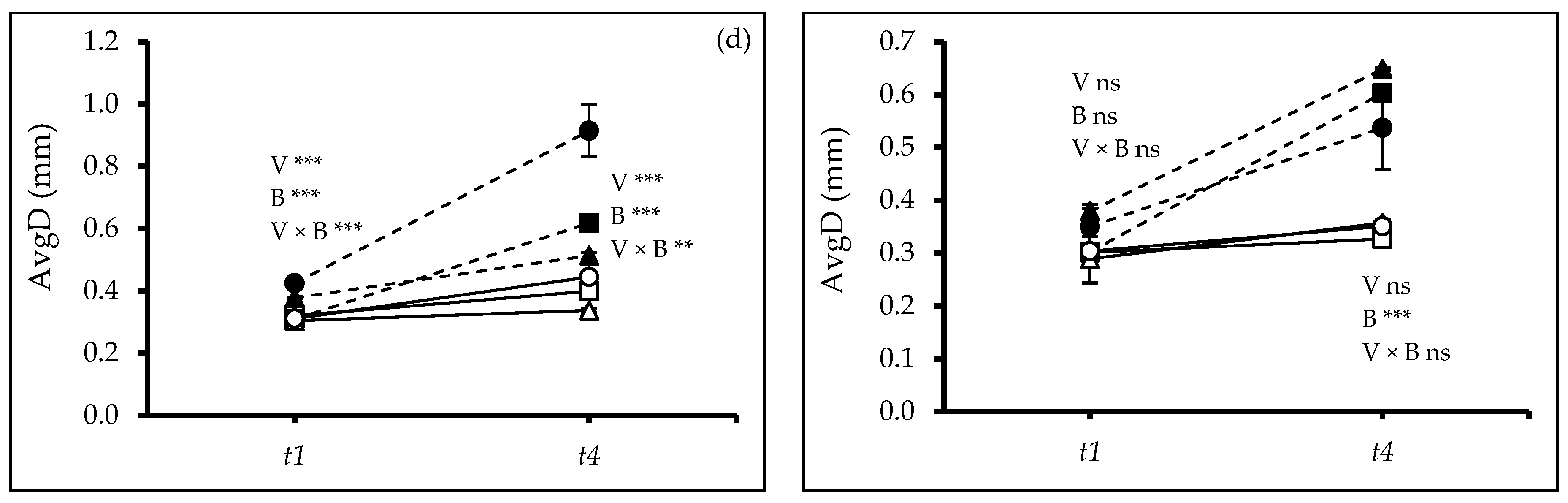

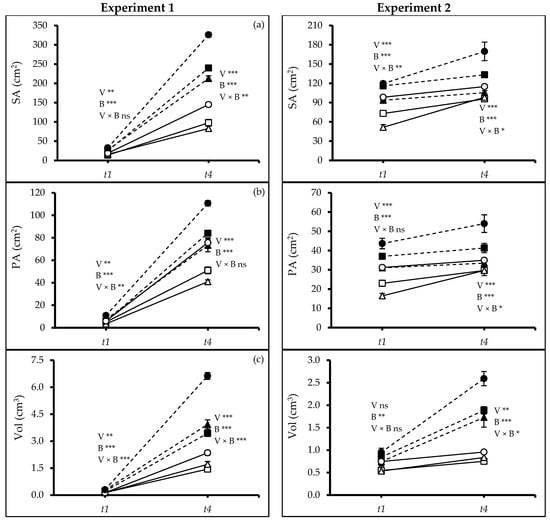

Figure 4. (a) Root surface area (SA), (b) root projected area (PA), (c) root volume (Vol), and (d) root average diameter (AvgD) of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. In each graph, different stars above and below the lines indicate significant differences among treatments (p ≤ 0.05, Tukey’s test). F-test significant at *—(p ≤ 0.05), **—(p ≤ 0.01), ***—(p ≤ 0.001). t1—start of drought, and t4—end of the experiment. White squares: quinoa variety 1 (V1) without biochar. Black squares: quinoa variety 1 (V1) with biochar; white triangles: quinoa variety 2 (V2) without biochar; black triangles: quinoa variety 2 (V2) with biochar; white circles: quinoa variety 3 (V3) without biochar; black circles: quinoa variety 3 (V3) with biochar; solid lines—(B0) no biochar, dash lines—(B2) 2% biochar.
Figure 4. (a) Root surface area (SA), (b) root projected area (PA), (c) root volume (Vol), and (d) root average diameter (AvgD) of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. In each graph, different stars above and below the lines indicate significant differences among treatments (p ≤ 0.05, Tukey’s test). F-test significant at *—(p ≤ 0.05), **—(p ≤ 0.01), ***—(p ≤ 0.001). t1—start of drought, and t4—end of the experiment. White squares: quinoa variety 1 (V1) without biochar. Black squares: quinoa variety 1 (V1) with biochar; white triangles: quinoa variety 2 (V2) without biochar; black triangles: quinoa variety 2 (V2) with biochar; white circles: quinoa variety 3 (V3) without biochar; black circles: quinoa variety 3 (V3) with biochar; solid lines—(B0) no biochar, dash lines—(B2) 2% biochar.
Plants 13 02279 g004aPlants 13 02279 g004b
Plants 13 02279 g005aPlants 13 02279 g005b

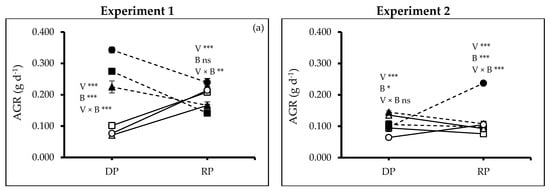

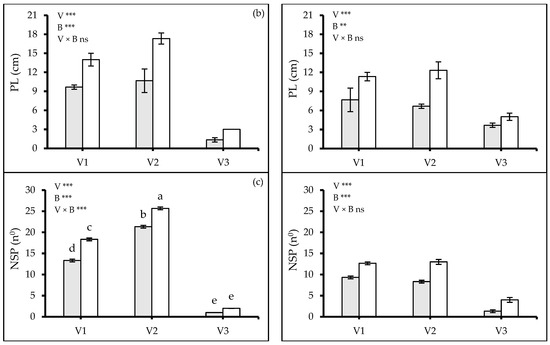

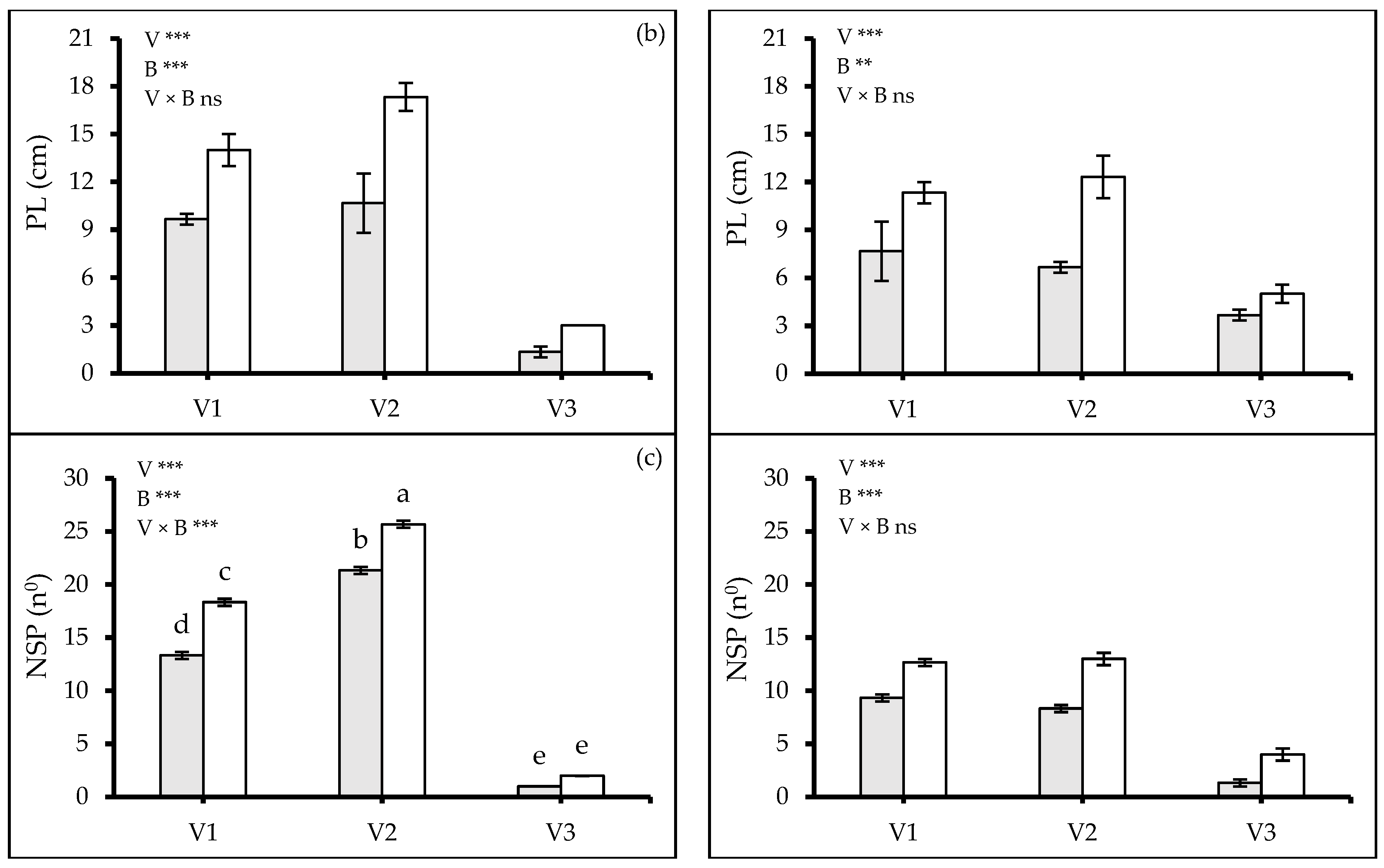

Figure 5. (a) Absolute growth rate (AGR), (b) panicle length (PL) and (c) number of subpanicles (NSP) of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. In each graph, different stars above and below the lines indicate significant differences among treatments (p ≤ 0.05, Tukey’s test). F-test significant at *—(p ≤ 0.05), **—(p ≤ 0.01), ***—(p ≤ 0.001). DP—drought period, RP—recovery period. White squares: quinoa variety 1 (V1) without biochar. Black squares: quinoa variety 1 (V1) with biochar; white triangles: quinoa variety 2 (V2) without biochar; black triangles: quinoa variety 2 (V2) with biochar; white circles: quinoa variety 3 (V3) without biochar; black circles: quinoa variety 3 (V3) with biochar; solid lines and grey filled bars—(B0) no biochar, dash lines and unfilled bars—(B2) 2% biochar.
Figure 5. (a) Absolute growth rate (AGR), (b) panicle length (PL) and (c) number of subpanicles (NSP) of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. In each graph, different stars above and below the lines indicate significant differences among treatments (p ≤ 0.05, Tukey’s test). F-test significant at *—(p ≤ 0.05), **—(p ≤ 0.01), ***—(p ≤ 0.001). DP—drought period, RP—recovery period. White squares: quinoa variety 1 (V1) without biochar. Black squares: quinoa variety 1 (V1) with biochar; white triangles: quinoa variety 2 (V2) without biochar; black triangles: quinoa variety 2 (V2) with biochar; white circles: quinoa variety 3 (V3) without biochar; black circles: quinoa variety 3 (V3) with biochar; solid lines and grey filled bars—(B0) no biochar, dash lines and unfilled bars—(B2) 2% biochar.
Plants 13 02279 g005aPlants 13 02279 g005b
Plants 13 02279 g006

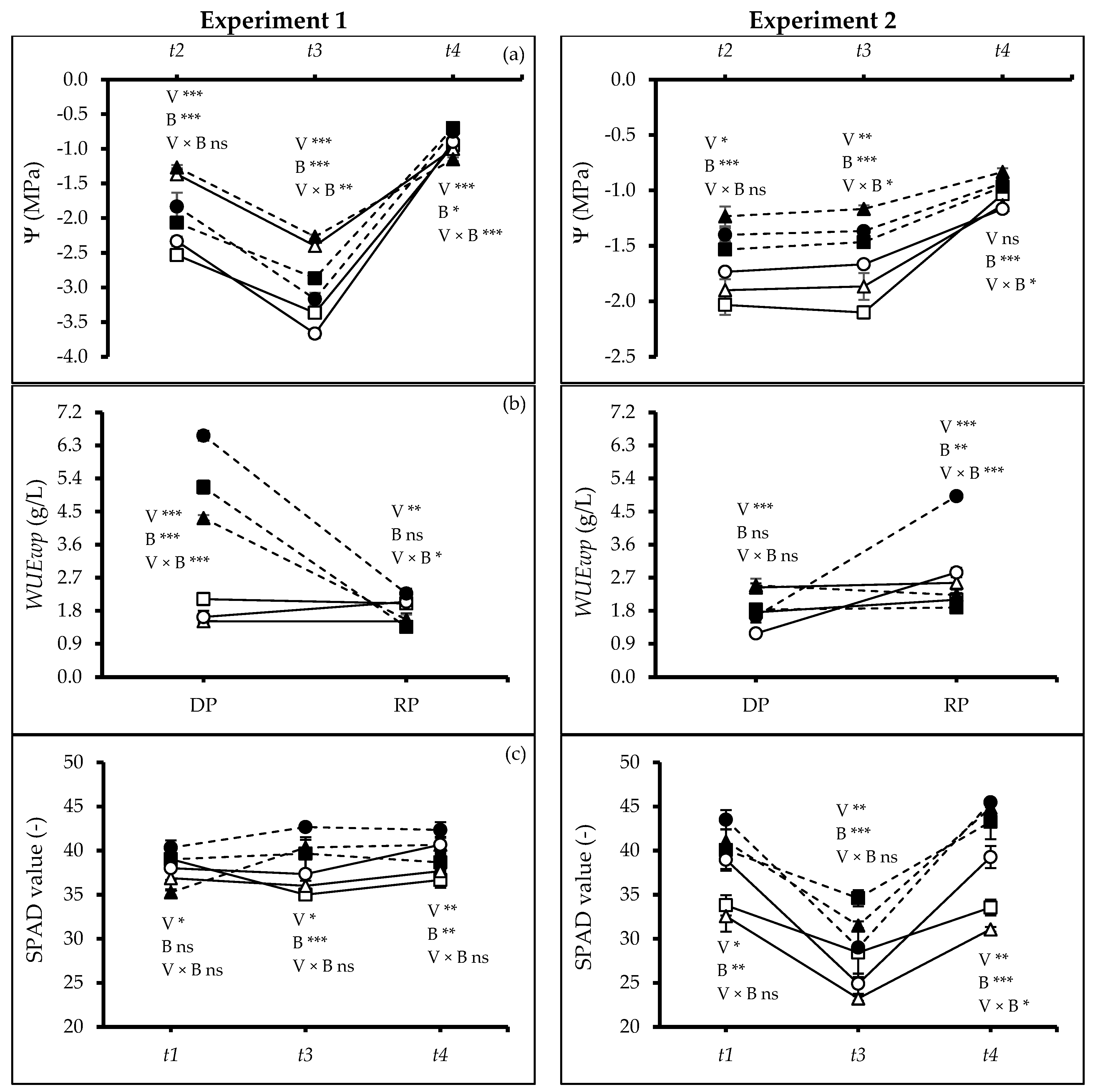

Figure 6. (a) Total water potential (Ψ), (b) whole plant water use efficiency (WUEwp) and (c) SPAD index of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. Values are means (n = 3) ± S.E. In each graph, different stars above and below the lines indicate significant differences among treatments (p ≤ 0.05, Tukey’s test). F-test significant at *—(p ≤ 0.05), **—(p ≤ 0.01), ***—(p ≤ 0.001). t1—the start of drought, t2—end of 1st drought cycle, t3—end of 2nd drought cycle, and t4—end of the experiment. DP—drought period, RP—recovery period. White squares: quinoa variety 1 (V1) without biochar. Black squares: quinoa variety 1 (V1) with biochar; white triangles: quinoa variety 2 (V2) without biochar; black triangles: quinoa variety 2 (V2) with biochar; white circles: quinoa variety 3 (V3) without biochar; black circles: quinoa variety 3 (V3) with biochar; solid lines—(B0) no biochar, dash lines—(B2) 2% biochar.
Figure 6. (a) Total water potential (Ψ), (b) whole plant water use efficiency (WUEwp) and (c) SPAD index of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. Values are means (n = 3) ± S.E. In each graph, different stars above and below the lines indicate significant differences among treatments (p ≤ 0.05, Tukey’s test). F-test significant at *—(p ≤ 0.05), **—(p ≤ 0.01), ***—(p ≤ 0.001). t1—the start of drought, t2—end of 1st drought cycle, t3—end of 2nd drought cycle, and t4—end of the experiment. DP—drought period, RP—recovery period. White squares: quinoa variety 1 (V1) without biochar. Black squares: quinoa variety 1 (V1) with biochar; white triangles: quinoa variety 2 (V2) without biochar; black triangles: quinoa variety 2 (V2) with biochar; white circles: quinoa variety 3 (V3) without biochar; black circles: quinoa variety 3 (V3) with biochar; solid lines—(B0) no biochar, dash lines—(B2) 2% biochar.
Plants 13 02279 g006
Plants 13 02279 g007
Figure 7. (a) Total Carbon% (C, %), (b) total Nitrogen% (N, %), (c) Carbon–Nitrogen ratio (C:N) of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. Values are means (n = 3) ± S.E. In each graph, different stars indicate significant differences among treatments (p ≤ 0.05, Tukey’s test). F-test significant at *—(p ≤ 0.05), **—(p ≤ 0.01), ***—(p ≤ 0.001). V1, V2 and V3—quinoa varieties; grey bars—(B0) no biochar, white bars—(B2) 2% biochar.
Figure 7. (a) Total Carbon% (C, %), (b) total Nitrogen% (N, %), (c) Carbon–Nitrogen ratio (C:N) of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. Values are means (n = 3) ± S.E. In each graph, different stars indicate significant differences among treatments (p ≤ 0.05, Tukey’s test). F-test significant at *—(p ≤ 0.05), **—(p ≤ 0.01), ***—(p ≤ 0.001). V1, V2 and V3—quinoa varieties; grey bars—(B0) no biochar, white bars—(B2) 2% biochar.
Plants 13 02279 g007
Plants 13 02279 g008
Figure 8. Linear correlation analysis between SPAD values and N content (%) in leaves from experiment 1 (a) and experiment 2 (b) of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. White circles are measurements.
Figure 8. Linear correlation analysis between SPAD values and N content (%) in leaves from experiment 1 (a) and experiment 2 (b) of quinoa (Chenopodium quinoa Willd.) varieties treated without and with woodchip biochar. White circles are measurements.
Plants 13 02279 g008
Plants 13 02279 g009
Figure 9. PCA correlation analysis of growth-related attributes at t4 (similar observations were recorded for both experiments). Red arrows indicate the variables included in the PCA, with arrow length representing the contribution of each variable to the principal components. PH—plant height, NSP—number of sub-panicles, PL—panicle length, C%—carbon% in the leaves, N%—nitrogen% in leaves, NB—number of branches, SPAD—SPAD index, NL—number of leaves, Vol—root volume, R:S—root to shoot ratio, RFW—root fresh weight, RDW—root dry weight, FW—fresh weight, DW—dry weight, SA—root surface area, PA—root projected area, AvgD—average density and RL—root length.
Figure 9. PCA correlation analysis of growth-related attributes at t4 (similar observations were recorded for both experiments). Red arrows indicate the variables included in the PCA, with arrow length representing the contribution of each variable to the principal components. PH—plant height, NSP—number of sub-panicles, PL—panicle length, C%—carbon% in the leaves, N%—nitrogen% in leaves, NB—number of branches, SPAD—SPAD index, NL—number of leaves, Vol—root volume, R:S—root to shoot ratio, RFW—root fresh weight, RDW—root dry weight, FW—fresh weight, DW—dry weight, SA—root surface area, PA—root projected area, AvgD—average density and RL—root length.
Plants 13 02279 g009
Table 1. Varieties used in the experiments.
Table 1. Varieties used in the experiments.
VarietiesCodeOriginCollection Site/Company
TiticacaV1DenmarkUniversity of Copenhagen, Taastrup, Denmark
QuipuV2ItalyTuttoquinoa di Vannuzzi Dario, Manciano, Italy
UAFQ7V3PakistanMuhammad Nawaz Shareef University of Agriculture (MNSUAM), Multan, Pakistan
Table 2. Woodchip biochar amendment properties used in the experiment (from [23]).
Table 2. Woodchip biochar amendment properties used in the experiment (from [23]).
ParametersBiochar
pH8.9 ± 0.13
EC0.52 ± 0.04 dS m−1
Moisture5.6 ± 0.11% dw
Volatile solids42.3 ± 0.44% dw
Ash4.4 ± 0.21% dw
Fixed carbon53.3 ± 0.24% dw
C68.3 ± 0.11% dw
H4 ± 0.04% dw
N1 ± 0.03% dw
Corg66.3 ± 0.06% dw
C/N67.2 ± 1.96
S0.03 ± 0.01% dw
O22.3 ± 0.29% dw
H/Corg ratio0.06 ± 0.01
O/Corg ratio0.4 ± 0.01
Values are means (n = 3) ± s.e. dw = dry weight
Table 3. Soil properties used in the experiment.
Table 3. Soil properties used in the experiment.
ParametersUnitsSoil
Phosphorus(mg/100 g)4.7
Potassium(mg/100 g)19
Magnesium(mg/100 g)5.9
Sodium(mg/100 g)2.6
Manganese(mg/kg)30.2
Copper(mg/kg)1.5
Zinc total(mg/kg)2.4
Boron(mg/10 kg)3.4
Molybdenum(mg/10 kg)0.92
Organic matter(%)2.14
Clay (<0.002 mm)(%)9.1
Silt (0.002 mm)(%)7.0
Fine sand (0.02–0.2 mm)(%)43.5
Coarse sand (0.2–2.0 mm)(%)38.4
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Akram, M.Z.; Rivelli, A.R.; Libutti, A.; Liu, F.; Andreasen, C. Mitigation of Drought Stress for Quinoa (Chenopodium quinoa Willd.) Varieties Using Woodchip Biochar-Amended Soil. Plants 2024, 13, 2279. https://doi.org/10.3390/plants13162279

AMA Style

Akram MZ, Rivelli AR, Libutti A, Liu F, Andreasen C. Mitigation of Drought Stress for Quinoa (Chenopodium quinoa Willd.) Varieties Using Woodchip Biochar-Amended Soil. Plants. 2024; 13(16):2279. https://doi.org/10.3390/plants13162279

Chicago/Turabian Style

Akram, Muhammad Zubair, Anna Rita Rivelli, Angela Libutti, Fulai Liu, and Christian Andreasen. 2024. "Mitigation of Drought Stress for Quinoa (Chenopodium quinoa Willd.) Varieties Using Woodchip Biochar-Amended Soil" Plants 13, no. 16: 2279. https://doi.org/10.3390/plants13162279

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
